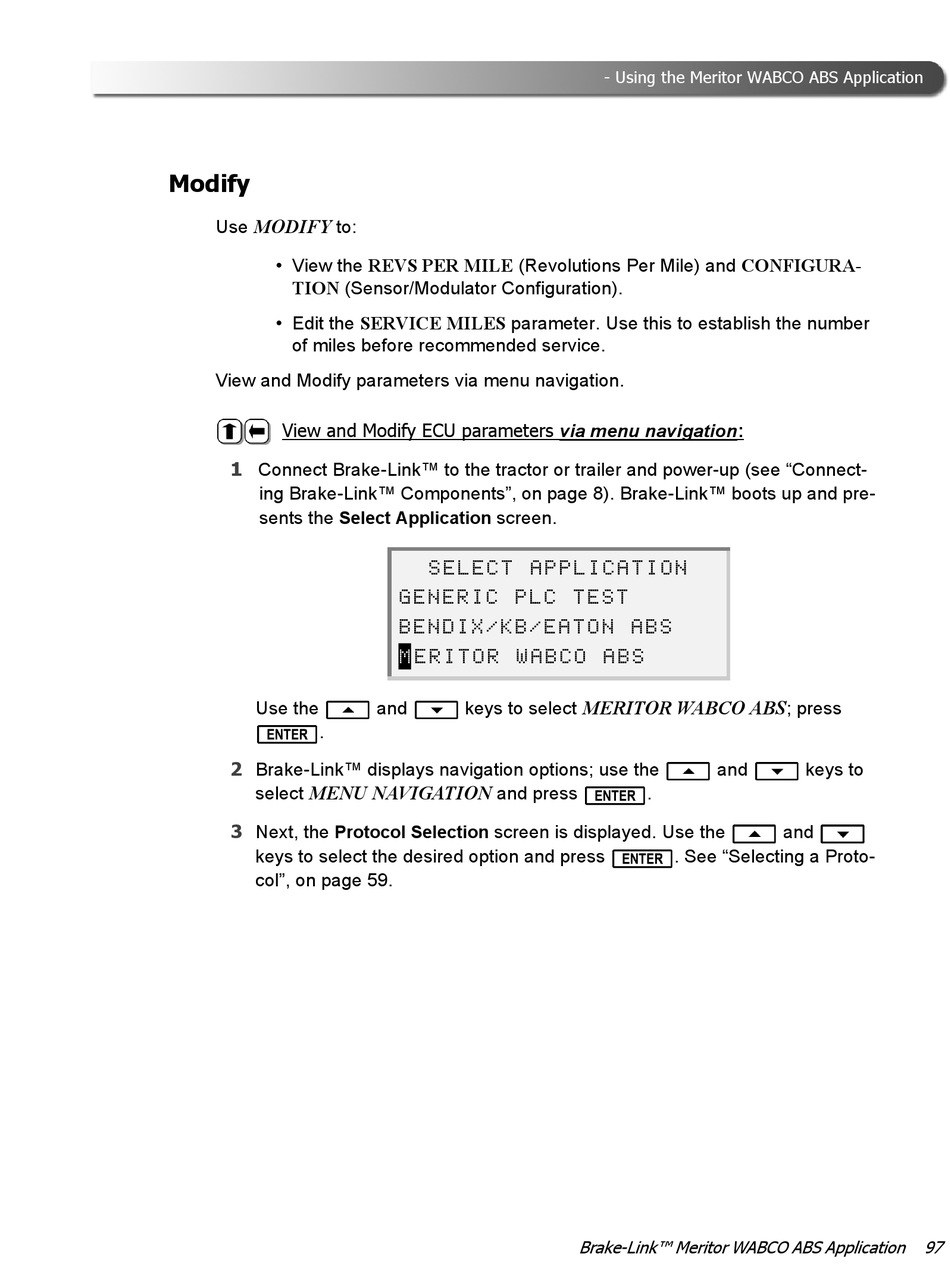

Modify - NEXIQ Technologies Brake-Link Manual

Modify

MODIFY
Use to:
• View the REVS PER MILE (Revolutions Per Mile) and CONFIGURA-
TION (Sensor/Modulator Configuration).
• Edit the SERVICE MILES parameter. Use this to establish the number
of miles before recommended service.
View and Modify parameters via menu navigation.
View and Modify ECU parameters via menu navigation:
1
Connect Brake-Link™ to the tractor or trailer and power-up (see "Connect-
ing Brake-Link™ Components", on page 8). Brake-Link™ boots up and pre-
sents the Select Application screen.
Use the
.
2
Brake-Link™ displays navigation options; use the
select MENU NAVIGATION
3
Next, the Protocol Selection screen is displayed. Use the
keys to select the desired option and press
col", on page 59.
SELECT APPLICATION
G E N E R I C P L C T E S T
BENDIX/KB/EATON ABS
M E R I T O R W A B C O A B S
and keys to select
and press
- Using the Meritor WABCO ABS Application
MERITOR WABCO ABS
and
.
. See "Selecting a Proto-
Brake-Link™ Meritor WABCO ABS Application
; press
keys to
and
97
