Tektronix TTR500 Series Quick Start Manual

xx

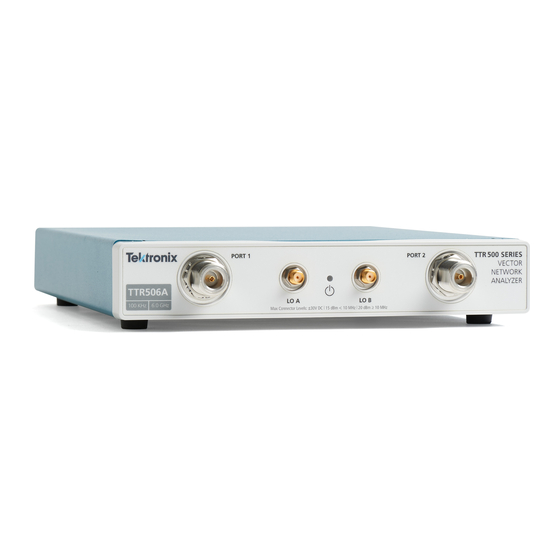

TTR500 Series Vector Network Analyzer
— Installation
— Compliance
— Safety
Quick Start Guide
1
*P071348600*
071-3486-00
x
Contact Tektronix
Tektronix, Inc., 14150 SW Karl Braun Drive, P.O. Box 500,
Beaverton, OR 97077, USA
For product information, sales, service, and technical support:
In North America, call 1-800-833-9200.
Worldwide, visit www.Tek.com to find contacts in your area.
Important safety information
This manual contains information and warnings that must
be followed by the user for safe operation and to keep the
product in a safe condition. Use the product only as specified.
Review these safety precautions to avoid injury and prevent
damage to this product or any products connected to it. Read
all instructions carefully and retain them for future reference.
See Service safety summary at the end of this section to safely
perform service on this product.
Comply with local and national safety codes.
For correct and safe operation of the product, it is essential that
you follow generally accepted safety procedures in addition to
the safety precautions specified in this manual.
The product is designed to be used by trained personnel only.
Only qualified personnel who are aware of the hazards involved
should remove the cover for repair, maintenance, or adjustment.
Before use, always check the product with a known source to
be sure it is operating correctly. This product is not intended for
detection of hazardous voltages.
While using this product, you may need to access other parts
of a larger system. Read the safety sections of the other
component manuals for warnings and cautions related to
operating the system. When incorporating this equipment into
a system, the safety of that system is the responsibility of the
assembler of the system.
To avoid fire or personal injury
Use proper power cord. Use only the power cord specified for
this product and certified for the country of use.
Do not use the provided power cord for other products.
Ground the product. This product is grounded through the
grounding conductor of the power cord. To avoid electric
shock, the grounding conductor must be connected to earth
ground.
Before making connections to the input or output terminals of
the product, ensure that the product is properly grounded.
Do not disable the power cord grounding connection.
Power disconnect. The power cord disconnects the product
from the power source. See instructions for the location. Do
not position equipment so that it is difficult to disconnect the
power cord; it must remain accessible to the user at all times to
allow for quick disconnection if needed.
Use proper AC adapter. Use only the AC adapter specified for
this product.
Connect and disconnect properly. Do not connect or disconnect
probes or test leads while they are connected to a voltage
source.
Observe all terminal ratings. To avoid fire or shock hazard,
observe all ratings and markings on the product. Consult the
product manual for further ratings information before making
connections to the product.
Do not apply a potential to any terminal, including the common
terminal, that exceeds the maximum rating of that terminal.
Do not float the common terminal above the rated voltage for
that terminal.
The measuring terminals on this product are not rated for
connection to mains or Category II,III, or IV circuits.
Do not operate without covers. Do not operate this product
with covers or panels removed.
Avoid exposed circuitry. Do not touch exposed connections
and components when power is present.
Do not operate with suspected failures. If you suspect that
there is damage to this product, have it inspected by qualified
service personnel.
Disable the product if it is damaged. Do not use the product if
it is damaged or operates incorrectly. If in doubt about safety of
the product, turn it off and disconnect the power cord. Clearly
mark the product to prevent its further operation.
Before use, inspect voltage probes, test leads, and accessories
for mechanical damage and replace when damaged. Do not use
probes or test leads if they are damaged, if there is exposed
metal, or if a wear indicator shows.
Examine the exterior of the product before you use it. Look
for cracks or missing pieces.
Use only specified replacement parts.
Do not operate in wet/damp conditions. Be aware that
condensation may occur if a unit is moved from a cold to a
warm environment.
Do not operate in an explosive atmosphere.
Keep product surfaces clean and dry. Remove the input signals
before you clean the product.
Provide proper ventilation. Refer to the installation instructions
for details on installing the product so it has proper ventilation.
Provide a safe working environment. Always place the product
in a location convenient for viewing the display and indicators.
Avoid improper or prolonged use of keyboards, pointers, and
button pads. Improper or prolonged keyboard or pointer use
may result in serious injury.
Ensure that your work area meets applicable ergonomic
standards. Consult with an ergonomics professional to avoid
stress injuries.
Use only the Tektronix rackmount hardware specified for this
product.
Service safety summary
The Service safety summary section contains additional
information required to safely perform service on the product.
Only qualified personnel should perform service procedures.
Read this Service safety summary and the General safety
summary before performing any service procedures.
To avoid electric shock. Do not touch exposed connections.
Do not service alone. Do not perform internal service or
adjustments of this product unless another person capable of
rendering first aid and resuscitation is present.
Disconnect power. To avoid electric shock, switch off the
product power and disconnect the power cord from the mains
power before removing any covers or panels, or opening the
case for servicing.
Use care when servicing with power on. Dangerous voltages
or currents may exist in this product. Disconnect power,
remove battery (if applicable), and disconnect test leads
before removing protective panels, soldering, or replacing
components.
Verify safety after repair. Always recheck ground continuity
and mains dielectric strength after performing a repair.
Terms in this manual
These terms may appear in this manual:
WARNING.
Warning statements identify conditions or
practices that could result in injury or loss of life.
CAUTION.
Caution statements identify conditions or
practices that could result in damage to this product or
other property.
Symbols and terms on the product
These terms may appear on the product:
DANGER indicates an injury hazard immediately
accessible as you read the marking.
WARNING indicates an injury hazard not immediately
accessible as you read the marking.
CAUTION indicates a hazard to property including the
product.
The following symbol(s) may appear on the product:
Compliance information
This section lists the EMC (electromagnetic compliance),
safety, and environmental standards with which the instrument
complies.
EMC compliance
EC Declaration of Conformity – EMC
Meets intent of Directive 2014/30/EU for Electromagnetic
Compatibility. Compliance was demonstrated to the following
specifications as listed in the Official Journal of the European
Communities:
EN 61326-1, EN 61326-2-1. EMC requirements for electrical
equipment for measurement, control, and laboratory use.
CISPR 11. Radiated and conducted emissions, Group 1,
Class A
IEC 61000-4-2. Electrostatic discharge immunity
IEC 61000-4-3. RF electromagnetic field immunity
IEC 61000-4-4. Electrical fast transient / burst immunity
IEC 61000-4-5. Power line surge immunity
IEC 61000-4-6. Conducted RF immunity
IEC 61000-4-11. Voltage dips and interruptions immunity
EN 61000-3-2. AC power line harmonic emissions
EN 61000-3-3. Voltage changes, fluctuations, and flicker
European contact.
Mfr. Compliance Contact
Tektronix, Inc. PO Box 500, MS 19-045
Beaverton, OR 97077 USA
www.tek.com
1
This product is intended for use in nonresidential areas only. Use in residential
areas may cause electromagnetic interference.
2
Emissions which exceed the levels required by this standard may occur when
this equipment is connected to a test object.
3
For compliance with the EMC standards listed here, high quality shielded
interface cables should be used.
1 2 3 4
