INSTALLATION

Power Consumption
•AC:
Approx. 3.5 VA at 100 V
Approx. 5.5 VA at 200 V
Approx. 6.5 VA at 264 V
•DC: Approx. 3 W
Operating temperature: -5 to +55°C (23 to 131°F)
Operating humidity: 30 to 90 %RH (non-condensing)
Mounting: Surface or DIN rail
Weight: 150 g (0.33 lbs)
PERFORMANCE in percentage of span
Accuracy: ±0.1 %
Temp. coefficient: ±0.015 %/°C (±0.008 %/°F)
Response time: ≤ 0.5 sec. (0 – 90 %)
Line voltage effect
Supply output: ±3 % over voltage range
Output signal: ±0.1 % over voltage range
Insulation resistance: ≥ 100 MΩ with 500 V DC
Dielectric strength: 2000 V AC @1 minute (input to output
to power to ground)

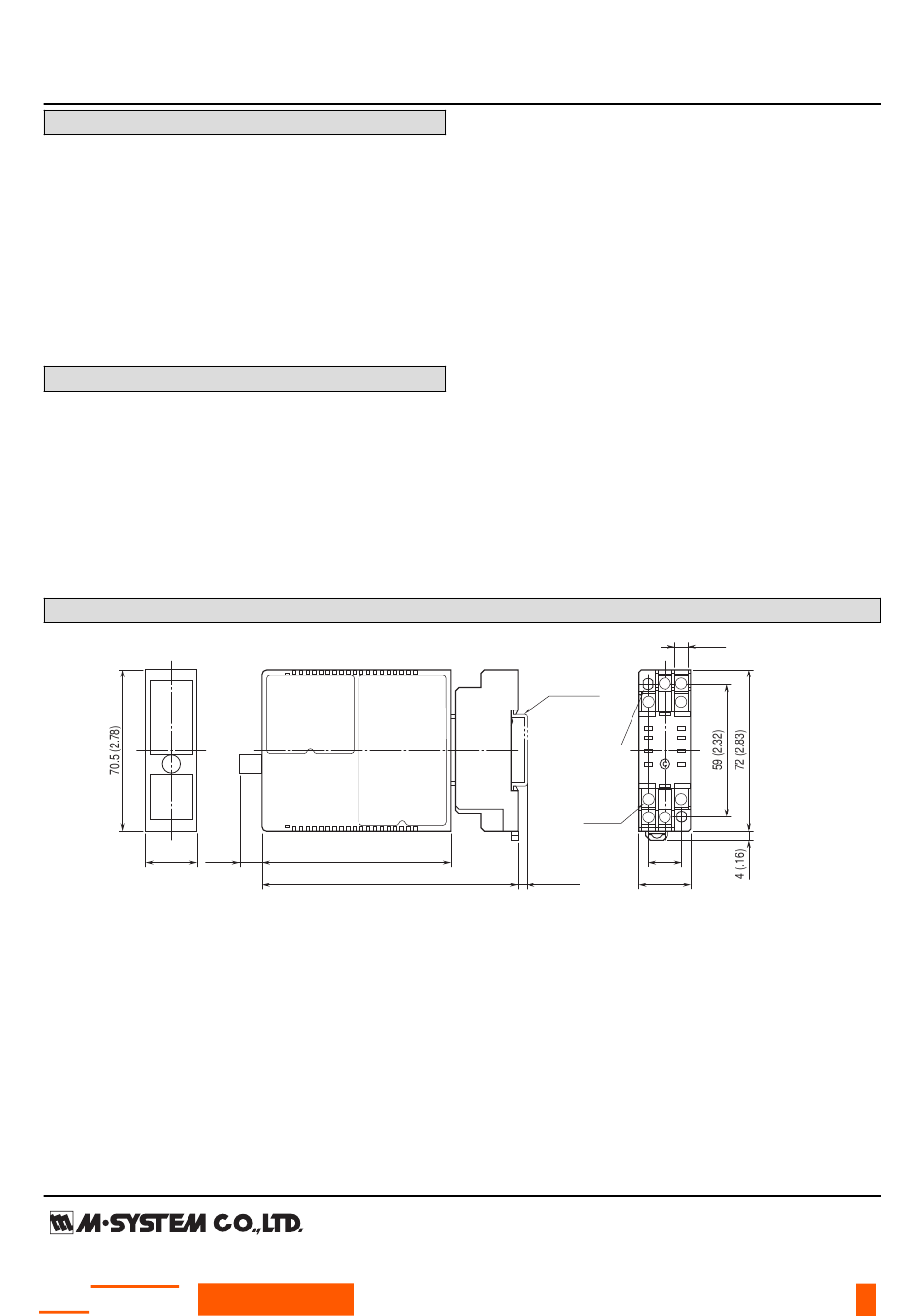

DIMENSIONS unit: mm (inch)
21.5 (.85) 10 (.39)
SEN TRONIC
AG
Produkte, Support und Service
84 (3.31)
114 (4.49)
• When mounting, no extra space is needed between units.
Rugghölzli 2
CH - 5453 Busslingen
MODEL: M2DYH
6 (.23)
DIN RAIL
4 1
35mm wide
8 5
2–4.2x5
(.17x.20)
MTG HOLE
6 (.24) deep
12 9
8–M3
SCREW
14 13
15 (.59)
[4 (.16)] 23 (.91)
