Installation and Assembly - Plasma Video Conference Shelf
Parts List
PARTS LIST
PART #
QTY.
A
200-1305
1
B
200-1306
2
C
200-1307
2
D
200-1005
4
E
520-9250
6
F
520-1006
4
Fasten two M5 screws (E) into second hole of wall bracket (C) leaving about 1/4" gap as shown below.
Note: To increase the height of shelf just place screws (E) into upper holes of wall bracket (C).
C
Visit the Peerless Web Site at www.peerlessindustries.com
DESCRIPTION

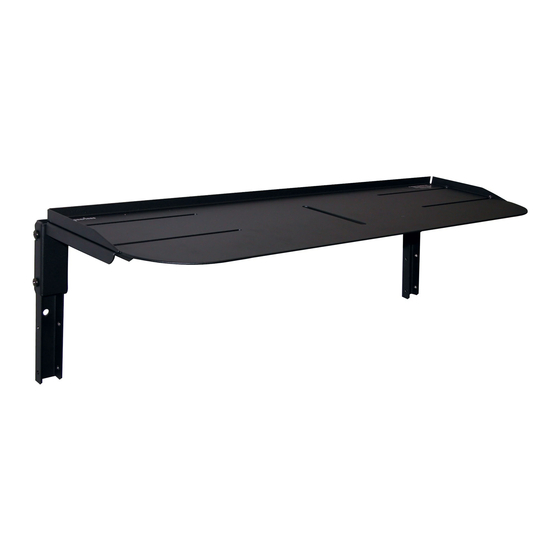

shelf
shelf bracket
wall bracket
#14 x 2 1/4" wood screw
M5 x .8 x 10mm phillips screw
M4 x .7 x 6mm phillips screw
Some parts may appear slightly different than illustrated.
E
A
C
D
Note: This end up.
C
E
1 of 3
ISSUED: 07-01-02 SHEET #: 200-9383-2 11-10-04
For customer service call 1-800-729-0307 or 708-865-8870.
Model:
ACC 309
B
E
F
1/4"
