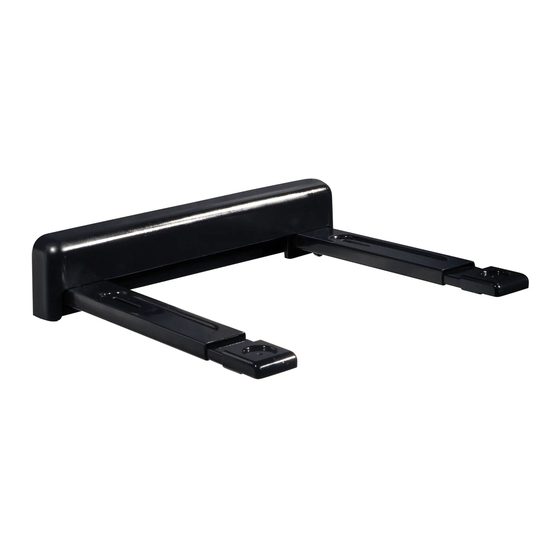

Installing Wall Plate to Metal Stud Walls

Installation to Double Metal Stud Wall (Metal Stud Accessory Kit ACC 215 Required
• Drywall must be 1/2" or thicker, and metal stud must be 24 gauge or thicker.
• Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached
hardware and components.

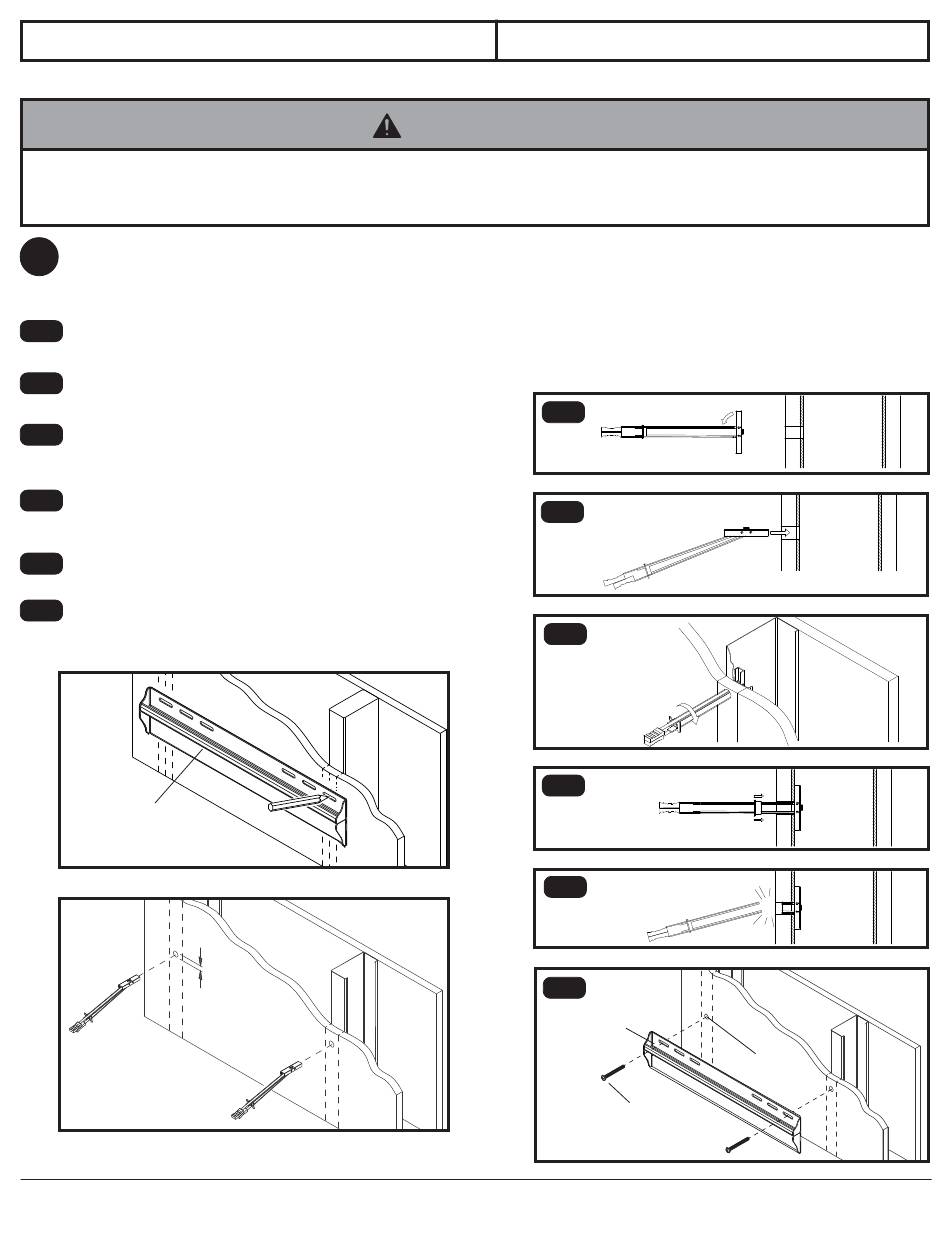

1 FOR METAL STUD WALLS ONLY: Determine the mounting location of wall plate using the formula in step one. Use
wall plate as a template to mark hole centers on stud centers as shown in Illustration B. Drill two 1/2" (13 mm) dia.
holes through drywall and studs. Insert togglers as shown below...
1-1
Pivot end of toggler.
1-2
Push into hole.
1-3
Rotate toggler clockwise to wedge it against inside
walls of metal stud.
1-4
Slide plastic cap forward while pulling back firmly
on ring.
1-5
Break off excess.
1-6
Align mounting holes of wall plate with
togglers in wall and fasten using two 1/4-20
screws.
wall plate
ILLUSTRATION B
Visit the Peerless Web Site at www.peerlessmounts.com
1/2"
(13 mm)
Model: PS200

WARNING

1-1
1-2
1-3
1-4
1-5
1-6
wall plate
1 of 3
For customer care call 1-800-865-2112 or 708-865-8870.
All other brand and product names are trademarks or registered trademarks of their respective owners.
toggler
1/4-20 screws
ISSUED: 09-13-07 SHEET #: 083-9004MS-3 04-23-09
