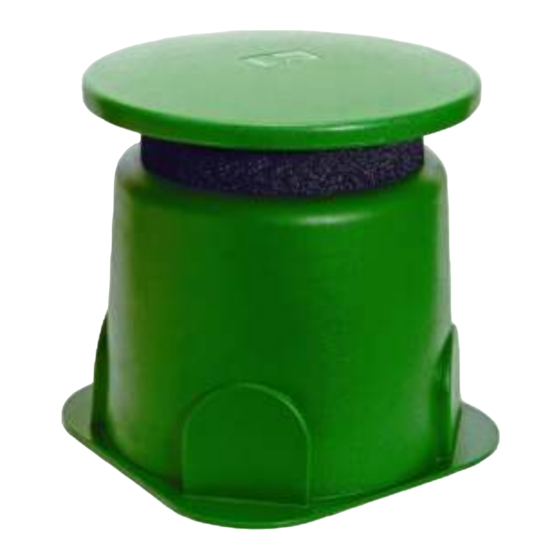

- Page 1 GS series Outdoor Omnidirectional In-Ground/Surface-Mount Speaker Instruction Manual GS-series Instruction Manual...
- Page 2 Before you begin A passive outdoor loudspeaker system is one of the best audio entertainment investments you can make for both residential and commercial installations. Investing the time and labour to install a wired speaker system will provide the safest and most dependable sound solution that can be easily upgraded and customized over time.
- Page 3 Wiring Diagram Choose the appropriate wiring option depending on your model and overall system design. * Colorized version of wiring diagrams and manual is available on our website (www.ticcorp.com). In typical installations, positive terminals are connected to red wires and negative terminals are connected to black wires.
- Page 4 GS-series Instruction Manual...
- Page 5 GS-series Instruction Manual...
- Page 6 GS-series Instruction Manual...
- Page 7 GS-series Instruction Manual...
- Page 8 • The GS series is designed to be water-resistant not waterproof. When burying the speaker in-ground, the bottom of the grill should be at least 2 inches above ground level. In addition, speaker should not be installed in a low area prone to water collection or where sprinklers will spray into the grill.
- Page 9 Specification GS50 Type Single Coaxial 3-Way DVC Pair of Coaxial Subwoofer 8”woofer 8”woofer 5”woofers Driver Size 8”subwoofer 2”tweeter 2 x 2” tweeter 2”tweeters Power Handling (RMS/Peak) 100W/200W 100W/200W 50W/100W 150W/250W 8Ω/channel 8Ω (standard) Impedance 8Ω 4Ω (parallel) 8Ω/speaker 4Ω (with satellites) 16Ω...
- Page 10 TIC Audio Inc./TIC Audio Europe vof. All rights reserved. The TIC logo is a trademark of TIC Audio Inc. and TIC Audio Europe vof, registered in the United States and Europe. Features, specifications, and appearance are subject to change without notice.
