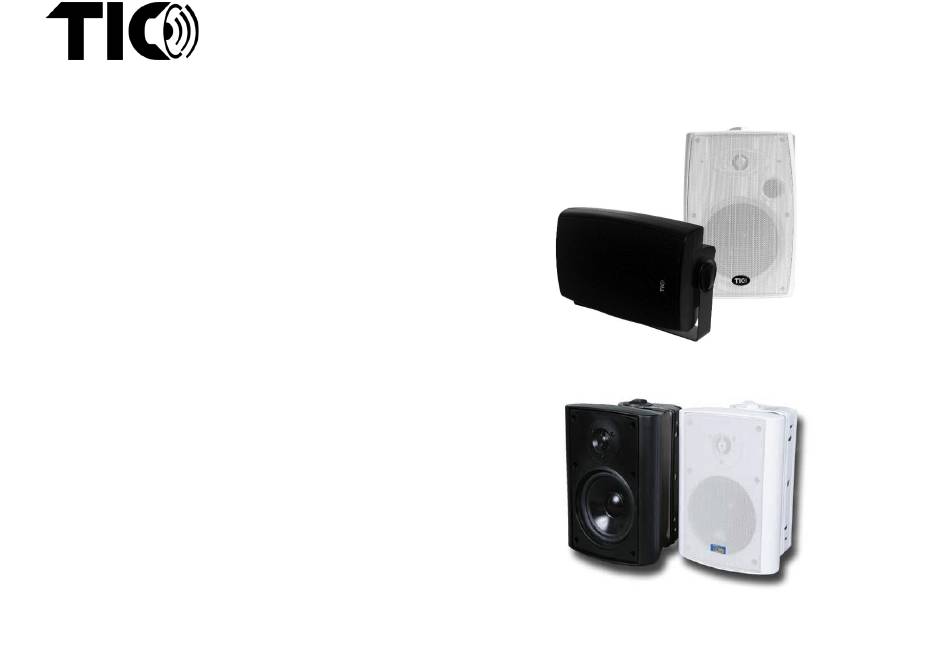

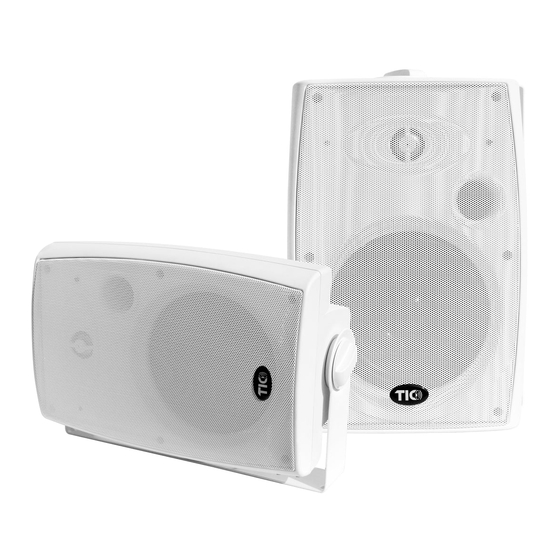

- Page 1 ASP90/ASP120 6.5” Indoor/Outdoor Wired Patio Speakers With Adjustable 70v Options ASP60 5.25” Indoor/Outdoor Wired Patio Speakers With Adjustable 70v Options Instruction Manual ASP-series Instruction Manual...
- Page 2 Before you begin A passive outdoor loudspeaker system is one of the best audio entertainment investments you can make for both residential and commercial installations. Investing the time and labour to install a wired speaker system will provide the safest and most dependable sound solution that can be easily upgraded and customized over time.
-
Page 3: Installation
Installation 8Ω/70v dial 1. Remove the bracket from the speakers by unscrewing the end caps. Secure the bracket to the desired location with the appropriate mounting screws/anchors (not included). Please ensure the screws/anchors match with the material of the mounting location and can safely support the weight of the speaker. - Page 4 70v wattage settings (2.5W, 5W, 10W, 15W, 20W) that matches your sound coverage need. For optimal performance, the total summation of all speakers’ wattage in the entire system should not exceed 80% of the 70v amplifier’s output power. Consult TIC or an AV professional if you are unsure about setting up and using a 70v system.
- Page 5 Wiring Diagram Choose the appropriate wiring option depending on your model and overall system design. * Colorized version of wiring diagrams and manual is available on our website (www.ticcorp.com). In typical installations, positive terminals are connected to red wires and negative terminals are connected to black wires.
- Page 6 ASP-series Instruction Manual...
- Page 7 ASP-series Instruction Manual...
- Page 8 Specification by model ASP60 ASP90 ASP120 5.25”woofer 6.5”woofer 6.5” woofer Driver Size 0.75”tweeter 1” tweeter 1” tweeter 70v Option 2.5W – 20W 5W – 30W 5W – 30W 8Ω Power Handling 75W/150W 75W/150W 75W/150W (RMS/Peak) 8Ω / channel 8Ω / channel 8Ω...
- Page 9 TIC Audio Inc./TIC Audio Europe vof. All rights reserved. The TIC logo is a trademark of TIC Audio Inc. and TIC Audio Europe vof, registered in the United States and Europe. Features, specifications, and appearance are subject to change without notice.
