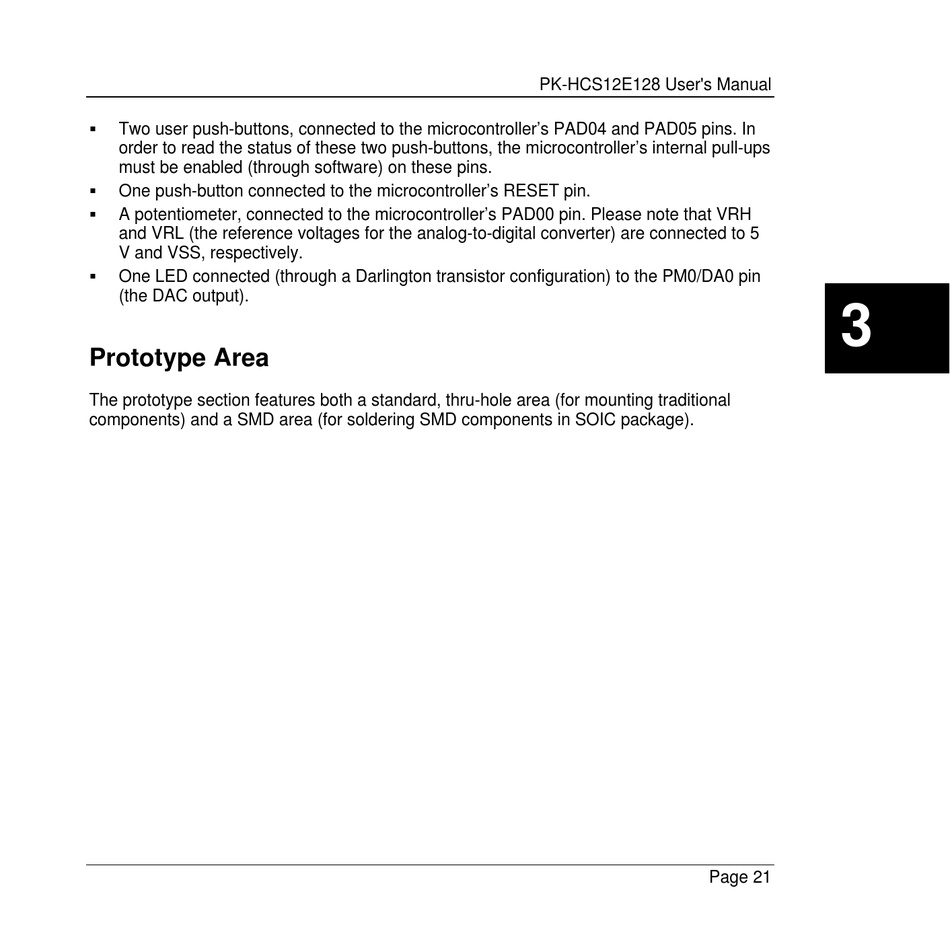

Two user push-buttons, connected to the microcontroller's PAD04 and PAD05 pins. In
order to read the status of these two push-buttons, the microcontroller's internal pull-ups
must be enabled (through software) on these pins.
§
One push-button connected to the microcontroller's RESET pin.
§
A potentiometer, connected to the microcontroller's PAD00 pin. Please note that VRH
and VRL (the reference voltages for the analog-to-digital converter) are connected to 5
V and VSS, respectively.
§
One LED connected (through a Darlington transistor configuration) to the PM0/DA0 pin
(the DAC output).

Prototype Area

The prototype section features both a standard, thru-hole area (for mounting traditional
components) and a SMD area (for soldering SMD components in SOIC package).
