General
2.2

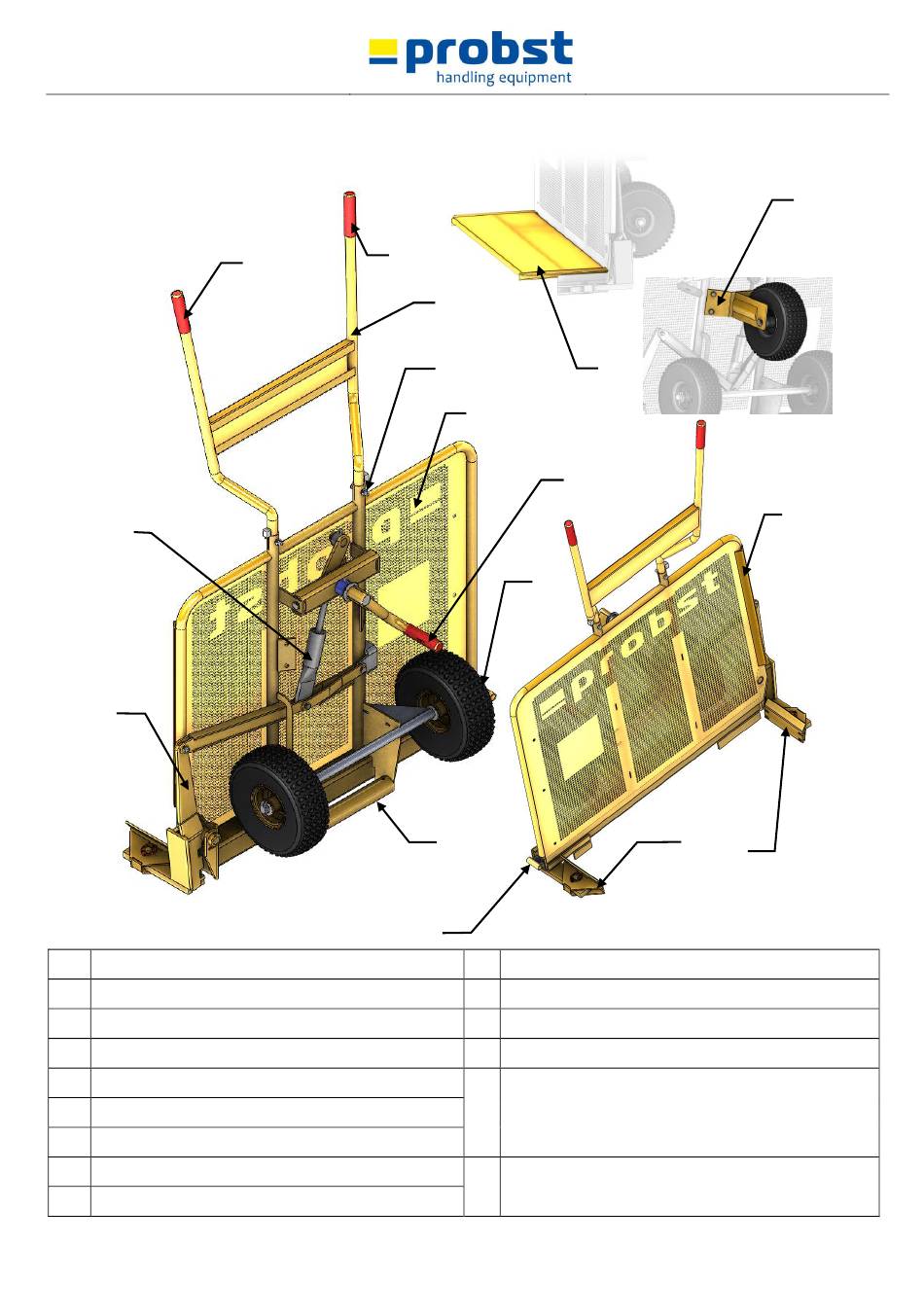

Survey and construction

9
6
1 PVC-handles
2 Pipe clamp
3 Bottom plate
4 Stop for gripping good
5 Clamping lever
6 Swing arm for gripper
7 Wheel
8 Support roll
9 Overload protection
5110.0015
1
1
2
11
3
5
7
8
10
10 Adjusting screw
11 Standpipe
12 Adjustable jaw
13 Moving jaw with griping depth adjustment
Supporting wheel (optional)
14
Order No.: 41100041
Insertable storage (optional)
15
(Order No.: 41100010)
V2
15
12
13
5 / 20
14
4
