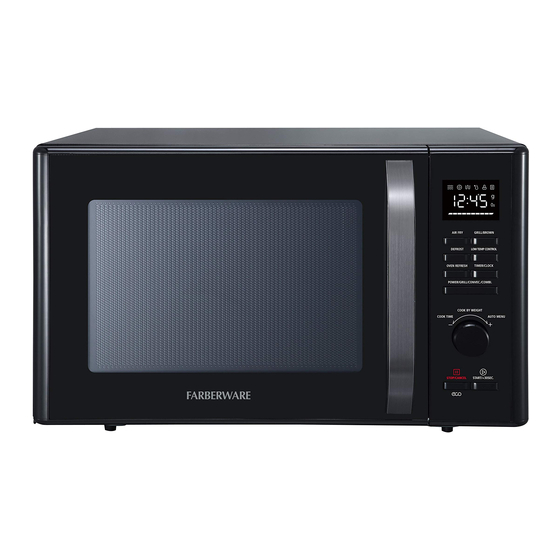

- Page 1 Microwave Convection Oven Instruction FMO10AHDBKC...
-
Page 3: Table Of Contents
BEFORE OPERATING THIS PRODUCT, READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS. BE SURE TO SAVE THIS BOOKLIST FOR FUTURE REFERENCE CONTENTS PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY IMPORTANT SAFETY INSTRUCTIONS GROUNDING INSTRUCTIONS UTENSILS SETTING UP YOUR OVEN OPERATION MAINTENANCE... -
Page 4: Precautions To Avoid Possible Exposure To Excessive Microwave Energy
HINGES AND LATCHES (broken or loosened) c. DOOR SEALS AND SEALING SURFACE The oven should not be adjusted or reparied by anyone except properly qualified service personnel. Specifications Model: FMO10AHDBKC Rated Voltage: 120V~ 60Hz Rated Input Power(Microwave): 1500 W Rated Output Power(Microwave):... -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic safety precautions, including the following: 1. Read all instructions before using the appliance. 2. - Page 6 IMPORTANT SAFETY INSTRUCTIONS WARNING 16. To reduce the risk of fire in the oven cavity: 1). Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. 2). Remove wire twist-ties from paper or plastic bag before placing bag in oven. 3).
- Page 7 IMPORTANT SAFETY INSTRUCTIONS WARNING 18. Oversized food or oversized metal utensils should not be inserted in a microwave/ toaster oven as they may create a fire or risk of electric shock. 19. Do not clean with metal scouring pads. Pieces can burn off the pad and touch electrical parts involving a risk of electric shock.
-
Page 8: Grounding Instructions
GROUNDING INSTRUCTIONS DANGER Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. To protect against electrical shock, this appliance is equipped with a cord having a 3 prong grounding-type plug for insertion into a proper grounding-type receptacle. - Page 9 GROUNDING INSTRUCTIONS Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-pronged grounding plug , and a 3-slot receptacle that will accept the plug on the appliance.The marked rating of the extension cord shall be equal to or greater than the electrical rating of the appliance.
- Page 10 GROUNDING INSTRUCTIONS RADIO INTERFERENCE Operation of the microwave oven may cause interference to your radio, TV or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures: Clean door and sealing surface of the oven. Reorient the receiving antenna of radio or television.
-
Page 11: Utensils
GROUNDING INSTRUCTIONS UTENSILS CAUTION Electric Shock Hazard Tightly-closed utensils could explode. Closed containers should be opened and plastic pouches should be pierced before cooking. See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."... - Page 12 MATERIALS YOU CAN USE IN MICROWAVE OVEN UTENSILS REMARKS Follow manufacturer’s instructions.The bottom of browning dish Browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Microwave-safe only. Follow manufacturer’s instructions. Do not Dinnerware use cracked or chipped dishes.
- Page 13 MATERIALS TO BE AVOIDED IN MICROWAVE OVEN UTENSILS REMARKS Aluminum tray May cause arcing. Transfer food into microwave-safe dish. Food carton with May cause arcing. Transfer food into microwave-safe dish. metal handle May cause arcing and could cause a fire in the oven. Metal twist ties May cause a fire in the oven.
-
Page 14: Setting Up Your Oven
SETTING UP YOUR OVEN NAMES OF OVEN PARTS AND ACCESSORIES Remove the oven and all materials from the ca rton and oven cavi ty. Your oven comes with the following accessories: Glass tra y Turntable ring Instruction Manual Control panel Turntable shaft Turntable ring Glass tray... - Page 15 SETTING UP YOUR OVEN TURNTABLE INSTALLATION Hub (underside) Glass tray Turntable shaft Turntable ring a. Never place the glass tray upside down. The glass tray should never be restricted. b. Both glass tray and turntable ring must always be used during cooking. c.
- Page 16 SETTING UP YOUR OVEN COUNTERTOP INSTALLATION Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.
- Page 17 SETTING UP YOUR OVEN INSTALLATION 2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frenquency on the rating label. WARNING Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be avoided.
- Page 18 DESCRIPTION OF DISPLAY ICONS ICON Description ICON Description Microwave Function Convection Function Grill Function Defrost Child Lock Auto Menu Weight Temperature Progress Bar EN-16...
-
Page 19: Operation
OPERATION CONTROL PANEL AND FEATURES EN-17... - Page 20 OPERATION 1.CLOCK SETTING In standby mode, TIMER/CLOCK For example, time is 10:12 now, input “10” at this step. TIMER/CLOCK Clock is set. For example, time is 10:12 now, input “12” at this step. TIMER/CLOCK STOP /Cancel 2.KITCHEN TIMER In standby mode, TIMER/CLOCK START /+30Sec.
- Page 21 OPERATION 3.MICROWAVE COOKING will light. MICRO./GRILL/CONVEC./COMBO START /+30Sec. MICRO./GRILL/CONVEC./COMBO START /+30Sec. START /+30Sec. 1)When turning knob to adjust the cooking time, time increments for different time zones are as follows: 3)Rack and grill pan can’t be used in microwave cooking mode. 4.GRILL COOKING will light.
- Page 22 OPERATION 5.CONVECTION COOKING(With preheating function) you do with will light. MICRO./GRILL/CONVEC./COMBO MICRO./GRILL/CONVEC./COMBO flashes and lights. START /+30Sec. START /+30Sec. START /+30Sec. When reaching the set preheating temperature, the buzzer will sound twice to remind you to put the food into the oven, the preheated temperature is displayed and flashes.
- Page 23 OPERATION 7.COMBINATION COOKING will light. MICRO./GRILL/CONVEC./COMBO MICRO./GRILL/CONVEC./COMBO “G-2” or “G-3” or “C-1” is displayed. START /+30Sec. START /+30Sec. 8.MULTI-STAGE COOKING WEIGHT/ TIME DEFROST MICRO./GRILL/CONVEC./COMBO START /+30Sec. START /+30Sec. START /+30Sec. EN-21...
- Page 24 OPERATION 9.SPEEDY COOKING START /+30Sec. START /+30Sec. 10.AUTO MENU “A1”, “A2” , “A3” , “A4” ,“A5” , “A6” , “A7” , “A8” , “A9” , “A10” “A11" will be displayed in turn. START /+30Sec. START /+30Sec. EN-22...
- Page 25 OPERATION PRE-PROGRAMMED DISPLAY WEIGHT OF DISPLAY PRE-SET PRE-SET POWER HOW TO OPERATE AUTO MENU SHOWING THE FOOD SHOWING COOKING TIME LEVEL 5.00Oz 5.00Oz 1′30″ 9.00Oz 9.00Oz 2'10" AUTO REHEAT 12.00Oz 12.00Oz 3′10″ 100% Microwave 16.00Oz 16.00Oz 4'10" 21.00Oz 21.00Oz 5′40″ 1(Approx.8 Oz) 5'00"...
- Page 26 OPERATION 11.DEFROST BY WEIGHT WEIGHT/ TIME DEFROST START /+30Sec. 12.DEFROST BY TIME WEIGHT/ TIME DEFROST START /+30Sec. 13.AIR FRY AIR FRY START /+30Sec. PRE-SET PRE-PROGRAMMED AIR DISPLAY WEIGHT OF PRE-SET PRE-SET POWER COOKING FRY MENU SHOWING THE FOOD COOKING TIME LEVEL TEMP.
- Page 27 OPERATION 14.CRISPY BROWN CRISPY BROWN CRISPY BROWN START /+30Sec. START /+30Sec. EN-25...
- Page 28 OPERATION 15.LOW TEMP CONTROL LOW TEMP CONTROL LOW TEMP CONTROL START /+30Sec. START /+30Sec. START /+30Sec. 16. Oven Refresh OVEN REFRESH Oven fan will work for 5minutes to vent the smell out from cavity. T his function helps to keep the oven clean. 17.SPEEDY MICROWAVE COOKING START /+30Sec.
- Page 29 OPERATION 18.LOCK-OUT FUNCTION FOR CHILDREN STOP /Cancel STOP /Cancel 19.SPECIFICATION START /+30Sec. START /+30Sec. 20.INQUIRING FUNCTION TIMER/CLOCK MICRO./GRILL/CONVEC./COMBO 21.ECO MODE START /+30Sec. STOP /Cancel START /+30Sec. STOP /Cancel 22.POWER SAVING FUNCTION STOP /Cancel POWER SAVING POWER SAVING EN-27...
-
Page 30: Maintenance
MAINTENANCE TROUBLESHOOTING EN-28...
