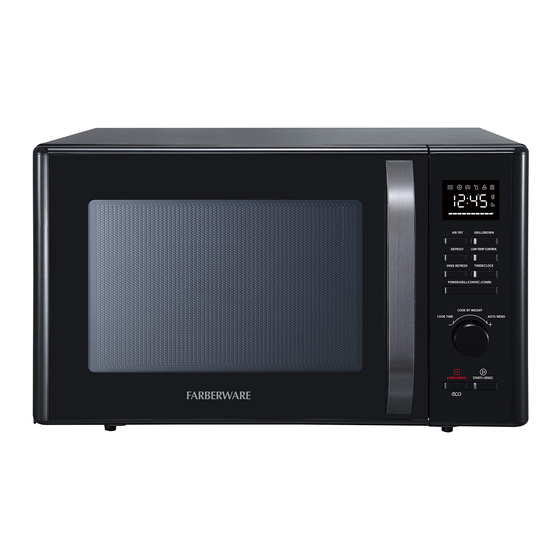

Complete microwave oven with air fry & convection grill
Hide thumbs Also See for FMO10AHDBKC:

Advertisement

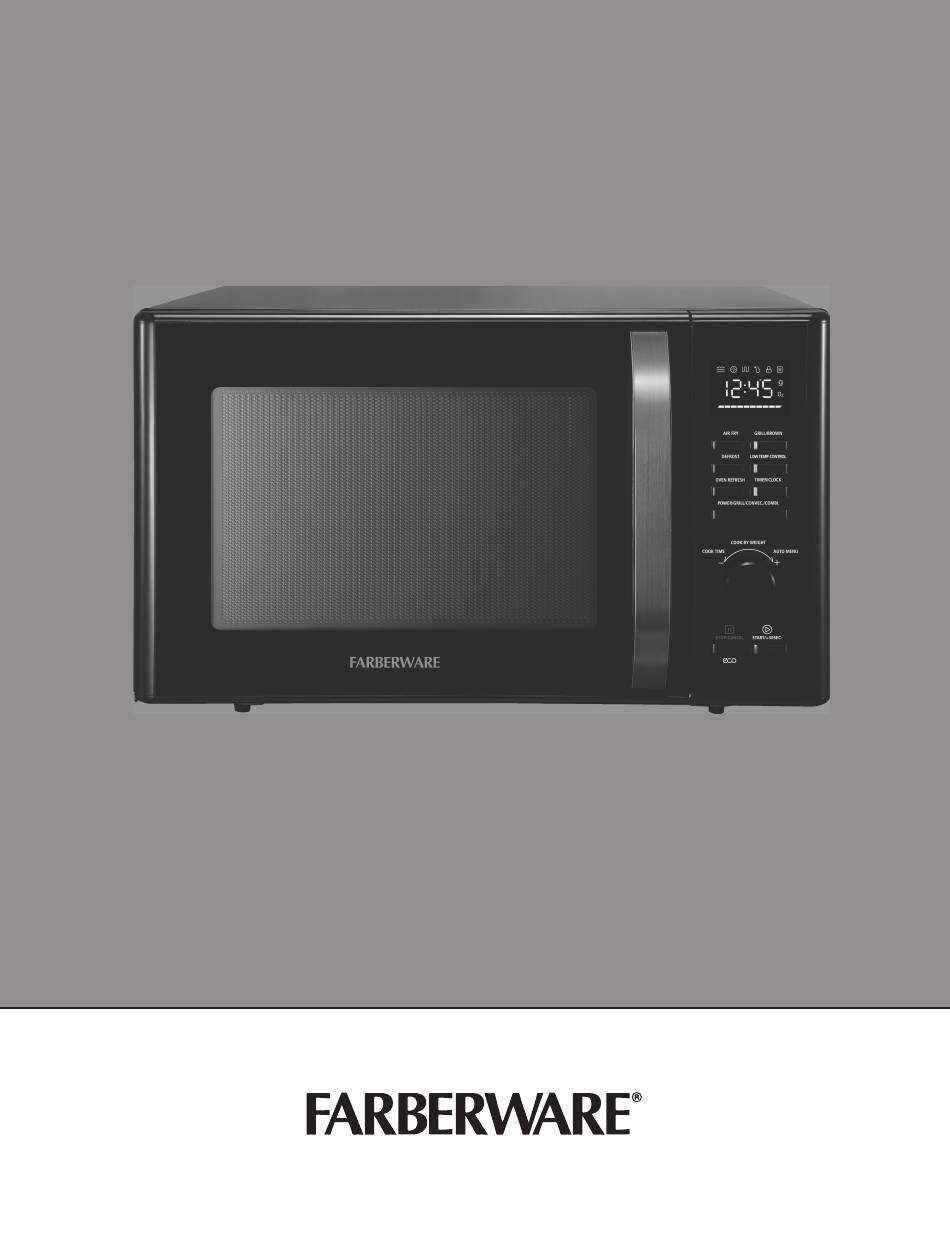

COMPLETE MICROWAVE
OVEN WITH AIR FRY &
CONVECTION GRILL
Model: FMO10AHDBKC
Read these instructions carefully before using your
microwave oven, and to maintain its upkeep. If
you follow the instructions, your oven will provide
you with many years of good service.
KEEP THESE INSTRUCTIONS IN A SAFE PLACE
(rev. 07/23/19) MD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FMO10AHDBKC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Farberware FMO10AHDBKC

  • Page 1 COMPLETE MICROWAVE OVEN WITH AIR FRY & CONVECTION GRILL Model: FMO10AHDBKC Read these instructions carefully before using your microwave oven, and to maintain its upkeep. If you follow the instructions, your oven will provide you with many years of good service.
  • Page 2 Farberware is a registered trademark of Farberware Licensing Company, LLC Manufactured and sold pursuant to a license from Farberware Licensing Company, LLC © 2019 Farberware Licensing Company, LLC. All rights reserved.
  • Page 3: Table Of Contents

    Tables of Contents PRECAUTIONS ���������������������������������������������������������������������������������������������������������������������������������� 4 SPECIFICATIONS ������������������������������������������������������������������������������������������������������������������������������� 4 SAFETY ��������������������������������������������������������������������������������������������������������������������������������������������� 5 GROUNDING ������������������������������������������������������������������������������������������������������������������������������������ 6 UTENSILS ����������������������������������������������������������������������������������������������������������������������������������������� 8 SETTING UP YOUR OVEN ��������������������������������������������������������������������������������������������������������������� 10 CONTROL PANEL ���������������������������������������������������������������������������������������������������������������������������� 12 OPERATION ������������������������������������������������������������������������������������������������������������������������������������ 13 MAINTENANCE ������������������������������������������������������������������������������������������������������������������������������ 22 WARRANTY INFORMATION ����������������������������������������������������������������������������������������������������������� 23...
  • Page 4: Precautions

    (3) DOOR SEALS AND SEALING SURFACES (Do not use if the door seal or sealing surfaces are damaged.) (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. SPECIFICATIONS FMO10AHDBKC Model: Rated Voltage: 120V~60Hz...
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances basic safety precautions should be followed, including the following: WARNING - To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 1� Read all instructions before using the appliance. 2�...
  • Page 6: Grounding

    To reduce the risk of injury to persons: 1� Do not overheat the liquid. 2� Stir the liquid both before and halfway through heating it. 3� Do not use straight-sided containers with narrow necks. 4� After heating, allow the container to stand in the microwave oven for a short time before removing the container.
  • Page 7: Safety

    RADIO INTERFERENCE 1� Operation of the microwave oven may cause interference to your radio, TV or similar equipment. 2� When there is interference, it may be reduced or eliminated by taking the following measures: 3� Clean door and sealing surface of the oven. a�...
  • Page 8: Utensils

    UTENSILS CAUTION – Personal Injury Hazard Tightly-closed utensils could explode. Closed containers should be opened and plastic pouches should be pierced before cooking. See the instructions on “Materials you can use in microwave oven or to be avoided in microwave oven.” There may be certain non-metallic utensils that are not safe to use for microwaving.
  • Page 9 MATERIALS YOU CAN USE IN MICROWAVE OVEN Utensils Remarks Browning dish Follow manufacturer instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turn- table to break. Dinnerware Microwave-safe only. Follow manufacturer’s instructions. Do not use cracked or chipped dishes.
  • Page 10: Setting Up Your Oven

    SETTING UP OUR OVEN Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories. Glass tray (turntable) Control panel Turntable ring Turntable shaft Instruction manual Turntable ring Glass tray Observation window...
  • Page 11 Countertop Installation Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron. 12 inch(30cm) 3.0 inch(7.5cm) OPEN...
  • Page 12: Control Panel

    DESCRIPTION OF DISPLAY ICONS CONTROL PANEL ICON Description ICON Description Microwave Function Convection Function Grill Function Defrost Child Lock Auto Menu Weight Temperature Progress Bar...
  • Page 13: Operation

    OPERATION 1. POWER LEVEL 10 Power levels are available Level 100% Power PL10 Display 2. CLOCK SETTING In standby mode, this microwave oven uses modern electronic control to adjust cooking parameters to meet your needs for better cooking. (1) Press "TIMER/CLOCK" twice, the hour figures will flash. (2) Turn dial to adjust the hour figures, the input time should be within 1-12 (12 hour).
  • Page 14 MICROWAVE COOKING (1) Press the "POWER/GRILL/CONVEC./COMBO." once and "PL10" will flash. (2) Press "START/+30 SEC." to confirm. The "PL10" will light. (3) Press "POWER/GRILL/CONVEC./COMBO." repeatedly or turn the dial to select microwave power from 100% to 10%. "PL10", "PL9", "PL8", and so on up to "PL1" will display in order. (4) Press "START/+30 SEC"...
  • Page 15 (7) Put the food into the oven and close the door. Turn the dial to adjust cooking time (maximum setting time is 95 minutes.) (8) Press the "START/+30 SEC" key to start cooking. CONVECTION COOKING (Without pre-heating function) (1) Press the "POWER/GRILL/CONVEC./COMBO." once and "PL10" will flash. (2) Press the "POWER/GRILL/CONVEC./COMBO."...
  • Page 16 (4) Press "START/+30 SEC" to confirm (5) Turn dial to choose 80% microwave power until "PL8" display (6) Press "START/+30 SEC" to confirm (7) Turn dial to adjust the cooking time of 7 minutes (8) Press "START/+30 SEC" to start cooking SPEEDY COOKING (1) In waiting state, press "START/+30 SEC"...
  • Page 17 PRE-PROGRAMMED DISPLAY WEIGHT OF DISPLAY PRE-SET PRE-SET POWER HOW TO OPERATE AUTO MENU SHOWING THE FOOD SHOWING COOKING TIME LEVEL 5.00Oz 5.00Oz 1′30″ 9.00Oz 9.00Oz 2'10" AUTO REHEAT 12.00Oz 12.00Oz 3′10″ 100% Microwave 16.00Oz 16.00Oz 4'10" 21.00Oz 21.00Oz 5′40″ 1(Approx.8 Oz) 5'00"...
  • Page 18 DEFROST BY TIME (1) Press "DEFROST" key twice, the oven will display "dEF2". (2) Turn dial to select the cooking time. The maximum setting time is 95 minutes. (3) Press "START/+30 SEC" key to start defrosting. AIR FRYING (1) Press the "AIR FRY" once, "H1" will flash. (2) Turn dial to choose the menu from H1 to H9.
  • Page 19 Grill/brown Weight Power 7.00Oz 10.00Oz 14.00Oz 425°F 18.00Oz (fresh pizza slice) with preheat 20.00Oz 24.00Oz 7.00Oz 10.00Oz 14.00Oz 425°F C2(lasagna) 18.00Oz with preheat 20.00Oz 24.00Oz 28.00Oz 7.00Oz 425°F C3 (frozen bread) 10.00Oz with preheat 14.00Oz 7.00Oz 10.00Oz 14.00Oz 425°F C4(pie/tart) 18.00Oz with preheat 20.00Oz...
  • Page 20 (5) Press "START/+30 SEC" to confirm. (6) Turn dial to adjust the cooking time. (7) Press "START/+30 SEC" to start cooking. Keep warm (food) Dehydrate Plate warmer 17. OVEN REFRESH Press "OVEN REFRESH" key to start. Oven fan will work for 5 minutes to vent the smell out from cavity.
  • Page 21 2 .MUTE MODE In waiting state, press "STOP/CANCEL" and hold, then press "START/+30 SEC" within 3 seconds, the bu er will sound once and the o en will enter MUTE mode. Any operation cannot make the buzzer sound. In waiting state, press "STOP/CANCEL" and hold, then press "START/+30 SEC" within 3 seconds, the buzzer will sound once and the oven will exit mode.
  • Page 22: Maintenance

    MAINTENANCE Troubleshooting Check your problem by using the chart below and try the solutions for each problem. If the microwave oven still does not work properly, contact the nearest authorized service center Trouble Possible Cause Possible Remedy a. Electrical cord for oven is not plugged in. a.
  • Page 23 ONE YEAR LIMITED WARRANTY This warranty applies to products purchased and used in the U.S. and Canada. This is the only expressed warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase.
