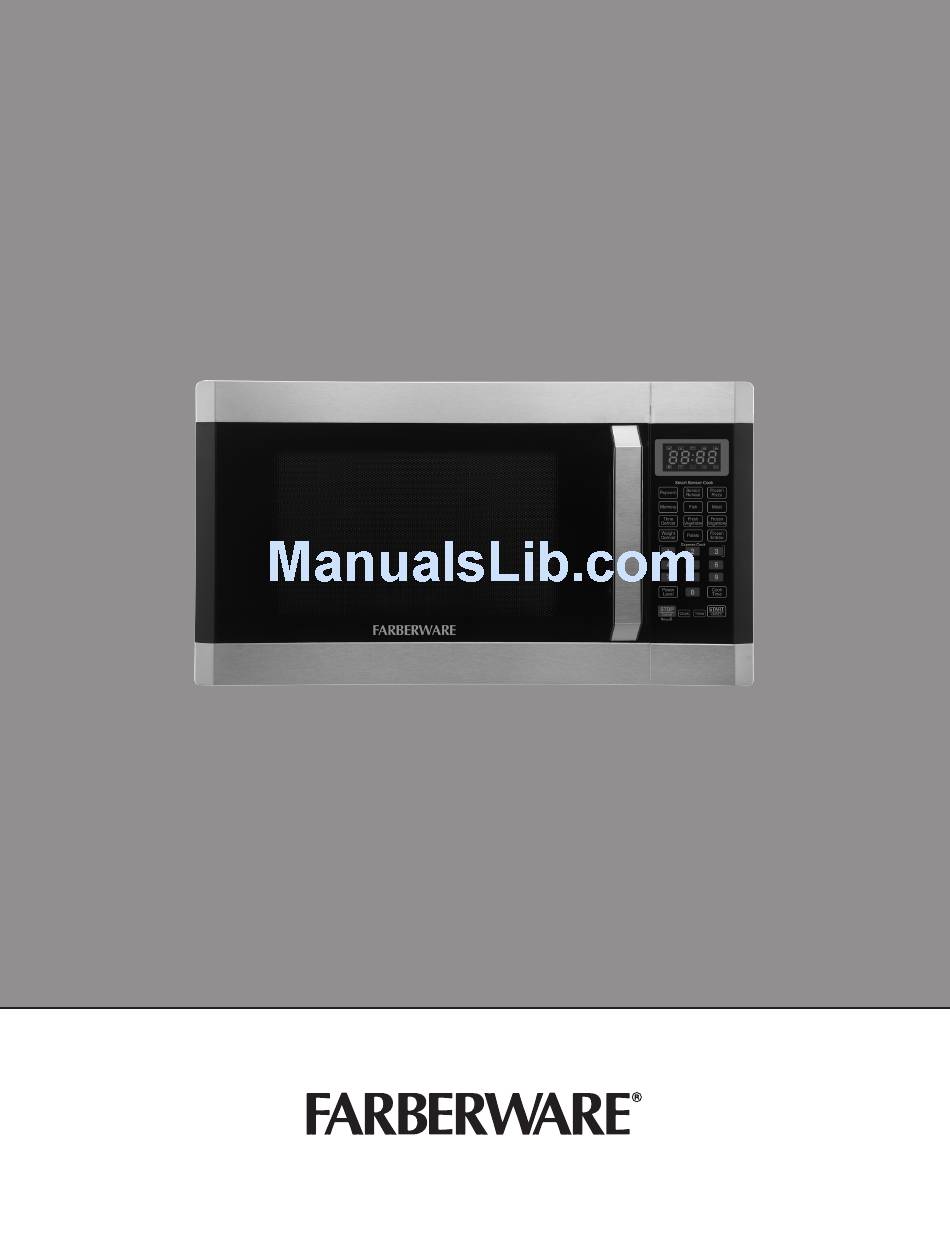

MICROWAVE OVEN INSTRUCTION MANUAL Model: FMO16AHTPLB Read these instructions carefully before using your microwave oven, and to maintain its upkeep. If you follow the instructions, your oven will provide you with many years of good service. KEEP THESE INSTRUCTIONS IN A SAFE PLACE...
(3) DOOR SEALS AND SEALING SURFACES (Do not use if the door seal or sealing surfaces are damaged.) (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. SPECIFICATIONS Model: FMO16AHTPLB Rated Voltage: 120V~60Hz Rated Input Power (Microwave):...
Page 5
IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances basic safety precautions should be followed, including the following: WARNING - To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 1� Read all instructions before using the appliance. 2�...
To reduce the risk of injury to persons: 1� Do not overheat the liquid. 2� Stir the liquid both before and halfway through heating it. 3� Do not use straight-sided containers with narrow necks. 4� After heating, allow the container to stand in the microwave oven for a short time before removing the container.
RADIO INTERFERENCE 1� Operation of the microwave oven may cause interference to your radio, TV or similar equipment. 2� When there is interference, it may be reduced or eliminated by taking the following measures: 3� Clean door and sealing surface of the oven. a�...
UTENSILS CAUTION – Personal Injury Hazard Tightly-closed utensils could explode. Closed containers should be opened and plastic pouches should be pierced before cooking. See the instructions on “Materials you can use in microwave oven or to be avoided in microwave oven.” There may be certain non-metallic utensils that are not safe to use for microwaving.
MATERIALS YOU CAN USE IN MICROWAVE OVEN Utensils Remarks Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
SETTING UP OUR OVEN Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories. Glass tray (turntable) Turntable ring assembly Instruction manual A) Control panel E) Observation window B) Turntable shaft F) Door assembly...
Countertop Installation Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron. 12 inch(30cm) 3.0 inch(7.5cm) OPEN...
OPERATION 1. POWER LEVEL 10 Power levels are available Level 100% Power PL10 Display 2. CLOCK SETTING (1) Press “Clock", “00:00” will display. (2) Press the number keys and enter the current time. For example, time is 10:12 now, please press “1, 0, 1, 2”...
Page 14
4. MICROWAVE COOK (1) Press "Cook Time" once, the screen will display "00:00". (2) Press number keys to input the cooking time; the maximum cooking time is 99 minutes and 99 seconds. (3) Press "Power Level" once, the screen will display "PL10". The default power is 100% power. Now you can press number keys to adjust the power level.
Page 15
7. TIME DEFROST FUNTION (1) Press "Time Defrost", the screen will display "00:00". (2) Press numerical buttons to input defrost time to be defrosted. Input the time ranged is between 0:01~99:99. (3) Press “START/+30SEC “ . to start defrosting. The default microwave power is PL3. The power cannot be adjusted.
Page 16
10. SENSOR REHEAT (1) In standby state, put the food in the oven, press "Sensor Reheat" "SC-1" is displayed. (2) Press “START/+30SEC “ . to start sensor reheat function. There is no need to set time. (3) The sensor will sound twice when the steaming is emanated. The surplus time will display, the buzzer will sound 5 beeps when finishing.
Page 17
SENSOR REHEAT CHART Menu Weight Initial Temp Additional Instructions SC-1 Reheat food is dinner plate. When sensor time finish, cooking time counts Sensor 8~12 oz 5 degrees down. Now you can mix it and then continue reheating. Reheat SC-2 6~12 oz Frozen -18 degrees If the weight is over 12 oz, please set the additional cooking time manually.
Page 18
EXAMPLE: To save one program as memory 2 and to cook the food with 80% microwave power for 3 minutes and 20 seconds, follow these steps: A� In standby mode, press "Memory" twice, "2" displays. B� Press "Cook Time",then input number keys "3", "2", "0" to choose the cooking time. C�...
MAINTENANCE Troubleshooting Check your problem by using the chart below and try the solutions for each problem. If the microwave oven still does not work properly, contact the nearest authorized service center Trouble Possible Cause Possible Remedy a. Electrical cord for oven is not plugged in. a.
ONE YEAR LIMITED WARRANTY This warranty applies to products purchased and used in the U.S and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase.
