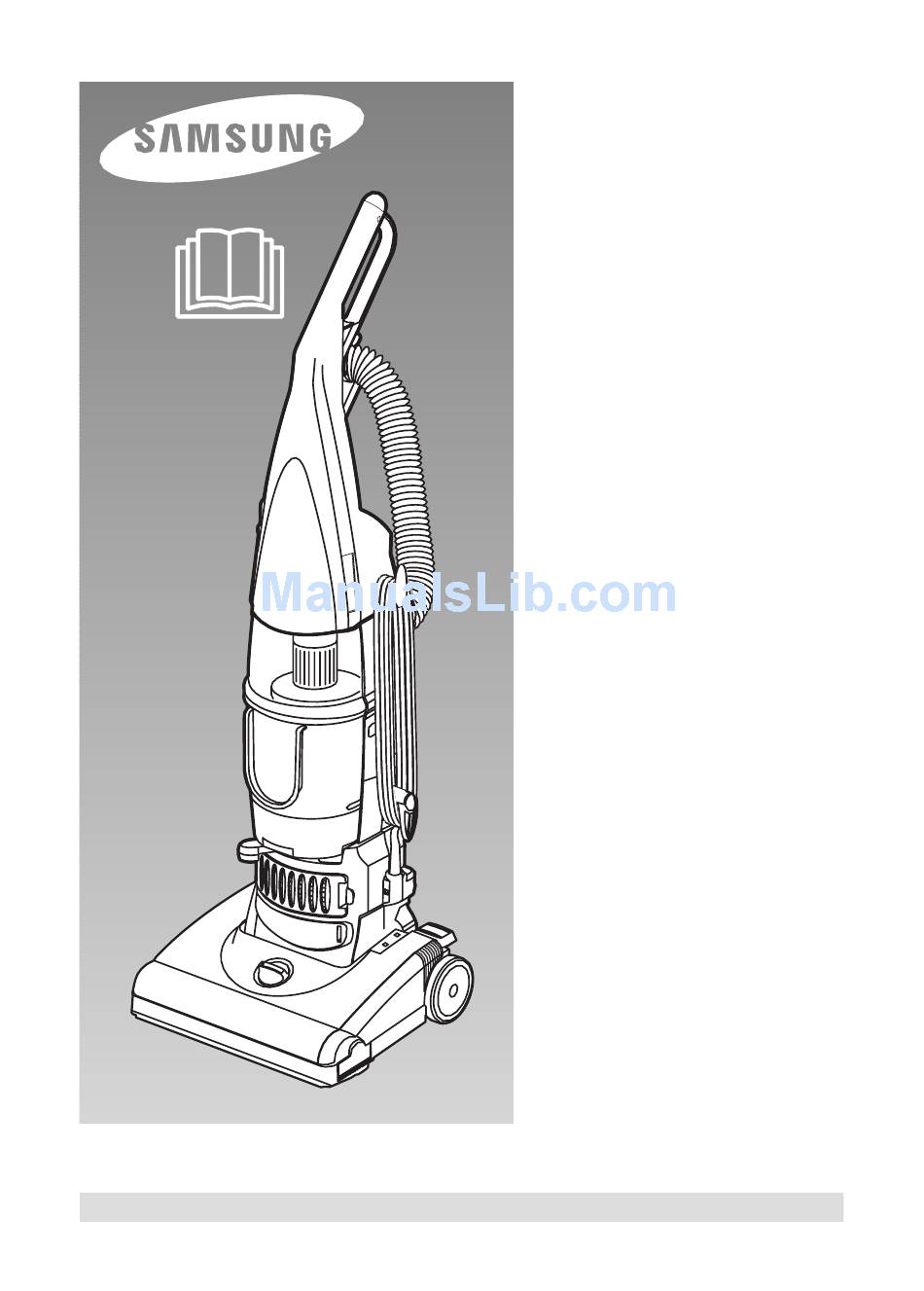

Read these instructions before operating the vacuum cleaner
•The design and specification may be different depending on the models.
Register your product at www.samsung.com/register
Vacuum
Cleaner
SU-2910 Series
FOR HOUSEHOLD USE ONLY
Operating
Instructions
IMPORTANT SAFETY INSTRUCTIONS ......................... 1
ASSEMBLING PARTS ..................................................... 2
ASSEMBLED VACUUM CLEANER PARTS.......................... 2
ATTACHING THE HANDLE ............................................. 2
ATTACHING THE HOSE AND TOOLS............................ 2
OPERATION .................................................................... 3
MAINTENANCE ............................................................... 4
TROUBLESHOOTING ..................................................... 6
Advertisement
Table of Contents
Related Manuals for Samsung SU2913
Summary of Contents for Samsung SU2913
-
Page 1: Table Of Contents
Read these instructions before operating the vacuum cleaner •The design and specification may be different depending on the models. Register your product at www.samsung.com/register Vacuum Cleaner SU-2910 Series FOR HOUSEHOLD USE ONLY Operating Instructions IMPORTANT SAFETY INSTRUCTIONS ... 1 ASSEMBLING PARTS ... 2 ASSEMBLED VACUUM CLEANER PARTS... -
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Thank you for purchasing a Samsung vacuum cleaner. When using an electrical appliance, basic precautions should always be followed, including the following : PLEASE READ ALL WARNINGS AND INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER. WARNING: To reduce the risk of fire, electric shock, or injury : •... -
Page 3: Assembling Parts
A s s e m b l i n g Pa r t s CAUTION Assembled Vacuum Cleaner Parts Front WARNING! OPERATE THE VACUUM CLEANER ONLY AT THE VOLTAGE SPECIFIED ON THE NAMEPLATE. Step 1. Attaching the Handle Stand the vacuum upright and Insert the screw provided into the slide the base of the handle existing hole. -
Page 4: Operation
ON-OFF Switch 1.To turn cleaner on, press the Power switch. 2.To the cleaner off, press the Power switch again. Carrying handle The cleaner can also be moved by using the carrying handle. Cleaning lightweight flexible rugs Stand on one end of rug and move cleaner toward other end or edge. -
Page 5: Maintenance
Familiarize yourself with these home maintenance tasks as proper use and care of your cleaner will ensure continued cleaning effectiveness. When to empty the Dirt Cup The dirt cup needs to be emptied when the dirt reaches the "MAX" line on the side of the Cup. If more dirt than this accumulates, your cleaner will not operate effectively. -
Page 6: The Belt
The belt The belt on your cleaner causes the agitator to rotate and is important for the effective operation of the cleaner. The belt is located under the bottom plate of the cleaner and should be checked from time to time to be sure it is in good condition. -
Page 7: Troubleshooting
Clearing Blockages Disconnect cleaner from electrical outlet. The hose on the back of the vacuum cleaner that carries the dirt from the nozzle to the Dirt Cup can sometimes become clogged. If you notice a change in the sound of the vacuum motor, check for blockages. 3-14 Remove Dirt Cup and check Upper Tank and Louvers. - Page 8 Replace with new belt. THis Vacuum cleaner is approved the following. Electromagnetic Compatibility Directive: 2004/108/EEC Low Voltage Directive: 2006/95/EC If you have any comments or questions regarding a Samsung products, contact the SAMSUNG customer care center. Country 0845 7267864 (SAMSUNG)
