Warning:
Unused wires must be capped
using enclosed wire nuts.

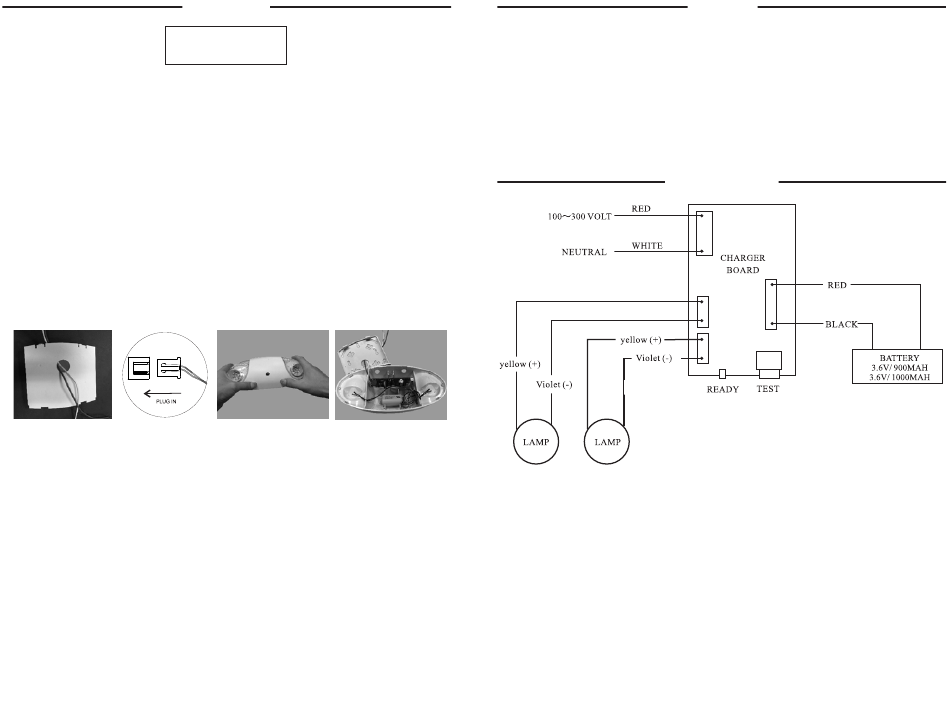

J-Box Mounting
1. Feed fixture leads through back plate and connect AC power supply (Fig. A).
2. Connect wires through J-box. Secure back plate on to J-Box with screws.
3. Connect battery before AC power can be provided to the unit (Fig. B).
4. Align snaps and push housing directly onto back plate (Fig. C). Supply AC power and press
"TEST" button to check light.
Conduit Mounting
5. Secure back plate to wall surface. Route wires through hole in conduit flange and make conduit
connection.
6. Connect battery before AC power can be provided to the unit (Fig. B).
7. Align snaps and push housing directly onto back plate (Fig. C). Supply AC power and press
"TEST" button to check light.
Fig. A
INSTALLATION
Fig. B
1. During an electrical power failure, the lamps will automatically illuminate for a minimum of 90
minutes.
2. To test, pust the "TEST" switch. The emergency lamps will illuminate. When the switch is
released, the lamps will go off.
3. LED light is on when AC power & battery connected.
4. LED light will be OFF when AC power is disconnected.
5. LED light will be OFF when battery is disconnected or damaged
Fig. C
OPERATION
WIRING DIAGRAM
