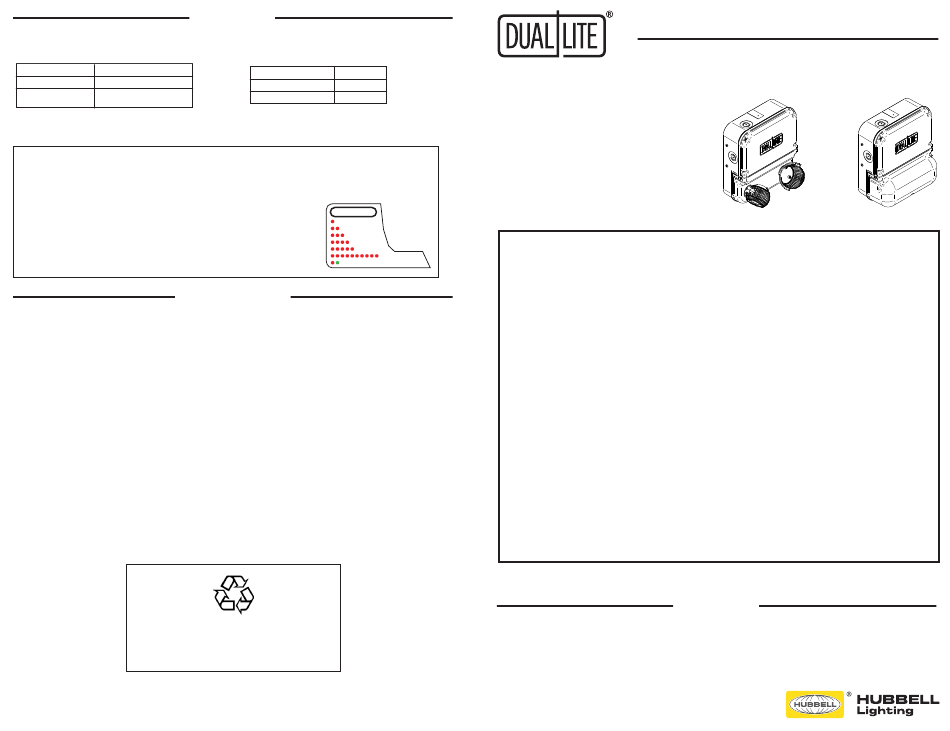

HUBBELL LIGHTING DualLite DYN Series Installation, Operation And Service Instructions

High-capacity led industrial emergency lighting unit. wet location, nema 4x & food processing. standard, remote capacity and spectron equipped models

Advertisement

Quick Links

Automatic Tests
The unit will automatically initiate a self-test/self-diagnostic
cycle based on the following table:
Testing Period
Duration of Test
Once a month
1 minute
Once every
Alternating:
6 months
30 minutes or 60 minutes
LED Status Indicator:
A green/red LED is provided on the control pane
of all models equipped with the Spectron option.
Green Operating Status LED:
The green Operating Status LED serves as both an AC power
and self-test indicator. During normal operation, the green
Operating Status LED will be illuminated, indicating the
presence of AC power. During all automatic or manual self-test
cycles, the green Operating Status LED will blink "twice" per
second for the 30 / 60 / 90 minute test.
Service / Maintenance
Maintenance
This emergency lighting unit should be tested and maintained in accordance with National Electrical Code and NFPA 101 Life Safety
Code requirements. It is recommended that emergency light fixtures be tested for 30 seconds once a month and for 90 minutes once
a year.
Taking A Unit Out of Service
If a unit is to be deliberately taken out of service for an extended period, the battery lead connector should be disconnected from the
charger circuit board and insulated so that the battery will go into storage in a fully charged condition.
Replacing the Battery:
1. De-energize the AC power.
2. Remove the front housing cover.
3. Disengage the battery and heater (if provided) harness from the charger PCB harness.
4. Disconnect the battery strap and remove battery pack.
5. Replace with new battery (see unit model label or battery label for correct p/n)
and repeat steps above in reverse.
Replacing LED Lamps
The LED lamp heads are field replaceable. Please see Dual-Lite.com for further assistance.
Troubleshooting
Emergency circuit does not work
• Batteries are shipped uncharged, please charge for 24 hours before testing.
• Make sure the switch pcb and the button/light pipe is correctly seated and aligned.
• Check wiring connections.
RECYCLING INFORMATION
All steel, aluminum and thermoplastic parts are recyclable.
NOTICE: Emergency units contain rechargeable batteries which
must be recycled or disposed of properly.
Hubbell Lighting, Inc. Life Safety Products • www.dual-lite.com
Copyright
©
Hubbell Lighting, Inc., All Rights Reserved • Specifications subject to change without notice. • Printed in U.S.A.
0603638
OPERATION
Manual Tests
Using the unit test switch, users can initiate different
duration test cycles based on the following table:
Initiating Action
Test Cycle
Press test switch once
1 minute
Press test switch twice
90 minutes
Pressing the test switch any time after a 90 minute test
cycle has begun cancels the remainder of the 90 minute
test and returns the unit to normal operation.
Red Service Alert LED:
Under normal operating conditions, the red Service Alert
LED indicator will remain off. If the Spectron controller
detects a malfunction, the red Service Alert LED will blink
in the pattern listed on the label around the test button.
SERVICE ALERT CODES
= BATTERY DISCONNECTED
= BATTERY FAULT
= CHARGER FAULT
= LED DRIVER FAULT
= LAMP FAULT
ALTERNATING = LOAD LEARN IN PROGRESS
93052054
93048898_A 5 /15
IMPORTANT SAFEGUARDS
= LOAD LEARN FAILURE
READ AND FOLLOW ALL SAFETY
1.
Do not let power supply cords touch hot surfaces.
2.
Do not mount near gas or electric heaters.
3.
Equipment should be mounted in locations and at heights where it will not readily be subject
to tampering by unauthorized personnel.
4.
The use of accessory equipment not authorized by the manufacturer may cause an
unsafe condition.
5.
Do not use this equipment for other than its intended purpose.
6.
Servicing of this equipment should be performed by qualified service personnel.
7.
Test cycling: the Life Safety Code (NFPA 101) requires testing of emergency lighting units once a month for a
minimum of 30 seconds, and once a year for a minimum of 90 minutes.
•SEE UNIT LABEL FOR ADDITIONAL MODEL SPECIFICATIONS
•SAVE THESE INSTRUCTIONS FOR USE BY OWNER/OCCUPANT
93049060
WARNING- This product contains chemicals known to the State of Califorina to cause cancer, birth defects, and/or other
93049063
reproductive harm. Thoroughly wash hands after installing, cleaning, or otherwire touching this product.
93055894
93055812
93055892
93055893
93055895
93055897
This Industrial Unit is designed to be mounted on a wall, ceiling or pole (optional). Provide standard units with a single unswitched
93055896
power supply from a 120 - 277VAC branch circuit used for normal lighting in the areas to be protected. For Spectron
93061887
self-testing/self diagnostic units, provide unit with a 120/277VAC branch circuit.
The DYN Industrial unit is equipped with intelligent wiring. Connect the black wire from unit to the building hot wire (120 or
277VAC) and the white wire to the building com wire. (Exceptions: All Non-Spectron models should be connected to 120, 240
or 277VAC supplies only.)
High-Capacity LED Industrial Emergency Lighting Unit
Wet Location, NEMA 4X & Food Processing
Standard, Remote Capacity and Spectron Equipped Models
4
Installation, Operation, and Service Instructions
B
A A A
4
When using electrical equipment, basic safety precautions should
always be followed including the following.
INSTRUCTIONS
INSTALLER:
INSTALLATION
DYN Series
3
2
1
4
3
REV
DATE
RECORD
DESN CHCK
1
5/31/13
EC-121017003
ALB
ALB
B
B
A
A A A
THIS ILLUSTRATION IS USED ON INSTRUCTION SHEET 93048898
93049060
93049063
CRITICAL DIMENSIONS
UNSPECIFED TOLERANCES:
INCHES
This document contains confidential and proprietary information of Dual Lite.
X.X=
u
0.02 X.XX=
u
0.01 X.XXX=
0.005
u
Receipt or possession of this document does not convey any rights to
reproduce or disclose its contents, or to make, use , or sell anything it may
FRACTIONS=
u
1/32 ANGULAR TOLERANCE=
u
.5
v
disclose. Reproduction, disclosure, or use of the document or its contents,
without the specific written authorization of Dual Lite, may violate the
DIMENSIONS IN INCHES
DRAWN:
intellectual property rights of Dual Lite.
ALB
05/31/13
DIMENSIONS IN [ ] IN MM
ILL-UNIT DYN
CONFORMS TO ASME Y14.5M
CHECKED BY:
DO NOT SCALE PRINT
ALB
5/31/13
MATERIAL:
FINISH:
PART NO.
ENGINEERING:
---
---
93049060
ALB
5/31/13
CATALOG NO.
SCALE
SIZE
DRAWING NO.
REV.
SHT 1
93049060
1
1:2
B
1 SHTS
THIRD ANGLE PROJECTION
3
2
1
4
3
CRITI
UNSPE
X.X=
0
u
FRACT
DIMENSI
DIMENSI
CONFOR
DO NOT
THIRD
