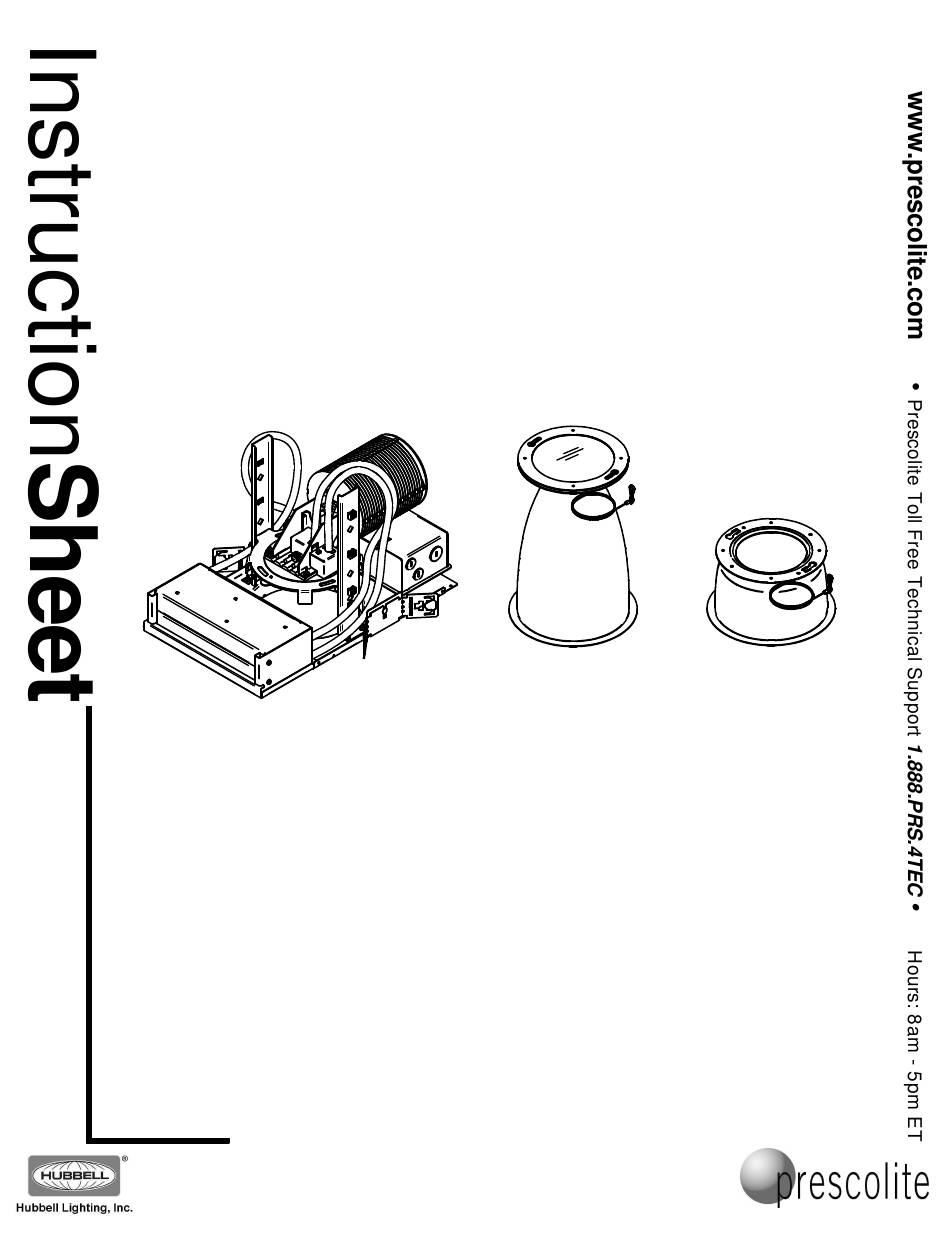

HUBBELL LIGHTING Prescolite MD8LED Series Instruction Sheet

Fixture and reflector

Advertisement

Available languages

Available languages

Quick Links

IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information
and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,
and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and
during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by
qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.
Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in
compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by
the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from
product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or
the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.
MD8LED FIXTURE AND 8MD REFLECTOR
INSTALLATION INSTRUCTIONS
CAUTION: To reduce the risk of electrical shock, make certain that the power supply is
turned off before installing or servicing this product!
1. As shipped from the factory, the fixture light engine is mounted in the lowest position on the
plaster frame yoke risers. This is the correct mounting point for the 8MD 55 degree reflectors
and the WallWash reflector. The only adjustment that may be necessary is the lens position
adjustment. See Step 7 below for the light engine mounting points for each reflector (25, 35,
45, 55 degree, and WallWash). See Step 8 for the adjustment for lensed or open (no lens)
reflectors. This can be pre-adjusted before fixture installation, or adjusted later during the
reflector installation, after the ceiling is finished.
2. Bend the adjustable mounting brackets as shown in FIG. 1. Install the fixture in the ceiling using
B24 or B6 bar hangers, or using mounting channel or bar (by others) placed in the adjustable
mounting brackets. Mount the fixture so that the weight of the fixture is safely and securely
attached and supported by the building structure using the bar hangers, mounting channel,
and/or hanger wires, or as required by local code. Do not support the fixture by attaching it to
the ceiling alone.
