HK Instruments DPG Series Installation Instructions

INTRODUCTION

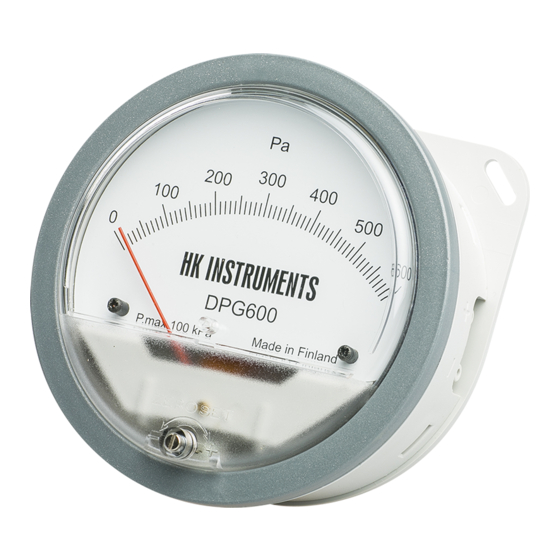

Thank you for choosing an HK Instruments DPG Series differential
pressure gauge. The DPG Series is intended for use in commercial
environments in HVAC/R applications. It is designed to detect air
and non-corrosive gas pressures (differential and positive) and to
provide a clear analog display of the measured values.
The DPG Series includes field adjustable zero point calibration and
overpressure protection. The DPG Series is available with NIST
standard calibration certificates.

APPLICATIONS

DPG series devices are commonly used in HVAC/R systems for:
• fan, blower and filter monitoring
• pressure and flow monitoring
• monitoring static pressure

SPECIFICATIONS

Performance
Accuracy:
<±2 % F.S (at 67 °F)
Overpressure:
Burst pressure: 80 inWC (20 kPa)
Copyright HK Instruments, Inc. 2017
DIFFERENTIAL PRESSURE GAUGES
& MANOMETERS – DPG Series
• READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO
• Failure to observe safety information and comply with instructions can result in
• To avoid electrical shock or damage to equipment, disconnect power before
• To avoid potential fire and/or explosion do not use in potentially flammable or
• Retain these instructions for future reference.
• This product, when installed, will be part of an engineered system whose
• LISEZ ATTENTIVEMENT CES INSTRUCTIONS AVANT DE PROCÉDER À
• Le non-respect des informations et instructions de sécurité peut entraîner DES
• Afin d'éviter les chocs électriques et les dommages matériels, déconnectez
• Afin de prévenir les risques d'incendie et/ou d'explosion, n'utilisez pas l'appareil
• Conservez ces instructions à titre de référence.
• Une fois installé, ce produit fera partie d'un système technique dont les
Technical Specifications
Media compatibility:
Dry air or non-aggressive gases
Measuring units:
inWC
Measurement ranges:
0–1.0 inWC
0–2.0 inWC
0–3.0 inWC
0–5.0 inWC
0–10.0 inWC
0–15.0 inWC
0–20.0 inWC
Environment:
Operating temperature: 23–140 °F (-5–60 °C)
Storage temperature: -40–185 °F (-40–85 °C)
www.hkinstrumentsinc.com

WARNING

INSTALL, OPERATE OR SERVICE THIS DEVICE.
PERSONAL INJURY, DEATH AND/OR PROPERTY DAMAGE.
installing or servicing and use only wiring with insulation rated for full device
operating voltage.
explosive atmospheres.
specifications and performance characteristics are not designed or controlled
by HK Instruments. Review applications and national and local codes to assure
that the installation will be functional and safe. Use only experienced and
knowledgeable technicians to install this device.
AVERTISSEMENT
L'INSTALLATION, LA MISE EN SERVICE OU L'ENTRETIEN DE CET APPAREIL.
DOMMAGES CORPORELS, LA MORT ET/OU DES DÉGÂTS MATÉRIELS.
l'alimentation électrique avant l'installation ou l'entretien, et utilisez uniquement du
câblage avec isolement assigné pour une tension d'alimentation optimale.
dans des environnements potentiellement inflammables ou explosifs.
spécifications et les caractéristiques de performance ne sont ni conçues ni
contrôlées par HK Instruments. Consultez les applications et les codes nationaux
et locaux pour garantir le fonctionnement correct et sûr de l'installation. Ne faites
appel qu'à des techniciens expérimentés et compétents pour installer cet appareil.
Physical
Case:
ABS
Cover:
PC
Membrane:
Silicone
Machinery:
Aluminum and steel spring
Unit mounting diameter
ø 4-11/32 in (110 mm)
Weight:
8.25 oz (234 g)
COMPANY WITH
MANAGEMENT SYSTEM
CERTIFIED BY DNV GL
= ISO 9001 = ISO 14001 =
Installation
INSTRUCTIONS
RoHS 2
2011/65/EU
Installation version 2.0 2017
