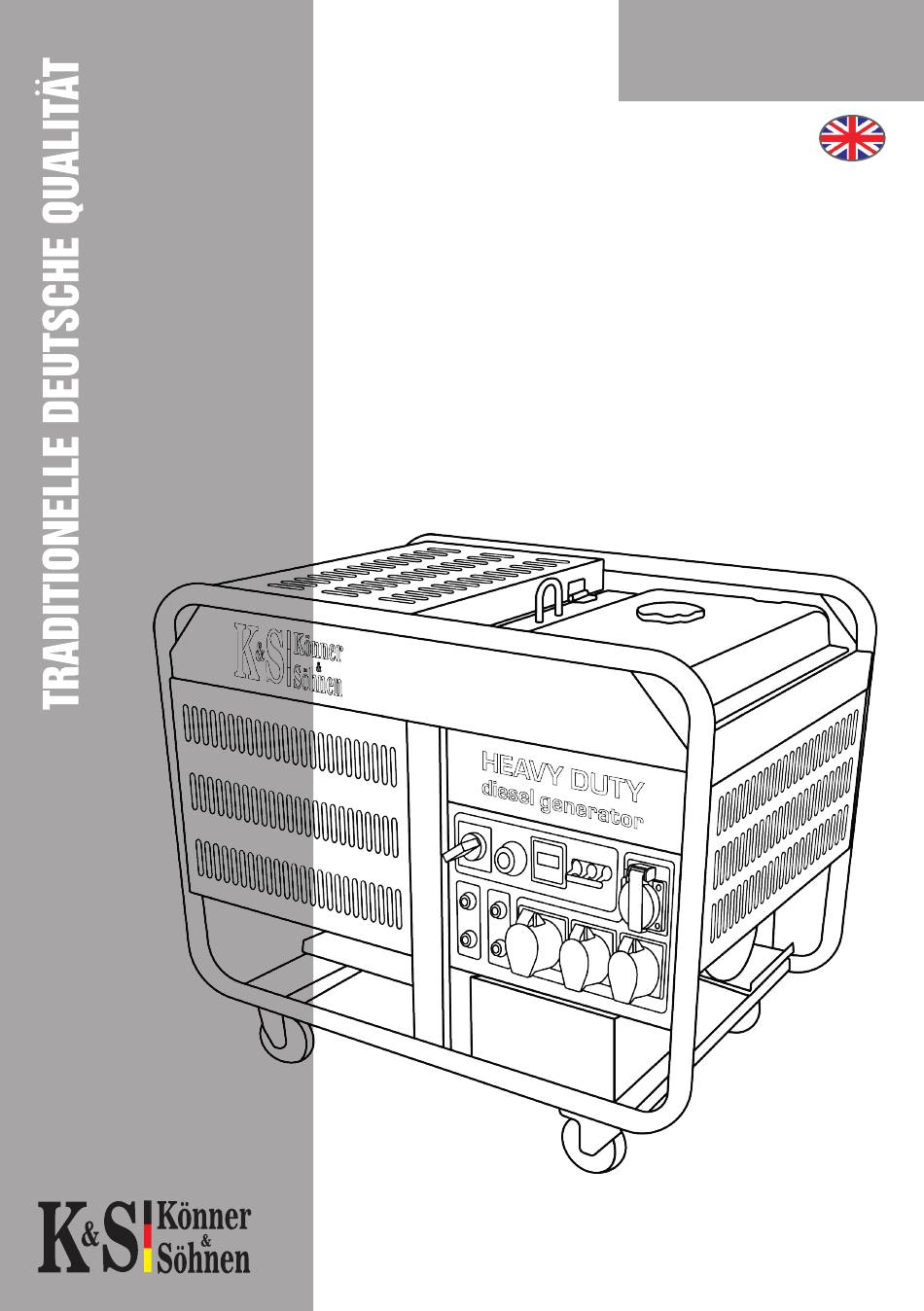

- Page 1 Owner’s Manual Please, read this manual carefully before use! HEAVY DUTY diesel generator DIESEL GENERATOR KS 14100HDE ATSR KS 14100HDE 1/3 ATSR SILENT DIESEL GENERATOR KS 14200HDES ATSR KS 14200HDES 1/3 ATSR...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Preface _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 2 2. Diesel Generator Use and Safety Precautions_ _ _ _ _ _ _ _ _ _ _ 3 3. -
Page 3: Preface
PREFACE Thank you for your purchase of ТМ Könner & Söhnen HEAVY DUTY series diesel generator. It is professional machinery with an increased service life and is therefore suitable for heavy-duty operation. HEAVY DUTY series diesel generator engines have a service life of more than 3,000 operating hours subject to observance of the rules of generator operation and the maintenance schedule. -
Page 4: Diesel Generator Use And Safety Precautions
DIESEL GENERATOR USE AND SAFETY PRECAUTIONS Read this manual carefully before operating the generator. Work Area - Do not use the generator near flammable gases, liquids or dust. During operation of the generator, its exhaust system becomes very hot. This may cause fire or explosion of these materials. - Page 5 Operating and Maintaining the Generator - Before preoperational check, make sure the generator is on a flat, level surface and the engine switch is in the OFF position. - Check the connection of moving parts, inspect for damaged parts that affect the operation of the generator.
-
Page 6: Symbols
SYMBOLS 1. Be careful when operating the device! Observe 5. The device generates electricity. Observe the safety instructions in this manual. safety precautions to avoid electric shock. 2. Operate the generator only in well-ventilated 6. Read this manual carefully before operating indoor spaces or outdoors. -
Page 7: Diesel Generator Overview, Configuration, Components
DIESEL GENERATOR OVERVIEW, CONFIGURATION, COMPONENTS Fig. 1 1. Reinforced frame 2. Fuel tank 3. Air filter 4. Antivibration mounts 5. Fuel filter 6. Oil filter 7. Oil dipstick 8. Oil drain hole 9. Engine safety switch 10. Battery 11. Control panel 5, 6, 7, 8 12. -
Page 8: Specifications
GENERATOR SPECIFICATIONS KS 14100 HDE KS 14100 HDE KS 14200 HDES KS 14200 HDES Modell ATSR 1/3 ATSR ATSR 1/3 ATSR Voltage (V) Max power required 12 kW 9 kW 12.5 kVA 12 kW 9 kW 12.5 kVA Nominal power 11 kW 8.5 kW 11.8 kVA 11 kW... - Page 9 To ensure the reliability of the generator and increase its lifespan, the peak capacities may be slightly limited by circuit breakers. The optimum operating conditions are ambient temperature of 17 – 25 °C, barometric pressure of 0.1 MPa (760 mm Hg), and relative humidity of 50 – 60%. Under such ambient conditions, the generator can guarantee maximum performance in terms of the stated specifications.
-
Page 10: Terms Of Use Of Diesel Generator
TERMS OF USE OF DIESEL GENERATOR It is recommended to ground the generator before operating it for the first time. Before starting the device, remember that the total power of the connected power consumers should not exceed the rated power of the generator. Types of Power Consumers and Start-up Current There are two types of power consumers (electrical devices connected to the generator): active and reactive. -
Page 11: Control Panel
Be sure to charge the battery before operating the models equipped with electric starters. Charge the battery with an optional charger (not included), or allow the generator to operate at 50% load for at least one hour when operating for the first time. IMPORTANT! The type of diesel fuel must comply with the operating season! CONTROL PANEL... -
Page 12: Led Display
LED display for models KS 14100HDE ATSR and KS 14100HDE 1/3 ATSR Fig. 4 To select the indicators, press (M) button. The selection of indicators is cyclic. The selected mode is highlighted by the corresponding icon. (V) - this mode displays the voltage level of the... -
Page 13: Control Unit
Multifunction control unit for models KS 14200HDES ATSR and KS 14200HDES 1/3 ATSR Fig. 5 CONTROL PANEL. MAIN FUNCTIONS OF CONTROL BUTTONS. Generator start-up. Generator manual start-up. Automatic mode. Press this button to switch the control unit to automatic mode. Manual mode. - Page 14 Scrolls page up or increases a parameter value. Down. Scrolls page down or decreases a parameter value. Reset. In case of malfunction of the generator, the system is blocked; press this button to delete the error message: the user can turn off the generator if the error message is displayed.
- Page 15 DESCRIPTION OF SYMBOLS Warning! This symbol indicates a possible risk of injury, death, or serious damage to equipment if safety precautions for device installation, operation, or maintenance are not observed. Caution! This symbol indicates a possible risk of injury or damage to equipment if safety precautions for device installation, operation, or maintenance are not observed.
- Page 16 DISPLAY Press the « » button on the home page to enter the main menu, as shown in the figure. GENERAL DISPLAY MENU: SUBMENU: 1. RUN STATUS/CURRENT STATUS NOWMODE/CURRENT MODE AUTO/AUTOMATIC MODE GENSTATE/GENERATOR STATUS READY/READY FOR USE AUTOSTART/ AUTOMATIC START DISABLED/DISABLED STATUS SPEED/SPEED 1500RM/1500 RPM...
- Page 17 MAIN MENU PARAMETERS ARE GIVEN IN THE TABLE BELOW First level menu Second level menu Current status Current status NOWMODE / CURRENT MODE AUTO / AUTOMATIC MAN / MANUAL OFF / DISABLED GENSTATE / GENERATOR NOT READY / NOT READY STATUS READY / READY PRESTART / PRESTART...
-
Page 18: Getting Started
GETTING STARTED Before starting the engine make sure that the power rating of tools or power consumers corresponds to that of the generator. Do not exceed the rated power of the generator. Do not connect any devices before the engine start! IMPORTANT! Do not change the controller settings in terms of the amount of fuel or speed governor (this adjustment was made at the... -
Page 19: Generator Start-Up
STARTING THE GENERATOR - Do not connect any power consumers to the generator before the engine start. - Connect the terminals to the battery and pay attention to the correct polarity (plus/+ to plus/+, minus/- to minus/-). - Set the ignition key to ON. - Turn the key clockwise to the START position. - Page 20 IMPORTANT! Disconnect all devices before stopping the generator! Do not stop the generator if it has any devices connected to it. This may disable the generator! Connecting Power Consumers After switching on the generator, make sure that the voltmeter readings correspond to the nominal ones (230 V +/-5% @ 50 Hz for single-phase generator and 400 V +/-5% 50 Hz for three-phase generator).
-
Page 21: Maintenance
MAINTENANCE Maintenance work listed in section «Maintenance» should be performed on a regular basis. If you cannot perform maintenance work on your own, please contact the authorized service center to request the required maintenance work. IMPORTANT! The manufacturer shall not be liable for any damage caused by failure to perform maintenance work. -
Page 22: Recommended Maintenance Schedule
RECOMMENDED MAINTENANCE SCHEDULE Level check Check for oil leakage Motor oil Replacement First replacement From the second After 20 replacement operating hours onwards Inspection, cleaning Air filter Replacement Inspection, cleaning Oil filter Replacement Level check Fuel tank Inspection, cleaning Inspection, cleaning Fuel filter Replacement... - Page 23 Fig. 6 10W-30 10W-40 Replacing or adding motor oil If the oil level drops, fresh oil must be added to ensure proper operation of the generator. Check the oil level according to the maintenance schedule. To drain oil, proceed as follows: 1.
-
Page 24: Air Filter Maintenance
AIR FILTER MAINTENANCE The air filter should be checked for contamination from time to time. Regular maintenance of the air filter is necessary to maintain sufficient air flow in the carburetor. The maintenance intervals should be shorter when operating the generator in dusty environments. -
Page 25: Fuel Filter Replacement And Cleaning
FUEL FILTER REPLACEMENT AND CLEANING The ТМ Könner & Söhnen diesel generator uses two types of fuel filters. They prevent debris from diesel fuel from penetrating the engine. Coarse fuel filter (located in the tank filler). The filter should be removed for cleaning every 500 operating hours after the probable ingress of solid particles in it. -
Page 26: Battery Maintenance And Charging
BATTERY MAINTENANCE AND CHARGING For ТМ Könner & Söhnen models with electric start, check the battery voltage from time to time. The battery used in the generator should have a voltage of 12 V; if the voltage is lower, charge the battery using an external charger. To avoid battery discharge, it is recommended to run the generator for 30 minutes at least once a month. -
Page 27: Troubleshooting
REGULAR INSPECTION AND MAINTENANCE OF THE GENERATOR It is essential to regularly inspect and maintain the generator to ensure serviceability and long-term operation of the generator engine. Inspection types and intervals are given in the table below. ATTENTION - DANGER! - Stop the engine before performing any maintenance work. -
Page 28: Average Power Consumption Of Devices
AVERAGE POWER CONSUMPTION OF DEVICES Device Power (W) Iron 500-1100 Hair dryer 450-1200 Coffee machine 800-1500 Electric cooker 800-1800 Toaster 600-1500 Heater 1000-2000 Vacuum cleaner 400-1000 Radio 50-250 Grill 1200-2300 Baking oven 1000-2000 Fridge 100-150 TV set 100-400 Perforator 600-1400 Drill 400-800 Freezer... -
Page 29: Warranty Terms
WARRANTY TERMS: HEAVY DUTY diesel gen erators are covered by a two-year warranty from the date of purchase, which is confirmed by record and seal of the seller in the warranty card. Warranty repair is carried out only if you have a fully completed warranty card, the Buyer’... - Page 30 NOTES ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ The current list of service centers can be found on the official importer’s website: www.ks-power.de/en...
- Page 32 CONTACT US Germany ks-power.de info@dimaxgroup.de Poland ks-power.pl info.pl@dimaxgroup.de Ukraine ks-power.com.ua sales@ks-power.com.ua...
