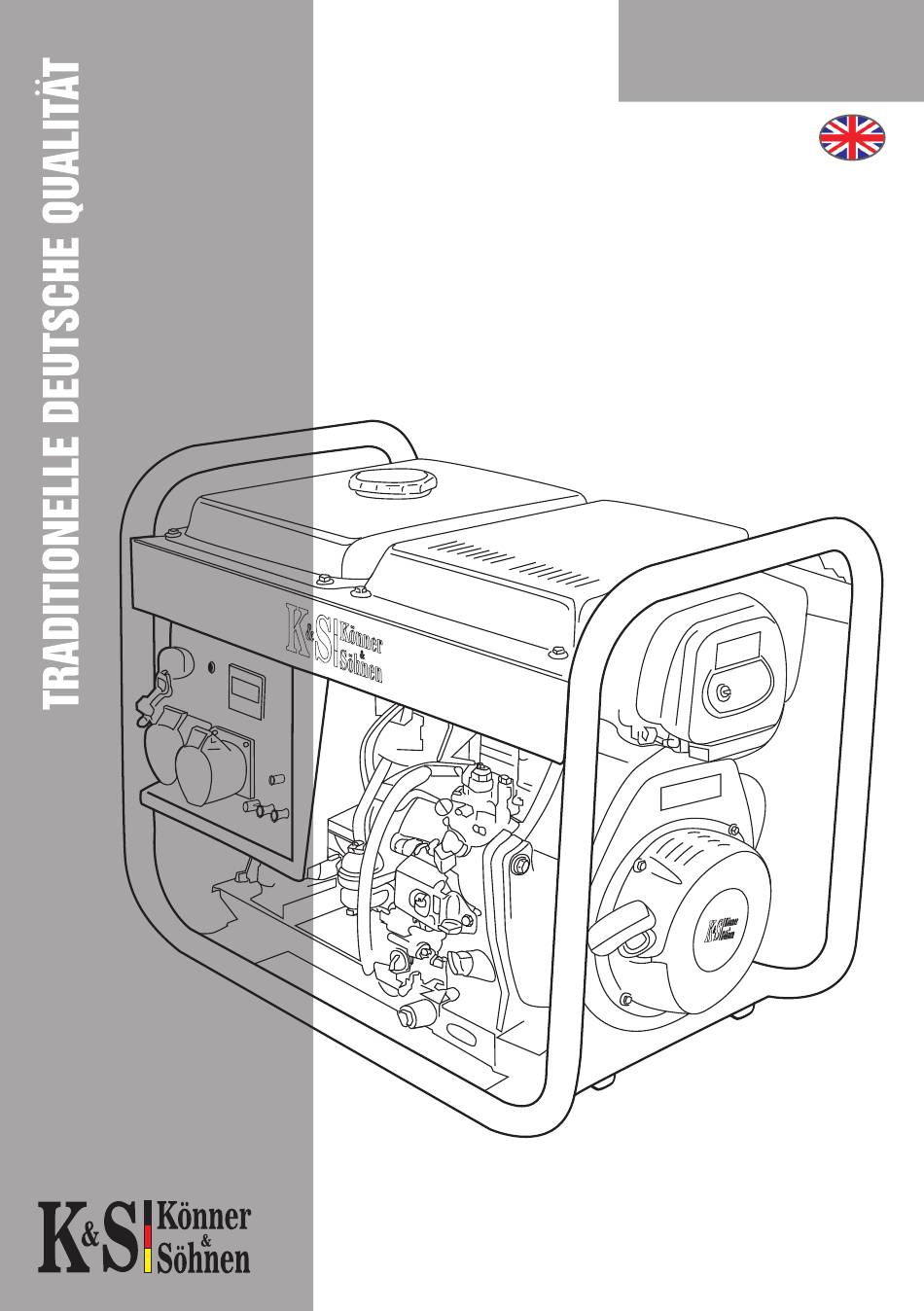

- Page 1 Owner’s manual Please, read this manual carefully before use! Diesel Generator KS 6100HDE KS 8100HDE-1/3 ATSR KS 8100HDE KS 9100HDE-1/3 ATSR KS 9200HDES-1/3 ATSR...
-
Page 2: Table Of Contents
CONTENTS 1. Introduction _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 2 2. Safety information _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 3 3. -
Page 3: Introduction
INTRODUCTION We are grateful to you for your purchase of ТМ Könner & Söhnen series diesel generator. This manual contains safe working recommendations, operation and adjustment description of these generators and maintenance instructions. Manufacturer reserves the right to make alterations into the generators, which may not be reflected in this manual. -
Page 4: Safety Information
SAFETY INFORMATION Carefully read this manual before starting to work with the generator Working area - Please don’t use the generator near flammable gases, liquids or dust. When using the generator exhaust system gets very hot. This may cause fire or explosion of these materials. - Page 5 - Make sure no outsider objects are on the generator when it is turned on. - Always keep a stable position and balance when starting the generator. - Use safety equipment. Always wear goggles, a mask, non-slip sole shoes, protective helmet, headphones. - Do not overload the generator, use it only for the purpose.
-
Page 6: Main Overview
MAIN OVERVIEW Pic 1 1. Frame 6. Oil dipstick 2. Fuel tank cap 7. The oil drain hole 3. Air filter 8. Emergency switch engine 4. Antivibration supports 9. Maintenance panel 5. Fuel pump IMPORTANT! Manufacturer reserves the right to make changes and/ or improvements in design, components set and technical attributes without notice and without incurring obligation. -
Page 7: Models Description
MODELS DESCRIPTION KS 6100HDE KS 8100HDE KS 8100HDE-1/3 ATSR Model Voltage, V Max Power, kW Nominal Power, kW Power factor, cosφ 21.7 20.8 10.9 Current*, A Frequency, Hz 1*32А 1*32А 1*32А Outlets 1*16А 1*16А 1*16А (3ф) Fuel Tank Volume, l... - Page 8 MODELS DESCRIPTION Model KS 9100HDE-1/3 ATSR KS 9200HDES-1/3 ATSR Voltage, V Max Power, kW Nominal Power, kW Power factor, cosφ Current*, A 23.9 12.7 23.9 12.7 Frequency, Hz 1*32А 1*32А Outlets 1*16А (3ф) 1*16А (3ф) Fuel Tank Volume, l voltage voltage LED display frequency...
-
Page 9: Terms Of Use
TERMS OF USE When starting operating the generator, it’s recommended to ground it. Before starting the unit, remember that the total power of consumers connected should not exceed the rated capacity of the generator. Types of consumers and inrush current Consumers (electrical devices connected to the generator) are divided into active and reactive ones. - Page 10 For commissioning models with electric it is necessary to charge the battery. Charge the battery with additional battery charger (not included) or let the generator work at least one hour at 50% load. IMPORTANT! Diesel fuel type should correspond the operating season. MAITENANCE PANEL Pic 3 VOLTS/FREQUENCY...
-
Page 11: Starting To Work
STARTING TO WORK Ensure that the power tool or consumers meet current capabilities of the generator before starting the engine. It is prohibited to exceed its rated capacity. Do not connect the device before starting the engine! IMPORTANT! Do not change the configuration of the amount of fuel or speed controllers (this adjustment was made before the sale). - Page 12 Electric start - Do not connect any devices before you start the engine. - Connect the positive terminal of the battery. - Turn the motor safety switch to ON position. - Set the key to ON position. - Turn the key clockwise to START position. - After the engine launch, release the key, and it will automatically return to ON position.
- Page 13 During generator operation: - You may use the generator, if the voltage meter displays the value 230V+/- 10% (50 Hz) and 400V+ / - 10% (50 Hz) for three-phase generator. - Watch the voltage meter and in case of excessive indices values, stop the generator operation.
-
Page 14: Technical Maintenance Works
IMPORTANT! Failure to follow these instructions may lead to damage of the rotor and stator windings, the AVR unit. IMPORTANT! An overload may lead to automatic activation of generator protection machine. Reduce the load. Reconnect the generator no earlier than 5 minutes after switching off. TECHNICAL MAINTENANCE WORKS Works, specified in “Technical maintenance”... -
Page 15: Maintenance Schedule
MAINTENANCE SCHEDULE Checking the Motor level Replacement Cleaning filter Change Cleaning Oil filter Replacement Checking the level Fuel tank Cleaning Cleaning Fuel filter Replacement RECOMMENDED OILS Motor oil has a serious impact on performance characteristics and is a major attribute, defining its service life. Use oils designed for four-stroke cycle vehicle engines, since such oils contain cleaning additives, which comply or even exceed SE standards according to API classification (or equivalent). - Page 16 Pic 6 5W-30, 10W-30 -20 -10 Engine oil replacement or adding Upon oil level decrease it is necessary to add the required quantity in order to provide the correct generator operation. It is necessary to check the oil levels according to technical maintenance schedule. To replace engine oil, perform the following actions: 1.
-
Page 17: Air Filter Maintenance
AIR FILTER MAINTENANCE It is necessary to check the air filter from time to time and clean any contaminations. Regular air filter maintenance is necessary to maintain sufficient carburetor air inflow. The air filter should be cleaned more often when using generator in dusty conditions. -
Page 18: Fuel Filter Technical Maintenance
FUEL FILTER TECHNICAL MAINTENANCE There are two kinds of fuel filters in Könner & Söhnen diesel generators. They prevent the ingress of contaminants from diesel fuel to the engine. Coarse cleaning fuel filter Remove the filter after the possible hard particles hit every 500 operating hours. Never use water for purification the filter. -
Page 19: Accumulator Maintenance
ACCUMULATOR MAINTENANCE In Könner & Söhnen models with electric start you should periodically perform battery voltage checks. The generator battery has a voltage of 12V and if the voltage is lower, you should perform battery charging with the help of an external charger. To avoid discharging the battery, it is recommended to run the generator at least once a month for 30 minutes. -
Page 20: Possible Failures And Solutions
POSSIBLE FAILURES AND SOLUTIONS Typical failures Possible reason Solution Engine starting swich set Set the engine starting to OFF position switch to ON Engine does not No fuel Add fuel start Low-quality or dirty fuel is in Change the fuel engine Dirt in fuel tank Clean the fuel tank... -
Page 21: Average Power Usage
AVERAGE POWER USAGE Device Average power usage Air hair dryer 450-1200 Iron 500-1100 Electric cooking stove 800-1800 Toaster 600-1500 Coffee machine 800-1500 Air heater 1000-2000 BBQ Grill electric device 1200-2300 Vacuum cleaner 400-1000 Radio 50-250 TV set 100-400 Refrigerator 100-150 Oven 1000-2000 Freezer... - Page 22 WARRANTY SERVICE TERMS Warranty policy International warranty period is 1 year and starts from a day of purchaise. During the warranty term, all malfunctions occurred on the fault of manufacturer will be repaired free of charge. Warranty enters force only on conditions of correct filling the warranty ticket and coupons.
- Page 24 CONTACTS Germany ks-power.de info@dimaxgroup.de Poland ks-power.pl info.pl@dimaxgroup.de Ukraine ks-power.com.ua sales@ks-power.com.ua...
