- Page 1 MBC25081-06 Bipolar Microstep Driver User’s Guide A N A H E I M A U T O M A T I O N 4985 E. Landon Drive Anaheim, CA 92807 (714) 992-6990 fax: (714) 992-0471 e-mail: info@anaheimautomation.com website: www.anaheimautomation.com L011804...
-
Page 2: General Description

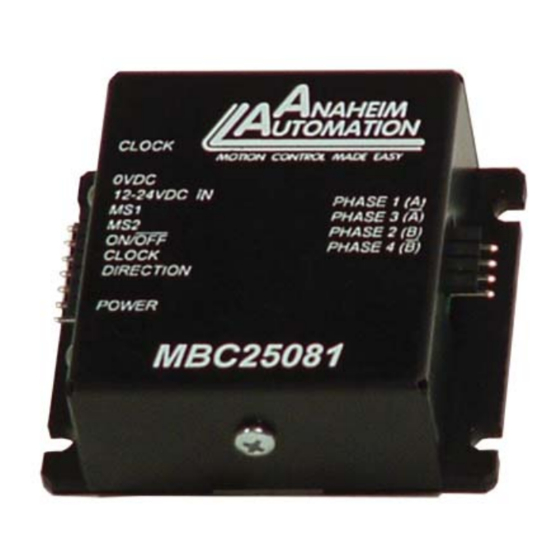

• Long Life Expectancy General Description The MBC25081-06 is a 2.5 amps/phase bipolar microstep driver capable of running four, six, and eight lead step motors. The MBC25081-06 can operate from -40°C to 85°C. The MBC25081-06 has an output current range of 0.5 to 2.5 amps/phase and operates off 12VDC minimum to 24VDC maximum. The inputs are capable of running from either open collector or TTL level logic outputs, or sourcing 24VDC outputs from PLCs. -
Page 3: Wiring Diagrams
Wiring Diagrams Input Pin Descriptions Input Pin Descriptions CBL-AA4031 CBL-AA4033 Pin # Description Pin # Description Wire Color Wire Color Direction Brown Phase A Brown Clock Phase Ā On/Off Orange Phase B Orange Yellow Phase B Yellow Green Logic “1” CW Direction: 12VDC-24VDC Blue... - Page 4 Since the MBC25081-06 uses a constant current source drive technique, it is not necessary to use a motor that is rated at the same voltage as the supply voltage. What is important is that the potentiometer is set to the appropriate current level based on the motor being used.
- Page 5 The output current for a motor used with a bipolar driver is determined differently from that of a unipolar driver. In the MBC25081-06, a sine/cosine output function is used in rotating the motor. The output cur- rent for a given motor is determined by the motors current rating and the wiring confi guration of the motor.
- Page 6 7-pin connector and the motors are on a 4-pin connector. These connectors are not supplied with the driver, but can be purchased from Anaheim Automation or AMP/Tyco Electronics. These two images show how a hand tool can be used to quickly make the cable to connect to the driver.
-
Page 7: Limited Warranty
Anaheim Automation will repair or replace at its’ option, any product which has been found to be defective and is within the warranty period, provided that the item is shipped freight prepaid, with previous authorization (RMA#) to Anaheim Automation’s plant in Anaheim, California.
