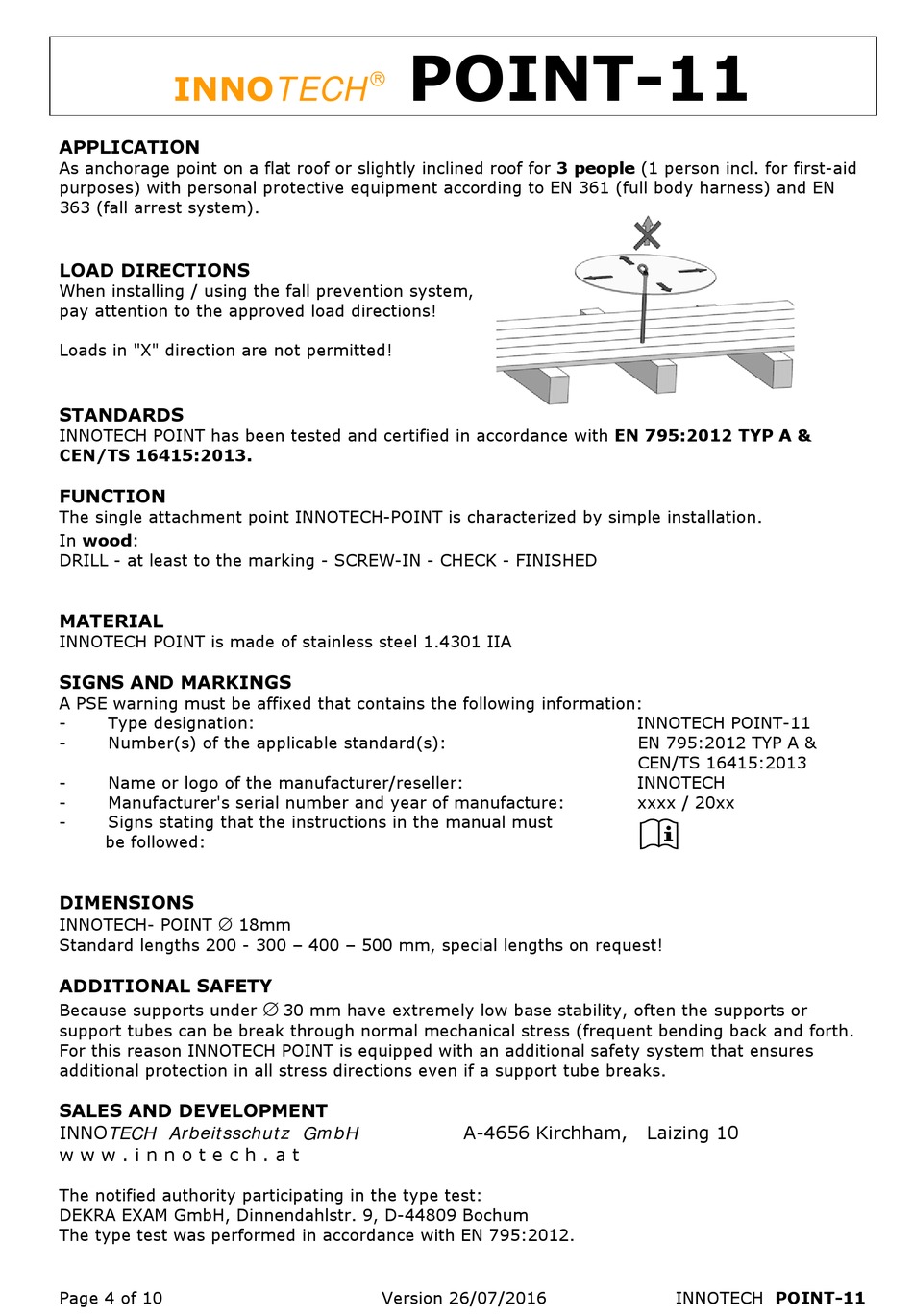

APPLICATION
As anchorage point on a flat roof or slightly inclined roof for 3 people (1 person incl. for first-aid
purposes) with personal protective equipment according to EN 361 (full body harness) and EN
363 (fall arrest system).
LOAD DIRECTIONS
When installing / using the fall prevention system,
pay attention to the approved load directions!
Loads in "X" direction are not permitted!
STANDARDS
INNOTECH POINT has been tested and certified in accordance with EN 795:2012 TYP A &
CEN/TS 16415:2013.
FUNCTION
The single attachment point INNOTECH-POINT is characterized by simple installation.
In wood:
DRILL - at least to the marking - SCREW-IN - CHECK - FINISHED
MATERIAL
INNOTECH POINT is made of stainless steel 1.4301 IIA
SIGNS AND MARKINGS
A PSE warning must be affixed that contains the following information:
- Type designation:
- Number(s) of the applicable standard(s):
- Name or logo of the manufacturer/reseller:
- Manufacturer's serial number and year of manufacture:
- Signs stating that the instructions in the manual must
be followed:
DIMENSIONS

INNOTECH- POINT
Standard lengths 200 - 300 – 400 – 500 mm, special lengths on request!

ADDITIONAL SAFETY

Because supports under
support tubes can be break through normal mechanical stress (frequent bending back and forth.
For this reason INNOTECH POINT is equipped with an additional safety system that ensures
additional protection in all stress directions even if a support tube breaks.
SALES AND DEVELOPMENT
INNOTECH Arbeitsschutz GmbH
w w w . i n n o t e c h . a t
The notified authority participating in the type test:
DEKRA EXAM GmbH, Dinnendahlstr. 9, D-44809 Bochum
The type test was performed in accordance with EN 795:2012.
