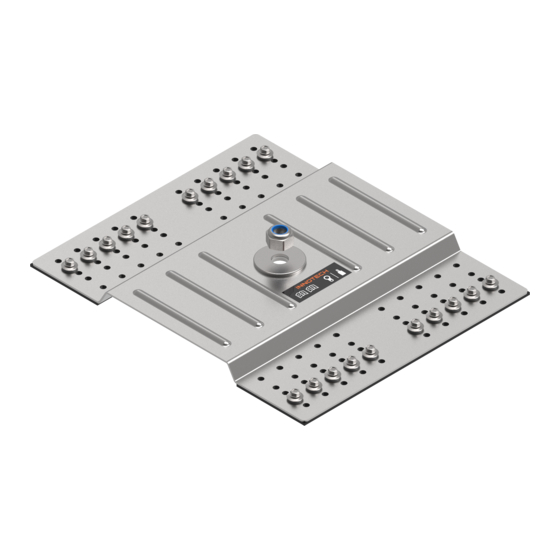

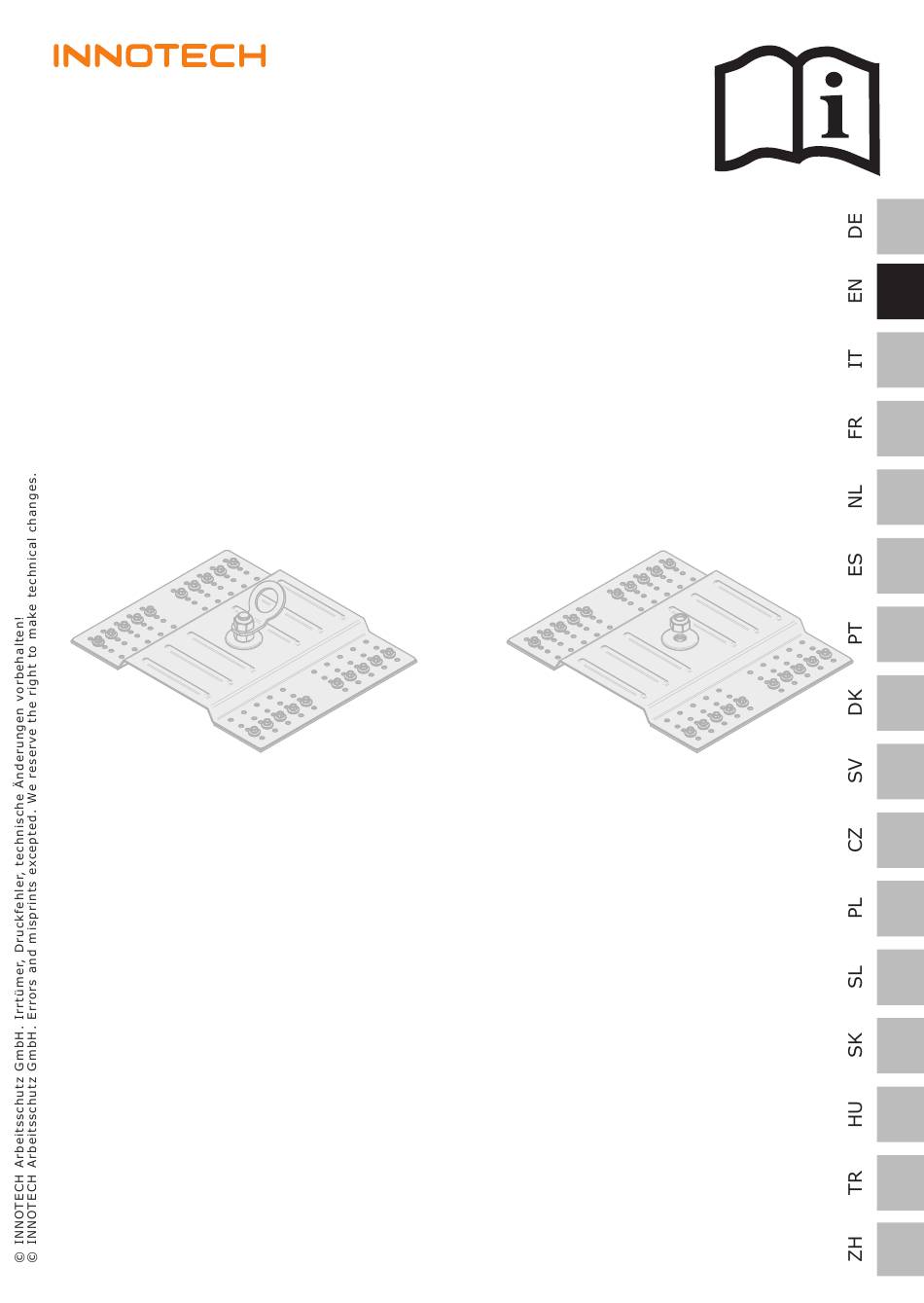

SANDWICH-13
Instruction manual
DE – ACHTUNG: Die Verwendung des INNOTECH-Produkts ist erst zulässig, nachdem die
Gebrauchsanleitung in der jeweiligen Landessprache vollständig gelesen und verstanden wurde.
EN – ATTENTION: Use of the INNOTECH product is permitted only after the instruction
manual has been read and fully understood in the respective language.
IT – ATTENZIONE: L'utilizzo del prodotto INNOTECH è permesso solo previa lettura e
comprensione dell'intero manuale di istruzioni nella lingua del relativo paese di utilizzo.
FR – ATTENTION : L'utilisation du produit INNOTECH n'est autorisée qu'après avoir
entièrement lu et compris la notice d'utilisation dans la langue du pays concerné.
NL – ATTENTIE: Dit INNOTECH-product mag pas gebruikt worden nadat u de gebrui-
kershandleiding in de taal van het betreffende land gelezen en begrepen hebt.
ES – ATENCIÓN: Se autorizará el uso de los productos INNOTECH una vez que se hayan
leído y entendido las instrucciones de uso en el idioma del país.
PT – ATENÇÃO: O uso do produto INNOTECH apenas é permitido depois de ter lido e
compreendido na totalidade as instruções de uso na respetiva língua nacional.
DK – GIV AGT: Du må først bruge et produkt fra Innotech, efter du har læst og forstået
brugsvejledningen i fuldt omfang i dit lands sprog.
SV – O B S : Denna INNOTECH-produkt får inte användas förrän bruksanvisningen på
respektive lands språk har lästs igenom och förståtts.
CZ – POZOR: Práce s výrobkem INNOTECH je povolena teprve po kompletním přečtení a
porozumění návodu k použití v jazyku daného státu.
PL – UWAGA: Produkty firmy INNOTECH mogą być używane dopiero po dokładnym
zapoznaniu się z całą instrukcją obsługi w ojczystym języku.
SL – POZOR: Uporaba izdelka INNOTECH je dovoljena šele po tem, ko ste navodila preb-
rali v celoti v ustreznem jeziku svoje dežele in jih tudi razumeli.
SK – POZOR: Produkt INNOTECH môžete používať až po prečítaní a porozumení celého
návodu na použitie pre príslušnú krajinu.
HU – FIGYELEM: Az INNOTECH termékek használata csak azt követően engedélyezett,
hogy saját nyelvén elolvasta és megértette a teljes használati utasítást.
TR – DİKKAT: INNOTECH ürününün kullanımına ancak ilgili ülkenin dilinde sunulmuş
olan kullanım kılavuzunun tamamen okunmasından ve anlaşılmasından sonra izin verilir.
注意:只有在仔细阅读并完全理解了当地语言的使用说明后,才能使用 INNOTECH 公司的产品。
ZH –

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SANDWICH-13 and is the answer not in the manual?

Questions and answers

Summary of Contents for Innotech SANDWICH-13

  • Page 1 PT – ATENÇÃO: O uso do produto INNOTECH apenas é permitido depois de ter lido e compreendido na totalidade as instruções de uso na respetiva língua nacional. DK – GIV AGT: Du må først bruge et produkt fra Innotech, efter du har læst og forstået brugsvejledningen i fuldt omfang i dit lands sprog.
  • Page 2: Table Of Contents

    INSPECTION WARRANTY SIGNS & MARKINGS DIMENSIONS [10] INSTALLATION SUBSTRUCTURE [11] INSTALLATION TOOL [12] INSTALLATION [13] LOAD DIRECTIONS [14] DISPOSAL [15] ACCEPTANCE LOG [16] INFORMATION ON THE SAFETY SYSTEM [17] TEST LOG [18] DEVELOPMENT & SALES SANDWICH-13 / 180626 / www.innotech.at...
  • Page 3: Description Of Symbols

    WARNING For a POTENTIALLY dangerous situation that could lead to minor physical injuries and damage to property. CAUTION Wear protective gloves! Wear safety spectacles! Supplementary information/instructions  ü correct incorrect Comply with manufacturer information/instruction manual SANDWICH-13 / 180626 / www.innotech.at...
  • Page 4: Safety Instructions

    If the safety system is sold in other countries, the instruction manual must be provided in the respective national language. Comply with the local lightning protection regulations. SANDWICH-13 / 180626 / www.innotech.at...
  • Page 5 If used on sloping roofs, roof avalanches (ice, snow) must be avoided by means of suitable devices to intercept snow. The safety system must NOT be used by children and pregnant women. SANDWICH-13 / 180626 / www.innotech.at...
  • Page 6: Components/Material

    COMPONENTS/MATERIAL INNOTECH "EAP-SANDWICH-13" A) Instruction manual B) Lubricant: Weicon AntiSeize ASW10000 C) INNOTECH "SANDWICH-13": Stainless steel 304 D) Hex nut M16: Stainless steel 304 E) Hex bolt M16x45: Stainless steel 304 F) Washer for M16: Stainless steel 304 G) Lock nut M16: Stainless steel 304 H) Bore fastener incl.
  • Page 7: Product Suitability/Approval

    Comply with the manufacturer's instructions for the personal protective equipment which is used. APPROVAL OF INNOTECH "EAP-SANDWICH-13" INNOTECH "EAP-SANDWICH-13" has been tested and certified as per EN 795:2012 & CEN/TS 16415:2013 TYPE A. The notified authority participating in the type test: DEKRA EXAM GmbH, Dinnendahlstr.
  • Page 8: Inspection

    INSPECTION CHECK BEFORE EVERY USE PRIOR TO EACH USE, INNOTECH "SANDWICH-13" must be checked visually for any obvious defects. DANGER TO LIFE through damage to the INNOTECH "SANDWICH-13". INNOTECH "SANDWICH-13" must be in perfect working condition. DANGER Do NOT continue to use INNOTECH "SANDWICH-13" if •...
  • Page 9: Warranty

    D) Maximum number of people who can be secured: 3 (including 1 person for provision of first-aid) E) Year of manufacture and manufacturer's serial number: JJJJ-..-... F) Number of the applicable standard: EN 795:2012 & CEN/TS 16415:2013 TYPE A SANDWICH-13 / 180626 / www.innotech.at...
  • Page 10: Dimensions

    C) Signs stating that instruction manual must be followed: D) Year of manufacture and manufacturer's serial number: JJJJ-..-... E) Number of the applicable standard: EN 795:2012 & CEN/TS 16415:2013 TYPE C SANDWICH-13 JJJJ-..-... EN 795 : 2012 TYP C DIMENSIONS [mm] SANDWICH-13 / 180626 / www.innotech.at...
  • Page 11: Installation Substructure

    During installation, the coating of coated metal sheeting must NOT be damaged. DANGER TO LIFE as a result of installation on unsuitable assembly substructure. Install INNOTECH "SANDWICH-13" onto a statically load bearing metal DANGER roof system. Ensure that the substructure is statically load-bearing. In cases of doubt, have the installation substructure examined by a statics engineer or by the manufacturer.
  • Page 12: Installation

    INSTALLATION RISK TO LIFE if NOT correctly installed. Install INNOTECH "SANDWICH-13" correctly in accordance with the user instructions. DANGER Maintain a min. distance of 1.50 m to the edge distances of the end of the roof sheeting (Figure). > 1.50 m >...
  • Page 13 INSTALLATION SANDWICH-13 / 180626 / www.innotech.at...
  • Page 14 INSTALLATION [mm] ü 12.2 INNOTECH "AIO-SANDWICH-13" SANDWICH-13 / 180626 / www.innotech.at...
  • Page 15 INSTALLATION optional: INNOTECH "AIO-SANDWICH-13" as intermediate bracket in the INNOTECH horizontal lifeline system as per EN 795:2012 TYPE C. Not included in scope of delivery [mm] ü The maximum spacing of the intermediate cable brackets is 12 m. SANDWICH-13 / 180626 / www.innotech.at...
  • Page 16 INSTALLATION optional: INNOTECH "AIO-SANDWICH-13" as end point in the INNOTECH horizontal lifeline system as per EN 795:2012 TYPE C. Not included in scope of delivery [mm] ü SANDWICH-13 / 180626 / www.innotech.at...
  • Page 17 INSTALLATION optional: INNOTECH "AIO-SANDWICH-13" as corner point in the INNOTECH horizontal lifeline system as per EN 795:2012 TYPE C. Not included in scope of delivery optional: INNOTECH "AIO-SANDWICH-13" as end point in the INNOTECH horizontal lifeline system as per EN 795:2012 TYPE C.
  • Page 18 INSTALLATION For simple, straight cable spans or for cable spans with corner pass-through elements (e.g. INNOTECH "EDLE"), always use two INNOTECH "SHOCK-10". ü  INNOTECH "SANDWICH-13" is suitable ONLY for cable spans with one corner point. 12.3 INSTALLATION ON THE METAL ROOF SYSTEM...
  • Page 19 INSTALLATION Ensure the correct position of the INNOTECH "SANDWICH-13" on the metal roof system. AF = 10 ü  SANDWICH-13 / 180626 / www.innotech.at...
  • Page 20 INSTALLATION AF = 10 [mm] ü DONE! ü  SANDWICH-13 / 180626 / www.innotech.at...
  • Page 21: Load Directions

    LOAD DIRECTIONS   DANGER TO LIFE when used in unapproved load directions. Use INNOTECH "SANDWICH-13" only in the approved load direction. Workloads/ application loads in the "Z-axis" are NOT permitted. DANGER DISPOSAL Do NOT dispose the safety system in the house waste.
  • Page 22: Acceptance Log

     ANCHOR POINTS of a horizontal lifeline system as per EN 795:2012 TYPE C  Specialist: Company address: OPTIONAL: when setting up a horizontal lifeline system in accordance with EN 795:2012 TYPE C Installation of the anchor points by: Installation of the lifeline system by: SANDWICH-13 / 180626 / www.innotech.at...
  • Page 23 (e.g: personal protective equipment PPE, fall arrest devices HSG, storage cabinet, etc.) Item Item Item Item Included in lightning protection system? Comments: Name: Client Inspection: Contractor (expert who is familiar with the safety system) Date, company stamp, signature Date, company stamp, signature SANDWICH-13 / 180626 / www.innotech.at...
  • Page 24: Information On The Safety System

    If there is strain caused by fall, or if in doubt, the anchorage device must be taken out of service immediately and sent to the manufacturer, or to a specialised workshop for inspection and repair. This applies if there is damage to the anchorage equipment. SANDWICH-13 / 180626 / www.innotech.at...
  • Page 25: Test Log

    Inspection logs/clamp log/photo documentation PPE (personal protective equipment against falls from a height): Inspection in accordance with manufacturer's specifications Expiration date Annual inspection performed Not checked (no authorisation) ROOF SEALING: No damage No corrosion ........SANDWICH-13 / 180626 / www.innotech.at...
  • Page 26 Acceptance result: The safety system corresponds to the manufacturer's instruction manual, and to the state of the art. Technical safety reliability is confirmed. Comments: Name: Client Inspection: Contractor (expert who is familiar with the safety system) Date, company stamp, signature Date, company stamp, signature SANDWICH-13 / 180626 / www.innotech.at...
  • Page 27: Development & Sales

    DEVELOPMENT & SALES ® INNOTECH Arbeitsschutz GmbH, Laizing 10, 4656 Kirchham/Austria www.innotech.at SANDWICH-13 / 180626 / www.innotech.at...
