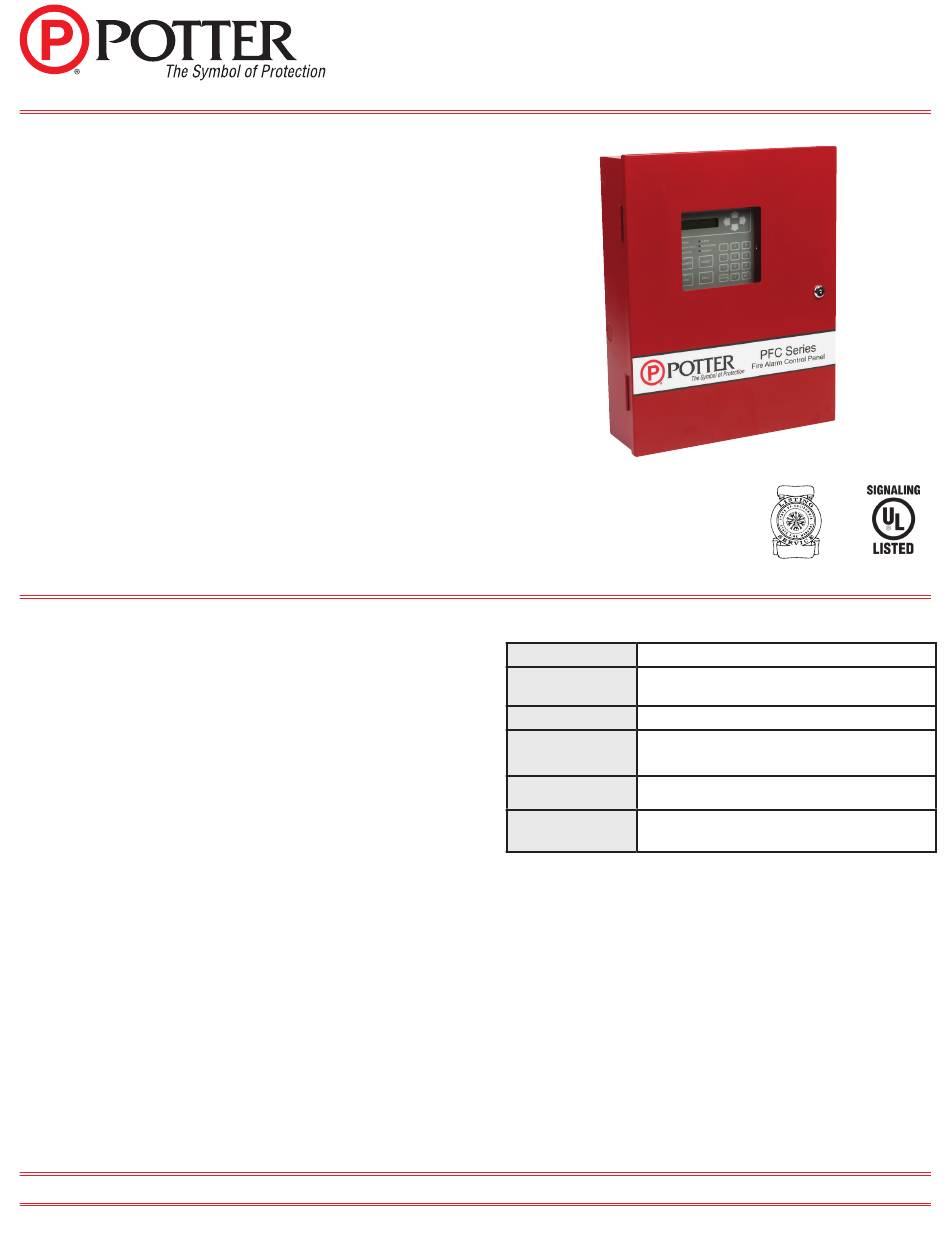

Features
6 programmable Initiating Device Circuits
Class A or Class B Waterflow Initiating Circuit
2 Wire Smoke Detector Compatibility
1.0 Amp Power Supply
1 Notification Circuit rated at 0.5 Amps Regulated
Strobe Synchronization for potter/aMSeCO, gentex, System
Sensor and Cooper/Wheelock
0.5 Amp Auxiliary Power, Programmable as Constant or
Resettable
2 x 16 LCD display with system LEDs for clear system status
Keypad for system features
P-Link for Remote Annunciator Connections
Capacity to charge and house 18AH batteries
Onboard Dual Line Digital Alarm Communicator
Built-in Ethernet Connection with listed IP Communicator
Ability to E-mail system status, reports and system configuration
Service Reminder E-mails
General Description

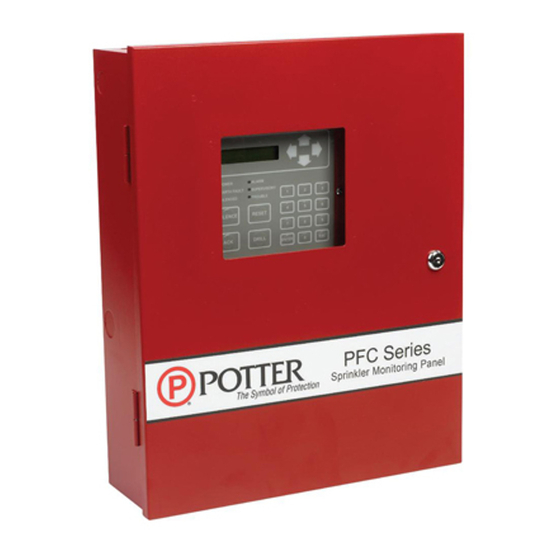

The PFC-6006 is a listed small conventional fire system ideally suited
to monitor a small fire system such as a fire sprinkler system. The first
input is selectable as a Class A or Class B water flow input and the other
five zones are selectable from a menu of options including two-wire
smoke detection. The panel has a 1.0 amp power supply that powers
the panel, charges the batteries and supplies 0.5 amps to a notification
appliance circuit and 0.5 amps of auxiliary power. The auxiliary power
is programmable as constant or resettable.
The control panel is in a metal cabinet with a key lock and lexan window
for viewing the system status. The printed circuit assembly is mounted
for quick removal and installation to allow the cabinet to be installed with
minimal effort. The cabinet houses up to two 12VDC, 18 AH batteries.
The display is a thirty-two (32) character LCD with system status LEDs.
The system status is clearly displayed and the panel includes a history
buffer for past events. The key pad allows navigation into the system
menu, limited programming and system control. The condition and
events on the panel are clearly displayed to allow the user and installer
to determine the system status.
The panel has a dual telephone line digital alarm communicator transmitter
(DACT) built on-board. One or both telephone lines may be enabled
to allow communication to a remote monitoring station. In addition, an
updated panel configuration may be sent to the panel through the telephone
lines. The panel has line in and line out to allow the panel to be installed
ahead of other telephone equipment on the premises.
Potter Electric Signal Company, LLC
Technical Specifications
Size (H x W x D)
enclosure
aC Mains
Battery
Temperature
Standards/
approvals
The panel will support up to four (4) of the RA-6075 remote annunciators
on the P-Link bus. These annunciators include a metal enclosure with a
key lock and provide full functionality of the system.
The panel is pre-programmed from the factory for monitoring a typical
wet or dry fire sprinkler system. The programming may be changed using
the Potter Fire Panel Programmer (available free from www.pottersignal.
com) and a standard Ethernet cable. The default program is as follows:
Input 1 - Waterflow
Input 2 - Smoke Detection (two-wire)
Input 3 - Manual Pull Station
Input 4 - Non-Latching Supervisory
Input 5 - Valve Tamper
Input 6 - Valve Tamper
St. Louis, MO
8830038 - REV E
Conventional Fire Panel
NYC Fire Dept.
Certificate of
approval
6282
18-1/2" x 14-1/4" x 4-3/4"
Eighteen (18) gauge sheet steel with hinged,
removable locked door
1.0 amp @ 120 VAC 60 Hz
105 mA Standby
160 ma alarm
32° to 120°F, humidity 93% non-condensing
UL-864
NFPA-70, 72
Phone: 800-325-3936
4/19
PFC-6006
S735
7165-0328:0204
www.pottersignal.com
