Installation Manual: PC-RA Remote Indicator
NOTICE TO THE INSTALLER
This manual provides an overview and the installation instructions for the PC-RA remote indicator. This product is designed for 2-wire
conventional fire alarm system, and it shall only be installed with listed control panels. For system compatibility, please refer to the
control panel instruction manual.
1. Description
The PC-RA remote indicator is designed for conventional fire alarm system applications. It provides a polarized LED that uses an
active current regulator with current limiting to less than 3 mA at 24 VDC. It is designed to mount on a standard single gang electrical
backbox. Each remote indicator includes one (1) LED to indicate the device status. The LED status is synchronized with the connected
conventional detector.
2. Technical Specifications
Operating Voltage
Standby Current
Alarm Indicator Current
Max. Number Allowed on a Circuit
Installation Temp Range
Operating Humidity Range
Dimension
Weight

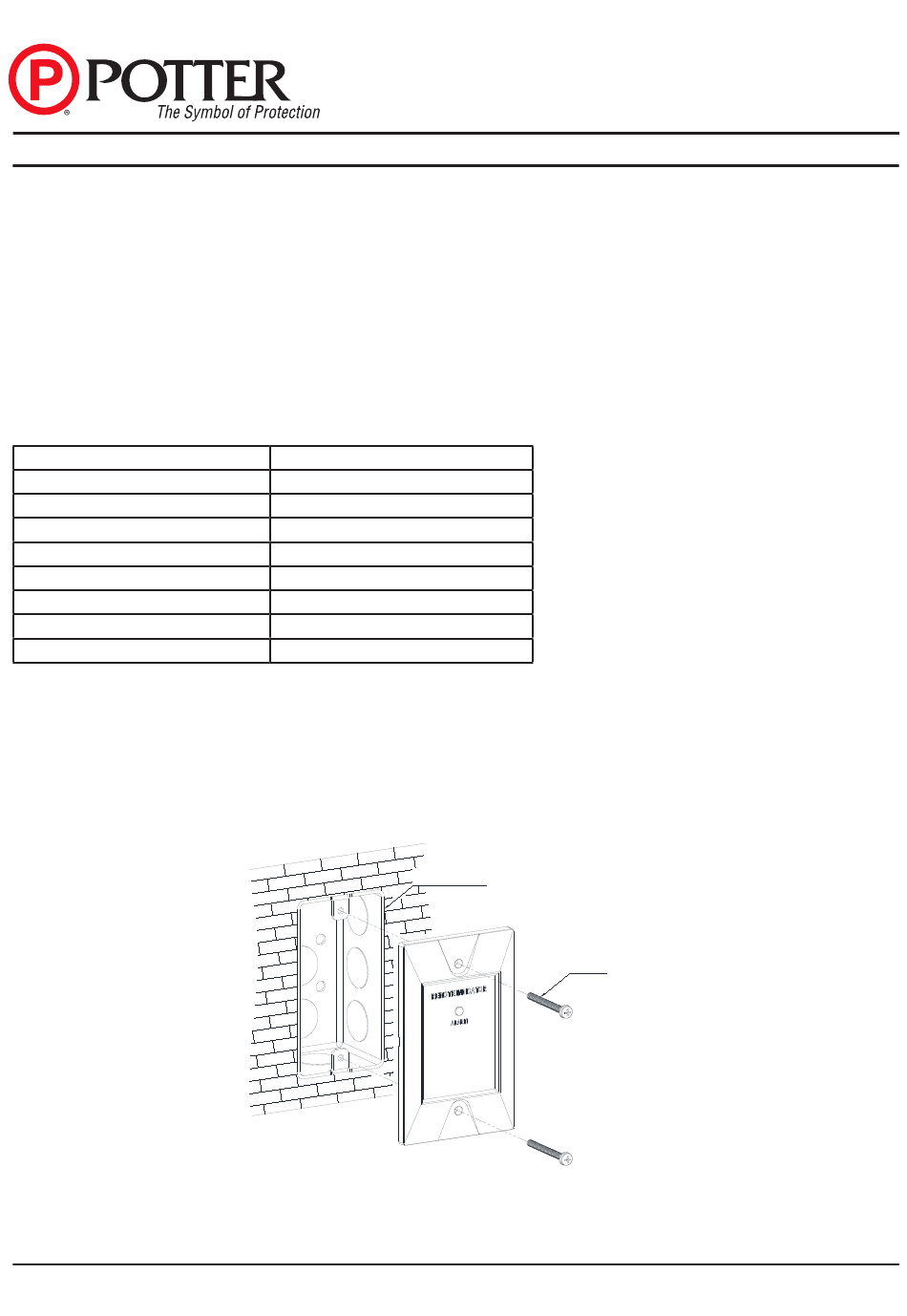

3. Mounting
PC-RA can be mounted on a single gang electrical backbox.
Mounting Instructions:
Loosen screws on junction box or leave screws in place.
Align keyholes on the front cover with screw heads.
Tighten screws to secure the product.
Potter Electric Signal Company, LLC
PC-RA
12 or 24 VDC
60 μA
Max. 3 mA
25
32°F -120°F
0% - 95% (Non-condensing)
2.8×4.5×1.1 in
1.78 oz
Single gang
St. Louis, MO
54035062X_A 04/10/2024
#6-32
Phone: (800) 325-3936
www.pottersignal.com
