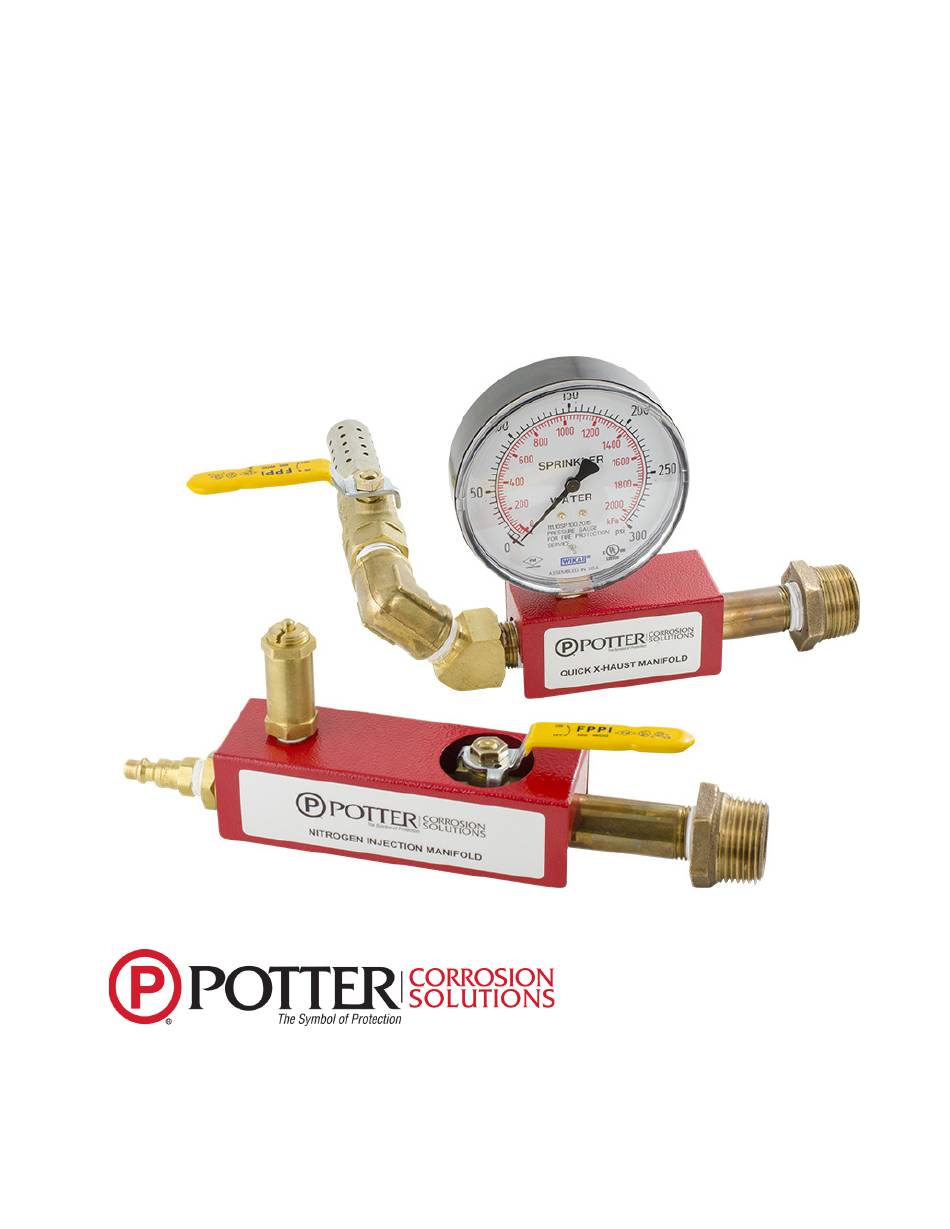

Potter AquaN
Kit
2
Installation, Operation, & Service Manual
Potter Electric Signal Company, LLC
St. Louis, MO
Customer Service: (866) 240-1870 • Technical Support: (866) 956-1211 • Fax: (314) 595-6999
www.pottersignal.com/corrosion
Manual #5401540
Rev. A
firealarmresources.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the AquaN2 Kit and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Potter AquaN2 Kit

  • Page 1 Potter AquaN Installation, Operation, & Service Manual Potter Electric Signal Company, LLC St. Louis, MO Customer Service: (866) 240-1870 • Technical Support: (866) 956-1211 • Fax: (314) 595-6999 www.pottersignal.com/corrosion Manual #5401540 Rev. A firealarmresources.com...
  • Page 2 Manual: AquaN firealarmresources.com...
  • Page 3: Table Of Contents

    Manual: AquaN Table of Contents Safety .................................4 System Overview ..............................5 Before Going to the Job Site..........................6 Installation of AquaN Kit ..........................9 Filling Procedure ............................10 Draining and Testing of an Inerted Wet System ..................12 Technical Specifications ..........................13 Warranty .................................15 firealarmresources.com...
  • Page 4: Safety

    The warnings in this manual cover the most known potential hazards, but by definition cannot be all-inclusive. If the user employs an operating procedure, item of equipment, or a method of working that is not specifically recommended by Potter Electric Signal Company, the user must ensure that the equipment will not be damaged or become hazardous to persons or property.
  • Page 5: System Overview

    Kit, which includes the Nitrogen Injection Manifold (NIM) and the Quick X-Haust Manifold (QXM), in combination with a Potter Automatic Air Release (PAAR-B) or Potter Air Vent (PAV) and a nitrogen source, can easily remove up to 99.9% of oxygen from a wet system.
  • Page 6: Before Going To The Jobsite

    Manual: AquaN 3. Before Going To The Jobsite 1. Read and understand the instructions provided before you proceed with installation. The AquaN Kit and PAV/PAAR-B shall be installed in accordance with local ordinances and the applicable NFPA 13, NFPA 13D, or NFPA 13R standard. 2.
  • Page 7 Kit: (1) Kit required per riser Nitrogen Injection Manifold Quick X-Haust Manifold MFG# 1119500 (1) Air Vent required per riser PAAR-B - Potter Automatic Air Release with PAV - Potter Air Vent secondary shut off valve MFG# 1119720 MFG# 1030001...
  • Page 8 Manual: AquaN Optional Components Nitrogen Cylinder Pressure Potter Nitrogen Analyzer - Purity Regulator with Hose - Brass 0-80 Measuring Nitrogen Analyzer PSI Nitrogen Pressure Regulator, 10 FT rubber hose with quick connect. MFG# 1119501 MFG# 1119504 Retrofit Ball Valve Switch with Cover...
  • Page 9: Installation Of Aquan 2 Kit

    Manual: AquaN 4. Installation of AquaN 1. Before installing the Nitrogen Injection Manifold (NIM), Quick X-Haust Manifold (QXM) and Air Vent (PAV or PAAR-B), completely drain the fire sprinkler system. 2. Install the PAV or PAAR-B at a point most remote from the riser.
  • Page 10: Filling Procedure

    12. Allow pressure to reach 40 PSI in the fire sprinkler system again. 13. Once the pressure reaches 40 PSI, open the QXM. 14. Sample the exhaust gas leaving the QXM muffler with the Potter Nitrogen Analyzer. The nitrogen level should be 98% concentration or greater.
  • Page 11 Manual: AquaN 17. Fully close and disconnect the nitrogen cylinder. 18. The system is now full of high purity nitrogen. 19. Return the system to operation by filling with water. 20. The Air Vent will automatically exhaust the majority of gas in the system to minimize trapped gas. Any residual trapped gas pockets are now high purity nitrogen.
  • Page 12: Draining And Testing Of An Inerted Wet System

    Manual: AquaN 6. Draining and Testing of an Inerted Wet System Normal testing of the fire sprinkler system (ex. quarterly flow tests) can be performed on the fire sprinkler system without the need to drain and refill the system with nitrogen, though addition of oxygenated water can increase corrosion rates. Using the Auto-Test VSR-AT flowswitch improves the corrosion control of a wet fire sprinkler system by eliminating the need to flow water into the sprinkler system.
  • Page 13: Technical Specifications

    Manual: AquaN 7. Technical Specifications Maximum Nitrogen Fill Pressure: Up to 40 PSIG Operating Temperature Range: 40ºF - 120ºF Figure 5: Nitrogen Injection Manifold Dimensions 1/2" BALL VALVE UL LISTED/FM APPROVED FOR FIRE SPRINKLER SYSTEMS 3.41in 4.26in 86.64mm 108.12mm 1.69in 42.97mm PRESSURE RELIEF VALVE FACTORY SET AT 50 PSI...

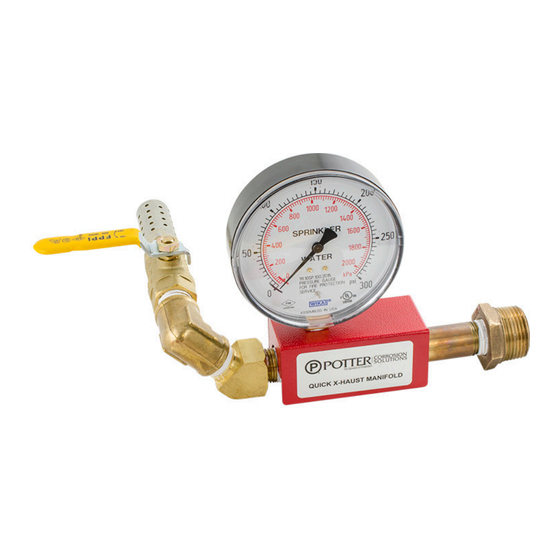

  • Page 14 Manual: AquaN Figure 6: Quick X-Haust Manifold Dimensions MUFFLER - 1/2” NPT (REMOVABLE TO PIPE TO VENTILATED AREA) 5.63in 1/2" BALL VALVE 142.93mm UL LISTED/FM APPROVED FOR FIRE SPRINKLER SYSTEMS 3.41in 1.69in 86.64mm 42.97mm 10.46in 265.72mm PRESSURE GAUGE UL LISTED/FM APPROVED FOR FIRE SPRINKLER SYSTEMS 5.11in 5.93in...
  • Page 15: Warranty

    Many States, Localities and Countries have codes and regulations governing sales, construction, installation, and/or use of products for certain purposes, which may vary from those in neighboring areas. While Potter attempts to assure that its products comply with such codes, it cannot guarantee compliance, and cannot be responsible for how the product is installed or used.
