VTHPMF-3010

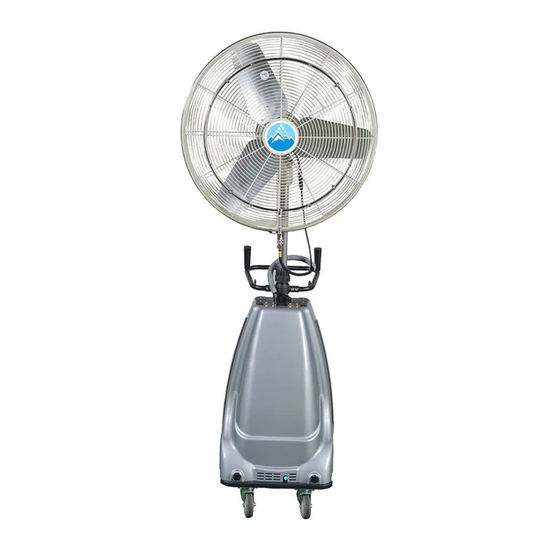

High Pressure Misting Fan 30"
Customer:
Customer PO#:
VENTO SO#:
Tested By:
Serial #:
Ship Date / Install Date:
by
www.ventomist.com
+1 (281) 724-8222
sales@ventomist.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ventomist VTHPMF-3010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vento Ventomist VTHPMF-3010

Summary of Contents for Vento Ventomist VTHPMF-3010

  • Page 1 VTHPMF-3010 High Pressure Misting Fan 30” Customer: Customer PO#: VENTO SO#: Tested By: Serial #: Ship Date / Install Date: www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 2 VTHPMF-3010 High Pressure Misting Fan 30” General Safety Information MACHINE WARNING SIGNS Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, may result...

  • Page 3: Table Of Contents

    VTHPMF-3010 High Pressure Misting Fan 30” TABLE OF CONTENTS MACHINE WARNING SIGNS .................. 2 General Safety Information ................... 4 Installation ......................6 Performance Record ……………………………………………………………………………………… 10 Front view………………………………………………………………………………………………………12 Back view………………………………………………………………………………………………………14 INSTRUCTIONS………………………………………………………………………………………………16 Repair Parts Illustration(Figure3) ................ 17 Repair Parts List(Figure3) ................... 18 Repair Parts Illustration(Figure4) ................

  • Page 4: General Safety Information

    VTHPMF-3010 High Pressure Misting Fan 30” General Safety Information To reduce the risk of short circuit, please place the unit in a dry area. To reduce the risk of burns, do not touch the surface of the pump while operating. Do not handle the pump or motor with wet hands.
  • Page 5 VTHPMF-3010 High Pressure Misting Fan 30” General Safety Information △ ! ATTENTION  Read the manual and safety precautions before using this misting fan.  Please make sure the misting fan is properly grounded.  While operating the misting fan, please supervise the safety of children. ...
  • Page 6 VTHPMF-3010 High Pressure Misting Fan 30” Instructions A. Before Operation 1. Make sure to fill the pump with the oil that has been provided to you before turning on the unit. Failure to add oil to the pump will result in damage to the pump and void the warranty of this unit.
  • Page 7 VTHPMF-3010 High Pressure Misting Fan 30” 2. Make sure that the pump is firmly installed and the connectors are tightened properly. 3. Before operating the motor, turn on the water source and check whether the suction hose is connected to the pump properly. Discharge redundant air inside the pump.
  • Page 8 VTHPMF-3010 High Pressure Misting Fan 30” 4. UNUSUAL NOISE (a) Check the piston and oil. Replace them if necessary. (b) Check the water’s pressure. (c) Check whether the nozzles are clogged. www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 9 VTHPMF-3010 High Pressure Misting Fan 30” Machine Oil SAE-30-40 Type Oil Volume 70CC 1. Initial change, after 30-50 hours of use. Oil Change 2. After initial oil change, Frequency every 100-200 hours of use. 70 CC www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 10 VTHPMF-3010 High Pressure Misting Fan 30” △ ! ATTENTION Please do not change the oil immediately after using the misting fan. The oil will be hot and might cause personal injury. Wait at least 30 minutes before changing the oil. TURNING OFF THE MISTING FAN &...

  • Page 11: Performance Record

    VTHPMF-3010 High Pressure Misting Fan 30” Performance Record www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 12 VTHPMF-3010 High Pressure Misting Fan 30” [Front view] [Side view] www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 13 VTHPMF-3010 High Pressure Misting Fan 30” [Back view] [Side view] www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 14 VTHPMF-3010 High Pressure Misting Fan 30” Control Panel Water Inlet Float sensor and water level indicator www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 15 VTHPMF-3010 High Pressure Misting Fan 30” [Front view] www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 16 VTHPMF-3010 High Pressure Misting Fan 30” Water Tank Pressure regulator Oil inlet cover Outlet Circuit breaker Inlet Drainage screw Oil window www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...

  • Page 17: Instructions

    VTHPMF-3010 High Pressure Misting Fan 30” GENERAL INSTRUCTIONS A. Before Operation 1. Lock the casters to prevent the misting fan from accidentally moving. 2. Make sure the fan brake is released before moving. 3. Make sure the fan is connected secured securely to hhe unit and adjust the fan height. 4.
  • Page 18 VTHPMF-3010 High Pressure Misting Fan 30” Repair Parts Illustration (Figure 2) Figure 2 www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 19 VTHPMF-3010 High Pressure Misting Fan 30” Repair Parts List (Figure 2) Repair Parts List for Misting Fan Reference Description Part Number Quantity Number Stainless Steel Ring VTHPMF-3010-01 Clamp VTHPMF-3010-02 Misting Nozzles VTHPMF-3010-03 Nipple VTHPMF-3010-04 Nipple VTHPMF-3010-05 Fitting VTHPMF-3010-06 Front Guard VTHPMF-3010-07 Frame of the Guard VTHPMF-3010-08...

  • Page 20: Repair Parts Illustration(Figure3)

    VTHPMF-3010 High Pressure Misting Fan 30” Repair Parts Illustration (Figure 3) Figure 3 www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...

  • Page 21: Repair Parts List(Figure3)

    VTHPMF-3010 High Pressure Misting Fan 30” Repair Parts List (Figure 3) Reference Description Part Number Quantity Number VTHPMF-3010-BD-01 Frame 01-2 VTHPMF-3010-BD-01-2 Screw 01-3 VTHPMF-3010-BD -01-3 Spring Washer 01-4 VTHPMF-3010-BD -01-4 Washer VTHPMF-3010-BD -02 Brake Wheel 02-1 VTHPMF-3010-BD -02-1 Set Bolt 02-3 VTHPMF-3010-BD -02-3 Washer...
  • Page 22 VTHPMF-3010 High Pressure Misting Fan 30” Reference Description Part Number Quantity Number 05-10 VTHPMF-3010-BD-05-10 Washer 05-11 VTHPMF-3010-BD-05-11 05-12 VTHPMF-3010-BD-05-12 Screw 05-13 VTHPMF-3010-BD-05-13 PVC Hose VTHPMF-3010- BD-06 Cover 06-1 VTHPMF-3010- BD-06-1 Gasket 06-2 VTHPMF-3010- BD-06-2 Screw 06-3 VTHPMF-3010- BD-06-3 Wire 06-4 VTHPMF-3010- BD-06-4 Washer 06-5...
  • Page 23 VTHPMF-3010 High Pressure Misting Fan 30” Reference Description Part Number Quantity Number 10-6 VTHPMF-3010- BD-10-6 Inlet Hose 10-7 VTHPMF-3010- BD-10-7 Ferule VTHPMF-3010- BD-11 U-Screw 11-1 VTHPMF-3010-BD-11-1 Washer 11-2 VTHPMF-3010-BD-11-2 11-3 VTHPMF-3010-BD-11-3 Set Plate 11-4 VTHPMF-3010-BD-11-4 Screw VTHPMF-3010- BD-12 Clip 12-1 VTHPMF-3010- BD-12-1 Screw VTHPMF-3010- BD-13...
  • Page 24 VTHPMF-3010 High Pressure Misting Fan 30” Reference Description Part Number Quantity Number 18-1 VTHPMF-3010-BD-18-1 Plug 18-2 VTHPMF-3010-BD-18-2 Gasket VTHPMF-3010-BD-19 L-Connector 19-1 VTHPMF-3010-BD-19-1 High-pressure Hose 19-2 VTHPMF-3010-BD-19-2 L-Connector VTHPMF-3010-BD-20 Outlet Connector VTHPMF-3010-BD-21 High-pressure Hose 21-1 VTHPMF-3010-BD-21-1 Hose Sheath VTHPMF-3010-BD-22 Set Plate 22-1 VTHPMF-3010-BD-22-1 Screw...
  • Page 25 VTHPMF-3010 High Pressure Misting Fan 30” Reference Description Part Number Quantity Number VTHPMF-3010-BD-31 Fan Power Cable VTHPMF-3010-BD-32 Handle VTHPMF-3010-BD-33 Seat 33-1 VTHPMF-3010-BD-33-1 Bolt 33-2 VTHPMF-3010-BD-33-2 33-3 VTHPMF-3010-BD-33-3 Washer VTHPMF-3010-BD-34 Cover VTHPMF-3010-BD-35 Adjusting Knob VTHPMF-3010-BD-36 L-Connector 36-1 VTHPMF-3010-BD-36-1 PVC Hose 36-3 VTHPMF-3010-BD-36-3 Water Level Indicator 36-4...
  • Page 26 VTHPMF-3010 High Pressure Misting Fan 30” Reference Description Part Number Quantity Number VTHPMF-3010-BD-43 Filter Assembly 43-1 VTHPMF-3010-BD-43-1 Connector 43-2 VTHPMF-3010-BD-43-2 Filter Socket 43-3 VTHPMF-3010-BD-43-3 O-Ring 43-4 VTHPMF-3010-BD-43-4 Filter 43-5 VTHPMF-3010-BD-43-5 L-Connector 43-6 VTHPMF-3010-BD-43-6 Screw 43-7 VTHPMF-3010-BD-43-7 VTHPMF-3010-BD-44 Model Plate 44-1 VTHPMF-3010-BD-44-1 Screw VTHPMF-3010-BD-45...

  • Page 27: Repair Parts Illustration(Figure4)

    VTHPMF-3010 High Pressure Misting Fan 30” Misting Pump Operation Repair Parts Illustration(Figure 4) Figure 4 www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 28 VTHPMF-3010 High Pressure Misting Fan 30” Repair Parts Illustration (Figure 4) www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...

  • Page 29: Repair Parts List(Figure4)

    VTHPMF-3010 High Pressure Misting Fan 30” Repair Parts List (Figure 4) Reference Description Part Number Q'TY Number Motor VTHPMF-3010-PM-01 01-1 Electrical Cover - Rear VTHPMF-3010-PM-01-1 01-2 Electrical Cover - Front VTHPMF-3010-PM-01-2 01-3 Condensor VTHPMF-3010-PM-01-3 01-4 Circuit Breaker VTHPMF-3010-PM-01-4 01-5 Waterproof Cover VTHPMF-3010-PM-01-5 Wobble Plate VTHPMF-3010-PM-02...
  • Page 30 VTHPMF-3010 High Pressure Misting Fan 30” Reference Description Part Number Q'TY Number 04-5 Ring Seat VTHPMF-3010-PM-04-5 04-6 O-Ring VTHPMF-3010-PM-04-6 04-7 O-Ring VTHPMF-3010-PM-04-7 04-8 O-Ring VTHPMF-3010-PM-04-8 Manifold VTHPMF-3010-PM-05 05-1 Pressure Regulating Nut VTHPMF-3010-PM-05-1 05-2 Spring Seat (Upper) VTHPMF-3010-PM-05-2 05-3 Pressure Regulating Spring VTHPMF-3010-PM-05-3 05-4 Connector...
  • Page 31 VTHPMF-3010 High Pressure Misting Fan 30” Reference Description Part Number Q'TY Number Spring Washer VTHPMF-3010-PM-10 Hex Screw VTHPMF-3010-PM-11 Spring Washer VTHPMF-3010-PM-12 Screw VTHPMF-3010-PM-13 90 Degree Connector VTHPMF-3010-PM-14 14-1 Clamp VTHPMF-3010-PM-14-1 14-2 Oil Drain Hose VTHPMF-3010-PM-14-2 14-3 Wire Clamp VTHPMF-3010-PM-14-3 14-4 Plug VTHPMF-3010-PM-14-4 www.ventomist.com...

  • Page 32: How To Clean The Filter

    VTHPMF-3010 High Pressure Misting Fan 30” How to clean the filter www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 33 VTHPMF-3010 High Pressure Misting Fan 30” A. Misting Nozzles and Filter Filter www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 34 VTHPMF-3010 High Pressure Misting Fan 30” B. Fitting Filter www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 35 VTHPMF-3010 High Pressure Misting Fan 30” 10 micron inlet filter www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 36 VTHPMF-3010 High Pressure Misting Fan 30” Troubleshooting Please consult the list below for common problems and their symptoms. If the advised solution does not solve the problem, please contact your sales agent. Problem Cause Action    Motor does not No power supply Check power cables and power ...
  • Page 37 VTHPMF-3010 High Pressure Misting Fan 30” Appendix 1 – Main Electrical Components  www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 38 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 39 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 40 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 41 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 42 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 43 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 44 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 45 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 46 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 47 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 48 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 49 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 50 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 51 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 52 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 53 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 54 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 55 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 56 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 57 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 58 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 59 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 60 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 61 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 62 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 63 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 64 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 65 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 66 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 67 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 68 VTHPMF-3010 High Pressure Misting Fan 30” www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
  • Page 69 VTHPMF-3010 High Pressure Misting Fan 30” NOTE: www.ventomist.com +1 (281) 724-8222 sales@ventomist.com...
