Quick Start
Thank you for purchasing the MSI®
motherboard. This Quick Start section provides demonstration diagrams about how
to install your computer. Some of the installations also provide video demonstrations.
Please link to the URL to watch it with the web browser on your phone or tablet. You
may have even link to the URL by scanning the QR code.

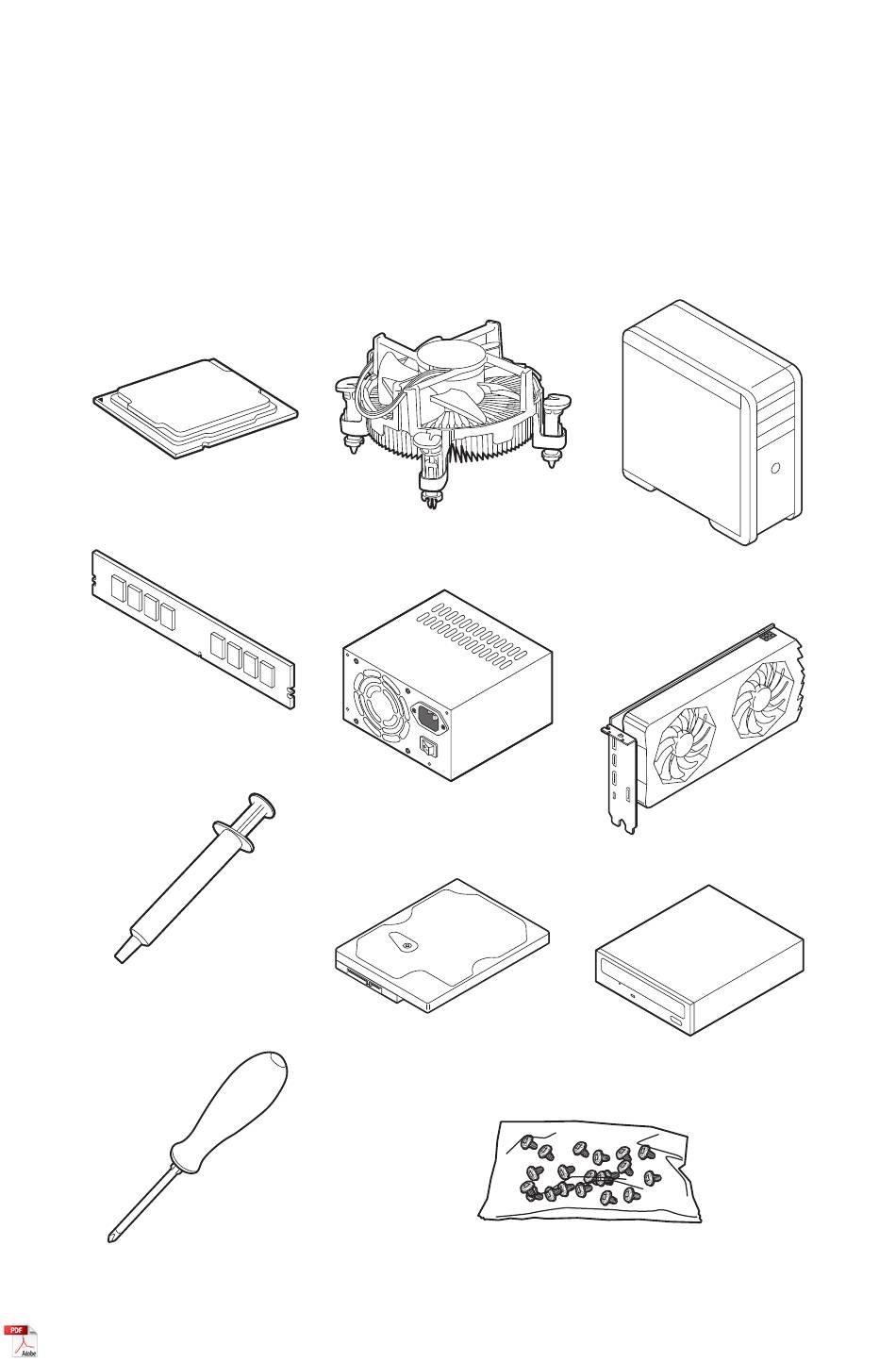

Preparing Tools and Components
Intel® LGA 1200 CPU
DDR4 Memory
Thermal Paste
Phillips Screwdriver
MAG B560M MORTAR WIFI/ MAG B560M MORTAR
CPU Fan
Power Supply Unit
SATA Hard Disk Drive
A Package of Screws
Chassis
Graphics Card
SATA DVD Drive
Quick Start
1
Advertisement
Table of Contents
Related Manuals for MSI B560M MORTAR WIFI
Summary of Contents for MSI B560M MORTAR WIFI
-
Page 1: Quick Start
Quick Start Thank you for purchasing the MSI® MAG B560M MORTAR WIFI/ MAG B560M MORTAR motherboard. This Quick Start section provides demonstration diagrams about how to install your computer. Some of the installations also provide video demonstrations. Please link to the URL to watch it with the web browser on your phone or tablet. You may have even link to the URL by scanning the QR code. -
Page 2: Safety Information
Safety Information ∙ The components included in this package are prone to damage from electrostatic discharge (ESD). Please adhere to the following instructions to ensure successful computer assembly. ∙ Ensure that all components are securely connected. Loose connections may cause the computer to not recognize a component or fail to start. -
Page 3: Case Stand-Off Notification
Case stand-off notification Before installing the motherboard into the case, install first the necessary mounting stand-off required for a motherboard on the mounting plate in the case. To prevent damage to the motherboard, any unnecessary mounting stand-off between the motherboard circuits and the computer case is prohibited. The Case standoff keep out zone signs will be marked on the backside of motherboard (as shown below) to serve as a warning to user. -
Page 4: Installing A Processor
Installing a Processor ⚽ https://youtu.be/4ce91YC3Oww Quick Start... -
Page 5: Installing Ddr4 Memory
Installing DDR4 memory ⚽ http://youtu.be/T03aDrJPyQs DIMMA1 DIMMA2 DIMMA2 DIMMA2 DIMMB1 DIMMB2 DIMMB2 Quick Start... -
Page 6: Connecting The Front Panel Header
Connecting the Front Panel Header ⚽ http://youtu.be/DPELIdVNZUI Power LED Power Switch JFP1 Reserved HDD LED Reset Switch HDD LED + Power LED + HDD LED - Power LED - Reset Switch Power Switch JFP1 Reset Switch Power Switch Reserved No Pin HDD LED - HDD LED HDD LED +... -
Page 7: Installing The Motherboard
Installing the Motherboard ⚽ https://youtu.be/wWI6Qt51Wnc Torque: 3 kgf·cm* BAT1 *3 kgf·cm = 0.3 N·m = 2.6 lbf·in Quick Start... -
Page 8: Connecting The Power Connectors
Connecting the Power Connectors ⚽ http://youtu.be/gkDYyR_83I4 ATX_PWR1 CPU_PWR1 CPU_PWR2 Quick Start... -
Page 9: Installing Sata Drives
Installing SATA Drives ⚽ http://youtu.be/RZsMpqxythc Quick Start... -
Page 10: Installing A Graphics Card
Installing a Graphics Card ⚽ http://youtu.be/mG0GZpr9w_A Quick Start... -
Page 11: Connecting Peripheral Devices
Connecting Peripheral Devices (MAG B560M MORTAR WIFI) Quick Start... -
Page 12: Power On
Power On Quick Start... -
Page 13: Table Of Contents
LAN Port LED Status Table .................. 23 Audio Ports Configuration ..................23 Realtek Audio Console ..................24 Installing Antennas (For MAG B560M MORTAR WIFI only) ......... 26 Overview of Components ..................27 CPU Socket ......................29 DIMM Slots ......................30 PCI_E1~3: PCIe Expansion Slots ................ - Page 14 JBAT1: Clear CMOS (Reset BIOS) Jumper ............41 EZ Debug LED ....................... 41 JRGB1: RGB LED connector ................. 42 JRAINBOW1~2: Addressable RGB LED connectors ..........43 Installing OS, Drivers & MSI Center ..............44 Installing Windows® 10 ..................44 Installing Drivers ....................44 MSI Center ......................44 UEFI BIOS ......................
-
Page 15: Specifications
▪ 2DPC 2R Max speed up to 4000+ MHz ∙ Supports Dual-Channel mode ∙ Supports non-ECC, un-buffered memory ∙ Supports Intel® Extreme Memory Profile (XMP) *Please refer www.msi.com for more information on compatible memory ∙ 2x PCIe x16 slots ▪ Support x16/ x4 ▪ PCI_E1 (From CPU) ▫... - Page 16 * SATA2 will be unavailable when installing M.2 SATA SSD in M2_1 slot. ** Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. Intel® B560 Chipset ▪...
- Page 17 Continued from previous page Realtek® AL897 Codec ▪ 7.1-Channel High Definition Audio Audio ▪ Supports S/PDIF output ∙ 1x Realtek® RTL8125B 2.5Gbps LAN controller Intel® WiFi 6E AX210 ∙ The Wireless module is pre-installed in the M.2 (Key-E) slot ∙ Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz* (160MHz) up to Wireless LAN &...
- Page 18 Continued from previous page ∙ 1x 4-pin RGB LED connector ∙ 2x 3-pin RAINBOW LED connectors LED Features ∙ 4x EZ Debug LED ∙ 4x USB 2.0 Type-A ports ∙ 1x DisplayPort ∙ 1x HDMI port ∙ 3x USB 3.2 Gen 1 5Gbps Type-A ports ∙...
- Page 19 ∙ MSI Sound Tune ∙ Gaming Mode ∙ Creator Mode ∙ Game Highlights ∙ LAN Manager ∙ Mystic Light ∙ Ambient Link (For MAG B560M MORTAR WIFI only) MSI Center ∙ Frozr AI Cooling Features ∙ User Scenario ∙ True Color ∙...
- Page 20 ▪ Audio Boost ▪ Sound Tune ∙ Network ▪ 2.5G LAN ▪ LAN Manager ▪ Intel WiFi (For MAG B560M MORTAR WIFI only) ∙ Cooling ▪ Extended Heatsink Design ▪ M.2 Shield Frozr ▪ K7 thermal pad ▪ Choke pad ▪...
-
Page 21: Package Contents
▪ CPU Cooler Tuning Package contents Please check the contents of your motherboard package. It should contain: Motherboard MAG B560M MORTAR WIFI / MAG B560M MORTAR Cable SATA 6G cables (2 cables/pack) Wi-Fi Antenna (For MAG B560M MARTOR WIFI only) M.2 screw + standoff (2 sets/pack) -
Page 22: Block Diagram
Block Diagram PCI_E1 PCIe x16 DDR4 2Channel DIMM A1,A2 DIMM B1,B2 PCI_E2 M2_1 SATA2 USB 3.2 Gen 2x2 20Gbps PCI_E3 M2_2 USB 3.2 Gen 2 10Gbps USB 3.2 Gen 1 5Gbps SATA1/3/4/5/6 USB 2.0 Realtek LAN 2.5G USB 3.2 Gen 1 5Gbps ASM 1074 USB 2.0 WiFi AX210 (optional) -
Page 23: Rear I/O Panel
Rear I/O Panel Wi-Fi Antenna connectors Audio Jacks 2.5 Gbps LAN DisplayPort USB 2.0 Type-A USB 3.2 Gen 2x2 Optical S/PDIF-Out (20Gbps) Type-C USB 3.2 Gen 1 For B560M (5Gbps) Type-A MORTAR WIFI only LAN Port LED Status Table Link/ Activity LED Speed LED Status Description... -
Page 24: Realtek Audio Console
Realtek Audio Console After Realtek Audio Console is installed. You can use it to change sound settings to get better sound experience. Application Enhancement Device Selection Main Volume Connector Settings Jack Status ∙ Device Selection - allows you to select a audio output source to change the related options. - Page 25 Audio jacks to headphone and microphone diagram Audio jacks to stereo speakers diagram AUDIO INPUT Audio jacks to 7.1-channel speakers diagram AUDIO INPUT Rear Front Side Center/ Subwoofer Block Diagram...
-
Page 26: Installing Antennas (For Mag B560M Mortar Wifi Only)
Installing Antennas (For MAG B560M MORTAR WIFI only) 1. Screw the antennas tight to the antenna connectors as shown below. 2. Orient the antennas. Block Diagram... -
Page 27: Overview Of Components
Overview of Components Processor Socket DIMMA1 DIMMA2 CPU_PWR1 JRAINBOW2 DIMMB1 CPU_PWR1 JSMB1 DIMMB2 CPU_FAN1 PUMP_FAN1 ATX_PWR1 SYS_FAN1 JUSB4 M2_1 PCI_E1 SATA ▼ 1 ▲ 2 BAT1 SATA ▼ 3 ▲ 4 M2_2 PCI_E2 SATA ▼ 5 ▲ 6 JDASH1 PCI_E3 JCI1 JAUD1 JFP1... -
Page 28: Component Contents
Component Contents Port Name Port Type Page CPU_FAN1, PUMP_FAN1, Fan Connectors SYS_FAN1~2 CPU_PWR1~2, ATX_PWR1 Power Connectors CPU Socket LGA 1200 DIMMA1, DIMMA2, DIMMB1, DIMM Slots DIMMB2 JAUD1 Front Audio Connector JBAT1 Clear CMOS Jumper JCI1 Chassis Intrusion Connector JDASH1 Tuning Controller connector JFP1, JFP2 Front Panel Connectors JRAINBOW1~2... -
Page 29: Cpu Socket
Always unplug the power cord from the power outlet before installing or removing the CPU. ∙ Please retain the CPU protective cap after installing the processor. MSI will deal with Return Merchandise Authorization (RMA) requests if only the motherboard comes with the protective cap on the CPU socket. -
Page 30: Dimm Slots
It is recommended to use a more efficient memory cooling system for full DIMMs installation or overclocking. ∙ The stability and compatibility of installed memory module depend on installed CPU and devices when overclocking. ∙ Please refer www.msi.com for more information on compatible memory. Overview of Components... -
Page 31: Pci_E1~3: Pcie Expansion Slots
PCI_E3: PCIe 3.0 x4 (From B560 chipset) ⚠ Important ∙ If you install a large and heavy graphics card, you need to use a tool such as MSI Gaming Series Graphics Card Bolster to support its weight to prevent deformation of the slot. ∙... -
Page 32: M2_1~2: M.2 Slots (Key M)
M2_1~2: M.2 Slots (Key M) ⚽ Video Demonstration Watch the video to learn how to Install M.2 SSD. https://youtu.be/2UeWMgjwogU M2_1 M2_2 ⚠ Important ∙ Intel® RST only supports PCIe M.2 SSD with UEFI ROM. ∙ Intel® Optane™ Memory Ready for M2_2 slot. Installing M.2 module 1. - Page 33 3. Secure the supplied M.2 standoff according to your M.2 SSD length if need. 4. Insert your M.2 SSD into the M.2 slot at a 30-degree angle. ⚠ 5. Secure the M.2 SSD in place with the supplied M.2 8.5H screw. Important Skips step 3 and step 5, if you install 2280 M.2 into M2_1 slot.
-
Page 34: Sata1~6: Sata 6Gb/S Connectors
SATA1~6: SATA 6Gb/s Connectors These connectors are SATA 6Gb/s interface ports. Each connector can connect to one SATA device. SATA2 SATA1 SATA4 SATA3 SATA6 SATA5 ⚠ Important ∙ Please do not fold the SATA cable at a 90-degree angle. Data loss may result during transmission otherwise. -
Page 35: Jfp1, Jfp2: Front Panel Connectors
JFP1, JFP2: Front Panel Connectors These connectors connect to the switches and LEDs on the front panel. Buzzer JFP2 Speaker Speaker - Buzzer + Buzzer - Speaker + Power LED Power Switch JFP1 Reserved HDD LED Reset Switch HDD LED + Power LED + HDD LED - Power LED -... -
Page 36: Cpu_Pwr1~2, Atx_Pwr1: Power Connectors
CPU_PWR1~2, ATX_PWR1: Power Connectors These connectors allow you to connect an ATX power supply. CPU_PWR1 Ground +12V Ground +12V Ground +12V Ground +12V CPU_PWR2 Ground +12V Ground +12V +3.3V +3.3V +3.3V -12V Ground Ground PS-ON# Ground Ground Ground ATX_PWR1 Ground Ground PWR OK 5VSB... -
Page 37: Jusb4: Usb 3.2 Gen 2 Type-C Connector
JUSB4: USB 3.2 Gen 2 Type-C Connector This connector allows you to connect USB 3.2 Gen 2 10Gbps Type-C connector on the front panel. The connector possesses a foolproof design. When you connect the cable, be sure to connect it with the corresponding orientation. USB Type-C Cable JUSB4 USB Type-C port on... -
Page 38: Jusb1~2: Usb 2.0 Connectors
∙ In order to recharge your iPad, iPhone and iPod through USB ports, please install MSI® Center utility. JTPM1: TPM Module Connector This connector is for TPM (Trusted Platform Module). Please refer to the TPM security platform manual for more details and usages. -
Page 39: Cpu_Fan1, Pump_Fan1, Sys_Fan1~2: Fan Connectors
CPU_FAN1, PUMP_FAN1, SYS_FAN1~2: Fan Connectors Fan connectors can be classified as PWM (Pulse Width Modulation) Mode or DC Mode. PWM Mode fan connectors provide constant 12V output and adjust fan speed with speed control signal. DC Mode fan connectors control fan speed by changing voltage. The auto mode fan connectors can automatically detect PWM and DC mode. -
Page 40: Jci1: Chassis Intrusion Connector
JCI1: Chassis Intrusion Connector This connector allows you to connect the chassis intrusion switch cable. Normal Trigger the chassis (default) intrusion event Using chassis intrusion detector 1. Connect the JCI1 connector to the chassis intrusion switch/ sensor on the chassis. 2. -
Page 41: Jbat1: Clear Cmos (Reset Bios) Jumper
JBAT1: Clear CMOS (Reset BIOS) Jumper There is CMOS memory onboard that is external powered from a battery located on the motherboard to save system configuration data. If you want to clear the system configuration, set the jumpers to clear the CMOS memory. Keep Data Clear CMOS/ (default) -
Page 42: Jrgb1: Rgb Led Connector
(12V/G/R/B) with the maximum power rating of 3A (12V). ∙ Always turn off the power supply and unplug the power cord from the power outlet before installing or removing the RGB LED strip. ∙ Please use MSI’s software to control the extended LED strip. Overview of Components... -
Page 43: Jrainbow1~2: Addressable Rgb Led Connectors
(5V). In the case of 20% brightness, the connector supports up to 200 LEDs. ∙ Always turn off the power supply and unplug the power cord from the power outlet before installing or removing the RGB LED strip. ∙ Please use MSI’s software to control the extended LED strip. Overview of Components... -
Page 44: Installing Os, Drivers & Msi Center
MSI Center is an application that helps you easily optimize game settings and smoothly use content creation softwares. It also allows you to control and synchronize LED light effects on PCs and other MSI products. With MSI Center, you can customize ideal modes, monitor system performance, and adjust fan speed. -
Page 45: Uefi Bios
UEFI has many new functions and advantages that traditional BIOS cannot achieve, and it will completely replace BIOS in the future. The MSI UEFI BIOS uses UEFI as the default boot mode to take full advantage of the new chipset’s ⚠... -
Page 46: Bios Setup
* When you press F10, a confirmation window appears and it provides the modification information. Select between Yes or No to confirm your choice. BIOS User Guide If you’d like to know more instructions on setting up the BIOS, please refer to http://download.msi.com/manual/mb/Intel500BIOS.pdf or scan the QR code to access. UEFI BIOS... -
Page 47: Resetting Bios
Updating BIOS Updating BIOS with M-FLASH Before updating: Please download the latest BIOS file that matches your motherboard model from MSI website. And then save the BIOS file into the USB flash drive. Updating BIOS: 1. Insert the USB flash drive that contains the update file into the USB port. - Page 48 ∙ Please close all other application software before updating the BIOS. To update BIOS: 1. Install and launch MSI Center and go to Support page. 2. Select Live Update and click on Advance button. 3. Select the BIOS file and click on Install button.
-
Page 49: Intel® Optane™ Memory Configuration
Optane™ memory, please note that it requires Windows 10 64-bit operating system. Intel® Optane™ Memory User Guide If you’d like to know more instructions on how to enable or remove Intel® Optane™ Memory, please refer to http://download.msi.com/manual/mb/Optane.pdf or scan the QR code to access. ⚠ WARNING After you enable Intel®... -
Page 50: Troubleshooting
Troubleshooting Before sending the motherboard for RMA Lost BIOS password ∙ Clear the CMOS, but that will cause repair, try to go over troubleshooting guide first to see if your got similar you to lose all customized settings in the symptoms as mentioned below. -
Page 51: Regulatory Notices
제조년월: 2021년 disposing of their end-of-life products. 제조자 및 제조국가: MSI/중국 R-R-MSI-B560MMW y Visit the MSI website and locate a nearby distributor for further recycling information. y MAG B560M MORTAR 상호: (주)엠에스아이코리아 y Users may also reach us at gpcontdev@msi.com for 제품명: 메인보드... - Page 52 MSI will comply with the product take entregar a una empresa autorizada para la recogida de back requirements at the end of life of MSI-branded estos residuos.
-
Page 53: 日本Jis C 0950材質宣言
MSI si adeguerà a tale Direttiva indicated in instructions specific to the product. ritirando tutti i prodotti marchiati MSI che sono stati venduti all’interno dell’Unione Europea alla fine del... - Page 54 Copyright © 2021 All rights reserved. contact your place of purchase or local distributor. The MSI logo used is a registered trademark of Alternatively, please try the following help resources Micro-Star Int’l Co., Ltd. All other marks and names for further guidance.
