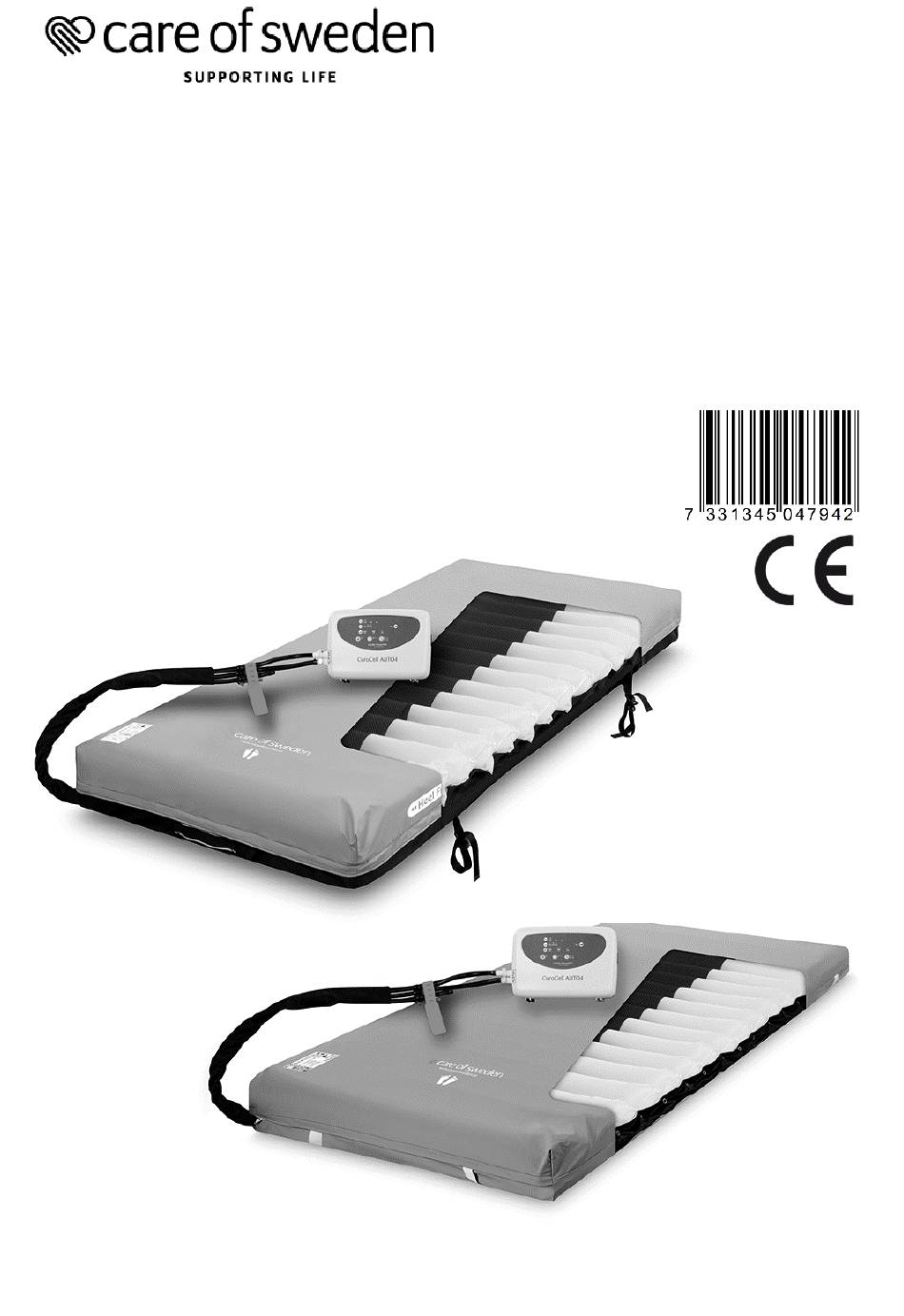

- Page 1 Instructions for use 2020-12-08 CuroCell ® AUTO4 CuroCell ® AUTO4 CX13 Automatic active air mattress systems Instructions for use item number: 95-001616...
-
Page 2: Table Of Contents
Table of contents WARNINGS AND SAFETY PRECAUTIONS 1. Introduction 2. Product description 3. Assembly/Installation 4. Operation 5. Reuse, cleaning and reconditioning 6. Storage 7. Maintenance 8. Troubleshooting 9. Technical description 10. Spare parts 11. Options and accessories 12. Warranty 13. Other information 14. -
Page 3: Warnings And Safety Precautions
Care of Sweden. The product must not be modified in any way. The product must be placed and used so that it does not become trapped or damaged. - Page 4 Contact an authorized service technician for examination and repair. Never connect anything other than the Care of Sweden supplied power supply to the control unit power cable connector.
-
Page 5: Introduction
We would be very grateful for all information involving accidents or incidents relating to our products, by reporting them immediately to us, at Care of Sweden. 1.2 Intended use The system consists of a pump and a mattress and are used for prevention and as an aid in the treatment of pressure ulcers/pressure injuries (PU/PI). -
Page 6: Product Description
The Mattress Guide This guide provides guidance to personnel and prescribers when choosing a mattress from Care of Sweden. CuroCell® AUTO4/AUTO4 CX13 is a mattress in function group C. This information can be obtained from our website, www.careofsweden.com, or ordered from Customer Service (see contact information on the last page). - Page 7 Mattress (without cover) 3 static head cells. If the product is equipped with ventilated cells, they are found here (9 cells). 2.2 Pump 1. Tube connector 3. Fuses (two) 6. Hooks 2. Control panel 4. Off/On (0/1) 7. Air filter 5.
- Page 8 3. The light on the right is lit – The pump will automatically adjust its settings within five minutes. Once the settings have been automatically adjusted, the system will revert to the previously used programme. However, when started it will switch to Alternating mode by default. To stop the automatic setting adjustments, press the button.
-
Page 9: Assembly/Installation
3. Assembly/Installation When unpacking, check that no parts are damaged. If any damage is found, contact Care of Sweden or your local distributor before using the product. 1. If the mattress has an integrated foam cushion (CuroCell® AUTO4) then the mattress is placed directly on the bed base. -
Page 10: Operation
4. Operation Note: Always read the instructions for use prior to use. 4.1 Start 1. Set the power switch on the side of the pump to 1 (on). 2. The mattress will start to inflate. It takes at least 15 minutes to fully inflate the mattress. 3. - Page 11 Turn off the notification by pressing the “Notification off” button. WARNING! If the air pressure remains low, search for damage to the mattress and the tubes. Repair if necessary or contact Care of Sweden or your local distributor. 4.7 Transport function If the user needs...
- Page 12 4.8 Heel function The following alternatives can be used to relieve sensitive heels. CuroCell AUTO4 is a combination of foam and air. The foam core has a tapered design to further reduce pressure. CuroCell AUTO4 CX13 is available with the following options: Heel function with valve (option) This function enables pressure relief for the user’s heels.
-
Page 13: Reuse, Cleaning And Reconditioning
Before using the product again for a new user, it is recommended to clean the mattress in accordance with the instructions below. Consult your hygiene manager or Care of Sweden for help and instructions if you are unsure. Cleaning and reconditioning should otherwise be performed as required. - Page 14 5.2 Reconditioning PUMP See section 5.1 for instructions. MATTRESS Disconnect the tube connector from the pump and remove the air from the mattress. Remove the covers. For more information of cleaning the covers, see section 5.1. Move the mattress to a clean area that is suitable for cleaning. Wipe off the cells, all tubes and the CPR module with a mild cleaning solution for this purpose such as: alcohol with or without tenside surfactants, Isopropanol 70 %, oxidizing solutions, chlorine max 1 % or hydrogen peroxide max 1,5 %.
-
Page 15: Storage
3. Check that the air flow alternates between the different outputs on the side of the pump. 4. Check that no tubes or connectors are damaged or pinched. Contact Care of Sweden or your local distributor if any spare parts are required. -
Page 16: Troubleshooting
If your questions are not answered by the above information, please contact Care of Sweden your local distributor. -
Page 17: Technical Description
80/85/90/105/120x200/210x19 cm Weight CuroCell® AUTO4, 13 kg (90x200 cm) Care of Sweden reserves the right to modify the product specification at any time. WARNING! Follow the operation and maintenance instructions carefully in order to prevent physical injury, as well as damage to the product or other equipment. - Page 18 9.4 Symbol key XXXX-XX-XX Item number Manufacturer Year-Month-Day Foot placement Read the instructions for use Function group CE-marked in accordance Recycling with Medical Device Regulation MDR (2017/745) Recommended user weight Do not dispose of with User information – category Placed directly on the household waste;...
-
Page 19: Spare Parts
Pump for mattress width 80, 85, 90 cm CC-400904 Pump for mattress width 105, 120 cm If other spare parts are required, please contact Care of Sweden or your local distributor 11. Options and accessories 11.1 Options Comfort fabric For users who are very sensitive to alternating pressure a comfort fabric can be used, which further improves the comfort offered by the mattress. - Page 20 To ensure the best level of comfort, we recommend the use of accessories from Care of Sweden since our products are designed to work well together. If you require any accessories, or for more information about our products, please contact Care of Sweden or your local distributor. You can also visit our website – www.careofsweden.com.
-
Page 21: Warranty
REPA register and El-kretsen AB. For more information, please contact Care of Sweden. 13.2 Returns and warranty claims Contact Care of Sweden before returning the product. The return postage will be paid by Care of Sweden if the fault is covered by the product warranty, otherwise by the customer. -
Page 22: Notes
14. Notes... - Page 24 Box 146 SE-514 23 Tranemo SWEDEN Visiting address: Fabriksgatan 5A SE-514 33 Tranemo SWEDEN Deliveries address: Byns väg 4A SE-514 33 Tranemo SWEDEN Care of Sweden and CuroCell are trademarks of Care of Sweden AB. © Care of Sweden AB, 2020...
