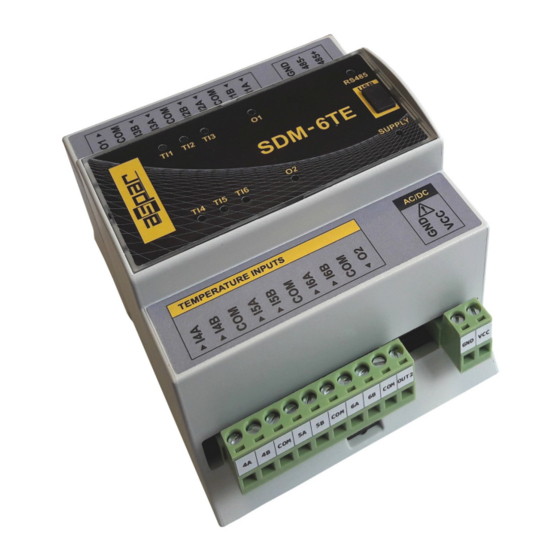

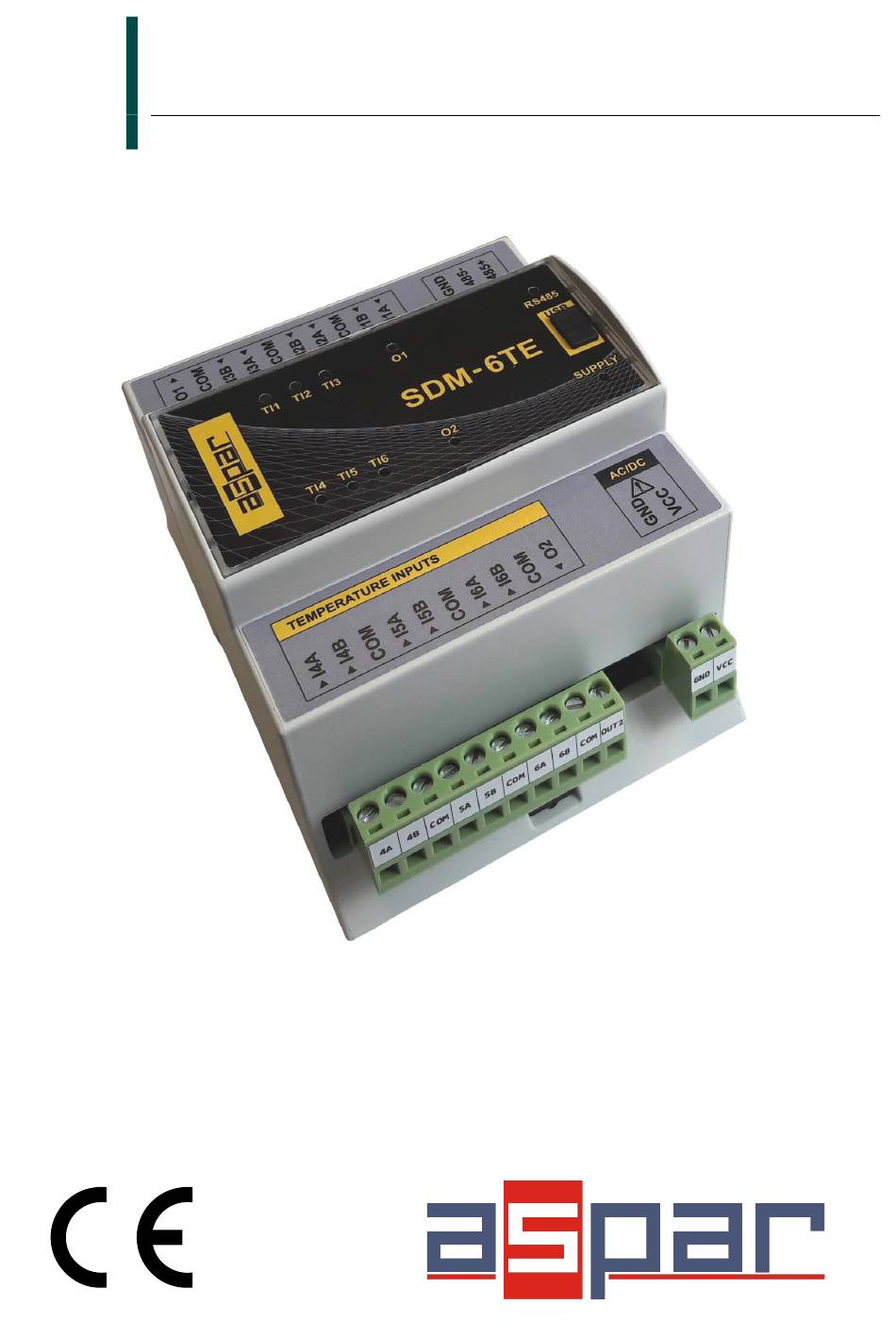

- Page 1 SDM-6TE Expansion Module – 6 temperatue inputs Version 1.1 User Manual Manufactured for...
- Page 2 SDM-6TE User Manual Thank you for choosing our product. This manual will help you with proper support and proper operation of the device. The information contained in this manual have been prepared with utmost care by our professionals and serve as a description of the product without incurring any liability for the purposes of commercial law.
-
Page 3: Safety Rules
2. Module Features 2.1. Purpose and description of the module The SDM-6TE module allows you to measure the temperature with attached popular sensor Pt100, Pt500, Pt1000, Ni100, KTY81-110, NTC (Carel) and thermocouple (type J, K, T, N, S, R, B). In addition, it is possible to measure voltages in the range 256mV (10μV resolution) and to 2048mV (100μV resolution) as well as the measurement of... -
Page 4: Technical Specification
SDM-6TE User Manual 2.2. Technical Specifications Voltage 10-30 VDC; 10-28VAC DC: 52 mA @ 24VDC Power Supply Maximum Current AC: 62 mA @ 24VAC Maximum power consumption DC: 1,25W; AC: 1,5VA No of inputs Pt100 operation range -200°C - +850°C Pt500 operation range -200°C - +850°C... -
Page 5: Dimensions Of The Product
SDM-6TE User Manual Height 110 mm Size Lenght 62 mm Width 88 mm Interface RS485 Up to 128 devices 2.3. Dimensions of the product Look and dimensions of the module are shown below. The module is mounted directly to the rail in the DIN industry standard. Power connectors, communication and IOs are at the bottom and top of the module. -
Page 6: Communication Configuration
SDM-6TE User Manual 3. Communication configuration 3.1. Grounding and shielding In most cases, IO modules will be installed in an enclosure along with other devices which generate electromagnetic radiation. Examples of these devices are relays and contactors, transformers, motor controllers etc. This electromagnetic radiation can induce electrical noise into both power and signal lines, as well as direct radiation into the module causing negative effects on the system. -
Page 7: Types Of Modbus Registers
SDM-6TE User Manual 3.4. Types of Modbus Registers There are 4 types of variables available in the module Modbus Type Beginning adress Variable Access Command 00001 Digital Outputs 1, 5, 15 Read & Write 10001 Digital Inputs Read Registered 30001... -
Page 8: Configuration Registers
SDM-6TE User Manual 3.5.3. Configuration registers Modbus Name Values 0 – 2400 1 – 4800 2 – 9600 3 – 19200 40003 0x02 Baud rate 4 – 38400 5 – 57600 6 – 115200 other – value * 10 0 – none 1 –... -
Page 9: Switches
SDM-6TE User Manual 4. Switches Switch Function Description Module address +1 Module address +2 Module address +4 Setting module address from 0 to 127 Module address +8 Module address +16 Module address +32 Module address +64 Restoring Restoring default settings default settings (see 3.5.1 - Default settings i 3.5.2 - Restore the... -
Page 10: Front Panel Removing
SDM-6TE User Manual 5. Front panel removing To remove the panel and gain access to the switch, you must pry open the panel using a thin tool (eg a small screwdriver) as in the picture below. Expansion modul – 6 temperature inputs User Manual Version 1.1... -
Page 11: Indicators
SDM-6TE User Manual 6. Indicators Inputs 1 – 3 state Output 1 state Communication mini USB configuration connector Power supply Output 2 state Inputs 4 – 6 state Indicator Description Power supply LED indicates that the module is correctly powered. -
Page 12: Module Connection
SDM-6TE User Manual 7. Module Connection Expansion modul – 6 temperature inputs User Manual Version 1.1 12 z 17... -
Page 13: Module Registers
SDM-6TE User Manual 8. Modules Registers 8.1. Registered access Modbus Description Register Name Access 30001 0x00 Version/Type Read Version and Type of the device 30002 0x01 Switches Read Switches state 40003 0x02 Boud rate Read & Write RS485 baud rate... - Page 14 SDM-6TE User Manual Modbus Description Register Name Access 40072 0x47 MIN alarm level 4 Read & Write 40073 0x48 MIN alarm level 5 Read & Write 40074 0x49 MIN alarm level 6 Read & Write 40075 0x4A Alarm settings 1 Read &...
-
Page 15: Bit Access
SDM-6TE User Manual Modbus Description Register Name Access 40090 0x59 Output 2 settings Read & Write +256 – Output is set if value is greater than Alarm Value (register 40091 or 40092) („cooling”) +512 – Output is set if value is less than Alarm Value ( register 40091 or 40092)(„heating”) -
Page 16: Configuration Software
SDM-6TE User Manual 9. Configuration software Modbus Configurator is software that is designed to set the module registers responsible for communication over Modbus network as well as to read and write the current value of other registers of the module. This program can be a convenient way to test the system as well as to observe real-time changes in the registers. -
Page 17: Table Of Contents
SDM-6TE User Manual Table of content 1. Safety rules............................3 2. Module features..........................3 2.1. Purpose and description of the module................….3 2.2. Technical Specification......................4 2.3. Dimensions of the product......................5 3. Communication configuration......................6 3.1. Grounding and shielding......................6 3.2. Network Termination........................6 3.3. Setting Module Address in RS485 Modbus Network ..............6 3.4.
