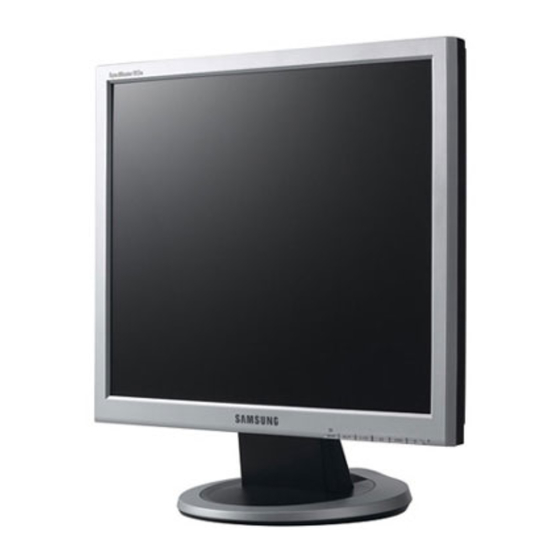

Samsung SyncMaster 913B User Manual

Hide thumbs Also See for SyncMaster 913B:
Table of Contents

Advertisement

Quick Links

See also: Manual Del Usuario
SyncMaster 913N/915N/912T/913T/913B

Advertisement

Table of Contents
loading

Related Manuals for Samsung SyncMaster 913B

Summary of Contents for Samsung SyncMaster 913B

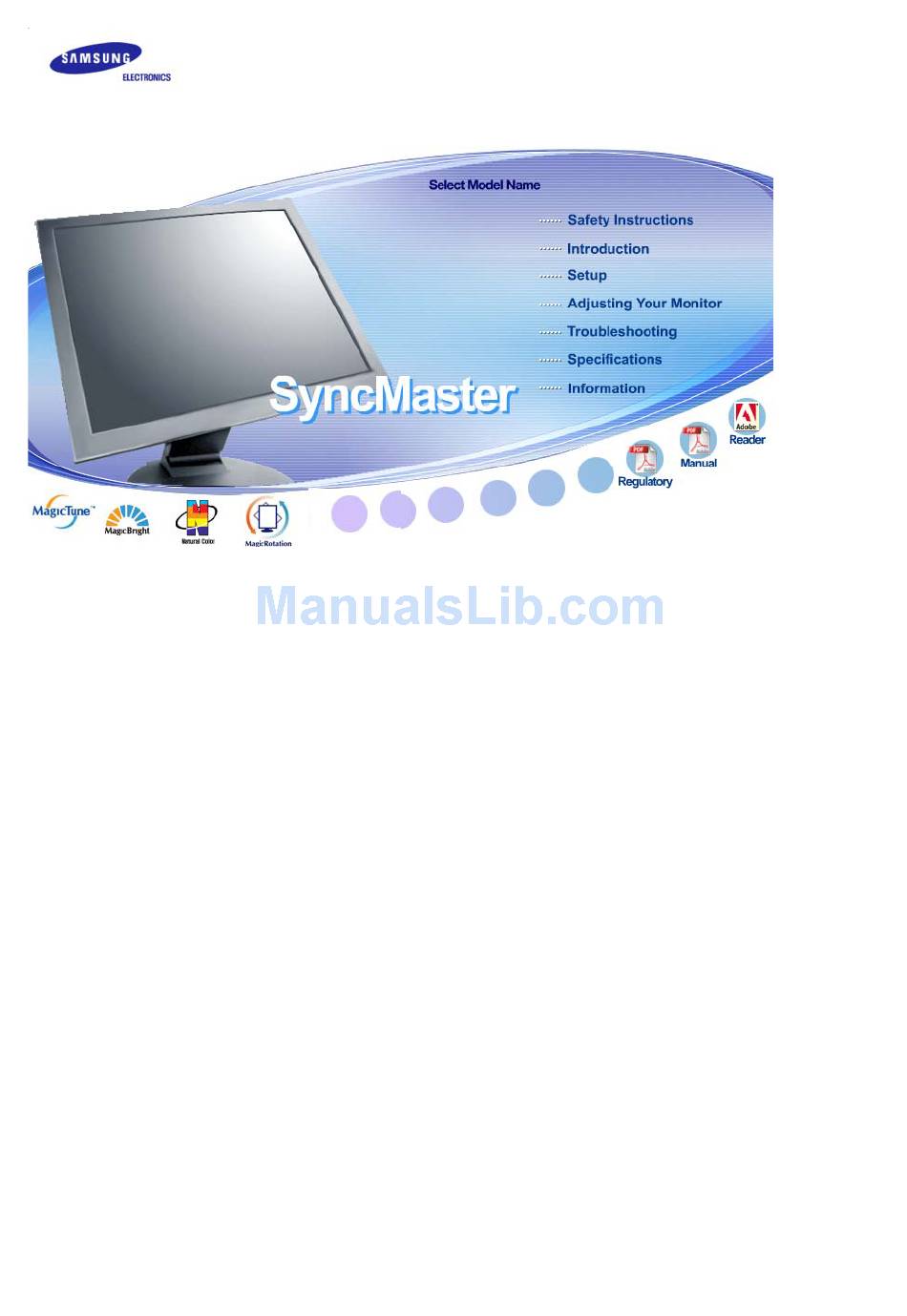

  • Page 1 SyncMaster 913N/915N/912T/913T/913B...
  • Page 2 Notational Failure to follow directions noted by this symbol could result in bodily harm or damage to equipment. Prohibited Do not disassemble Do not touch Power When not used for extended period of time, set your computer to DPMS. If using a screen saver, set it to the active screen mode. Important to read and understand at all times Disconnect the plug from the outlet Grounding to prevent an electric shock...
  • Page 3 Do not use a damaged or loose plug. This may cause an electric shock or fire. Do not pull the plug out by the wire nor touch the plug with wet hands. This may cause an electric shock or fire. Use only a properly grounded plug and receptacle.
  • Page 4 Do not drop the monitor when moving it. This may cause damage to the product or human body. Install the monitor base in a showcase or shelf so that the end of the base does not project beyond the showcase or shelf. Dropping the product may cause damage to the product or personal injury.
  • Page 5 Do not place the monitor face down. The TFT-LCD surface may be damaged. Installing a wall bracket must be done by a qualified professional. Installation by unqualified personnel may result in injury. Always use the mounting device specified in the owner's manual. When installing the product, make sure to keep it away from the wall (more than 10cm/4inch ) for ventilation purposes.
  • Page 6 Unplug the power cord from the power outlet and wipe the product using a soft, dry cloth. Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, air freshener, lubricant or detergent. Contact the Service Center once a year. Keep the product's interior clean.
  • Page 7 Do not try to move the monitor by pulling only the wire or the signal cable. This may cause a breakdown, electric shock or fire due to damage to the cable. Do not move the monitor right or left by pulling only the wire or the signal cable.
  • Page 8 Adjust the resolution and frequency to the levels appropriate for the model. Inappropriate resolution may cause undesirable picture quality. 19 inch - 1280 X 1024 Keep the volume at a proper level when you use the headphones. Excessively loud volume levels may damage hearing. Watching the monitor continuously at a too close angle may result in eyesight damage.
  • Page 9 Do not place children's favorite objects (or anything else that may be tempting) on the product. Children may try to climb on the product to retrieve an object. The product could fall, causing physical damage or even death.
  • Page 10 SyncMaster 913N Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Contact a local dealer to buy optional items. Unpacking Option 1 Monitor & Simple stand Bottom Option 2 Monitor & Pivot stand Manual...
  • Page 11 Quick Setup Guide Cable D-Sub Cable Front Menu button [ ] Opens the OSD menu. Also use to exit the OSD menu or return to the previous menu. MagicBright is a new feature providing optimum viewing MagicBright button environment depending on the contents of the image you are watching.
  • Page 12 3) Internet : Medium brightness 4) Entertain : High brightness >>Click here to see an animation clip When OSD is not on the screen, push the button to adjust Brightness button [ ] brightness. Adjust items in the menu. 2,3. Adjust buttons [ Activates a highlighted menu item.
  • Page 13 SyncMaster 915N Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Contact a local dealer to buy optional items. Unpacking Monitor & Simple stand Bottom Manual User's Guide, Warranty Card Monitor Driver, Quick Setup Guide (Not available in all...
  • Page 14 Front Opens the OSD menu. Also use to exit the OSD menu or return to Menu button [ ] the previous menu. MagicBright is a new feature providing optimum viewing MagicBright button environment depending on the contents of the image you are watching.
  • Page 15 PowerSaver described in the manual for further information regarding power saving functions. For energy conservation, turn your monitor off when it is not needed, or when leaving it unattended for long periods. Rear (The configuration at the back of the monitor may vary from product to product.) 1.
  • Page 16 SyncMaster 912T Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Contact a local dealer to buy optional items. Unpacking Monitor & Pivot stand Manual User's Guide, Warranty Card Monitor Driver, (Not available in all Quick Setup Guide Natural Color software,...
  • Page 17 Front Opens the OSD menu. Also use to exit the OSD menu or return to Menu button [ ] the previous menu. MagicBright is a new feature providing optimum viewing MagicBright button environment depending on the contents of the image you are watching.
  • Page 18 the digital mode, you must connect your monitor to the graphic card's port using the DVI cable. Auto button Use this button for auto adjustment. Use this button for turn the monitor on and off. Power button This light glows green during normal operation, and blinks green Power indicator once as the monitor saves your adjustments.
  • Page 19 SyncMaster 913T / 913B Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Contact a local dealer to buy optional items. Unpacking Option 1 Monitor & Simple stand Bottom Option 2 Monitor &...
  • Page 20 Quick Setup Guide Cable D-Sub Cable Sold separately DVI Cable Front Opens the OSD menu. Also use to exit the OSD menu or return to Menu button [ ] the previous menu. MagicBright is a new feature providing optimum viewing MagicBright button environment depending on the contents of the image you are watching.
  • Page 21 settings by simply pressing MagicBright control buttons. 1) Custom 2) Text : Normal brightness 3) Internet : Medium brightness 4) Entertain : High brightness >>Click here to see an animation clip When OSD is not on the screen, push the button to adjust Brightness button [ ] brightness.

  • Page 22: Kensington Lock

    (The configuration at the back of the monitor may vary from product to product.) 1. Power port Connect the power cord for your monitor to the power port on the back of the monitor. Connect the DVI cable to the DVI port on the back of your Monitor. 2.
  • Page 23 Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet. 2-1. Using the D-sub (Analog) connector on the video card. Connect the D-sub cable to the 15-pin, D-sub connector on the back of your monitor. 2-2.
  • Page 24 Monitor Assembly Monitor and Bottom Pivot Stand A. Stand Stopper Attaching a Base This monitor accepts a 100 mm x 100 mm VESA-compliant mounting interface pad.
  • Page 25 Simple stand A. Monitor B. Mounting interface pad 1. Turn off your monitor and unplug its power cord. 2. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the screen. 3. Remove four screws and then remove the stand from the LCD monitor. 4.
  • Page 26 Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet. 2-1. Using the D-sub (Analog) connector on the video card. Connect the D-sub cable to the 15-pin, D-sub connector on the back of your monitor. 2-2.
  • Page 27 Monitor Assembly Monitor and Bottom Attaching a Base This monitor accepts a 100 mm x 100 mm VESA-compliant mounting interface pad. A. Monitor B. Mounting interface pad 1. Turn off your monitor and unplug its power cord. 2. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the screen.
  • Page 28 Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet. 2-1. Using the D-sub (Analog) connector on the video card. Connect the D-sub cable to the 15-pin, D-sub connector on the back of your monitor. 2-2.
  • Page 29 Pivot Stand Attaching a Base This monitor accepts a 100 mm x 100 mm VESA-compliant mounting interface pad. A. Monitor B. Mounting interface pad 1. Turn off your monitor and unplug its power cord. 2. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the screen.
  • Page 30 Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet. 2-1. Using the D-sub (Analog) connector on the video card. Connect the D-sub cable to the 15-pin, D-sub connector on the back of your monitor. 2-2.
  • Page 31 Monitor Assembly Monitor and Bottom Pivot Stand A. Stand Stopper Attaching a Base This monitor accepts a 100 mm x 100 mm VESA-compliant mounting interface pad.

  • Page 32: Installing The Monitor Driver (Automatic)

    Follow the directions appropriate for the operating system you have. Prepare a blank disk and download the driver program file at the Internet web site shown here. Internet web site : http://www.samsung.com/ http://www.samsung.com/monitor http://www.sec.co.kr/monitor http://www.samsungmonitor.com.cn/ Windows ME 1.
  • Page 33 4. If you can see following message window, then click the "Continue Anyway" button. Then click "OK" button. This monitor driver is under certifying MS logo,and this installation don't damage your system.The certified driver will be posted on Samsung Monitor Homepage http://www.samsung.com/.

  • Page 34: Installing The Monitor Driver (Manual)

    Follow the directions appropriate for the operating system you have. Prepare a blank disk and download the driver program file at the Internet web site shown here. Internet web site : http://www.samsung.com/ http://www.samsung.com/monitor http://www.sec.co.kr/monitor http://www.samsungmonitor.com.cn/ ® ®...
  • Page 35 8. If you can see following "Message" window, then click the "Continue Anyway" button. Then click "OK" button. This monitor driver is under certified MS logo,and this installation doesn't damage your system.The certified driver will be posted on Samsung Monitor homepage. http://www.samsung.com/ 9. Click the "Close" button then click "OK" button continually.
  • Page 36 10. Monitor driver installation is completed. ® ® Microsoft Windows 2000 Operating System When you can see "Digital Signature Not Found" on your monitor, follow these steps. 1. Choose "OK" button on the "Insert disk" window. 2. Click the "Browse" button on the "File Needed" window. 3.
  • Page 37 Samsung Electronics in association with Korea Electronics & Telecommunications Research Institute (ETRI). This system is available only for Samsung monitors and makes the color of the images on the monitor the same as the printed or scanned images.
  • Page 38 Natural Color will be executed. Click Natural Color on the initial screen to install the Natural Color software. To install the program manually, insert the CD included with the Samsung monitor into the CD- ROM Drive, click the [Start] button of Windows and then select [Execute].
  • Page 39 1. Use this button to open the on-screen menu and exit from the menu screen or close screen adjustment menu. 2. This buttons allows you to adjust items in the menu. 3. This buttons allows you to adjust items in the menu. 4.
  • Page 40 Menu When the 'AUTO' button is pressed, the auto adjustment screen appears as shown in the animated screen on the center. Auto adjustment allows the monitor to self-adjust to the incoming video signal. The values of fine, coarse and position are adjusted automatically. To make the automatic adjustment function sharper, execute the 'AUTO' AUTO function while the...
  • Page 41 Brightness Menu Brightness When OSD is not on the screen, push the button to adjust brightness. 1. Picture Brightness Color Tone 2. Color Coarse 3. Image Language 4. OSD Image Reset 5. Setup 6. Information Picture Description Contrast Color Control Gamma Fine Sharpness...
  • Page 42 Menu You can use the on-screen menus to change the brightness according to personal preference. Brightness Direct Access Feature : When OSD is not on the screen, Push the button to adjust brightness. You can use the on-screen menus to change the contrast Contrast according to personal preference.
  • Page 43 Select one of three pre-defined gammas. Gamma Image Menu Removes noise such as vertical stripes. Coarse Coarse adjustment may move the screen image area. You may relocate it to the center using the Horizontal Control menu. Removes noise such as horizontal stripes. If the noise persists even after Fine tuning, repeat it after adjusting the Fine frequency (clock speed).
  • Page 44 Menu Description Play/Stop hange the language used in the menu. You can choose one of the seven languages. Language Note:The language chosen affects only the language of the OSD. It has no effect on any software running on the computer. You can change the horizontal position where the OSD H-Position menu appears on your monitor.
  • Page 45 Menu Image parameters are replaced with the factory default Image Reset values. Color parameters are replaced with the factory default Color Reset values. Information Menu Information Shows a video source, display mode on the OSD screen. Description Description Play/Stop...
  • Page 46 1. Use this button for open the on-screen menu and exits from the menu screen or closes screen adjustment menu. 2. This buttons allows you to adjust items in the menu. 3. This buttons allows you to adjust items in the menu. 4.
  • Page 47 Menu When the 'AUTO' button is pressed, the auto adjustment screen appears as shown in the animated screen on the center. Auto adjustment allows the monitor to self-adjust to the incoming video signal. The values of fine, coarse and position are adjusted automatically. (Available in analog mode only) AUTO To make the automatic adjustment function sharper, execute the 'AUTO'...
  • Page 48 - four different modes(Custom/Text/Internet/Entertain) Brightness Menu Brightness When OSD is not on the screen, push the button to adjust brightness. Source Menu Source Selects the video signal while the OSD is off. Brightness 1. Picture Description Description Contrast...
  • Page 49 Color Tone 2. Color 3. Image Coarse 4. OSD Language 5. Setup Auto Source 6. Information Picture Menu You can use the on-screen menus to change the brightness according to personal preference. Brightness Direct Access Feature : When OSD is not on the screen, Push the button to adjust brightness.
  • Page 50 Menu The tone of the color can be changed and one of four modes can be selected - Cool, Normal, Warm and Color Tone Custom. Adjusts individual R,G,B color balance. Color Control Select one of three pre-defined gammas. Gamma Image Menu Removes noise such as vertical stripes.
  • Page 51 Removes noise such as horizontal stripes. If the noise persists even after fine tuning, repeat it after adjusting the Fine frequency (clock speed). (Available in analog mode only) Sharpness Changes the clearance of image. Changes the horizontal position of the monitor's entire display.
  • Page 52 Setup Menu Select Auto Source for the monitor to automatically select Auto Source the signal source. Image parameters are replaced with the factory default Image Reset values. Color parameters are replaced with the factory default Color Reset values. Information Description Play/Stop...
  • Page 53 Menu Description Shows a video source, display mode on the OSD screen. Information...

  • Page 54: What Is Magictune

    Overview Installation OSD Mode Overview What is MagicTune™? Monitor performance can vary due to the graphics card, host computer lighting conditions and other environmental factors. In order to get the best image on a monitor requires you to adjust it for your unique setting.

  • Page 55: Installation

    Color Overview Installation OSD Mode Uninstall Troubleshooting Calibration Installation 1. Insert the installation CD into the CD-ROM drive. 2. Click the MagicTune™ installation file. 3. Select installation Language, Click "Next". 4. When the InstallationShield Wizard window appears, click "Next." 5. Select "I agree to the terms of the license agreement" to accept the terms of use.
  • Page 56 6. Choose a folder to install the MagicTune program. 7. Click "Install." 8. The "Installationation Status" window appears.

  • Page 57: System Requirements

    9. Click "Finish." 10. When the installation is complete, the MagicTune executable icon appears on your desktop. Double-click the icon to start the program. Magictune execution icon may not appear depending on specification of computer system or monitor. If that happens, press F5 Key. Installationation Problems The installation of MagicTune™...
  • Page 58 Windows 98 SE Windows Me Windows 2000 Windows XP Home Edition Windows XP Professional Hardware 32MB Memory above 25MB Hard disk space above website * For more information, visit the MagicTune...

  • Page 59: Osd Mode

    Overview Installation OSD Mode MagicTune allows for quick accurate tuning of the display with the ability to easily save and use monitor configurations that are best suited for you. OSD mode may appear inconsistent with the explanation in guidance book depending on specification of each monitor. When Pivot is functioning, part of Magictune Program may not operate normally.

  • Page 60: Color Tab Definition

    Picture Tab Definition Allows the user to adjust the screen settings to the desired values. Brightness Contrast Resolution Makes the entire screen brighter or darker. The detailed data of the images in the dark Brightness areas can be lost if the brightness is not adjusted to the proper level. Adjust the brightness for best viewing conditions.

  • Page 61: Image Tab Definition

    Color Tone Color Control Calibration The tone of the color can be changed. Color Tone Warm - Normal - Cool Custom Adjusts of the monitor image color. You can change the monitor color to your desired color. Color Control R- G - B The process through which the colors of your choice are optimized and maintained.

  • Page 62: Option Tab Definition

    Image Setup Position Fine : Removes noise such as horizontal stripes. If the noise persists even after Fine tuning, repeat it after adjusting the frequency (clock speed). Image Setup Coarse : Removes noise such as vertical stripes. Coarse adjustment may move the screen image area. You may relocate it to the center using the Horizontal Control menu.

  • Page 63: Support Tab Definition

    Enable task tray menu . - To access the MagicTune menus, click the icon on the [task tray menu]. The menus are not displayed if the [Enable System Tray] is deselected in Preferences [Options] ' [Basic Settings]. Select Language - The language chosen affects only the language of the OSD. Source Select will be shown only in dual monitor.

  • Page 64: Color Calibration

    Overview Installation OSD Mode Color Calibration 1. Color Calibration Color Calibration guides you to get optimal color condition for your monitor. Proceed following 5steps for getting optimal monitor color condition . 1. Control "Brightness control bar" for matching the brightness of control patch and the brightness of background pattern 2.
  • Page 65 Press "Preview" button on the Color Calibration. The above picture will be shown. 1. Press "View Calibrated" button to see the calibration effect which you adjusted. 2. Press "View Uncalibrated" button to see the original image.
  • Page 66 Overview Installation OSD Mode Uninstall The MagicTune program can be removed only by using the "Add or Remove Programs" option of the Windows Control Panel. Perform the following steps remove MagicTune. 1. Go to [Task Tray] ' [Start] ' [Settings] and select [Control Panel] in the menu. If the program runs on Windows XP, go to [Control Panel] in the [Start] menu.
  • Page 67 Some graphic cards may not support your monitor. When you have a problem with the graphic card, visit our website to check the compatible graphic card list provided. http://www.samsung.com/monitor/magictune Download the latest program. The program can be downloaded http://www.samsung.com/monitor/magictune...

  • Page 68: What Is Magicrotation

    This greatly improves the user's productivity allowing him the flexibility to switch between landscape and portrait modes. The MagicRotation Software from Samsung Electronics, Inc. provides the user with a rotation feature (0, 90, 180, 270 orientation) that facilitates the optimum utilization of computer display screen, better viewing and improved user productivity.
  • Page 69 Overview Installation Interface Installation Insert the installation CD into the CD-ROM drive. Click the MagicRotation installation file. Select installation Language, Click "Next". When the InstallationShield Wizard window appears, click "Next." Select "I agree to the terms of the license agreement" to accept the terms of use. Uninstall Troubleshooting...
  • Page 70 Choose a folder to install the MagicRotation program. Click "Install." The "Installationation Status" window appears.
  • Page 71 Click "Finish." Have to reboot the system in order for the MagicRotation to work properly. When the installation is complete, the MagicRotation executable icon appears on your desktop. Installationation Problems The installation of MagicRotation can be affected by the factors such as video card, motherboard and the network environment.

  • Page 72: System Requirements

    Close the application. Select the Orientation (90, 180, 270) you want to view the application. Relaunch the application. In most cases this should fix the problem. User Applications using OpenGL and DirectDraw (3D drawing) will not function as per the orientation mode selected (90, 180, 270).
  • Page 73 Overview Installation Interface Uninstall Troubleshooting Interface The Menu on task bar Menu pop up at the mouse right button click. Rotate : Display will get rotated by the unit of 90 degree Rotate to 0 : Display will get rotated to 0 degree from the current angle of rotation. Rotate to 90 : Display will get rotated to 90 degree from the current angle of rotation.
  • Page 74 Rotate to 180 : Display will get rotated to 180 degree from the current angle of rotation. Rotate to 270 : Display will get rotated to 270 degree from the current angle of rotation.
  • Page 75 Hot key : Hot Keys are available by default and can be changed by user. It can be designated by user directly with keyboard after changing the existing HotKey instead . User can create the hot key with the combination of Shift, Ctrl, Alt and general keys. In case only general key is pressed, it will be designated in the form of Alt+general key.
  • Page 76 Overview Installation Interface Uninstall The MagicRotation program can be removed only by using the "Add/Remove Programs" option of the Windows Control Panel. Perform the following steps to remove MagicRotation. Go to [Task Tray] ' [Start] ' [Settings] and select [Control Panel] in the menu. If the program runs on Windows™...

  • Page 77: Troubleshooting

    Overview Installation Interface Troubleshooting Before You Call Technical Support MagicRotation Software works with the installed "Display Driver" supplied by your Graphic Card Vendor to provide screen rotation capabilities. If the installed "Display Driver" is working incorrectly or has bugs in it, then these bugs would still exist even after MagicRotation Software is installed. Any incorrect/random behaviour resulting due to problems in the installed "Display Driver"...
  • Page 78 Before calling for service, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, please call Information section or contact your Symptom Check List No images on the Is the power cord screen.
  • Page 79 There is no image on the screen. Is the power indicator on the monitor blinking at 1 second intervals? The screen shows Is the screen displaying strange colors or just only one color as if looking black and white. at the screen through a cellophane paper? Have the screen colors become strange after...
  • Page 80 When you have a problem with the graphic card, visit our website to check the compatible graphic card list provided. http://www.samsung.com/monitor/magictune Download the latest program. The program can be downloaded http://www.samsung.com/monitor/magictune. contact an authorized service Answer Frequency can be changed by reconfiguring the video card.

  • Page 81: Self-Test Feature Check

    Self-Test Feature Check Warning Messages Your monitor provides a self test feature that allows you to check whether your monitor is functioning properly. Self-Test Feature Check 1. Turn off both your computer and the monitor. 2. Unplug the video cable from the back of the computer. 3.
  • Page 82 Before calling for service, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, please call Information section or contact your Symptom Check List No images on the Is the power cord screen.
  • Page 83 There is no image on the screen. Is the power indicator on the monitor blinking at 1 second intervals? Is the monitor connected using the DVI cable? The screen shows Is the screen displaying strange colors or just only one color as if looking black and white.
  • Page 84 When you have a problem with the graphic card, visit our website to check the compatible graphic card list provided. http://www.samsung.com/monitor/magictune Download the latest program. The program can be downloaded http://www.samsung.com/monitor/magictune. contact an authorized service Answer Frequency can be changed by reconfiguring the video card.
  • Page 85 How can I adjust the resolution? How can I set the Power Saving function? How can I clean the outer case/LCD Panel? Self-Test Feature Check Self-Test Feature Check Warning Messages Your monitor provides a self test feature that allows you to check whether your monitor is functioning properly.
  • Page 86 The location and the position of the monitor may influence the quality and other features of the monitor. 1. if there are any sub woofer speakers near the monitor, unplug and relocate the woofer to another room. 2. Remove all electronic devices such as radios, fans, clocks and telephones that are within 3 feet (one meter) of the monitor.
  • Page 87 General General Model Name SyncMaster 913N LCD Panel Size 19" Diagonal Display area 376.32mm (H) x 301.056mm (V) Pixel Pitch 0.294mm (H) x 0.294mm (V) Type a-si TFT active matrix Synchronization Horizontal 30 ~ 81 kHz Vertical 56 ~ 75 Hz Display Color 16,194,277 Colors Resolution...
  • Page 88 However, if the signal differs, the screen may go blank while Power saving mode EPA/ENERGY 2000 Green Green, Blinking Less than 1W (Off-mode) ® Partner, SAMSUNG has determined that this ® Power Switch off Black Less than 1W (120Vac) ® compliant and ENERGY2000...
  • Page 89 the power LED is on. Refer to the video card manual and adjust the screen as follows. Table 1. Preset Timing Modes Horizontal Display Mode Frequency (kHz) IBM, 640 x 350 31.469 IBM, 640 x 480 31.469 IBM, 720 x 400 31.469 MAC, 640 x 480 35.000...
  • Page 90 General General Model Name SyncMaster 915N LCD Panel Size 19" Diagonal Display area 376.32mm (H) x 301.056mm (V) Pixel Pitch 0.294mm (H) x 0.294mm (V) Type a-si TFT active matrix Synchronization Horizontal 30 ~ 81 kHz Vertical 56 ~ 75 Hz Display Color 16,194,277 Colors Resolution...
  • Page 91 Table 1. Preset Timing Modes Power saving mode EPA/ENERGY 2000 Green Green, Blinking Less than 1W (Off-mode) ® ® Partner, SAMSUNG has determined that this ® guidelines for energy efficiency. Power Switch off Black Less than 1W (120Vac) compliant and ENERGY2000...
  • Page 92 Horizontal Display Mode Frequency (kHz) IBM, 640 x 350 31.469 IBM, 640 x 480 31.469 IBM, 720 x 400 31.469 MAC, 640 x 480 35.000 MAC, 832 x 624 49.726 MAC, 1152 x 870 68.681 VESA, 640 x 480 37.500 VESA, 640 x 480 37.861 VESA, 800 x 600...
  • Page 93 General General Model Name SyncMaster 912T LCD Panel Size 19" Diagonal Display area 376.32mm (H) x 301.056mm (V) Pixel Pitch 0.294mm (H) x 0.294mm (V) Type a-si TFT active matrix Synchronization Horizontal 30 ~ 81 kHz Vertical 56 ~ 75 Hz Display Color 16,777,219 Colors Resolution...
  • Page 94 EPA/ENERGY (Power button) 2000 Green, Blinking Black Less than 1W Less than 1W (Off-mode) (120Vac) ® compliant and ENERGY2000 ® Partner, SAMSUNG has determined that this ® guidelines for energy efficiency. Power off (Power Switch) (option) Black Less than 0W...
  • Page 95 Table 1. Preset Timing Modes Horizontal Display Mode Frequency (kHz) IBM, 640 x 350 31.469 IBM, 640 x 480 31.469 IBM, 720 x 400 31.469 MAC, 640 x 480 35.000 MAC, 832 x 624 49.726 MAC, 1152 x 870 68.681 VESA, 640 x 480 37.500 VESA, 640 x 480...
  • Page 96 General General Model Name SyncMaster 913T / 913B LCD Panel Size 19" Diagonal Display area 376.32mm (H) x 301.056mm (V) Pixel Pitch 0.294mm (H) x 0.294mm (V) Type a-si TFT active matrix Synchronization Horizontal 30 ~ 81 kHz Vertical 56 ~ 75 Hz Display Color 16,194,277 Colors Resolution...
  • Page 97 However, if the signal differs, the screen may go blank while Power saving mode EPA/ENERGY 2000 Green Green, Blinking Less than 1W (Off-mode) ® Partner, SAMSUNG has determined that this ® Power Switch off Black Less than 1W (120Vac) ® compliant and ENERGY2000...
  • Page 98 the power LED is on. Refer to the video card manual and adjust the screen as follows. Table 1. Preset Timing Modes Horizontal Display Mode Frequency (kHz) IBM, 640 x 350 31.469 IBM, 640 x 480 31.469 IBM, 720 x 400 31.469 MAC, 640 x 480 35.000...
  • Page 99 Service The address and phone number of the company can be changed without prior notice. AUSTRALIA : Samsung Electronics Australia Pty Ltd. Customer Response Centre 7 Parkview Drive, Homebush Bay NSW 2127 Tel : 1300 362 603 http://www.samsung.com.au/ BRAZIL : Samsung Eletronica da Amazonia Ltda.
  • Page 100 Tel: 01-55-5747-5100 / 01-800-726-7864 Fax: 01-55-5747-5202 / 01-800-849-1743 RFC: SEM950215S98 http://www.samsung.com.mx/ IMPORTADO POR: SAMSUNG ELECTRONICS MÉXICO. S.A. de C.V. Vía Lopez Portillo No. 6, Col. San Fco. Chilpan Tultitlán, Estado de México, C.P. 54940 Tel: 01-55-5747-5100 / 01-800-726-7864 EXPORTADO POR: Samsung Electronics CO.,LTD.
  • Page 101 Tel. 214 148 114/100 Fax. 214 148 133/128 Free Line 800 220 120 http://www.samsung.pt/ SOUTH AFRICA : Samsung Electronics,5 Libertas Road, Somerset Office Park, Bryanston Ext 16. Po Box 70006, Bryanston,2021, South Africa Tel : 0027-11-549-1621 Fax : 0027-11-549-1629 http://www.samsung.co.za/...

  • Page 102: Dot Pitch

    < European Service Center & National Service > Stafford Park 12 Telford, Shropshire, TF3 3BJ Tel. : (0870) 242 0303 Fax. : (01952) 292 033 http://samsungservice.co.uk/ U.S.A : Samsung Electronics America Service Division 400 Valley Road, Suite 201 Mount Arlington, NJ 07856 1-800-SAMSUNG (1-800-726-7864) http://samsung.com/monitor/...

  • Page 103: Information In This Document Is Subject To Change Without Notice

    Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly forbidden. Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
  • Page 104 Federal Communications Commission. It is available from the U.S. Government Printing Office, Washington, DC 20402, Stock Number 004-000-00345-4. The party responsible for product compliance: SAMSUNG ELECTRONICS CO., LTD America QA Lab of Samsung 3351 Michelson Drive, Suite #290, Irvine, CA92612 USA Tel) 949-975-7310...
  • Page 105 MPR II Compliance This monitor complies with SWEDAC(MPR II) recommendations for reduced electric and magnetic fields. European Notice(Europe Only) Products with the CE marking comply with the EMC Directive(89/336/EEC), (92/31/EEC), (93/68/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community.

  • Page 106: Environmental Requirements

    climate-influencing emissions, radioactive waste, etc.) it is vital to conserve energy. Electronic equipment in offices consumes an enormous amount of energy, since it is often routinely left running continuously. What does labelling involve? This product meets the requirements for the TCO'95 scheme, which provides for international environmental labelling of monitors.
  • Page 107 CFCs (freons) are sometimes used for washing printed circuit boards and in the manufacturing of expanded foam for packaging. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on Earth of ultraviolet light with consequent increased risks of skin cancer (malignant melanoma).
  • Page 108 Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs.
  • Page 109 For recycling information for TCO'03 certified monitors, for the residents in the following countries, please contact the company corresponding to your region of residence. For those who reside in other countries, please contact a nearest local Samsung dealer for recycling information for the products to be treated in environmentally acceptable way.
  • Page 110 Mercury Statement (LCD Monitor, LCD TV, DLP Projection TV, Projector for USA only) LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS For details see lamprecycle.org, eiae.org, or call 1-800-Samsung...

  • Page 111: Product Information (Image Retention Free)

    PRODUCT INFORMATION (Image Retention Free) LCD Monitors and TVs may have image retention when switching from one image to another especially after displaying a stationary image for a long time. This guide is to demonstrate correct usage of LCD products in order to protect them from Image retention.
  • Page 112 The best way to protect your monitor from Image retention is to set your PC or System to operate a Screen Saver program when you are not using it. Image retention may not occur when a LCD panel is operated under normal conditions. Normal conditions are defined as continuously changing video patterns.

  • Page 113: Correct Disposal Of This Product (Waste Electrical & Electronic Equipment) - Europe Only

    Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.
