SET/DM3AL
Operation and Installation Manual
SYMBOLS
To be considered in installations in
potentially explosive atmospheres.
Warning / Attention
1. YLEISTÄ
SET/DM3AL is a level switch sensor, which is to be
connected to analogical and digital SET control
units of Labkotec. Operating principle of the sensor
is based on the measurement of electric conduct-
ance.
SET/DM3AL sensor is suitable to be used as a
level alarm device for liquids. It can be used to
indicate the interface between oil and water or
water and air. Typical applications of the sensor
include oil and grease separators.
The SET/DM3AL has been certified according to
the ATEX Directive in equipment category 1 and it
can be installed in potentially explosive atmos-
pheres in zoned areas 0, 1, and 2.
SET/DM3AL replace SET DM/3 sensor and it can
be installed directly in its place.

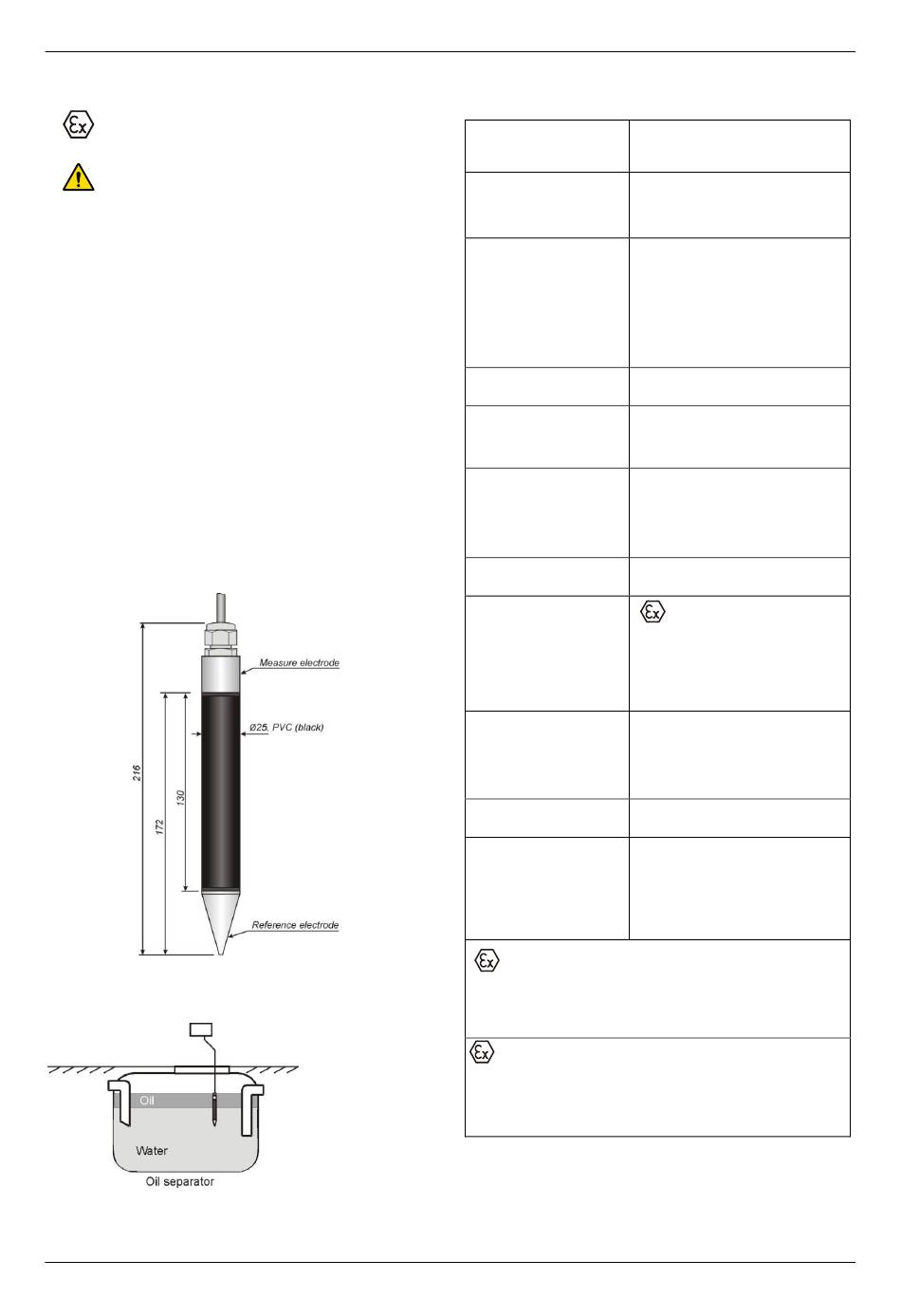

Figure 1.
Dimensional drawing of the SET/DM3AL-sensor
Figure 2.
Application: Oil alarm for the oil separator
All rights reserved.

2. TECHNICAL DATA

Control unit:
Signal
Operating voltage
Cable:
Material:
Temperature range:
EMC
Emissions
Immunity
IP-classification:
Ex-classification:
Special conditions (X)
ATEX
IECEx
Electrical
parameters:
Operating principle:
Manufacturing
year:
Please see the serial
number on the type
plate.
The sensor may be installed in potentially explosive
atmospheres of zones 0, 1, and 2 with the following
special conditions (X):
– The ambient temperature is –30...+60°C.
– The risk of electrostatic charge must be observed!
Standards to be
IEC/EN 60079-25 Intrinsically-safe electrical systems "i",
and/or IEC/EN 60079-14 Electrical installations in hazardous
areas. If the cabling is voltage-tested, the sensor must be
disconnected from the system.
2(5)
D26052AE-2
SET-1000, SET-2000 –control
units by Labkotec Oy
Analogical 3 mA/10 mA
8 V...16 V (DC)
Shielded oil-proof cable 2 x 0.75
2
mm . Standard length 5 m. Other
lengths optional. The max. length
of the fixed cable is 15 m. Can be
extended with a shielded cable.
The recommended maximum
cable loop resistance is 75 Ω.
PVC (black), AISI 316, NBR, PA
0...+60 °C
Operation:
Safety: -30...+60 °C
IEC/EN 61000-6-3
IEC/EN 61000-6-2
IP68
II 1 G Ex ia IIA T5 Ga
(Ta -30...+60°C)
EESF 19 ATEX 004X
IECEx EESF 19.0004X
Ui = 16 V Ii = 80 mA
Pi = 400 mW
Li = 85 μH
Ci = 3,5 nF
Conductance
x xxx x xxxxx xx YY x
where YY = manufacturing year
(e.g.. 19=2019)
considered in the installation:
