ADT GSMVLP- Installation And Programming Manual page 7

Using a 7720P Programming Tool
After the GSMVLP-ADT has been installed in the ADT QuickConnect 3000, connect the 7720P
Programming Tool as shown in Figure 5. The GSMVLP-ADT powers the 7720P Programming Tool via
the programming jack. Each key of the 7720P has two possible functions: a normal function and a Shift
function.
•
To perform a normal key function, simply press the desired key.
•
To perform a Shift function, press the [shift] key, and then press the appropriate key.
The prompts in this document reflect use of the 7720P Programming Tool. Table 1 lists each normal
and shift key function.
Table 1 – 7720P Normal and Shift Key (shift LED lit) Functions
KEY NORMAL KEY FUNCTION
BS/ESC [BS]: Press to delete entry
↓/↑
[↓]: Scroll down programming
N/Y [N]: Press for "NO" answer
SHIFT Press before pressing a SHIFT key function. Will light SHIFT LED. LED goes out once a key is pressed.
Press again for each SHIFT function desired.
1/A [1]: For entering the number 1
2/B [2]: For entering the number 2
3/C [3]: For entering the number 3
4/D [4]: For entering the number 4
5/E [5]: For entering the number 5
6/F [6]: For entering the number 6
7/S [7]: For entering the number 7
8/T [8]: For entering the number 8
9/X [9]: For entering the number 9
SPACE [SPACE]: For scrolling option list
0 [0]: For entering the number 0
#/ENTER [#/ENTER]: Starts programming
mode; Press to accept entries
*Active only when the "Exit Programming Mode" prompt is displayed.
MINIMUM SIGNAL STRENGTH LED
TEST
MESSAGE/REGISTRATION
SWITCH
7720P PROGRAMMING JACK

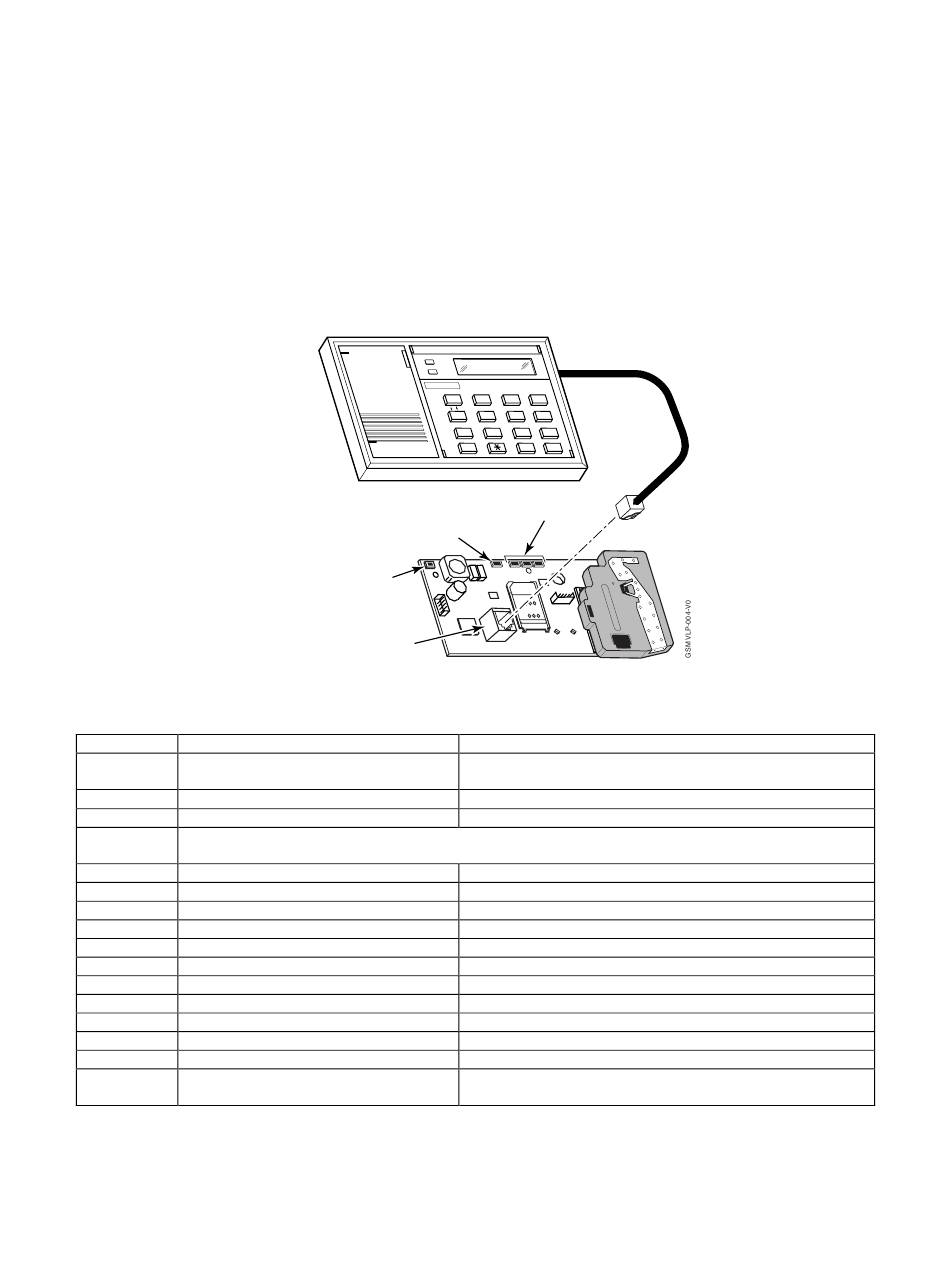

Figure 5 – 7720P Connection
– 7 –
Xmit
Shift
7720 PROGRAMMING TOOL
BS / ESC A B C
1 2 3
/
D E F
4 5 6
N / Y S T X
7 8 9
Space Enter
Shift
#
0
MESSAGE STATUS LEDs
SHIFT KEY FUNCTION
[ESC]: Press to quit program mode; also can reset
programming defaults*
[↑]: Scroll up programming
[Y]: Press SHIFT-Y for "YES" answer
[A]: For entering letter A
[B]: For entering letter B
[C]: For entering letter C
[D]: For entering letter D
[E]: For entering letter E
[F]: For entering letter F
[S]: For entering letter S
[T]: For entering letter T
[X]: For entering letter X
No SHIFT function
No SHIFT function
No SHIFT function
