Motor pole and speed comparison

2P=3000rpm around, 4P=1450rpm around，6P =960rpm around, /50Hz，
2P=3600rpm around, 4P =1750rpm around, 6P =1200rpm around, /60Hz，
Press ">>" to view the running status.
b-00 is output frequency.
b-01 is set frequency.
b-02 is output voltage.
b-03 is output current.
b-04 is bus bar voltage.
b-05 is module temperature.
b-06 is motor speed.
b-14 is water supply control when the set pressure of the pipeline.
b-15 is water supply control feedback pipeline pressure.

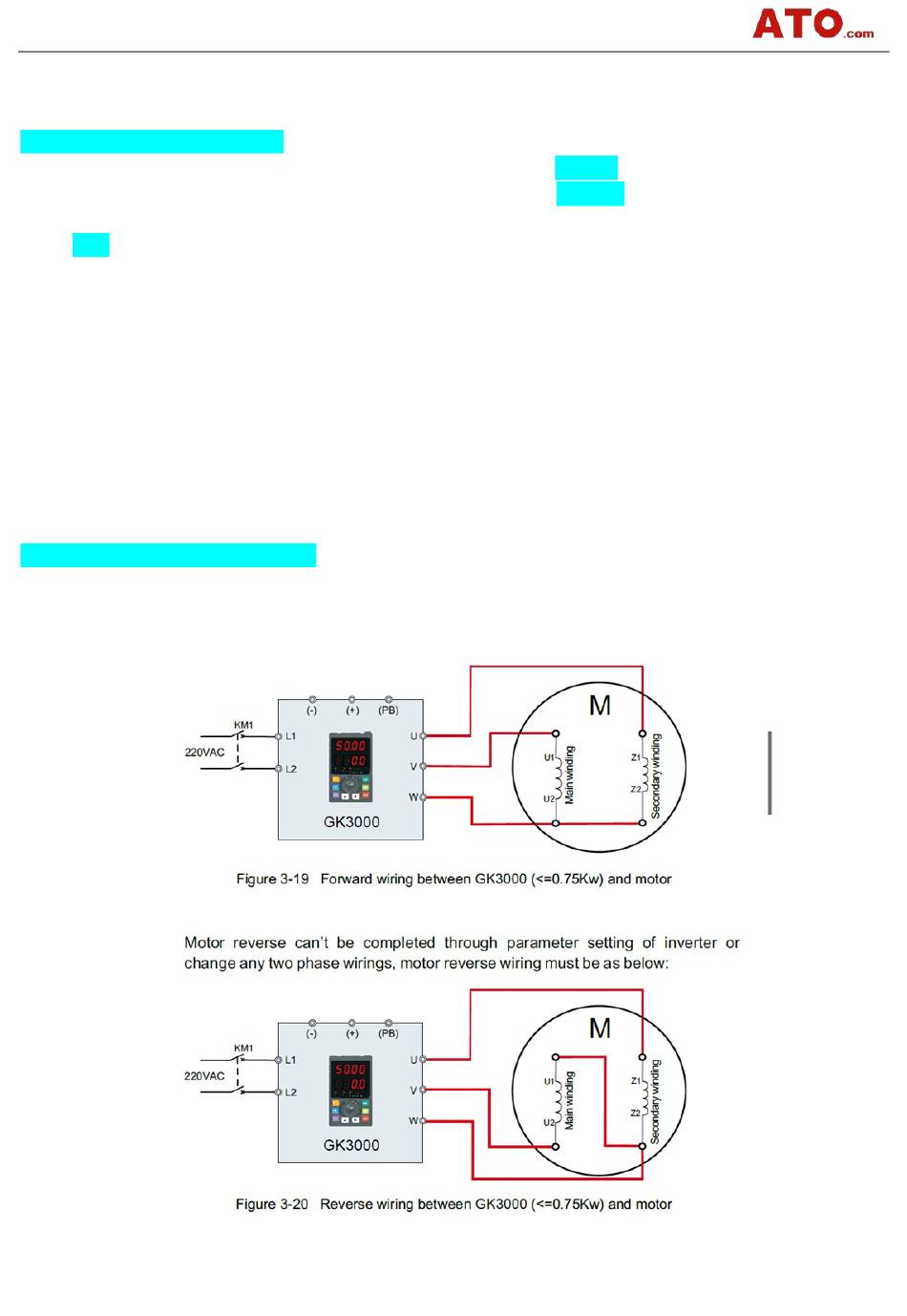

VFD and single phase motor wiring.

1. Keeping the capacitor, Connect the motor to the UW or VW of the VFD. Reverse the motor according to the
motor nameplate.
2. Remove the capacitor, the wiring method for forward rotation and reverse rotation is as follows:
b-08 is Input/output terminal state.
b-07 is running time.
b-09 is analog input VI.
b-10 is analog input CI.
b-11 is external pulse width input value.
b-12 is VFD rated current.
b-13 is VFD rated voltage.
