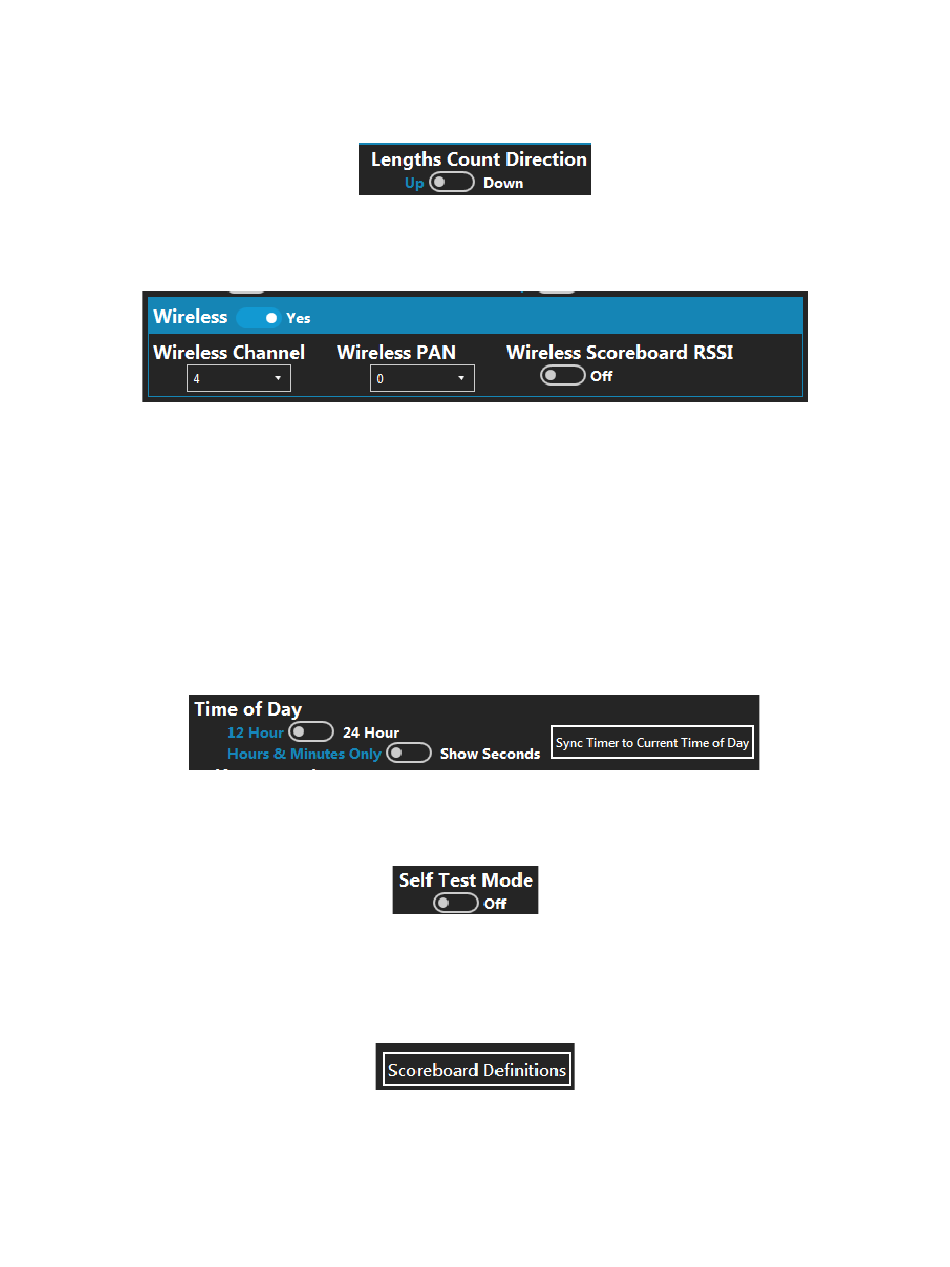

10: Lengths Count Direction
The Lengths Count Direction toggles the direction the lengths counter on the scoreboard will
count to be either up or down.
11: Wireless Settings
If enabled, Wireless Settings are where the Channel and PAN of your Gen7 Timer are set to
match the Channel and PAN set on your wireless scoreboard or scoreboard adapter.
Wireless RSSI
To test the wireless signal strength between the timer and a wireless capable
scoreboard, turn on Wireless Scoreboard RSSI. When enabled, the scoreboard enters a
special test mode and will display the signal strength of the incoming wireless signal on
the scoreboard. The higher the number, the poorer the signal.
12: Time of Day options
Time of day is where the options are set for the time of day that is displayed on the scoreboard.
Select between 12 or 24 hour formats and set whether to display only hours and minutes or
include seconds. Time of Day is automatically synced when the Gen7 software starts
up. Click Sync timer to current time of day to manually set the time displayed on the
scoreboard to the current time.
13: Self-Test Mode
Test scoreboard digit functionality by enabling the Scoreboard Self-Test. When enabled, the
scoreboard displays a pattern designed to test each numeric digit.
14: Scoreboard Definitions
Like previous CTS timers, Gen7 allows the location of scoreboard information to be changed
without making physical changes to the scoreboard itself. Click the Scoreboard Definitions
button to open a screen where a module on which a given data item will appear can be
selected.
