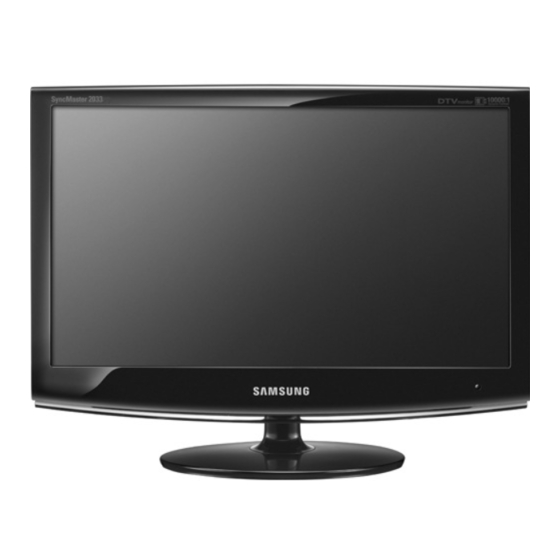

SyncMaster P2033HD
LCD TV Monitor

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2033HD and is the answer not in the manual?

Questions and answers

Related Manuals for Samsung 2033HD

Summary of Contents for Samsung 2033HD

  • Page 1: User Manual

    SyncMaster P2033HD LCD TV Monitor User Manual...

  • Page 2: Table Of Contents

    Power Saving Function ........6-2 Contact SAMSUNG WORLDWIDE ......6-3 Correct Disposal .

  • Page 3: Major Safety Precautions

    The contents of this manual may not be partially or in whole reproduced, distributed or used in any form without the written permission of Samsung Electronics, Co., Ltd. The SAMSUNG logo and SyncMaster are the registered trademarks of Samsung Electronics, Co., Ltd. Microsoft, Windows and Windows NT are the registered trademarks of Microsoft Corporation.

  • Page 4: Care And Maintenance

    Install the product so the required distances shown in the figure are kept. When using a stand or wall-mount, use parts provided by Samsung Electronics only. -If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.

  • Page 5: Safety Precautions

    Safety Precautions Icons used for safety precautions ICON NAME Warning Caution Meaning of Signs Do not perform. Do not disassemble. Do not touch. Power Related The following images are for your reference and may differ depending on models and countries. Warning Avoid using a damaged power cord or plug or a loose power outlet.

  • Page 6: Installation Related

    Caution Avoid unplugging the power plug while the product is operating. • Otherwise, it may damage the product due to electric shock. When unplugging the power plug from the wall outlet, make sure to hold it by the plug and not by the cord. •...

  • Page 7: Cleaning Related

    Avoid installing the product where children may reach it. • If a child touches the product, the product may fall and this may result in injury. • Since the front part is heavier, install the product on a flat and stable surface. Install the antenna far away from any high voltage cables.

  • Page 8: Usage Related

    Caution Avoid spraying cleansing agent directly onto the product. • This may result in discoloration or cracking of the exterior of the product or the panel coming off. Use a soft, damp cloth with a "monitor- exclusive cleansing agent" and wipe the product with it.
  • Page 9 Avoid moving the product by pulling the power cord or antenna cable. • Otherwise, it may result in electric shock, fire or a problem with the product due to damage to the cable. Avoid lifting up or moving the product by holding only the power cord or signal cable.
  • Page 10 Keep the small accessories in a location out of the reach of children. Avoid placing a heavy object over the prod- uct. • Otherwise, it may result in a problem with the product or injury. Be careful that children do not place the bat- teries in their mouths when removed from the remote control.

  • Page 11: Installing The Product

    Installing the Product Package Contents • Unpack the product and check if all of the following contents have been included. • Store the packaging box in case you need to move the product at a later stage. Installation Manual (Not available in all locations) Power Cord Remote Control DVI Cable...

  • Page 12: Installing The Stand

    Installing the Stand Before assembling the product, place the product down on a flat and stable surface so that the screen is facing downwards. Place a soft cloth over the table to protect the product and place the product onto the cloth face down.

  • Page 13: Removing The Stand

    Removing the Stand Before removing the stand, place the product down on a flat and stable surface so that the screen faces downwards. Place a soft cloth over the table to protect the product and place the product face down. Turn the connecting screw at the bottom of the stand to separate it.

  • Page 14: Attaching A Wall Mount/Desktop Stand

    • Samsung shall not be held liable for any damage to the product or injury caused by using a stand that is not compatible with the specified specifications or due to an installation not performed by an authorized installation engineer.

  • Page 15: Connecting To A Computer

    Connecting to a Computer 1. Connect the product to a PC depending on the video output supported by the PC. The connecting part may differ depending on the product model. When the graphics card provides a D-Sub <analog> output • Connect the [PC IN] port of the product to the [D-Sub] port of the PC with the D-Sub cable. When the graphics card provides a DVI <digital>...
  • Page 16 • Connect the [DVI-D IN] port of the product to the DVI port of the PC with the DVI cable. 2. Connect the [ HDMI/PC/DVI-D AUDIO IN] port on the rear side of the monitor to the sound card of the PC. 3.
  • Page 17 • You may enjoy clear and quality sound from the computer sound card using the monitor's speakers. (You don't need to install separate speakers for your computer.) • You may get a blank screen depending on the type of video card you are using if you connect the D-sub and DVI cables simultaneously to one computer.

  • Page 18: Using It As A Tv

    Using it as a TV You may view television programs on the monitor if it is connected to an antenna or cable/satellite system without installing any separate TV reception hardware or software on your computer. 1. Connect the cable/satellite or TV antenna cable to the [ANT IN] port on the rear side of the monitor. •...

  • Page 19: Connecting An Hdmi Cable

    Connecting an HDMI cable Connect the HDMI OUT port of the AV device (Blu-Ray/DVD/Cable/Satellite box) to the [HDMI IN] terminal of the monitor using the HDMI cable. Press the [SOURCE] button at the front of the monitor or on the remote control to select <HDMI> mode. You do not need to make a separate audio connection when connecting via HDMI.

  • Page 20: Connecting Using A Dvi To Hdmi Cable

    Connecting Using a DVI to HDMI Cable 1. Connect the DVI output terminal of an external device to the [HDMI IN] terminal of the monitor using a DVI to HDMI cable. 2. Connect the red and white jacks of an RCA to stereo (for PC) cable to the same colored audio output terminals of the digital output device, and connect the opposite jack to the [HDMI/PC/DVI-D AUDIO IN] terminal of the product.

  • Page 21: Connecting A Component Cable

    Connecting a Component cable 1. Connect the VIDEO OUT port of the AV device (DVD/VCR/Cable/Satellite box) to the [COMPONENT IN [P , Y]] input ports using a component video cable [P ,Y]. 2. Connect the audio port of the AV device (DVD/VCR/Cable/Satellite box) to the [COMPONENT IN [R-AUDIO-L]] port of the monitor.

  • Page 22: Connecting A Scart Cable

    2-10 Connecting a Scart cable 1. Connect the EXT(RGB) port of the monitor to the DVD Player using a SCART jack. 2. When a Scart device is connected to your monitor, the Source automatically changes to EXT. • Connect to the DVD Devices input if the device has a [EXT [RGB]] jack. •...

  • Page 23: Connecting Common Interface

    2-11 Connecting COMMON INTERFACE 1. Insert the CI CARD into the CAM in the direction of the arrow until it fits. 2. Insert the CAM with the CI CARD installed into the common interface slot. (Insert the CAM in the direction of the arrow, right up to the end so that it is parallel with the slot.) 3.

  • Page 24: Connecting To An Amplifier

    2-12 Connecting to an Amplifier Connect the [DIGITAL AUDIO OUT (OPTICAL)] terminal of your monitor to the optical input of your amplifier using an optical cable. • If no sound is emitted from the monitor, you need to use an amplifier. •...

  • Page 25: Connecting Headphones

    2-13 Connecting Headphones Connect your headphones to the Headphone connection terminal. 2-14 Kensington Lock A Kensington Lock is an anti-theft device that enables users to lock the product so that they can safely use it in public locations. Since the shape and usage of the locking device may differ depending on the model and the manufacturer, for more information, refer to the User Manual supplied with the locking device.

  • Page 26: Using The Product

    Using the Product Plug & Play Feature When the TV is initially powered on, basic settings proceed automatically and subsequently. 1. Press the [POWER ] button on the remote control. • You can also use the [POWER • The message <Select the OSD 2.
  • Page 27 • If you have received a digital signal, the time will be set automatically. If not, select <Manual> to set the clock. 8. The description for the connection method providing the best HD screen quality is displayed. Check the description and press the [ ] button.

  • Page 28: Viewing The Control Panel

    Viewing the Control panel ICON [ +/- ] [▲/▼] Remote Control Sensor Power indicator Speaker DESCRIPTION Use this button to select a function. Signals other than the TV signal can only be selected if the corresponding device is connected. The order in which the TV/external input signal changes. <PC>...

  • Page 29: Remote Control

    Remote Control The performance of the remote control may be affected by a TV or other electronic device operating near the product, causing a malfunction due to interference with the frequency. POWER Turns the product On/Off. Number Buttons Press to change the channel. Activates a highlighted menu item.

  • Page 30: Installing Batteries In The Remote Control

    Installing Batteries in the Remote Control 1. Lift the cover at the back of the remote control upward as shown in the figure. 2. Install two AAA size batteries. Make sure to match the +and - ends of the batteries with the diagram inside the compartment. 3.

  • Page 31: Teletext Feature

    Teletext Feature Most television stations provide written information services via Teletext. The index page of the teletext service gives you information on how to use the service. In addition, you can select various options to suit your requirements by using the remote control buttons.
  • Page 32 (exit) Exit from the teletext display. (index) Used to display the index (contents) page at any time while you are viewing teletext. (store) Used to store the teletext pages. (size) Press to display the double-size let- ters in the upper half of the screen. For lower half of the screen, press it again.

  • Page 33: Using The Screen Adjustment Menu (Osd: On Screen Display)

    Using the Screen Adjustment Menu (OSD: On Screen Display) The Screen Adjustment Menu (OSD: On Screen Display) Structure TOP MENUS Picture MagicBright [PC / DVI] Screen Picture Mode [TV / Ext. / Component / Colour HDMI] Sound Mode Auto Volume Channel Country Full Guide...
  • Page 34 Picture [PC / DVI ] The default setting may be different depending on the selected Input Mode (input signal source selected in External Input List) and the selected resolution MENU MagicBright <MagicBright> is a feature providing an optimum viewing environment depending on the contents of the image you are watching.
  • Page 35 MENU Screen • <Coarse> Removes noise such as vertical stripes. <Coarse> adjustment may move the screen image area. You may relocate it to the center using the horizontal control menu • <Fine> Removes noise such as horizontal stripes. If the noise persists even after <Fine> tuning, repeat it after adjusting the frequency (Coarse). •...
  • Page 36 It is activated when the signal is NTSC. Advanced Settings Samsung‘s new TVs allow you to make even more precise picture settings than previous models. See below to adjust detailed picture settings. <Advanced Settings> is available in <Standard> or <Movie> mode.
  • Page 37 MENU Picture Options • <Colour Tone> The tone of the colour can be changed. • <Cool> - <Normal> - <Warm1> - <Warm2> •<Warm1> or <Warm2> is only activated when the picture mode is <Movie>. •Settings can be adjusted and stored for each external device you have connected to an input of the •...
  • Page 38 MENU Picture Options • <Digital NR> Digital Noise Reduction. If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen. •...
  • Page 39 MENU Mode • <Standard> Choose Standard for the standard factory settings. • <Music> Choose Music when watching music videos or concerts. • <Movie> Choose Movie when viewing movies. • <Clear Voice > Emphasizes voice over other sounds. • <Custom > Choose Custom if you want to adjust the settings according to personal preference .
  • Page 40 MENU Speaker Select When you watch TV with it connecting to a Home theater, turn the TV speakers off so you can listen to sound from the Home theater’s (external) speakers. • <External Used to listen to the sound of the External (Home Theater) Speakers. •...
  • Page 41 AUDIO TYPE Mono Stereo Stereo Dual Mono Stereo NICAM Stereo Dual If the stereo signal is weak and an automatic switching occurs, then switch to the mono. This function is only activated in stereo sound signal. It is deactivated in mono sound signal. This function is only available in TV mode.
  • Page 42 MENU Country Select the country in which the product is being used before you use the Auto Store feature. If you do not see your country in the list, select Others. • <Analogue Channel> You can change the country for analogue channels. •...
  • Page 43 MENU Manual Store You can scan the frequency ranges available on your television in your area and store all the chan- nels found manually. • <Digital Channel> Manual store for digital channels. • <Channel> Set the Channel number using the ▲ ,▼ or number (0~9) buttons •...
  • Page 44 MENU Now & Next Guide / The EPG (Electronic Programme Guide) information is provided by the broadcasters. Programme Full Guide / Default entries may appear blank or out of date as a result of the information broadcast on a given channel. Guide The display will dynamically update as soon as new information becomes available.
  • Page 45 MENU Channel List Using this menu, you can add / delete or set favorite channels and use the program guide for digital broadcasts. You can select these options by simply pressing the [CH LIST] button on the remote control. • <All Channels> - Shows all currently available channels. •...
  • Page 46 Setup MENU Plug & Play This brings up the menu items that appeared when you first plugged in the TV. Language The language chosen affects only the language of the OSD. Time • <Clock> • The current time will appear every time you press the [INFO] button. •...
  • Page 47 MENU Time • <Timer1 / Timer2 / Timer3> Three different on / off timer settings can be made. You must set the clock first. • <On Time> Set the <hour>, <minute>, <am/pm>, and <activate/inactivate>. (To activate the timer with the setting you’e chosen, set to Activate.) •...
  • Page 48 MENU Child Lock This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programme by muting out video and audio. • <Off>-<On> • Before the setup screen appears, the PIN number input screen appears. Enter your 4 digit PIN number.
  • Page 49 MENU Preference <Primary Audio Language> / <Secondary Audio Language> / <Primary Subtitle Language> /<Sec- ondary Subtitle Language> / <Primary Teletext Language> /<Secondary Teletext Language> Using this feature, users can select one of the languages. The language selected here is the default when the user selects a channel.
  • Page 50 <Anynet+> is a function that enables you to control all connected Samsung devices that support <Anynet+> with your Samsung TV‘s remote. The <Anynet+ > system can be used only with Samsung devices that have the <Anynet+> feature. To be sure your Samsung device has this feature, check if there is an <Anynet+>...

  • Page 51: Setting Up Anynet

    Connect the Optical cable between the [DIGITAL AUDIO OUT (OPTICAL)] jack on your TV and the Digital Audio Input on the Home Theatre. When following the connection above, the Optical jack only outputs 2 channel audio. You will only hear sound from the Home Theatre‘s Front Left and Right speakers and the subwoofer.
  • Page 52 MENU Device List 1. Press the [TOOLS] button. Press the [ 2. Press the - <Anynet+> devices connected to the TV are listed. - If you cannot find a device you want, press the red button to scan for devices. 3.
  • Page 53 • <Yes> : If during the sound test you can hear sound only from one speaker or not at all, select <Yes>. There may be a problem with the TV. Contact Samsung’s call center for assistance. • <No> : If you can hear sound from the speakers, select <No>. There may be a problem with your external equipment.
  • Page 54 This menu presents the connection method that provides the optimal quality for the HDTV. Refer to this information when connecting external devices to the TV. Contact Samsung View this information when your TV does not work properly or when you want to upgrade the soft- ware.

  • Page 55: Installing The Device Driver

    If you install the device driver, you can set up the appropriate resolution and frequency for the product. The device driver is included on the CD supplied with the product. If the supplied drive file is corrupted, please visit the Samsung Electronics website (www.samsung.com), and download the driver.

  • Page 56: Standard Signal Mode Table

    Standard Signal Mode Table An LCD monitor has one optimal resolution for the best visual quality depending on the screen size due to the inherent characteristics of the panel, unlike a CDT monitor. Therefore, the visual quality will be degraded if the optimal resolution is not set for the panel size. It is recommended setting the resolution to the optimal resolution of the product.

  • Page 57: Installing The Software

    What is Natural Color ? This software is for Samsung products only and enables you to adjust the displayed colors on the product so they more closely match the colors of printed pictures. For more information, refer to the online help of the software (F1).
  • Page 58 For MultiScreen, Windows 2000 or later operating systems are recommended. Hardware • At least 32MB of memory • At least 60MB of free space on the hard disk drive Removing the Software Click [Start], select [Settings]/[Control Panel], and then double-click [Add or Remove Programs]. Select MultiScreen from the program list and click the [Add/Delete] button.

  • Page 59: Troubleshooting

    Troubleshooting Monitor Self-Diagnosis • You can check if the product is working properly using the Self-Diagnosis function. 1. Turn the product and the PC off. 2. Remove the D-Sub cable from the product. 3. Turn the product on. 4. If the product is working properly, the 'Check cable connection' message appears. In this case, if a blank screen is displayed again, make sure that there is no problem with the PC and the connection.

  • Page 60: Before Requesting Service

    Before Requesting Service Please check the following before requesting After-Sales service. If the problem continues, please contact your nearest Samsung Electronics Service Center. PROBLEMS RELATED TO INSTALLATION ( The monitor screen flickers. Screen is blank and power indicator is off.
  • Page 61 NOTE ON THE PRODUCT APPEARANCE You may see small particles if you look closely at This is part of the product's design and is not a defect. the edge of the bezel surrounding the screen. Troubleshooting...

  • Page 62: Faq

    This provides a much better screen quality than SDTV. It's like having a theater in your home. Digital TV broadcasting in our country is ultimately orientated towards HDTV. (At present, all digital TVs from Samsung Electronics have the 16:9 wide aspect ratio.) Troubleshooting...
  • Page 63 16:9, similar to a cinema screen. Therefore, to enjoy the full benefits of digital TV, it is better to purchase an HD digital TV. (At present, all digital TVs from Samsung Electronics have the 16:9 wide aspect ratio.) The analog TV cannot interpret digital signals.

  • Page 64: More Information

    More Information Specifications MODEL NAME LCD Panel Screen Size Display Area Pixel Pitch Synchroniza- Horizontal Fre- tion quency Vertical Fre- quency Color Resolution Optimal Reso- lution Maximum Res- olution Input Signal, when a terminator is installed. Maximum Pixel Clock Power Voltage Dimension (Width x Height x Depth) / Weight VESA...

  • Page 65: Power Saving Function

    Power Saving Function This product provides a power saving function that automatically turns the screen off when the product is not used for a predetermined period of time to reduce power consumption. If the product enters power saving mode, the power LED turns to a different color to indicate that the product is in power saving mode.

  • Page 66: Contact Samsung Worldwide

    Contact SAMSUNG WORLDWIDE ►If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. U.S.A CANADA MEXICO ARGENTINE BRAZIL CHILE COLOMBIA COSTA RICA ECUADOR EL SALVADOR GUATEMALA HONDURAS JAMAICA NICARAGUA PANAMA PUERTO RICO REP.
  • Page 67 3 - SAMSUNG (7267864) 0 801 1SAMSUNG (172678) 022 - 607 - 93 - 33 808 20 - SAMSUNG (7267864) 0800-SAMSUNG(726-7864) 902 - 1 - SAMSUNG (902 172 678) 075 - SAMSUNG (726 78 64) 0848-SAMSUNG(7267864, CHF 0.08/ min) 0845 SAMSUNG (7267864)
  • Page 68 PHILIPPINES SINGAPORE THAILAND TAIWAN VIETNAM SOUTH AFRICA TURKEY U.A.E ASIA PACIFIC 1800-10-SAMSUNG(726-7864) 1800-3-SAMSUNG(726-7864) 02-5805777 1800-SAMSUNG(726-7864) 1800-29-3232 02-689-3232 0800-329-999 1 800 588 889 MIDDLE EAST & AFRICA 0860-SAMSUNG(726-7864) 444 77 11 800-SAMSUNG(726-7864) 8000-4726 http://www.samsung.com/ph http://www.samsung.com/sg http://www.samsung.com/th http://www.samsung.com/tw http://www.samsung.com/vn http://www.samsung.com/za http://www.samsung.com/tr http://www.samsung.com/ae...

  • Page 69: Correct Disposal

    Correct Disposal CORRECT DISPOSAL OF THIS PRODUCT (WASTE ELECTRICAL & ELECTRONIC EQUIPMENT) (Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its elec- tronic accessories (e.g.
  • Page 70 More Information...
