SERVICE

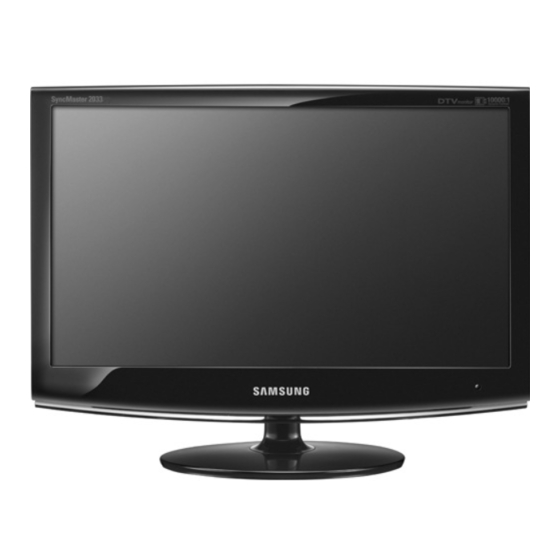

TFT-LCD Monitor
2033HD
Refer to the service manual in the GSPN (see the rear cover) for the more information.
LCD-Monitor
Chassis
: LS20CFV
Model
: 2033HD
Manual
1. Precautions
2. Product specifications
3. Disassembly and Reassemble
4. Troubleshooting
5. Exploded View & Part List
6. Wiring Diagram
Contents

Advertisement

Table of Contents
loading

Related Manuals for Samsung 2033HD

Summary of Contents for Samsung 2033HD

  • Page 1 LCD-Monitor Chassis : LS20CFV Model : 2033HD SERVICE Manual TFT-LCD Monitor Contents 1. Precautions 2. Product specifications 3. Disassembly and Reassemble 4. Troubleshooting 5. Exploded View & Part List 6. Wiring Diagram 2033HD Refer to the service manual in the GSPN (see the rear cover) for the more information.

  • Page 2: Table Of Contents

    Contents 1. Precautions ......................1-1 1-1. Safety Precautions ......................1-1 1-2. Servicing Precautions ..................... 1-2 1-3. Static Electricity Precautions ..................1-2 1-4. Installation Precautions ....................1-3 2. Product specifications .................... 2-1 2-1. Feature & Specifications ....................2-1 2-2. Spec Comparison to the Old Models ................2-3 2-3.
  • Page 3 GSPN (Global Service Partner Network) Area Web Site North America http://service.samsungportal.com Latin America http://latin.samsungportal.com http://cis.samsungportal.com Europe http://europe.samsungportal.com China http://china.samsungportal.com Asia http://asia.samsungportal.com Mideast & Africa http://mea.samsungportal.com © 2009 Samsung Electronics Co.,Ltd. This Service Manual is a property of Samsung Electronics Co.,Ltd. All rights reserved. Any unauthorized use of Manual can be punished under applicable Printed in Korea International and/or domestic law. P/N: BN82-00707A-00...

  • Page 4: Precautions

    1. Precautions 1. Precautions 1-1. Safety Precautions Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock. 1-1-1. Warnings For continued safety, do not attempt to modify the circuit board. Disconnect the AC power and DC power jack before servicing.

  • Page 5: Servicing Precautions

    1. Precautions 1-2. Servicing Precautions WARNING: An electrolytic capacitor installed with the wrong polarity might explode. Caution: Before servicing units covered by this service manual, read and follow the Safety Precautions section of this manual. Note: If unforeseen circumstances create conflict between the following servicing precautions and any of the safety precautions, always follow the safety precautions.

  • Page 6: Installation Precautions

    1. Precautions 1-4. Installation Precautions For safety reasons, more than two people are required for carrying the product. Keep the power cord away from any heat emitting devices, as a melted covering may cause fire or electric shock. Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal temperature may cause fire.
  • Page 7 1. Precautions Memo...

  • Page 8: Product Specifications

    -The TV utilizes the HDMI system to implement perfect digital sound and picture quality. Specifications Item Description Model 2033HD LCD Panel TFT-LCD Panel, RGB Vertical stripe, normally White, 20-Inch viewable, 0.2768 (H) x 0.2768 (V) mm Pixel Pitch Scanning Frequency...
  • Page 9 2. Product specifications Specifications Item Description Model 2033HD Environmental Considerations Operating Temperature: 50˚C ~ 104˚F(10˚C ~ 40˚C) Operating Humidity : 10% ~ 80% Storage Temperature: -4˚C ~ 113˚C(-20˚C ~ 45˚C) Storage Humidity: 5% ~ 95% Antenna Input 75Ω Sound Characteristic...

  • Page 10: Spec Comparison To The Old Models

    2. Product specifications 2-2. Spec Comparison to the Old Models Model 2033HD 933HD Design Screen Size 20.1” 19” Resolution 1600 X 900 60Hz 1360 x 768 60Hz Brightness 300cd/m2 300cd/m2 Contrast Ratio 1000:1 1000:1 Response Time Viewing Angle Left/Right/Up/Down : 85˚/85˚/80˚/80˚...

  • Page 11: Accessories

    Description Ccde. No Remark Remote Control & BN59-00865A Batteries (AAA x 2) Power Cord 3903-000085 Stand Body BN96-07605D Samsung Electronics Service center Stand Base BN96-07604A D-Sub Cable BN39-00244G User’s Guide, Monitor Driver, BN59-00905A Natural Color Pro Software Cleaning Cloth BN63-1798B...

  • Page 12: Disassembly And Assembly

    3. Disassembly and Assembly 3. Disassembly and Assembly This section describes the disassembly and reassembly sequences for this monitor. Warning: As this monitor has parts that are sensitive to static electricity, be careful when handling them. 3-1. Disassembly Caution: 1. Turn the monitor off before beginning the disassembly process. 2.
  • Page 13 3. Disassembly and Assembly Description Photo Screws 3. Insert a flat screwdriver into the groove and then lift up and remove the cover. 4. After remove COVER-REAR, then disconnect SPEAKER , FUNCTION wire. 5. Disconnect LVDS cable from panel.
  • Page 14 3. Disassembly and Assembly Description Photo Screws 6. After disconnecting SHIELD-LAMP of left side, disassemble lamp wire between panel and IP Board. 7. Remove 4 screws of PC and DVI connector. Then, upset the shield. 8. Remove 7 marked SCREW of left picture. Disconnect IP board.
  • Page 15 3. Disassembly and Assembly Description Photo Screws 9. Remove the LCD panel. 10. Remove the WIRE-CONNECTOR from the LED PCB MODULE. 11. Remove the IR-PCB from the HOOK. 12. Remove the KNOB-CONTROL from the COVER- FRONT. 13. Remove the FUNCTION PCB MODULE. ※...

  • Page 16: Troubleshooting

    4. Troubleshooting 4. Troubleshooting 4-1. First Checklist for Troubleshooting Check the various cable connections first. - Check to see if there is a burnt or damaged cable. - Check to see if there is a disconnected cable connection or a connection is too loose. - Check to see if the cables are connected according to the connection diagram.

  • Page 17: No Power

    4. Troubleshooting 4-2. No Power Symptom Though the power swtich on, the LED power off and the screen is blank. Check Power cable. Check whether the Lamp connector is connected correctly to the IP. Major checkpoints Check whether the power cable is connected correctly to the MAIN. Check whether the Function cable is connected correctly to the MAIN.
  • Page 18 4. Troubleshooting 4-2-1. Circuit diagrams when the power does not turn on...

  • Page 19: No Video (Analog Pc)

    Does the digital data appear at the Check IC4010. output of RA4000, RA4001? Change a main PBA. Check a LVDS cable? Please, Call to Samsung Co. LTD. Replace a lcd panel? Caution Make sure to disconnect the power before working on the IP board.
  • Page 20 4. Troubleshooting 4-3-1. Circuit diagrams and waveforms (Analog) when no screen is displayed on the monitor...
  • Page 21 4. Troubleshooting Analog PC 4-3-2. Waveforms when no screen is displayed ( ① R,G,B Output Signal of IC4010...

  • Page 22: No Video (Digital-Hdmi)

    INPUT of IC4010 at RA4004, Change a main PBA. RA4005 (HDMI1) or RA4002, RA4003(HDMI2)? Check a LVDS cable? Please, Call to Samsung Co. LTD. Replace lcd panel? Caution Make sure to disconnect the power before working on the IP board.
  • Page 23 4. Troubleshooting (Digital-HDMI) 4-4-1. Circuit diagrams and waveforms when no screen is displayed on the monitor...
  • Page 24 4. Troubleshooting Digital-HDMI 4-4-2. Waveforms when a blank screen is displayed ( ② Digital Output Data of IC4010 ③ Signal of HDMI(Data)

  • Page 25: No Picture (Tuner_Cvbs)

    ⑤ Does the digital data appear Change a main PCB ass’y. at R5055,R5056? Check a LVDS cable? Please, Call to Samsung Co. LTD. Replacea lcd panel? Caution Make sure to disconnect the power before working on the IP board. 4-10...
  • Page 26 4. Troubleshooting (Tuner_CVBS) 4-5-1. Circuit diagrams and waveforms when no screen is displayed on the monitor 4-11...
  • Page 27 4. Troubleshooting (Tuner_CVBS) 4-5-2. Waveforms when a blank screen is displayed ④ Tuner I2C Data signal. ⑤ Tuner_CVBS Output Signal 4-12...

  • Page 28: No Picture (Tuner_Dtv)

    ④ Does the signal appear at check antenna cable #16~25of TU5003? Change a main PBA Check a LVDS cable? Please, Call to Samsung Co. LTD. Replace lcd panel? Caution Make sure to disconnect the power before working on the IP board. 4-13...
  • Page 29 4. Troubleshooting (Tuner_DTV) 4-6-1. Circuit diagrams and waveforms when no screen is displayed on the monitor 4-14...
  • Page 30 4. Troubleshooting (Tuner_DTV) 4-6-2. Waveforms when a blank screen is displayed ④ Digital Channel DATA signal 4-15...

  • Page 31: No Sound

    4. Troubleshooting 4-7. No Sound Symptom The LED power turns on but the screen is blank when the DVI cable is connected. Even though the LED power turns on, the screen is blank when connecting the DVI cable. Check the DVI cable connections. Major checkpoints Check whether the LVDS cable is connected correctly to the panel.
  • Page 32 4. Troubleshooting (No Sound) 4-7-1. Circuit diagrams and waveforms when no screen is displayed on the monitor 4-17...
  • Page 33 4. Troubleshooting (No Sound) 4-7-1. Waveforms when a blank screen is displayed ⑥ The Signal are Inputed to IC9002 ⑦ DC 3.3V 4-18...

  • Page 34: Faults And Corrective Actions

    4. Troubleshooting 4-8. Faults and Corrective Actions Fault Photo Symptoms and Corrective Actions Remarks Symptoms: DVI signals are not recognized. * Refer to the Training Manual for information on inputting the DVI DDC. Causes: This fault occurs when the PC does not recognize the mode information because the DVI DDC has not been input to the monitor.

  • Page 35: Adjustment

    4. Troubleshooting 4-9. Adjustment 4-9-1. Service Instruction 1. Usually, a color TV-VCR needs only slight touch-up adjustment upon installation. Check the basic characteristics such as height, horizontal and vertical sync. 2. Use the specified test equipment or its equivalent. 3. Correct impedance matching is essential. 4.

  • Page 36: Service Adjustment

    4. Troubleshooting 4-11. Service Adjustment 4-11-1. White Balance - Calibration If picture color is wrong, do calibration first. Equipment : CA210, Patten : chess pattern Execute calibration in Factory Mode Source AV : PAL composite, Component : 1280*720/60Hz PC : 1024*768/60Hz (Gray patten) 4-11-2.
  • Page 37 4. Troubleshooting 4-11-4. Method of Adjustment 1. Adjust the white balance of AV, Component Modes. (AV→Component) a) Set the input to the mode in which the adjustment will be made. (RF→DTV→PC→DVI). * Input signal - VIDEO Mode : Model #2 (744*484 Mode), Pattern #16 - DTV,DVI Mode : Model #6 (1280*720 Mode), Pattern #16 - HDMI Mode: Model #6(1280*720 Mode), Pattern #16 b) Enter factory color control, confirm the data.

  • Page 38: Software Upgrade

    4. Troubleshooting 4-12. Software Upgrade 4-12-1. Micom Program Upgrade DDC Manager Connection  PC for MCU upgrading Connect to Parallel port 1. Prepare PC to Upgrade the Program. 2. Prepare the DDC Manager 3. Connect D-sub cable to Target Monitor TV 4.
  • Page 39 4. Troubleshooting Main MIcom Upgrade  1. Goto installed Program folder (winDDC_V2-39) 2. Run winDDC 3. Select WinISP Menu 4. Make same setting like picture. 5. Choose Flash memory type - CREAM-MFM(2033HD):WT61P8 4-24...
  • Page 40 4. Troubleshooting 6. Load File ( Select file to download) 7. Set Option to load Binary Files 8. Select files (bin file) 9. Click button to load files 10. Select “Flash1” and “Flash2” 4-25...
  • Page 41 4. Troubleshooting 11. Check the OK message (Load) 12. Click Auto Program button 13. If you see OK message (Verify), program download is completed After Upgrading Firmware  Factory mode 1. Factory remote control (SET POWER ON ) INFO -> Factory 2) Normal Remote control (SET POWER OFF) INFO ->...
  • Page 42  1. Select WinISP Menu 2. Make same setting like picture. 3. Choose Device Type. - CREAM-MFM(2033HD):WT61P8 4. Load File ( Select file to download) 5. Set Option to load Binary Files 6. Select files (hex file) 7. Click button to load files...
  • Page 43 4. Troubleshooting 8. Check the OK message (Load) 9. Click Auto Program button 10. If you see OK message (Verify), program download is completed 4-28...

  • Page 44: Exploded View & Part List

    5. Exploded View & Part List 5. Exploded View & Part List 5-1. LS20CFVKF/EN - Exploded View M0027 M0013 M0028 T0279 M0006 M0014 M0090 M0215 M0174 T0003 T0175...
  • Page 45 M0028 BN96-08101A ASSY STAND P-BAR;2233BW,ABS HB,BK23,GLOS M0174 BN44-00177D IP BOARD;PWI2204ST(A),T 20” MFM,1.4 ~2.8 M0215 BN07-00595A LCD-PANEL;LTM200KT01 T0003 BN96-11621A ASSY COVER P-FRONT;LS20CF (2033HD),ABS H T0175 BN96-08732A ASSY SPEAKER P;16ohm,4pin,cream 18.5”,3W T0279 BN63-04961A COVER-JACK;933HD,PC+ABS,5V,BK23,H/GLOSSY S.N.A M0090 BN96-11912A ASSY SHIELD P-LAMP;CREAM 20(MFM),SPTE,T S.N.A...
  • Page 46 LS20CFVKF/EN 2033HD,UVA3/S20V0-LCF,20,LCD-MO,NETHERLA M0001 BN90-02273A ASSY COVER FRONT;CREAM 20(MFM),EUROPE S.N.A 6003-001023 SCREW-TAPTYPE;PWH,+,-,B,M3,L10,ZPC(WHT), S.N.A T0175 BN96-08732A ASSY SPEAKER P;16ohm,4pin,cream 18.5”,3W T0003 BN96-11621A ASSY COVER P-FRONT;LS20CF (2033HD),ABS H ...3 CCM1 BN63-02183D COVER-SHEET;Rhcm,PE Vinyl,T0.05,680mm,20 S.N.A ...3 M0112 BN63-05932A COVER-FRONT;LS20CF,ABS,HB,BK23,H/GLOSSY S.N.A ...3 T0056 BN63-05936A COVER-DECORATION;LS20CF,PC,CLEAR S.N.A...
  • Page 47 5. Exploded View & Part List Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark IP/BO+S/CO 6003-001023 SCREW-TAPTYPE;PWH,+,-,B,M3,L10,ZPC(WHT), S.N.A MAIN+S/CO 6003-001023 SCREW-TAPTYPE;PWH,+,-,B,M3,L10,ZPC(WHT), S.N.A IP/BO+S/CO 6003-001439 SCREW-TAPTYPE;BH,+,S,M4,L8,ZPC(WHT),SWRC S.N.A M0174 BN44-00177D IP BOARD;PWI2204ST(A),T 20” MFM,1.4 ~2.8 T0514 BN61-04468A BRACKET-SUPPORT;933HD,SPTE,T0.3 S.N.A T0279 BN63-04961A COVER-JACK;933HD,PC+ABS,5V,BK23,H/GLOSSY...
  • Page 48 5. Exploded View & Part List Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark ..4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 ..4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 ..4 D1003 0402-001098 DIODE-RECTIFIER;SK34,40V,3A,SMC,TP S.N.A ..4 D1004 0402-001098 DIODE-RECTIFIER;SK34,40V,3A,SMC,TP S.N.A ..4 D1030 0402-001614 DIODE-RECTIFIER;S1G,400V,1A,DO-214AC,TP ..4 D10001 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD...
  • Page 49 5. Exploded View & Part List Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark ..4 D6033 0407-000123 DIODE-SWITCHING;DAN202K,80V,100mA,SOT-23 S.N.A ..4 D6034 0407-000123 DIODE-SWITCHING;DAN202K,80V,100mA,SOT-23 S.N.A ..4 Q1004 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT ..4 Q1005 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT ..4 Q1011 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT ..4 Q1012...
  • Page 50 5. Exploded View & Part List Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark ..4 IC3007 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm ..4 IC5090 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm ..4 IC1002 1205-003479 IC-SWITCH;TPS2051BDBVR,SOT-23,5P,2.9x1.6 ..4 IC6500 1205-003479 IC-SWITCH;TPS2051BDBVR,SOT-23,5P,2.9x1.6 ..4 D3236 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP ..4 D3237 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP...
  • Page 51 5. Exploded View & Part List Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark ..4 R3602 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ..4 R4316 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ..4 R818 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ..4 R819 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ..4 R816 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608 S.N.A ..4 R1072 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 ..4...
  • Page 52 5. Exploded View & Part List Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark ..4 R3027 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 S.N.A ..4 R3028 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 S.N.A ..4 R3046 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 S.N.A ..4 R3200_CEC 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 S.N.A ..4 R3210 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 S.N.A ..4...
  • Page 53 5. Exploded View & Part List Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark ..4 R10032 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 S.N.A ..4 R10101 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 S.N.A ..4 R10121 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 S.N.A ..4 R10122 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 S.N.A ..4 R10135 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 S.N.A ..4...
  • Page 54 5. Exploded View & Part List Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark ..4 R1052 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 S.N.A ..4 R1056 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 S.N.A ..4 R4456 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 S.N.A ..4 R4477 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 S.N.A ..4 R4555 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 S.N.A ..4...
  • Page 55 5. Exploded View & Part List Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark ..4 R5028 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 S.N.A ..4 R5029 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 S.N.A ..4 R5031 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 S.N.A ..4 R5055 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 S.N.A ..4 R5056 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 S.N.A ..4...
  • Page 56 5. Exploded View & Part List Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark ..4 R4408 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 S.N.A ..4 R4409 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 S.N.A ..4 R4410 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 S.N.A ..4 R4411 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 S.N.A ..4 R4412 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 S.N.A ..4...
  • Page 57 5. Exploded View & Part List Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark ..4 R4352 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 S.N.A ..4 R2037 2007-007156 R-CHIP;1ohm,5%,1/16W,TP,1005 S.N.A ..4 R5570 2007-007297 R-CHIP;110ohm,1%,1/10W,TP,1608 ..4 R8329 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 S.N.A ..4 R8330 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 S.N.A ..4 R8363...
  • Page 58 5. Exploded View & Part List Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark ..4 R8436 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2..4 R8437 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2..4 R8504 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2..4 RA9000 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2..4 C9047 2203-000125 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,- ..4 C9048 2203-000125 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,- ..4 C9049...
  • Page 59 5. Exploded View & Part List Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark ..4 C9035 2203-000838 C-CER,CHIP;0.39NF,5%,50V,C0G,TP,1608 ..4 C9036 2203-000838 C-CER,CHIP;0.39NF,5%,50V,C0G,TP,1608 ..4 C4996 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608 ..4 C4997 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608 ..4 C4999 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608 ..4 C3502 2203-001071 C-CER,CHIP;0.056nF,5%,50V,C0G,TP,1608 S.N.A ..4...
  • Page 60 5. Exploded View & Part List Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark ..4 C9023 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 S.N.A ..4 C9027 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 S.N.A ..4 C9028 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 S.N.A ..4 C9029 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 S.N.A ..4 C3242 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 S.N.A ..4...
  • Page 61 5. Exploded View & Part List Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark ..4 C9077 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 S.N.A ..4 C9316_EU 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 S.N.A ..4 C9317_EU 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 S.N.A ..4 C9318_EU 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 S.N.A ..4 C10033 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 S.N.A ..4...
  • Page 62 5. Exploded View & Part List Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark ..4 C8331 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 S.N.A ..4 C8365 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 S.N.A ..4 C8503 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 S.N.A ..4 C8505 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 S.N.A ..4 C9006 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 S.N.A ..4...
  • Page 63 5. Exploded View & Part List Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark ..4 C2085 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( S.N.A ..4 C2088 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( S.N.A ..4 C2302 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( S.N.A ..4 C3009 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( S.N.A ..4 C4036...
  • Page 64 5. Exploded View & Part List Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark ..4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz ..4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz ..4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz ..4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz ..4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz ..4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz ..4 T0568...
  • Page 65 HA83-00057B LP-TAPE-CELLULOSE;,HA02-030010,T0,046,W7 1.31 S.N.A M0045 BN92-05345G ASSY ACCESSORY;LS20CFVKF/EN S.N.A T0074 BN59-00865A REMOCON;DLP,CRT,TM940,EUROPE,39,92g BN68-01660C MANUAL FLYER-QSG;COMM,SyncMaster,W/W,Moj S.N.A BN68-02341B MANUAL FLYER-PCT NOTICE;comm,Samsung,Eng S.N.A M0027 BN96-08556A ASSY STAND P-BASE;Cream-MFM 18.5,ABS HB, ...3 CIS4 BN61-01717A HOLDER-STAND;BIZET,NI PLT,CH,+,M4,L11(5) S.N.A ...3 CCM1 BN63-02183D COVER-SHEET;Rhcm,PE Vinyl,T0.05,680mm,20 S.N.A ...3...
  • Page 66 Code No. Description & Specification Q’ty SA/SNA Remark ...3 BH68-00633B MANUAL FLYER-03,WARRANTY CARD;comm,Samsu S.N.A ...3 BH68-70448A CARD-01;TFT LCD,SRC,RUSSIA,S/W,120,W210* S.N.A ...3 BN59-00905B S/W DRIVER-00,IB;2033HD,Europe,SyncMaste S.N.A ...3 M9889 BN63-01798B CLOTH-CLEAN;cloth,180,200,sea blue,ToC S.N.A ...3 BN68-00907D MANUAL FLYER-WEEE BATTERY;COMM,SAMSUNG,2 S.N.A ...3 BN68-00907F MANUAL FLYER-00,WEE;comm,Samsung,23Lang, S.N.A ...3...

  • Page 67: Wiring Diagram

    6. Wiring Diagram 6. Wiring Diagram 6-1. Wiring Diagram - Main Board...
  • Page 68 6. Wiring Diagram 6-2. Wiring Diagram - MAIN Board LVDS Connector (Connect to Panel) IP board 3708-001150 3711-005503 3701-001388 3701-001385 3701-001367 3722-000143 3722-002360 3701-001386 3722-002362 RGB Connector DVI-D Connector (PConnect to PC) (Connect to PC)

  • Page 69: Wiring Diagram - Ip Board

    6. Wiring Diagram 6-3. Wiring Diagram - IP Board Power Lamp Connector Connector 9P (Connect with panel (Connect with inverter – left top of MAIN board) panel rear) Lamp Connector (Connect with panel inverter – left bottom of panel rear) AC Power socket...

  • Page 70: Connector Functions

    6. Wiring Diagram 6-4. Connector Functions Connector Functions CN1005 Transmits LVDS signals from the Main board to the panel * When a problem occurs: The Blank Screen and No Power errors may occur. CN5003 VGA signal input terminal * When a problem occurs: The No RGB Output error may occur. CN901 DVI signal input terminal * When a problem occurs: The No DVI Output error may occur.
