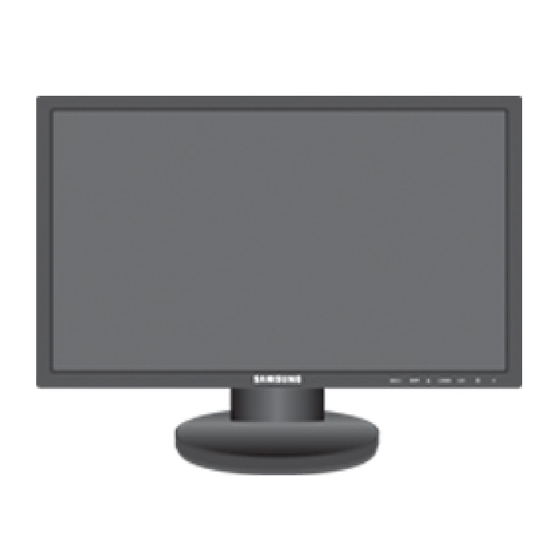

LCD MONITOR

quick start guide


Advertisement

   Related Manuals for Samsung 2043BW

   Summary of Contents for Samsung 2043BW

  • Page 1: Lcd Monitor

    LCD MONITOR quick start guide...

  • Page 2: Package Contents

    Introduction Package Contents Note Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Contact a local dealer to buy optional items. Unpacking Type 1 Monitor & Simple stand Note • MagicRotation program can not be provided as Simple Stand does not support Pivot function.

  • Page 3

    Introduction Monitor & Dual Hinge Stand Type 4 Monitor & HAS stand 23 inches or larger Manuals Quick Setup Guide Warranty Card User's Guide (Not available in all loca- tions) Cables D-Sub Cable Power Cord DVI Cable (option) USB Cable Audio Cable (Applicable to the stand mod- (Supplied for the models that...

  • Page 4: Your Monitor

    Note Cleaning Cloth is only provided for highly polished black products as a product feature. Your Monitor Initial Settings Select the language using the up or down key. The displayed content will disappear after 40 seconds. Turn the Power button off and on. It will be displayed again. It can be displayed up to three (1) times.

  • Page 5

    Front Note Touch them lightly with your fingers to use them. MENU button [MENU/ ] Opens the on-screen menu and exits from the menu. Also use to exit the OSD menu or return to the previous menu. Customized Key[ You can customize key assignment for the Custom button according to your pref- erences.

  • Page 6

    Introduction button Push the ' ', then selects the video signal while the OSD is off. (When the ' button is pressed to change the input mode, a message appears in the upper left of the screen displaying the current mode -- analog or digital input signal.) Note •...

  • Page 7

    Note Applicable to the models that have speakers only. Rear Note The configuration at the back of the monitor may vary from product to product. POWER port DVI IN RGB IN USB connection termi- nal (Option) Introduction POWER port Connect the power cord for your monitor to the POWER port on the back of the product.

  • Page 8

    AUDIO IN port Kensington Lock Note See Connecting Cables for further information regarding cable connections. Introduction UP(USB upstream port) Connect the UP port of the monitor and the USB port of the computer with the USB cable. DOWN(USB downstream port) Connect the DOWN port of the USB monitor and a USB device with the USB cable.

  • Page 9

    Introduction Cable holding ring • Fix the cables using the holding ring, as shown in the figure.

  • Page 10: Connecting Cables

    Connections Connecting Cables Use a connection appropriate for your computer. Using the D-sub (Analog) connector on the video card. • Connect the signal cable to the 15-pin, D-sub port on the back of your monitor. Using the DVI (Digital) connector on the video card. •...

  • Page 11: Connecting Usb

    Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet. Note • If the monitor and the computer are connected, you can turn them on and use them. •...

  • Page 12: Using The Stand

    Connect the Note To use DOWN port, you have to connect the UP (Upstream Cable) to the PC. Make sure to use the USB cable supplied with this monitor to connect the monitor's and your computer's USB port. Connect the The use procedures are as the same as those for using an external device connecting to the PC.

  • Page 13

    Connections Simple Stand HAS Stand Dual Hinge Stand...

  • Page 14

    HAS Stand HAS Stand (23 inches or larger) Connections A. Stand Stopper A. Stand Stopper...

  • Page 15: Attaching A Base

    Dual Hinge Stand Attaching a Base This monitor accepts a 100 mm x 100 mm VESA-compliant mounting interface pad. Note The VESA dimensions given above are an example. The VESA dimensions may differ depending on the product. Connections A. Stand Stopper Simple Stand HAS Stand...

  • Page 16

    Samsung is not liable for these kinds of accidents. • Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.

  • Page 17: Troubleshooting

    Troubleshooting Self-Test Feature Check Note Your monitor provides a self test feature that allows you to check whether your monitor is functioning properly. Self-Test Feature Check Turn off both your computer and the monitor. Unplug the video cable from the back of the computer. Turn on the monitor.

  • Page 18: Useful Tips

    Environment The location and the position of the monitor may influence the quality and other features of the monitor. If there are any sub woofer speakers near the monitor, unplug and relocate the woofer to another room. Remove all electronic devices such as radios, fans, clocks and telephones that are within 3 feet (one meter) of the monitor.

  • Page 19: I Cannot See The On Screen Display

    (Refer to the Preset Timing Modes) If the initial screen (the login screen) does not appear, contact the Service Center or your deal- Can you see "Not Optimum Mode", "Recommended Mode **** x **** 60 Hz" on the screen? You can see this message when the signal from the video card exceeds the maximum resolution and frequency that the monitor can handle properly.

  • Page 20

    The screen suddenly has become unbalanced. Have you changed the video card or the driver? Adjust screen image position and size using the OSD. Have you adjusted the resolution or frequency to the monitor? Adjust the resolution and frequency at the video card. (Refer to the Preset Timing Modes) The screen can be unbalanced due to the cycle of the video card signals.

  • Page 21: Check When Magictune™ Does Not Function Properly

    MagicTune™ doesn't work properly. Have you changed your PC or video graphic card? Download the latest program. The program can be downloaded http://www.samsung.com/mon- itor/magictune Did you install the program? Reboot the computer after installing the program for the first time. If a copy of the program is already installed, remove it, reboot the computer, and then install the program again.

  • Page 22

    If you have problems in installing the adapter (video) driver, boot the computer in Safe Mode, remove the Display Adapter in the "Control Panel → System → Device Administrator" and then reboot the computer to reinstall the adapter (video) driver. Note If problems repeatedly occur, contact an authorized service center.
