MVP S
ERIES
200MVP & 300MVP
T
P
HERMAL
RINTERS
Product Guide
May 2003

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 200MVP and is the answer not in the manual?

Questions and answers

Summary of Contents for Brady 200MVP

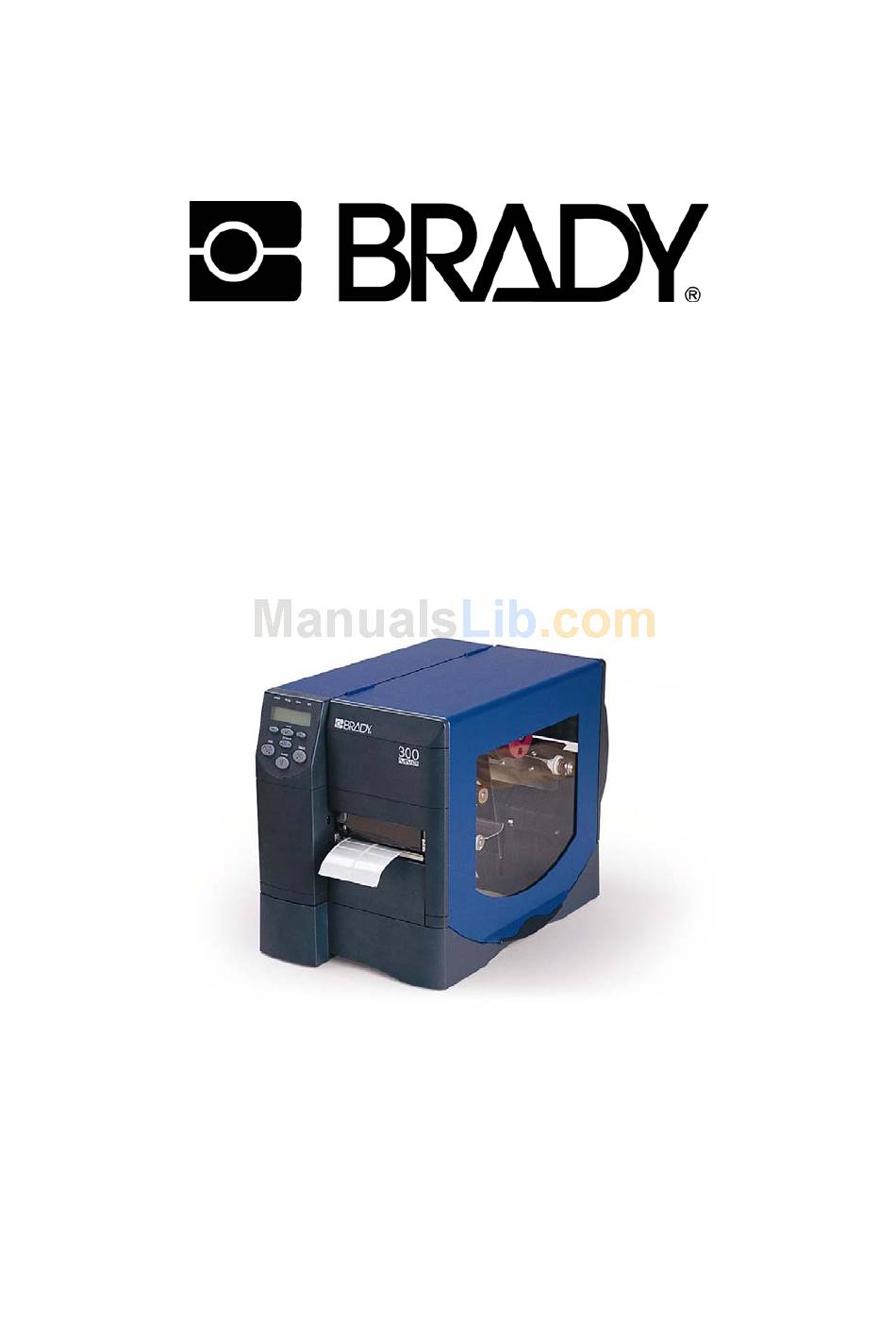

  • Page 1 MVP S ERIES 200MVP & 300MVP HERMAL RINTERS Product Guide May 2003...
  • Page 2: Table Of Contents

    Brady 200MVP, Brady 300MVP versus Zebra105SL...20 Brady 300MVP versus Zebra 90XiIII ...21 Brady 200MVP versus Zebra Z4000 ...22 Brady MVP Series versus CAB Apollo 3 ...23 Brady MVP Series versus Argox 3000 ...24 Brady MVP Series versus Datamax I-4208 ...25 Brady MVP Series versus Intermec E4 ...26...
  • Page 3 NTRODUCTION Brady Corporation, the market leader in labelling solutions, is proud to introduce 200MVP the newest members of the M Series family - the rugged, cost-effective, new and 300MVP thermal transfer printers. The MVP series printers provide the best value in an industrial thermal transfer printer. Available in either 203 or 300 dpi, the MVP printers are easy to operate and loaded with features, including colour-coded operator cues and an LCD display.
  • Page 4: Printer Overview

    RINTER VERVIEW The following sections are designed to quickly familliarise the user with the General Features, Operating Requirements, and Warranty Coverage of the Brady MVP series thermal printers. For more detailed product information, consult the Guide. GENERAL FEATURES / UNIQUE CHARACTERISTICS...
  • Page 5: Operating Requirements

    LCD display are just a few of the ways this printer this printer offers more value per euro than ever before. OPERATING REQUIREMENTS FONT SELECTION Brady MVP series printers each offer an extensive range of font options for the user to choose from, including: Character Fonts 200MVP/300MVP including: (A, B, C, D, E (OCR-B), F, G, H (OCR-A), GS);...
  • Page 6: Label Dispensing/Print Requirements

    A non-Roman font license option is also available which enables various international fonts, including Serif, Sans Serif, Kanji, Hangul and Chinese, to be downloaded to the printer for specialised global applications. NOTE: Asian font license option REQUIRES either 1MB (minimum) Flash...
  • Page 7: User Interface Controls

    Ribbon Orientation: 4. USER INTERFACE CONTROLS AND INDICATOR LIGHTS A MVP series printer is equipped with a standard LCD control panel for easy user interface and operation. A 2-line, 16 character backlit display and tactile feel buttons on the printer’s front panel enable users to fine- tune and control their print settings, whenever needed, in dim or bright light from any angle.
  • Page 8 The LCD display is used in configuring the printer; selecting reports to be printed by the Brady printer which identify available fonts, bar code symbologies, images or formats stored in the printer; or a complete record of the printer’s configuration settings; and diagnostic tests or security passwords.
  • Page 9: Data Indicator

    CANCEL BUTTON The CANCEL key will cancel a print job when the printer is in PAUSE mode. If print jobs are currently printing in a queue from the host computer, pressing the CANCEL key once will cancel the current print job.
  • Page 10: Sensors

    (-) keys to change the value of a selection. Press again to use the (+) and (-) keys to scroll through the menu items. For detailed instructions on how to adjust these settings or for related trouble- shooting tips, refer to the 200MVP/300MVP User’s Guide. SENSORS The following sensor types are contained within the...
  • Page 11 Peel-Off mode instructs the printer to remove the label from its backing and wait until the label is removed by the user before issuing a new label.
  • Page 12: Communication Parameters

    The MVP series host: (1) serial port connection or (2) parallel port connection. The following table highlights the and parallel interface. Printer Port: DB-25 Pin - Serial Printer Port Pinout: Pin # Description Ground TXD 232 (transmit data) output from printer...
  • Page 13 Bi-directional (36 Pin) – Centronics Parallel Printer Port Pinout: Pin # The 8-bit parallel data interface supports bi-directional parallel communications in “nibble mode”. The parallel interface provides a means of communication, which is typically faster than serial interface methods. MVP Series Product Guide...
  • Page 14: Maintenance

    (i.e. bleach) and are composed of biodegradable paper / post consumable and biodegradable glues for easy recycling. (The packaged shipping weight of a 200MVP or 300MVP is approx. 49 lbs. (22kg)). MVP Series Product Guide...
  • Page 15: Printer Tour

    PRINTER TOUR The Printer Overview Diagram below serves to orient the user as to the location of some 200MVP/300MVP of the feature capabilities mentioned throughout this section. 1. Media Access Cover 2. Ribbon Take-Up Spindle 3. Media Supply Unwind 4. Media Supply Guide 5.
  • Page 16: Warranty Information

    (reseller or distributor) will be used to establish the warranty period. PRINTHEAD COVERAGE Brady MVP series warrants printhead for 6 months or 180 days from the date of purchase, regardless of the number of labels printed. RETURNED GOODS UNDER WARRANTY The standard Brady policy is in effect for returning in-warranty product.
  • Page 17: Printhead Mechanism

    Convenient and cost effective to keep printer firmware current with the latest features and enhancements. Updates can be readily downloaded to the printer from Brady’s website, without a service call to replace EPROMS. Faster label processing and throughput provides enhanced productivity.
  • Page 18: Simple Operation

    Minimises label waste by using one label for calibration within typical applications. Page Can confidently sell Brady’s reliable print quality over a range of print applications S A L E S C H A N N E L A D V A N T A G E...
  • Page 19: Modular Design

    Field Installable to order or field retrofit for Options future applications. Improved Serial Both ports are standard on the base printer. An operator can and Parallel utilise either the serial or Communications parallel port to download information from the host.
  • Page 20: Printing Specifications

    • NEW Charcoal grey form design for improved smudge resistance ® • Brady printer driver for Windows 95/98/NT 2000 operating systems • NEW BradyConnect™ - the revolutionary real-time connectivity control solution: ⇒ WebView / Alert – (requires optional ZebraNet™...
  • Page 21: Ribbon Specifications

    1.0" (25.4mm) to 4.50" (114mm) * NOTE: Value-Peel max width: 4.38" (111mm) • Minimum label length: - Rewind mode: 0.25"(6,35 mm) (200MVP)/ .125” (3,17mm)(300MVP) - Peel mode: 1.0" (25.4mm) - Tear-off mode: 0.25" (200MVP)/ .125” (300MVP) - Cutter mode: 1.0" (25.4mm) •...
  • Page 22: Communications Specifications

    Storage/Transportation environment: -40º to 140ºF (-40º to 60ºC) 5% to 85% non-condensing R.H. Preventative Maintenance Brady recommends cleaning the printer on a regular basis using standard Brady printer parts and cleaning supplies. Consult your User’s Guide for further details. •...
  • Page 23: Features & Benefits

    15.5" x 11.2" x 19.5" Footprint (H x W x L): (394 x 283 x 459 mm) MVP Series Product Guide & S PECIFICATIONS 200 Me 200MVP 2375€/3032€ 1795€ 2-10 ips (51-254mm) 203 dpi (8dots/mm) (12mm)($600) 4.09" (104mm) 4.09" (104mm) 106”(2692mm)
  • Page 24: 300Mvp

    STANDARD FEATURES List Price Max. Print Speed (ips) Resolution (dots/mm) Print Width (max. in.) Max. Print Length (Std In.) Transmissive Sensor Dot History Control Bitmapped Fonts Scalable Fonts Frame Construction / Weight LCD Display ROM (Firmware) Standard DRAM Std. Flash Memory 2D Symbologies Calibration Connectivity...
  • Page 25: Print Features

    Brady MVP Series versus CAB A3 B R A D Y vs. CAB PRINT FEATURES Direct thermal, Direct Thermal Print Width, max. Print Length, max. w/std RAM Print Length, optional w/add'l RAM Dots/Inch, std Max Print Speed Auto-Calibration Connectivity & Control Solution...
  • Page 26: Brady Mvp Series Versus Argox 3000

    Brady MVP Series versus Argox 3000 BRADY vs. Argox PRINT FEATURES Direct thermal, Direct Thermal Print Width, max. Print Length, max. w/std RAM Print Length, optional w/add'l RAM Dots/Inch, std Max Print Speed Auto-Calibration Connectivity & Control Solution BradyConnect - Standard...
  • Page 27: Brady Mvp Series Versus Datamax I-4208

    Brady MVP Series versus Datamax I-4208 BRADY vs. Datamax PRINT FEATURES Direct thermal, Direct Thermal Print Width, max. Print Length, max. w/std RAM Print Length, optional w/add'l RAM Dots/Inch, std Max Print Speed Auto-Calibration Connectivity & Control Solution Scalable Fonts Resident...
  • Page 28: Brady Mvp Series Versus Intermec E4

    Brady MVP Series versus Intermec E4 Brady vs. Intermec PRINT FEATURES Direct thermal, Direct Thermal Print Width, max. Print Length, max. w/std RAM Print Length, optional w/add'l RAM Dots/Inch, std Max Print Speed Auto-Calibration Connectivity & Control Solution Scalable Fonts Resident...
  • Page 29: Brady Mvp Series Versus Printronix T4204

    Brady MVP Series versus Printronix T-4204 BRADY vs. Printronix PRINT FEATURES Direct thermal, Direct Thermal Print Width, max. Print Length, max. w/std RAM Print Length, optional w/add'l RAM Dots/Inch, std Max Print Speed Auto-Calibration Connectivity & Control Solution Scalable Fonts Resident...
  • Page 30: Brady Mvp Series Versus Sato Cl408E

    Brady MVP Series versus Sato CL408e BRADY vs. Sato PRINT FEATURES Direct thermal, Direct Thermal Print Width, max. Print Length, max. w/std RAM Print Length, optional w/add'l RAM Dots/Inch, std Max Print Speed Auto-Calibration Connectivity & Control Solution Scalable Fonts Resident...
  • Page 31: Brady Mvp Series Versus Tec B-472

    Brady MVP Series versus TEC B-472 BRADY vs. TEC PRINT FEATURES Direct thermal, Direct Thermal Print Width, max. Print Length, max. w/std RAM Print Length, optional w/add'l RAM Dots/Inch, std Max Print Speed Auto-Calibration Connectivity & Control Solution Scalable Fonts Resident...
