Microsensor MPM4730 Operation Manual page 11

P
P input
Transmitter Ex-proof parameter:
Ui:12.4VDC Ii:140 mADC
Li:0μH Ci:1.049μF Pi:0.43W
Note：
Ui：the highest input voltage, the highest voltage which could work on transmitter
input terminals.
Uo：the highest output voltage, the highest voltage on intrinsically safe circuit
when safe barrier's output side is open.
Ii：the max. input current, the max. current which could work on transmitter input
terminals.
Io：the max. output current, the max. current on intrinsically safe circuit which
could be got from safe barrier output terminals.
Ci：the max. internal capacitance, the internal equal total capacitance which
could exist on transmitter input terminals.
Co：the max. external capacitance, the max. intrinsically safe capacitance which
Danger zone
Black/+V
Red/+0UT
Blue
Yellow(Green)/RS485A
I
White/RS485B
ExiaIIBT6 Ga
barrier

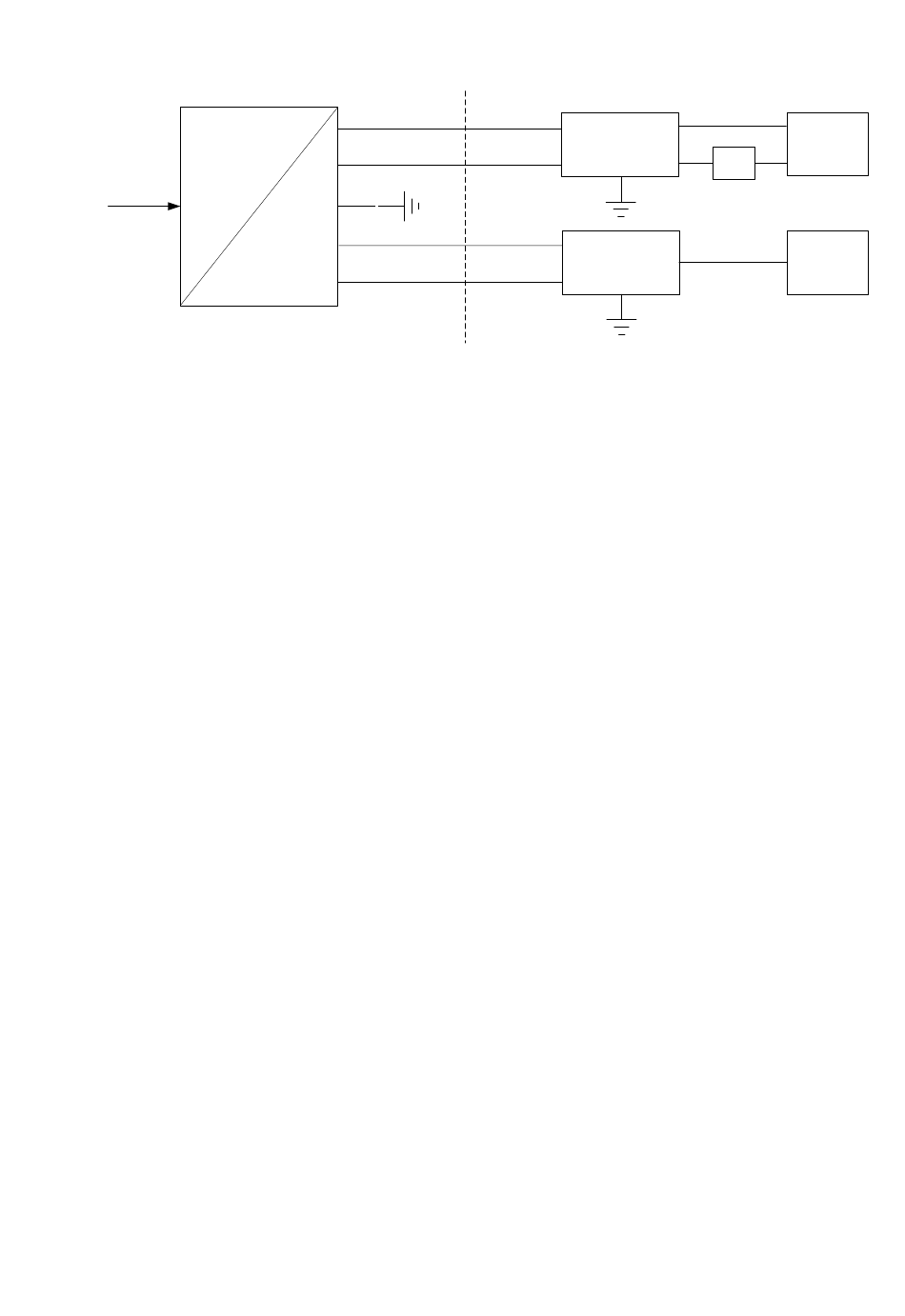

Fig. 10
Safe barrier's ex-proof parameter:
Uo:12.4VDC Io:140mADC Po:0.43W
10
Safety zone
Safety
Load
Safety
barrier
[Exia]IIC
+
Power
-
Computer
