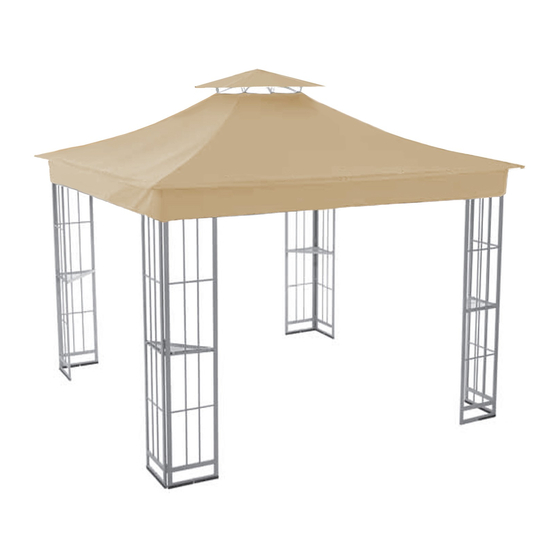

- Page 1 ITEM #0092839 10 FT. SQUARE STEEL GAZEBO MODEL #S-J-109D Français p.10 Español p.19 Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-800-643-0067, 8 a.m. – 8 p.m., EST, Monday – Friday.
-
Page 2: Package Contents
PACKAGE CONTENTS y t i t i t Canopy frame bar Triangular mesh shelf Short connect bar Canopy frame center piece Wind vent canopy Large canopy Top crossbar with metal bracket Top insect net... -
Page 3: Hardware Contents
HARDWARE CONTENTS Part Description Quantity Picture (Shown to size) M4 x 20 L bolt M6 x 30 L bolt 8 + 1 spare M6 x 40 L bolt M6 x 80 L bolt 16 + 1 spare M6 metal washer 8 + 1 spare M6 nut 28 + 1 spare... -
Page 4: Safety Information
SAFETY INFORMATION WARNING • The gazebo is heavy. Handle with care. The gazebo requires two people for safe assembly. CAUTION • Assemble the gazebo on a soft, non-abrasive surface (such as grass) to avoid damage. • The gazebo is not intended to be a permanent structure. Disassemble in the event of inclement weather (strong wind, heavy rain, etc.) to avoid damage. - Page 5 ASSEMBLY INSTRUCTIONS The top crossbar with metal bracket (E) is pre- Figure 3 assembled. Place an M6 nut cap (KK) over each pre-installed nut. Repeat procedure for the three remaining top crossbars with metal brackets (E). See Hardware Used Figure 3. Part Description Quantity Picture...
- Page 6 ASSEMBLY INSTRUCTIONS Place one "L" connect bracket (HH) on the top Figure 6 of an assembled crossbar (D & E) and line up the holes. Insert an M6 x 80 L bolt (DD). Fasten with an M6 nut (GG) using the provided wrenches to tighten the M6 x 80 L bolts (DD).
- Page 7 ASSEMBLY INSTRUCTIONS Figure 9 Insert the top piece of the canopy frame bars (F) into the "U" bracket on the canopy frame center piece (C). Line up the holes and insert an M4 x 20 L bolt (AA). Fasten with an M4 nut (FF) using an M4 hex wrench and Phillips head screwdriver to tighten the M4 x 20 L bolts (AA).
- Page 8 ASSEMBLY INSTRUCTIONS 12) Slip the four ends of the short connect bars (G) Figure 12 into four corner pockets of the large canopy (I). See Figure 12. 13) Secure the gazebo to the ground by inserting Figure 13 lawn stakes (II) through the holes in the bottom of the side panel posts (A) and into the ground.
-
Page 9: Care And Maintenance
ASSEMBLY INSTRUCTIONS Figure 15 15) Secure the canopy to the crossbars (D & E). ® Wrap the Velcro straps under the bar and attach to the canopy. See Figure 15. CARE AND MAINTENANCE Wash with mild soap, rinse with water and let air dry. WARRANTY This warranty is extended to the original purchaser and applies to defects in materials and workmanship of your patio furniture provided your furniture is maintained with care and used only for...
