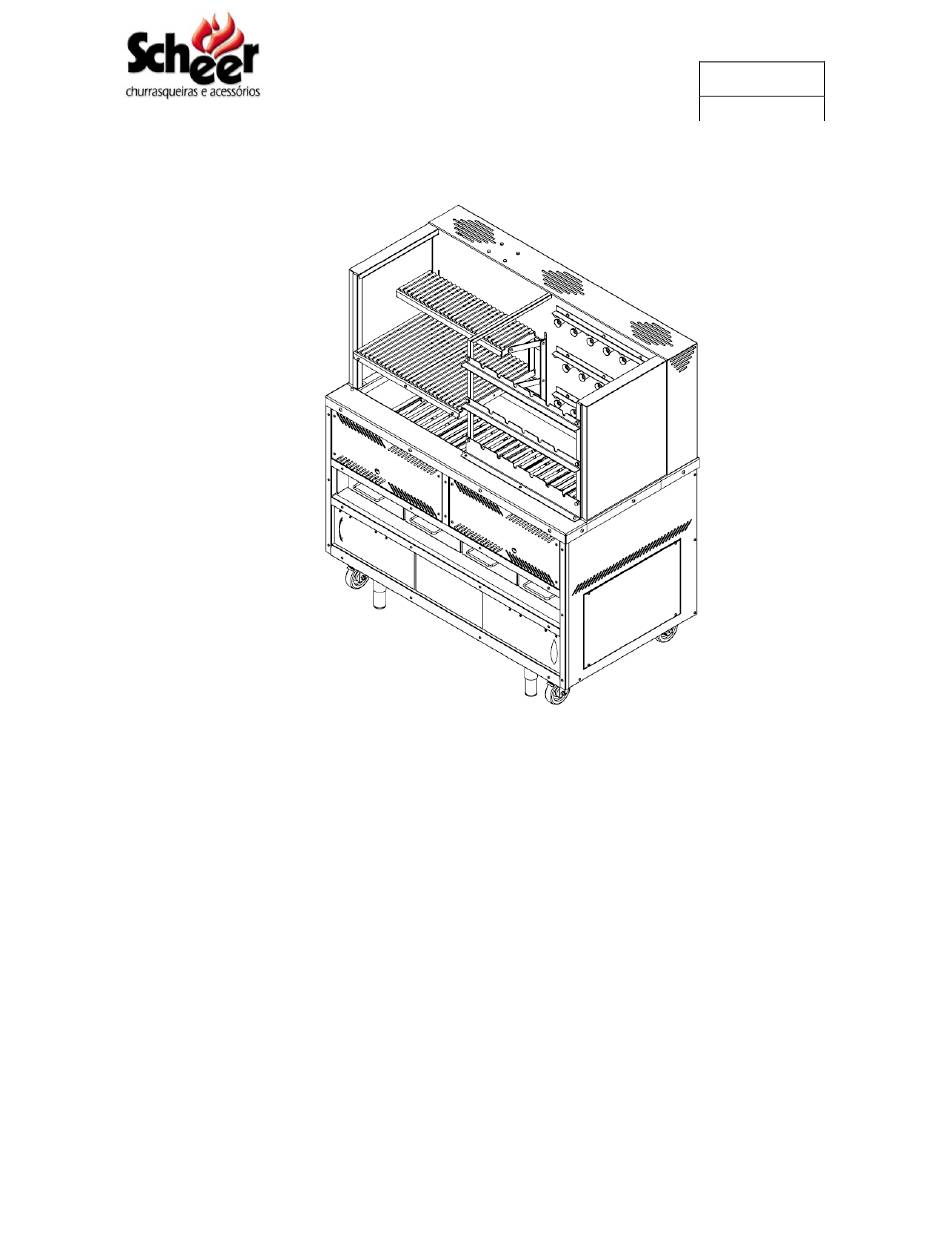

- Page 1 MP-000022 - A Serial Number Model INSTRUCTION MANUAL FOR LVR 350A Operator/Tech Manual: Scheer Churrasqueiras e Acessórios Ltda...
- Page 2 CONGRATULATIONS! You just bought a barbecue grill with the highest technology, design and performance. Now, it will be much easier and faster to prepare your Churrasco. SCHEER CHURRASQUEIRAS thanks for your choice. For your barbecue to perform best, read this manual carefully and follow the instructions correctly.
-
Page 3: Table Of Contents
MP-000022 - A CONTENT WARNINGS ……………………………………………………………………………………02 IMPORTANT INFORMATION....………………………………………………….04 INTRODUCTION TO OPERATOR .................04 SAFETY RULES …………………..…………………………………...…..……………..05 TRANSPORT .………………………………………………………………….………...05 REMOVING THE PACKAGE …………………………..……………………..…………….06 DESCRIPTION ……........……………….………………….……………07 INSTALLATION..……………………………………………………..….……….....08 PLACE INSTALLATION/ APPLIANCE CONNECTION.…………………………………………………………………….09 PILOTS/BURNERS LIGHTING PROCEDURE …………………………………………… 11 WATER AND GAS INSTALLATION .................11 ADJUSTS AND CHECKING .....………………………………………………….14 PREVENTIVE MAINTANACE ....………………………………...…………………17 REMOVING BURNERS .....……………………………………………………………..17 CHANGING THERMOCOUPLES…………………………………………………………….18... -
Page 4: Important Information
MP-000022 - A SCHEER CHURRASQUEIRAS E ACESSÓRIOS IMPORTANAT INFORMATION: • Keep this manual for future information in an easily accessible location; • Installation of the product is the responsibility of the buyer. The installation must be carried out in accordance with the manufacturer's instructions and carried out by qualified and competent persons;... -
Page 5: Safety Rules
• In order to unload the unit we recommend a truck with lift gate; • Check for any signs of hits, drops or malfunctions with responsible for the transport and contact Scheer sales department. • The risks of transportation are the customer's responsibility. Any claim for damages during transportation must be made at the time you receive the product, it must be communicated to the carrier and also to the manufacturer of the product;... - Page 6 MP-000022 - A REMOVING FROM ITS PACKAGE The unit must be unloaded in a flat and firm place can be started the removal of the barbecue from the packaging. After removing the top, side, front and rear cover, remove the machine from the pallet, we recommend the use of a forklift.
-
Page 7: Description
MP-000022 - A DESCRIPTION Parts & Accessories: • 1 unit; • 1 manual; • Skewers (quantity corresponding to the order at the time of purchase); NOTE: The skewers and accessories are shipped separately from the unit; Characteristics: • Stainless steel AISI304 brushed or AISI430 brushed (as requested) and carbon steel; •... - Page 8 MP-000022 - A • Class Construction: Class 1; • Rotating system; • Motor 1/4 HP; • 127VAC -1.65A Power 210W; • 240VAC -1.2A Power 270W; • Semiautomatic firing; • Skewers with stainless steel blades; Types of Gas Used: • LPG or Natural Gas (as requested); Gas consumption (m³...
-
Page 9: Installation
MP-000022 - A INSTALLATION • This installation must conform according local codes (AS/NZS 5601). In the absence of local codes, the installation must conform to the National Fuel Gas Code, ANSI Z223.1, Natural Gas Installation Code, CAN/CGA-B149.2, or the Propane Installation Code, CAN/CGA-149.2. -
Page 10: Place Of Installation/ Appliance
MP-000022 - A • The gas supply should not be restricted from the main meter to machine connection; • Before turning the machine on, supply the water tank by filling it up to approximately 10 cm from the bottom of the tray. PLACE OF INSTALLATION •... - Page 11 MP-000022 - A Appliance – Fixing spot drawing:...
- Page 12 MP-000022 - A LVR 350A: Frontal view: “A” Pilot Valve. “B” Burners adjusment valves “C” Safety gas valve. “D” Ignitor. “E” Up/down grilling system switch “F” Water inlet valve “G” On off switch for the rotisserie system...
-
Page 13: Pilots/Burners Lighting Procedure
MP-000022 - A PILOTS/BURNERS LIGHTING PROCEDURE: 1 – Turn the gas control knob of the Pilot to OPEN/ON position; 2 – Keep the red button pressed which open the gas flow through the Automatic Shut off gas valve. Hold the red button down and press the Ignition button several times until pilot is on. 3 –... - Page 14 MP-000022 - A LAVA ROCK INSTALLATION: • Distribute the lava rocks evenly over the grid covering the entire surface. Lava rocks are best changed every 2-4 weeks or washed for 2nd use, when they start to break down & crumble stop use. Unit Length Qty Lava rock (kg) 1000...
-
Page 15: Adjusts And Checking
MP-000022 - A ADJUSTS AND CHECKING:... - Page 16 MP-000022 - A • To gain access to these set points remove the top front panels; • In figure "A" Thermocouples are a factory fitted part in a fixed position 1cm above the pilot tube & shall not be altered from the design position. •...
- Page 17 MP-000022 - A • If the flame is yellow this indicates that it is missing air for total gas burning that is achieved by regulating the gas and air intake (figure "B",”C”). If the window is closed, causing a small amount of air to enter, the flame obtained will be yellow, because it will have little oxygen to carry out the complete combustion.
-
Page 18: Preventive Maintanace
MP-000022 - A • Installer to fully test operation of the appliance after installation. “A” Lower Grill. “B” Upper side Grill. PREVENTIVE MAINTANACE: Gas System: Check once a week if the burners do not show any irregularities such as: • Not working or working partially; •... -
Page 19: Accessing The Back Side
MP-000022 - A Caution: The gas system malfunction may influence the taste of the meat. ACCESSING THE BACK SIDE... -
Page 20: Back View
MP-000022 - A “A” Remove screws “B” Remove the panels. BACK VIEW... -
Page 21: Eletrical Diagram
MP-000022 - A “A” Rotisserie System electrical panel. “B” Grilling system electrical panel “C” Rotisserie system motor. “D” Grilling system motor. ELECTRICAL DIAGRAM:... - Page 22 MP-000022 - A Rotisserie system electrical diagram: Grilling system electrical diagram:...
-
Page 23: Lubrication
MP-000022 - A ROTISSERIE SYSTEM LUBRICATION: • Lubricate the rotary system once a week. • Where and how? After you turn the machine off, remove the upper rear lock. If you observe near the gears there are 2 holes for the lubrication of the shaft, in front and behind the gears. •... -
Page 24: Cleaning
MP-000022 - A CLEANING: Water tank: • Drain (change the water) and clean every day. • Cleaning of Volcanic Stones: • The stones need to be changed every 2-4 weeks or washed for daily use or about when they start to break. •... -
Page 25: Extra Information
MP-000022 - A “A” For an easier cleaning procedure, these parts below can be removed for cleaning. EXTRA INFORMATION: Before any type of maintenance on the machine it must be disconnected from the mains water, electricity and gas. • In the event of possible interruption of light, gas and water, the entire machine is switched off until service is normalized. -
Page 26: Warranty
For assistance with Scheer products please contact distributor where the purchase was made or directly with our company through the site scheer.com.br. Scheer grills will not be responsible for shipping costs to the store or to the factory without prior authorization. - Page 27 MP-000022 - A neglect, neglect or other ways unfit for basic care. Please pay special attention to the instruction manual to avoid damage to products or accidents. Lava rocks are not under warranty. Burners and heat deflectors have 12 months warranty. MAINTANACE DATE: TEC:...
