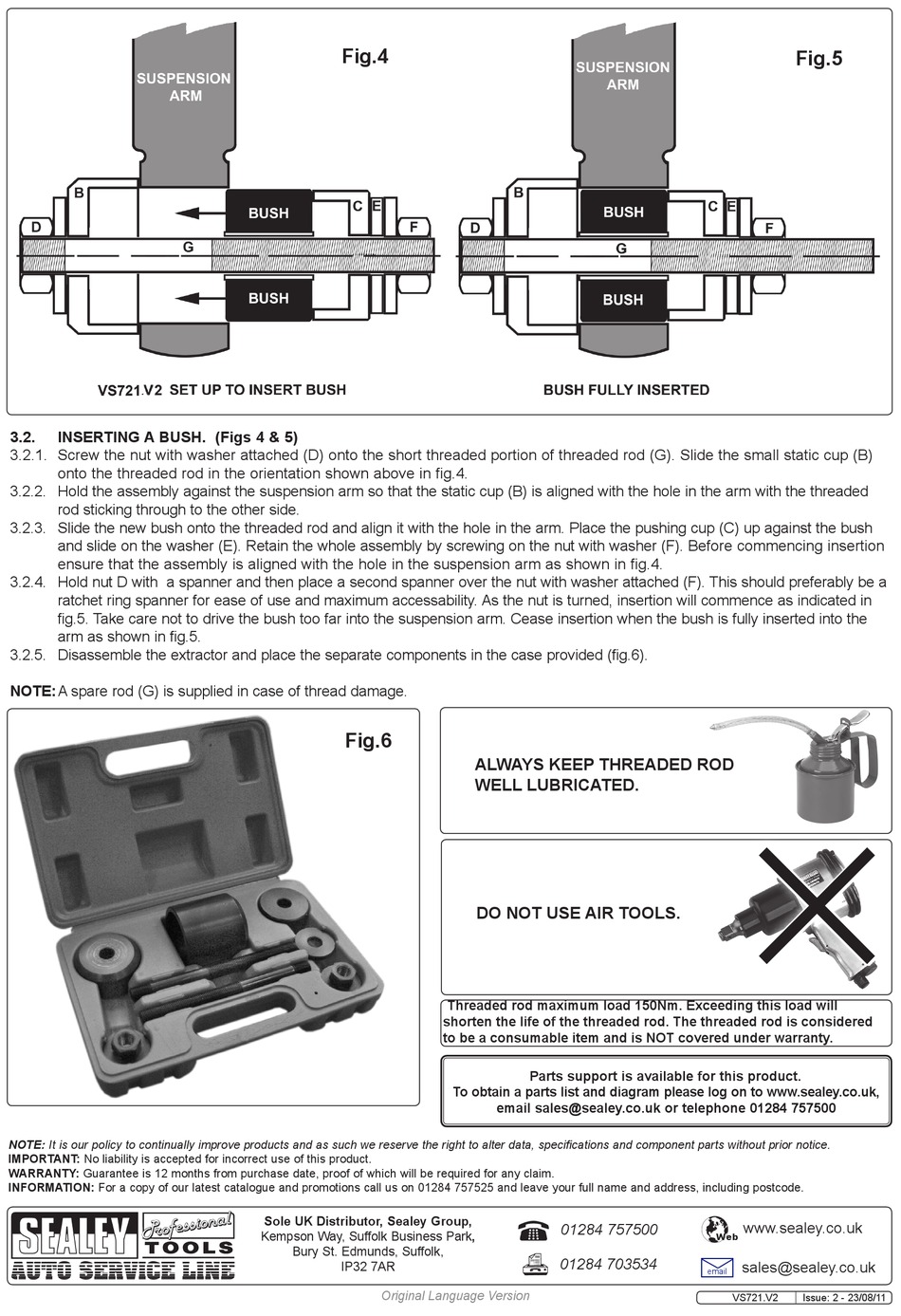

3.2. INSERTING A BUSH. (Figs 4 & 5)
3.2.1. screw the nut with washer attached (d) onto the short threaded portion of threaded rod (G). slide the small static cup (B)
onto the threaded rod in the orientation shown above in fig.4.
3.2.2. Hold the assembly against the suspension arm so that the static cup (B) is aligned with the hole in the arm with the threaded
rod sticking through to the other side.
3.2.3. slide the new bush onto the threaded rod and align it with the hole in the arm. Place the pushing cup (c) up against the bush
and slide on the washer (e). retain the whole assembly by screwing on the nut with washer (f). Before commencing insertion
ensure that the assembly is aligned with the hole in the suspension arm as shown in fig.4.
3.2.4. Hold nut d with a spanner and then place a second spanner over the nut with washer attached (f). this should preferably be a
ratchet ring spanner for ease of use and maximum accessability. As the nut is turned, insertion will commence as indicated in
fig.5. take care not to drive the bush too far into the suspension arm. cease insertion when the bush is fully inserted into the
arm as shown in fig.5.
3.2.5. disassemble the extractor and place the separate components in the case provided (fig.6).
NOTE: A spare rod (G) is supplied in case of thread damage.
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: no liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
INFORMATION: for a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including postcode.
Fig.4
Fig.6
Sole UK Distributor, Sealey Group,
Kempson Way, suffolk Business Park,
Bury st. edmunds, suffolk,
IP32 7Ar
Original Language Version
ALWAYS KEEP THREADED ROD
WELL LUBRICATED.
DO NOT USE AIR TOOLS.
Threaded rod maximum load 150Nm. Exceeding this load will
shorten the life of the threaded rod. The threaded rod is considered
to be a consumable item and is NOT covered under warranty.
Parts support is available for this product.
To obtain a parts list and diagram please log on to www.sealey.co.uk,
email sales@sealey.co.uk or telephone 01284 757500
01284 757500
01284 703534
Fig.5

