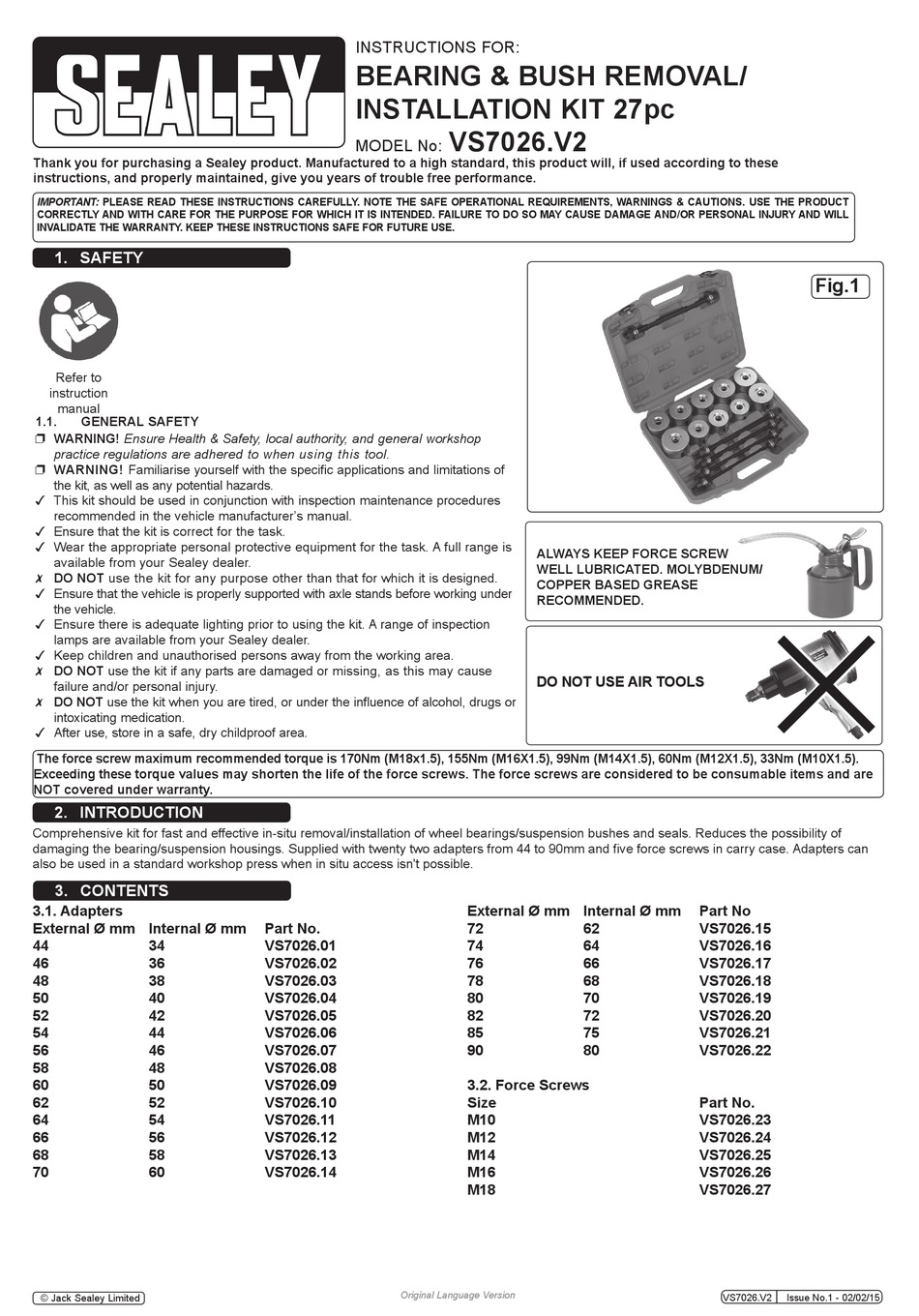

Sealey VS7026.V2 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT
CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL
INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
Refer to
instruction
manual
1.1. GENERAL SAFETY
 WARNING! Ensure Health & Safety, local authority, and general workshop
practice regulations are adhered to when using this tool.
 WARNING! Familiarise yourself with the specific applications and limitations of
the kit, as well as any potential hazards.
 This kit should be used in conjunction with inspection maintenance procedures
recommended in the vehicle manufacturer's manual.
 Ensure that the kit is correct for the task.
 Wear the appropriate personal protective equipment for the task. A full range is
available from your Sealey dealer.
 DO NOT use the kit for any purpose other than that for which it is designed.
 Ensure that the vehicle is properly supported with axle stands before working under
the vehicle.
 Ensure there is adequate lighting prior to using the kit. A range of inspection
lamps are available from your Sealey dealer.
 Keep children and unauthorised persons away from the working area.
 DO NOT use the kit if any parts are damaged or missing, as this may cause
failure and/or personal injury.
 DO NOT use the kit when you are tired, or under the influence of alcohol, drugs or
intoxicating medication.
 After use, store in a safe, dry childproof area.
The force screw maximum recommended torque is 170Nm (M18x1.5), 155Nm (M16X1.5), 99Nm (M14X1.5), 60Nm (M12X1.5), 33Nm (M10X1.5).
Exceeding these torque values may shorten the life of the force screws. The force screws are considered to be consumable items and are
NOT covered under warranty.
2. INTRODUCTION

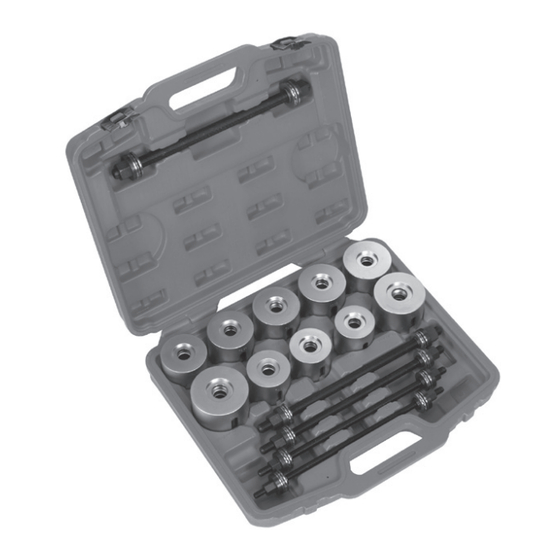

Comprehensive kit for fast and effective in-situ removal/installation of wheel bearings/suspension bushes and seals. Reduces the possibility of
damaging the bearing/suspension housings. Supplied with twenty two adapters from 44 to 90mm and five force screws in carry case. Adapters can
also be used in a standard workshop press when in situ access isn't possible.
3. CONTENTS
3.1. Adapters
External Ø mm Internal Ø mm
44 34
46 36
48 38
50 40
52 42
54 44
56 46
58 48
60 50
62 52
64 54
66 56
68 58
70 60
© Jack Sealey Limited
INSTRUCTIONS FOR:
BEARING & BUSH REMOVAL/
INSTALLATION KIT 27pc
MODEL No:
Part No.
VS7026.01
VS7026.02
VS7026.03
VS7026.04
VS7026.05
VS7026.06
VS7026.07
VS7026.08
VS7026.09
VS7026.10
VS7026.11
VS7026.12
VS7026.13
VS7026.14
Original Language Version
VS7026.V2
ALWAYS KEEP FORCE SCREW
WELL LUBRICATED. MOLYBDENUM/
COPPER BASED GREASE
RECOMMENDED.
DO NOT USE AIR TOOLS
External Ø mm Internal Ø mm
72 62
74 64
76 66
78 68
80 70
82 72
85 75
90 80
3.2. Force Screws
Size
M10
M12
M14
M16
M18
Fig.1

Part No
VS7026.15
VS7026.16
VS7026.17
VS7026.18
VS7026.19
VS7026.20
VS7026.21
VS7026.22
Part No.
VS7026.23
VS7026.24
VS7026.25
VS7026.26
VS7026.27
VS7026.V2 Issue No.1 - 02/02/15
