Pacific Antenna Active Antenna Kit
Description

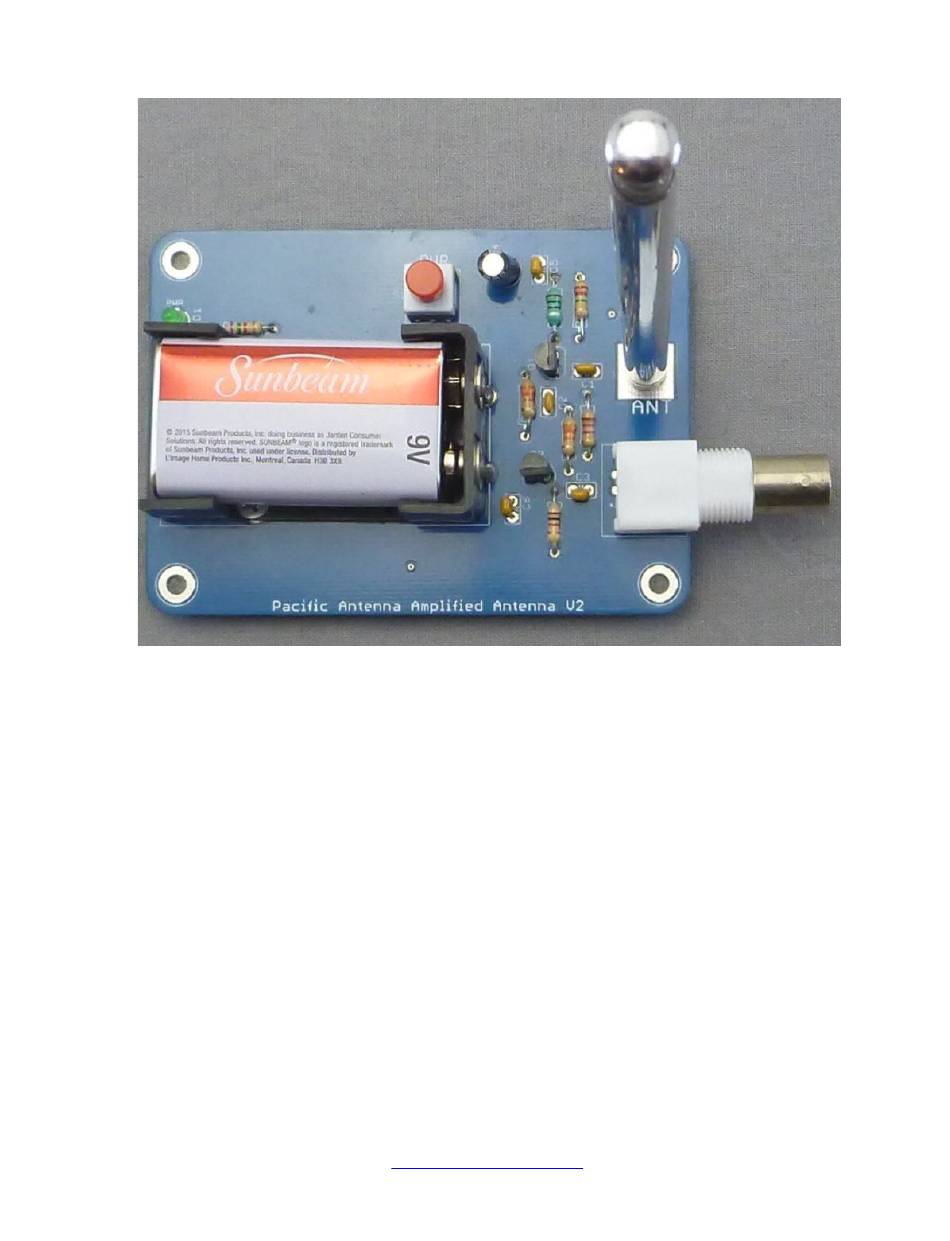

Our active antenna provides an amplified receive antenna giving performance equivalent to a much longer wire
antenna.
It is useful for Ham, shortwave, AM broadcast, and low frequency (lowfer) reception.
It can also be used as a local sense antenna in a noise canceling diversity reception system.
Useful frequency range of approximately 100KHz to over 200Mhz.
Onboard 9V battery supply.
Push button power switch and LED power indicator.
Includes a 38 inch (96 cm) telescoping antenna.
Board Size 2.5 x 3.5 Inches (64 x 89mm)
Support
PACIFIC ANTENNA
QRP KITS.COM
qrpkits.com@gmail.com
1
ActiveAntenna20191111
Copyright Pacific Antenna 2019
Advertisement
Table of Contents
Related Manuals for Pacific Antenna Active Antenna
Summary of Contents for Pacific Antenna Active Antenna
- Page 1 Pacific Antenna Active Antenna Kit Description Our active antenna provides an amplified receive antenna giving performance equivalent to a much longer wire antenna. It is useful for Ham, shortwave, AM broadcast, and low frequency (lowfer) reception. It can also be used as a local sense antenna in a noise canceling diversity reception system.
-
Page 2: Tools Needed
• If you are a beginner, new to soldering, there are a number of resources on the web to help you get on the right track soldering like a pro. Google Soldering Techniques. Here is one good example: http://www.elecraft.com/TechNotes/N0SS_SolderNotes/N0SS_SolderNotesV6.pdf ActiveAntenna20191111 Copyright Pacific Antenna 2019... -
Page 3: Parts Table
4-40 hex nuts 4-40 steel hex nuts Use the first column of the table below to check the parts as you inventory them and use the second column to check the parts as you install them. ActiveAntenna20191111 Copyright Pacific Antenna 2019... - Page 4 Note that C1 may have a brown or blue body depending on the supplier. Check the printed value on its body to confirm. Next, install the 0.01uf (marked 103) monolythic capacitor C2 in the location marked on the board. ActiveAntenna20191111 Copyright Pacific Antenna 2019...
- Page 5 The circuit board has a “+” symbol next to one pad of the LED location. To install, insert the LED so that the long lead (+lead) goes into the hole with the “+” symbol next to it on the board and the shorter lead goes into the other hole. ActiveAntenna20191111 Copyright Pacific Antenna 2019...
-
Page 6: Power Switch
Solder the supplied BNC connector on each end of the board in the position marked J2. Be sure that the connector is fully seated and both small leads extend through the board. Then solder the support pins one at a time. ActiveAntenna20191111 Copyright Pacific Antenna 2019... -
Page 7: Battery Holder
If the kit is not to be mounted in an enclosure, go ahead and install the 4 rubber feet to the bottom corners of the board where the holes are located. This prevents shorts from metal surfaces and protects tabletops, etc from damage from the circuit board. Congratulations, you have completed assembly or your Active Antenna kit! ActiveAntenna20191111 Copyright Pacific Antenna 2019... - Page 8 Usage Use a bnc adapter or cable to attach the active antenna to a receiver. If attaching to a transceiver, use care not to transmit into the active antenna as doing so will likely cause damage. Turn on your receiver and tune to the band of interest. Press the power switch on the active antenna and you should hear a significant increase in background noise and possibly signals.
- Page 9 Board Layout Schematic Diagram ActiveAntenna20191111 Copyright Pacific Antenna 2019...
