en 18 | TCE 260 | Inflation
6.10 The process for mount/ demount the
special wheel
R

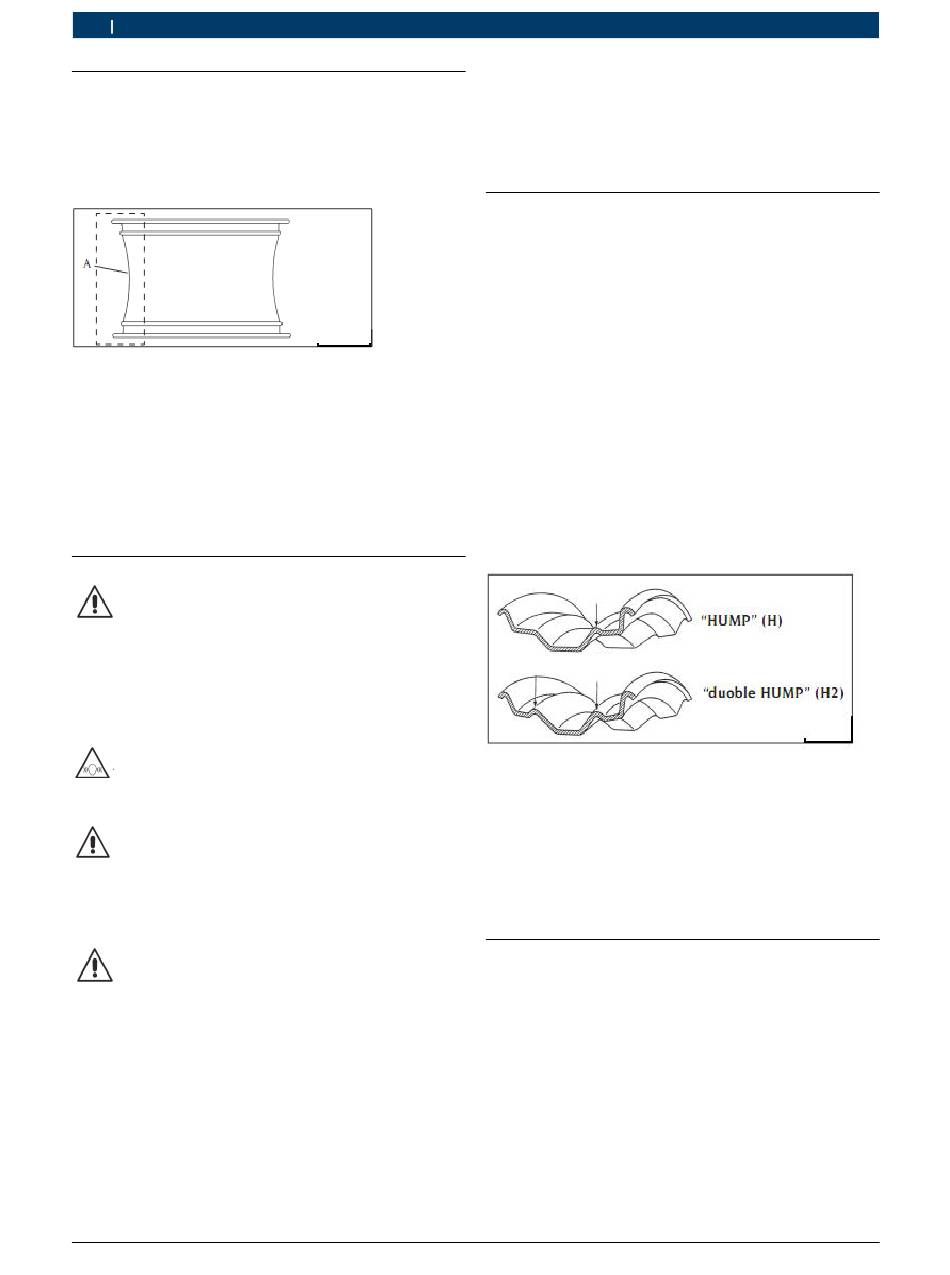

Some special rims, the groove at the middle of the
rim is very shallow or without groove. As shown in
figure below:
R
The demounting process for the wheel, demount up-
per tire edge is different, the hook can't fully catch
the suitable position, the operator need to find best
position according to operation situation, which can
be reduce resistance for wheel.
7.

Inflation

7.1

Warning

Warning
The explosion may cause serious damage to the ope-
rator even death. So you should be more careful and
strictly follow the following use instruction. For the rea-
son that some protective devices are not designed and
manufactured, the operator must wear the goggles and
related protection.
Note
During operation, the noise may reach 85dB(A), so the
operator should wear the related protective devices.
Danger
The machine is equipped with inflation pressure limit
valve, but if the condition of tire and rim is not good or
the operation is incorrect, there is still the possibility of
tire burst.
Danger
Do not exceed the max pressure nominated by the ma-
nufacturer.
During the process to inflate, the operator should keep
away from the tire as far as possible.
1. Carefully check if the size of the rim is same to the
size of the tire.
2. Check the wear state of the tire or whether there is
damage or not.
3. During the process to inflate, frequently check the
pressure inside the tire.
|
1 987 AT7 374 2015-09-02
4. The max. inflation pressure is 3.5bar, under any cir-
cumstance don't exceed manufacturer recommend
pressure.
5. The hand and body should be kept away from the
tire.
7.2

Vacuum tire inflation

1. Secure the rim is firmly fixed on the turntable and
the tool head and the tire pressing disk has been
kept asway from the tire. If possible, it should be
positioned to the farthest point.
2. Mount a new nozzle at the rim.
3. Secure the tire has been completely lubricated.
4. Take out the cup of the nozzle and clamp the gun at
the top end of the core to inflate the tire.
5. Frequently stop inflation and check the pressure in-
side the tire, not exceeding 3.5bar, until the pressure
inside the tire meet the requirement and avoid the
tire pressure not exceeding the max pressure.
6. Vacuum tire needs relatively large air flow. If air flow
is not enough, the bead should not transit the hump.
To increase the air flow, you can take out the core of
the nozzle. As figure, it is very good for the safety of
the car when in runs on the road.
7. Check. The junction between the bead and rim must
be perfect. If there is problem, you must deflate
the tire and repeat breaking bead and lubricate the
bead. Rotate the tire and then inflate the tire.
8. Attach the core to the nozzle.
9. Connect the inflation gun and then press the deflate
button to remove the residual air.
Mount the nozzle.
10.
7.3

Inflate the tubed tyre

1. Secure the rim is firmly fixed on the turntable and
the tool head and the tire pressing disk has been
kept from the tire. If possible, it should be positi-
oned to the farthest point.
2. Secure the tire has been completely lubricated
3. Remove the nozzle, put the inflation gun head to
the air tap head, step down the inflation pedal then
inflate to tire.
4. Push the nozzle on the tube to deflate the air bet-
ween the tube and tire. Or the tube will be damaged.
