MANUAL FRIDGE CONTROL & HIGH AMP INSTALL

9.1 Relay Overview

Fig. 23 shows the recommended Tyco relay
P/N 0-1432793-1. This relay is the only type
of relay to use with the ARP Control up to
v4.x. The v5.x relay just needs to be a
12VDC activation coil type. Terminal 86 is the
+12VDC relay activation and terminal 85 is
the activation ground. These terminals must
have a clamping diode; this is why this type
of relay is required for v4.x and earlier.
WARNING The ARP internal relay is
not warranted against failure due to over
voltage conditions by improper relay
installation.
04/20/20

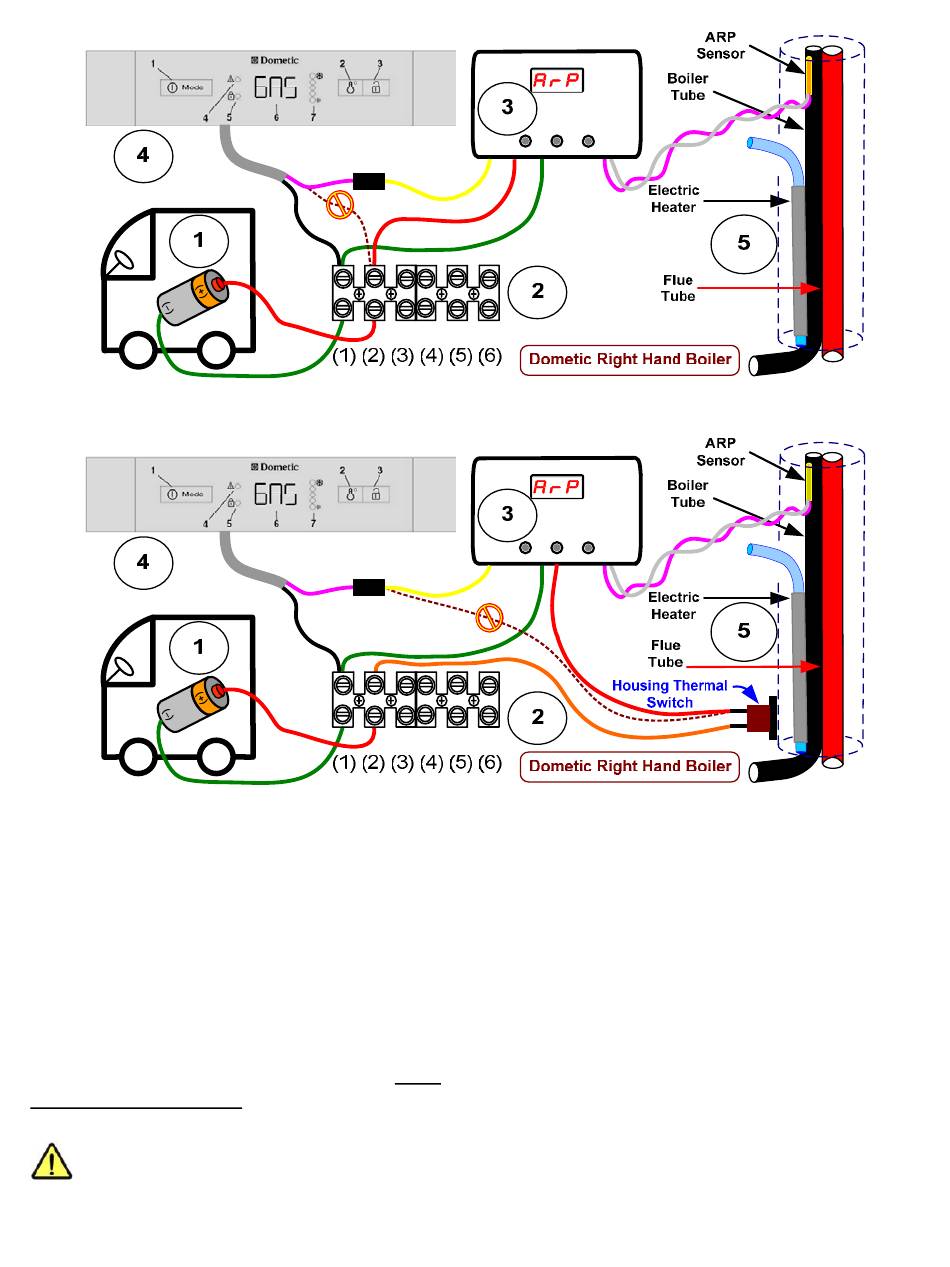

Fig. 21 Dometic RM8555 without Thermal Switch
–
Fig. 22 Dometic RML8555 with Thermal Switch
–
20 © 2013 - 2020 ARPC L.L.C. All rights reserved.
9.2 Typical Manual Fridge Control
Norcold and Dometic
Fig. 23 shows the aforesaid relay
configuration for the control of the manual
type refrigerator safety thermocouple (TC) in
combination with a TC Interrupter.
9.3 Early 3-Way Norcold and
Dometic & Dometic NDR1402
Fig. 24 can be used when wiring either a high
amperage application (greater than 5A) or if
one desires to mount the ARP remote with
long wires controlling the fridge with a relay.
