NORCOLD WIRING GUIDE

7.1 Norcold Early Style Controls

Fig. 8 is a typical early style control board.
Please use Web Resources

7.2 Early Housing Switch Recall

Fig. 9 drawing shows the fridges such as the
N410, N510, N611 and N811 with the boiler
housing thermal switch.

7.3 Late Housing Switch Recall

Fig. 10, the only difference between this
wiring and Fig. 9 is that the ARP is wired
inline with the Norcold controller power
supply rather than the thermal switch.

7.4 Early Style Norcold Recall

Fig. 11 has been included for the special
case of wiring the N611, N811 and 1200
series Norcold fridges that have the NHTSA
recall kit. Note, the recall ground is not shown.

7.5 Late Style Norcold Recall

Fig. 12 only differs from Fig. 11 by the way
that the ARP Control is wired directly inline
Click Here for ARPrv.com Web Resources to use with Following Diagrams
04/20/20 20 © 2013 - 2020 ARPC L.L.C. All rights reserved.

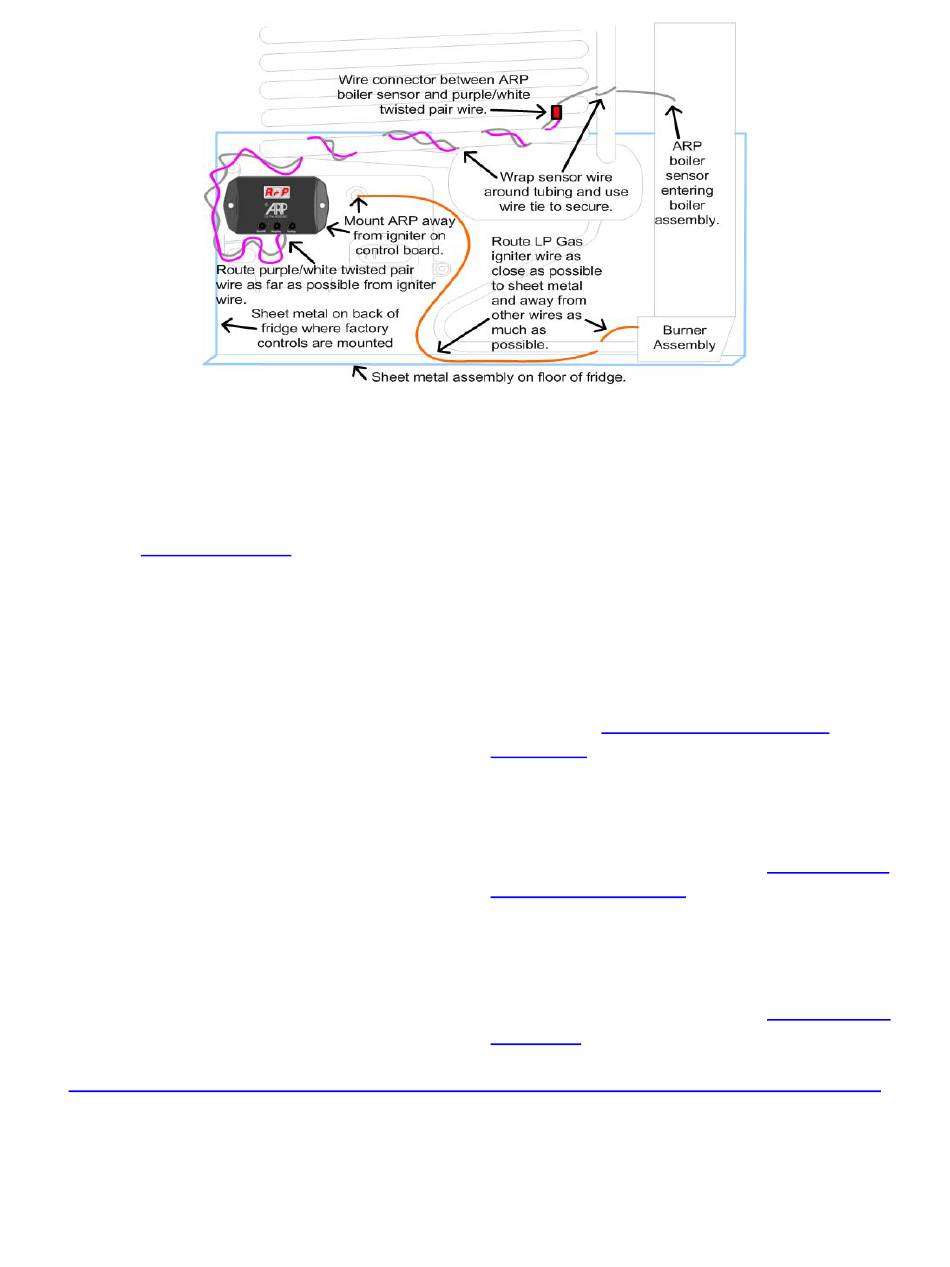

Fig. 7b Boiler Sensor Wire Routing
–
for details.
with the Norcold control box power supply.
Note, the recall ground is not shown.

7.6 Late Style Norcold 3-Way

Fig. 13 shows the late style Norcold 3-way
fridge wiring. Caution needs to be exercised
to wire the ARP Control so that the 12VDC
electric heaters are not powered through the
ARP Control. If in doubt, be sure to put a 3A
inline fuse on the ARP red wire for testing.
Please see 6.2 RV Wire Color-Code
Standards for wiring diagrams.
7.7 Norcold N7, N8, & N10.
Fig. 14 shows the Polar series refrigerators.
Please use this guide combined with the
following webpage for install:
N8x; N10x Webpage
7.8 Norcold N3104 & N3150
Fig. 15 shows the wiring for the N31xx fridge.
Please use this guide combined with the
following webpage for install:
Webpage
