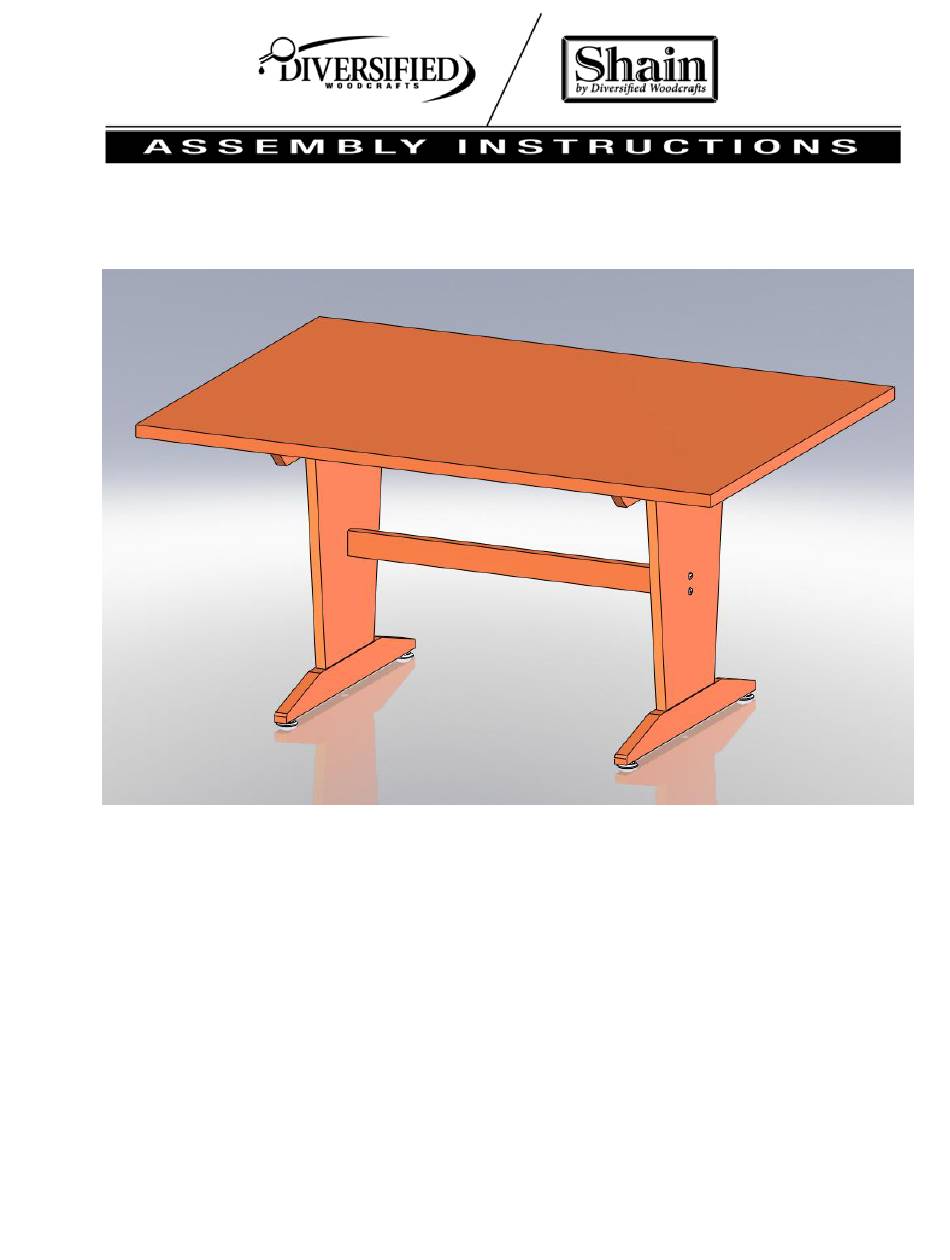

- Page 1 PT-TABLES ASSEMBLY INSTRUCTIONS *Model views may not represent exact model purchased...
- Page 2 TABLE OF CONTENTS ASSEMBLY COMPONENTS_______________________________________3 LEG ASSEMBLY_________________________________________________4 STRETCHERS____________________________________________________4...
-
Page 3: Assembly Components
ASSEMBLY COMPONENTS ITEMS INCLUDED PART # PART# 1-TOP,TABLE 2-LEG,PANEL,PED 227569 4-LEG LEVELER 100079 HARDWARE BOX STRETCHER,LEG 227927 228501 DESCRIPTION DATE Original Created 6-10-09... - Page 4 Assembly Instructions Items not included but needed for assembly: 1. ½” wrench Instructions: 1. Lay the table on the floor with the bottom up. (Be sure to lay the table on a clean surface so you don’t damage the tabletop.) 2.
- Page 5 3. Center legs on top. Attach the legs to the top using 10- screws provided.
- Page 6 4. Screw leg levelers into t-nut in the bottom of the leg. Leg levelers 5. Turn the table over so the top is up. Set your table in place and adjust the leg levelers to level the table.
