- Page 1 Altman Lighting Service & Parts Manual Spectra CYC UV 50 Spectra CYC UV 100 Spectra CYC 50 Spectra CYC 100 Spectra CYC 200 Spectra CYC 400...
- Page 2 Have a question regarding this manual? The material in this manual is for information purposes only and is subject to change without notice. Altman Light- ing assumes no responsibility for any errors or omissions which may appear in this manual.
-
Page 3: Product Safety Notices
Service Manual Spectra Cyc LED Luminaires Important Information Product Safety Notices When using electrical equipment, basic safety precautions should always be followed including the following: a. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. b. Do not use outdoors unless the product is specified to operate in outdoor environments. c. -
Page 4: Fcc Notice
Altman Lighting, Inc., a subsidiary of Altman Stage Lighting Company, Inc., herein referred to as Altman, warrants each new product (except for spare parts or products Altman does not manufacture) for a period of TWO (2) years from date of shipment to correct by repair or replacement any part defect due to faulty material or workmanship. -
Page 5: Table Of Contents
Service Manual Table of Contents Important Information Product Safety Notices ..................................1 WARNINGS ......................................1 FCC Notice Altman Lighting Product Warranty ..............................2 Table of Contents About This Manual Product Descriptions ..................................5 Spectra Series CYC Optional Accessories ............................5 Spectra Series CYC Other Accessories ............................5 Features Spectra Series CYC Standard Features............................6... - Page 6 Service Manual Spectra Cyc LED Luminaires Drawing Assembly Spectra CYC 50 Main Assembly ..............................32 Spectra CYC 50 Front Assembly ..............................33 Spectra CYC 50 Rear Assembly ..............................34 Spectra CYC 100 Main Assembly ..............................35 Spectra CYC 100 Front Assembly ..............................36 Spectra CYC 100 Rear Assembly ..............................37 Spectra CYC 200 Main Assembly ..............................38 Spectra CYC 200 Front Assembly ..............................39 Spectra CYC 200 Rear Assembly ..............................40...
-
Page 7: About This Manual

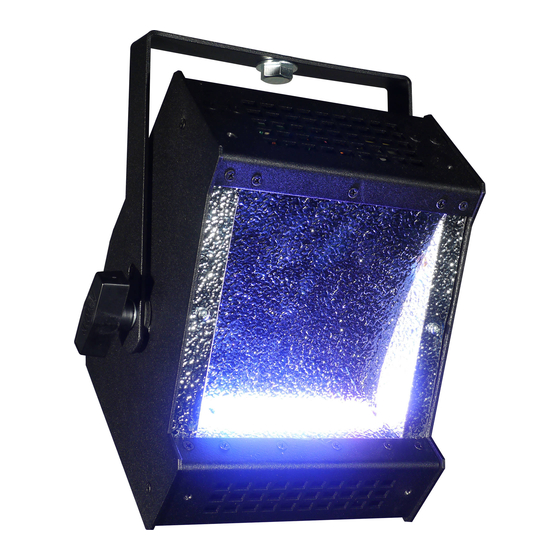

• Spectra Series Cyc Luminaires Please read all instructions before installing or using this product. Retain this manual for future Product Descriptions Part Number Description SSCYCUV50-* Spectra Cyc UV 50 SSCYC50-* Spectra Cyc 50 SSCYC100-UV-* Spectra Cyc UV 100 SSCYC100-* Spectra Cyc 100... -
Page 8: Features
• Convection cooled, no fans • cETLus listed for indoor use and CE marked • Made in the USA Spectra Series CYC Specific Features Spectra CYC UV 50 and UV 100 • Uses 365nm UV LEDs Spectra Series CYC Weight and Dimension Model Number... -
Page 9: Troubleshooting
Troubleshooting Guide The chart below provides possible causes and remedies for various error messages and/or symptoms. If this chart is unable to address your issue, please contact your authorized dealer or Altman technical supprot at 1.914.476.7987 or support@altmanlighting.com for assistance. -
Page 10: Maintenance Procedure
Service Manual Spectra Cyc LED Luminaires Maintenance Procedure How to Disassemble a Spectra Series CYC Fixture Note: The following will show you how to take a SSCYC100 apart but the same can be done for the 50, 200 and 400 units. -
Page 11: How To Replace The Led Board On A Spectra Series Cyc Fixture
Spectra Cyc LED Luminaires Service Manual Maintenance Procedure How to Replace the LED Board on a Spectra Series CYC Fixture Note: The following will show you how to take a SSCYC100 apart but the same can be done for the 50, 200 and 400 units. -
Page 12: How To Replace The Led Driver Card On A Spectra Series Cyc Fixture
Service Manual Spectra Cyc LED Luminaires Maintenance Procedure How to Replace the LED Driver Card on a Spectra Series CYC Fixture Note: The following will show you how to take a SSCYC100 apart but the same can be done for the 50, 200 and 400 units. -
Page 13: How To Replace The Led Processor On A Spectra Series Cyc Fixture
Spectra Cyc LED Luminaires Service Manual Maintenance Procedure How to Replace the LED Processor on a Spectra Series CYC Fixture Note: The following will show you how to take a SSCYC100 apart but the same can be done for the 50, 200 and 400 units. -
Page 14: How To Replace The Power Supply On A Spectra Series Cyc Fixture
Service Manual Spectra Cyc LED Luminaires Maintenance Procedure How to Replace the Power Supply on a Spectra Series CYC Fixture Note: The following will show you how to take a SSCYC100 apart but the same can be done for the 50, 200 and 400 units. -
Page 15: Firmware Update Procedure On A Spectra Series Cyc Fixture
Spectra Cyc LED Luminaires Service Manual Maintenance Procedure Firmware Update Procedure on a Spectra Series CYC Fixture DANGER: Before beginning procedure BE SURE AC LINE POWER IS DISCONNECTED. The following Tools will be needed to complete this task 1 x Phillips Head Screwdriver 1 x PICKit3 The following steps will walk you thru how to Update Firmware to a Spectra CYC. -
Page 16: Manual Calibration Procedure On A Spectra Series Cyc Fixture
Service Manual Spectra Cyc LED Luminaires Maintenance Procedure Manual Calibration Procedure on a Spectra Series CYC Fixture The following Tools will be needed to complete this task 1 x DMX Controller Calibration mode requirements to be set prior to entering calibration mode: The DMX address must be set to the desired address to be used during calibration. -
Page 17: Manual Calibration Procedure On A Spectra Series Cyc Fixture
Spectra Cyc LED Luminaires Service Manual Maintenance Procedure Manual Calibration Procedure on a Spectra Series CYC Fixture Note: Write down the specific intensity levels as your color matching for the unit that is being calibrated. Then set all 4 channels to the levels you choose during color matching. Set your reference fixture channels to 100% and compare the two fixtures making sure that white wash is matching. -
Page 18: Spare Parts
Service Manual Spectra Cyc LED Luminaires Spare Parts Part Number Description Purpose 37-0015 5/16-18 X 1-1/2 T-Handle Black T-Handle Black 38-0149 5/16-18 X 1-1/4L Rubber Bumper Feet 50-CINT1175A480 48V 120W 100-240V Input Power Supply 61-10DKAG5 EMI FILTER 115/250V 10A EMI Filter 60-0029 4A Ckt Breaker Circuit Breaker... -
Page 19: Wiring Diagram
Spectra Cyc LED Luminaires Service Manual Wiring Diagram Spectra Cyc 50 INPUT SUPPLY DMX PIN IN PIN 1: DMX COMMON ( GREEN ) DMX PIN OUT PIN 2: DATA - ( WHITE ) PIN 1: DMX COMMON ( BROWN ) PIN 3: DATA + ( BLACK ) PIN 2: DATA - ( RED ) PIN 3: DATA + ( ORANGE ) -
Page 20: Spectra Cyc 200
Service Manual Spectra Cyc LED Luminaires Wiring Diagram Spectra Cyc 200... -
Page 21: Spectra Cyc 400
Spectra Cyc LED Luminaires Service Manual Wiring Diagram Spectra Cyc 400... -
Page 22: Wire Harness
Service Manual Spectra Cyc LED Luminaires Wire Harness 54-5420 - Spectra Cyc Wire Harness C – DMX In to Processor 54-5425 - Spectra Cyc Wire Harness – DMX Out to Processor 54-5435 - Wire Harness F – Ribbon Cable Driver to Light Engine... -
Page 23: Schematics
Spectra Cyc LED Luminaires Service Manual Schematics 61-0465 LED Driver Board Schematics... -
Page 24: 61-0465 Led Driver Board Bom
Service Manual Spectra Cyc LED Luminaires Schematics 61-0465 LED Driver Board BOM Designator Description Value Manufacturer Manufacturer P/N Capacitor, 1.0uF, 16V, C1, C2, C3, C4 1.0uf Kemet T491A105K016AT tant. C5, C6, C7, C8, C9, Capacitor, 47uF, 50V, 47uF 50V United Chemi-Con EMVY500ADA470M- C10, C11 electrolytic... -
Page 25: 61-0510 Led Driver Board Schematics
Spectra Cyc LED Luminaires Service Manual Schematics 61-0510 LED Driver Board Schematics... -
Page 26: 61-0510 Led Driver Board Bom
Service Manual Spectra Cyc LED Luminaires Schematics 61-0510 LED Driver Board BOM Designator Description Value Manufacturer Manufacturer P/N Capacitor, 1.0uF, 16V, C1, C2, C3, C4 1.0uf Kemet T491A105K016AT tant. C5, C6, C7, C8, C9, Capacitor, 47uF, 50V, 47uF 50V United Chemi-Con EMVY500ADA470M- C10, C11 electrolytic... -
Page 27: 61-0460 Led Driver Board Schematics
Spectra Cyc LED Luminaires Service Manual Schematics 61-0460 LED Driver Board Schematics... -
Page 28: 61-0460 Led Driver Board Bom
Service Manual Spectra Cyc LED Luminaires Schematics 61-0460 LED Driver Board BOM Designator Description Value Manufacturer Manufacturer P/N 2 pos Shunt, 0.1” JP1, JP2, JP3, JP4 Shunt Amp/Tyco 881545-2 spacing C1,C5, C8 Capacitor, 0.1uF, 50V, Kemet C0805C104K5RACTU ceramic, 0805 Capacitor, 1.0uF, 16V, Kemet T491A105K016AT tant. -
Page 29: 61-0455 Led Driver Board Schematics
Spectra Cyc LED Luminaires Service Manual Schematics 61-0455 LED Driver Board Schematics... -
Page 30: Led Driver Board Bom - Rgba Board
61-0455-25 LED Driver Board BOM - RGBA Board QTY Designator MFR Part# Description Bare Board Altman 61-0455 PCB (bare) Altman Part# 61-0455 RevH Molex 0878325923 2mm Milli-Grid Header 20 pos SMD Murata NCP21XM472J03RA NTC Thermistor 4.7K ohm SMD 0805 D01-D12... -
Page 31: 61-0600 Led Driver Board Schematics
61-0600-25 LED Driver Board BOM - RGBA Board QTY Designator MFR Part# Description Bare Board Altman 61-0600 PCB (bare) Altman Part# 61-0600 RevH Molex 0878325923 2mm Milli-Grid Header 20 pos SMD Murata NCP21XM472J03RA NTC Thermistor 4.7K ohm SMD 0805 D01-D6... -
Page 32: Led Driver Board Bom - Rgbw Board
61-0600-30 LED Driver Board BOM - RGBW Board QTY Designator MFR Part# Description Bare Board Altman 61-0600 PCB (bare) Altman Part# 61-0600 RevH Molex 0878325923 2mm Milli-Grid Header 20 pos SMD Murata NCP21XM472J03RA NTC Thermistor 4.7K ohm SMD 0805 D01-D6... -
Page 33: Led Driver Board Schematics
61-0621-25 LED Driver Board Schematics 61-0621-25 LED Driver Board BOM - UV Board QTY Designator MFR Part# Description Bare Board Altman 61-0621 PCB (bare) Altman Part# 61-0621 RevH Molex 87832-5923 20-Pos SMD Molex Murata NCP21XM472J03RA NTC Thermistor 4.7K ohm SMD 0805 D01-D9... -
Page 34: Spectra Cyc 50 Main Assembly
Spectra CYC 50 Main Assembly Service Manual Spectra Cyc LED Luminaires BOLD = Sub Assembly Color Code = Object = MFG, Number Not For Sale = Obsolete = Part Number/ Note SSCYC50-YOKE-* 32-FW500 SSCYC50-YOKE-* 30-STQ50064 20-5901 SSCYC50-YOKE-* SSCYC50-YOKE-* 30-FHP0606-BZ (6) Rear Assembly 20-5890 20-5895... -
Page 35: Spectra Cyc 50 Front Assembly
Spectra CYC 50 Front Assembly Spectra Cyc LED Luminaires Service Manual BOLD = Sub Assembly Color Code = Object = MFG, Number Not For Sale = Obsolete = Part Number/ Note 14-0580 20-4986 30-PHP0610 (2) 20-5876 30-FHP0606 (5) 20-4998 (2) 20-4984 61-0470 25-5860... -
Page 36: Spectra Cyc 50 Rear Assembly
Spectra CYC 50 Rear Assembly Service Manual Spectra Cyc LED Luminaires BOLD = Sub Assembly Color Code = Object = MFG, Number Not For Sale = Obsolete = Part Number/ Note 30-FHP0412-BZ (4) 20-5850 30-FHP0606-BZ (4) 52-NAC3MPB-1 52-NAC3MPA-1 30-FHP0406-BZ (4) 26-RAF2057440A0 (4) 61-0460-45 30-PHP0404 (4) -
Page 37: Spectra Cyc 100 Main Assembly
Spectra CYC 100 Main Assembly Spectra Cyc LED Luminaires Service Manual BOLD = Sub Assembly Color Code = Object = MFG, Number Not For Sale = Obsolete = Part Number/ Note SSCYC100-YOKE-* 20-4995 SSCYC100-YOKE-* 32-FW500 SSCYC100-YOKE-* 30-STQ50064 SSCYC100-YOKE-* 30-FHP0606-BZ (6) 20-4992 Rear Assembly 20-4993... -
Page 38: Spectra Cyc 100 Front Assembly
Spectra CYC 100 Front Assembly Service Manual Spectra Cyc LED Luminaires BOLD = Sub Assembly Color Code = Object = MFG, Number Not For Sale = Obsolete = Part Number/ Note 30-PHP0610 (2) 14-0580 20-4986 30-FHP0606 (5) 20-4983 20-4998 (2) 20-4984 30-PHP0606 (6) 20-4987... -
Page 39: Spectra Cyc 100 Rear Assembly
Spectra CYC 100 Rear Assembly Spectra Cyc LED Luminaires Service Manual BOLD = Sub Assembly Color Code = Object = MFG, Number Not For Sale = Obsolete = Part Number/ Note 30-FHP0606-BZ (2) 20-5850 30-FHP0406-BZ (4) 30-FHP0412-BZ (4) 52-NAC3MPB-1 52-NAC3MPA-1 26-RAF2057440A0 (4) 30-HN04 (8) 60-0029... -
Page 40: Spectra Cyc 200 Main Assembly
Spectra CYC 200 Main Assembly Service Manual Spectra Cyc LED Luminaires BOLD = Sub Assembly Color Code = Object = MFG, Number Not For Sale = Obsolete = Part Number/ Note SSCYC200-YOKE-* 32-FW500 SSCYC200-YOKE-* 20-5709 SSCYC200-YOKE-* 20-4992 30-FHP0606-BZ (6) 30-STQ50064 SSCYC200-YOKE-* Rear Assembly 20-4993... -
Page 41: Spectra Cyc 200 Front Assembly
Spectra CYC 200 Front Assembly Spectra Cyc LED Luminaires Service Manual BOLD = Sub Assembly Color Code = Object = MFG, Number Not For Sale = Obsolete = Part Number/ Note 30-PHP0610 (4) 14-0580 (2) 30-FHP0606 (10) 20-4986 (2) 20-4998 (2) 20-5707 20-4984 20-5700... -
Page 42: Spectra Cyc 200 Rear Assembly
Spectra CYC 200 Rear Assembly Service Manual Spectra Cyc LED Luminaires BOLD = Sub Assembly Color Code = Object = MFG, Number Not For Sale = Obsolete = Part Number/ Note 20-5819 52-NAC3MPB-1 52-NAC3MPA-1 30-FHP0406-BZ (8) 30-FHP0412-BZ (8) 30-HN04 (8) 30-PHP0606-BZ (8) 26-RAF2057440A0 (8) 30-FHP0408-BZ (8) -
Page 43: Spectra Cyc 400 Main Assembly
Spectra CYC 400 Main Assembly Spectra Cyc LED Luminaires Service Manual BOLD = Sub Assembly Color Code = Object = MFG, Number Not For Sale = Obsolete = Part Number/ Note 32-FW500 510-HD SSCYC400-YOKE-* SSCYC400-YOKE-* 20-5713 SSCYC400-YOKE-* 20-4992 30-STQ50064 30-FHP0606-BZ (6) SSCYC400-YOKE-* Rear Assembly 20-4993... -
Page 44: Spectra Cyc 400 Front Assembly
Spectra CYC 400 Front Assembly Service Manual Spectra Cyc LED Luminaires BOLD = Sub Assembly Color Code = Object = MFG, Number Not For Sale = Obsolete = Part Number/ Note 14-0580 (4) 30-FHP0606 (10) 30-PHP0610 (20) 20-4998 (2) 20-4984 20-4986 (4) 20-7097 20-7096... -
Page 45: Spectra Cyc 400 Rear Assembly
Spectra CYC 400 Rear Assembly Spectra Cyc LED Luminaires Service Manual BOLD = Sub Assembly Color Code = Object = MFG, Number Not For Sale = Obsolete = Part Number/ Note 30-HN04 (8) 52-NAC3MPA-1 52-NAC3MPB-1 51-NC5FDLB1 51-NC5MDLB1 20-5719 30-FHP0412-BZ (4) 30-FHP0406-BZ (4) 30-FHP0408-BZ (8) 26-RAF2057440A0 (24)
