A L T M A N L I G H T I N G , I N C .
SS-UV30 Spectra-UV LED Series Manual
Installation and Instruction
2010 Altman Lighting, Inc.
57 Alexander Street
Yonkers, New York 10701 U.S.A.
Phone 914.476.7987 •• Fax 914.963.7304
(Specifications are subject to change without notice)
Copyright© 2010 Rev 2010-08-30
www.altmanlighting.com
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS-UV30 and is the answer not in the manual?

Questions and answers

Related Manuals for Altman SS-UV30

Summary of Contents for Altman SS-UV30

  • Page 1 A L T M A N L I G H T I N G , I N C . SS-UV30 Spectra-UV LED Series Manual Installation and Instruction 2010 Altman Lighting, Inc. 57 Alexander Street Yonkers, New York 10701 U.S.A. Phone 914.476.7987 •• Fax 914.963.7304 (Specifications are subject to change without notice) Copyright©...

  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS INSTRUCTIONS DE SÛRETÉ LES INSTRUCTIONS AU SUJET D' UN INSTRUCTIONS PERTAINING TO A RISK OF RISQUE D'INCENDIE LE CHOC FIRE, ELECTRICAL SHOCK, OR INJURY TO ÉLECTRIQUE, OU LA BLESSURE AUX PERSONS FOR SS-UV3 SERIES LED LIGHTING PERSONNES POUR SS-UV3 APP AREILS FIXTURES.

  • Page 3: Packing List

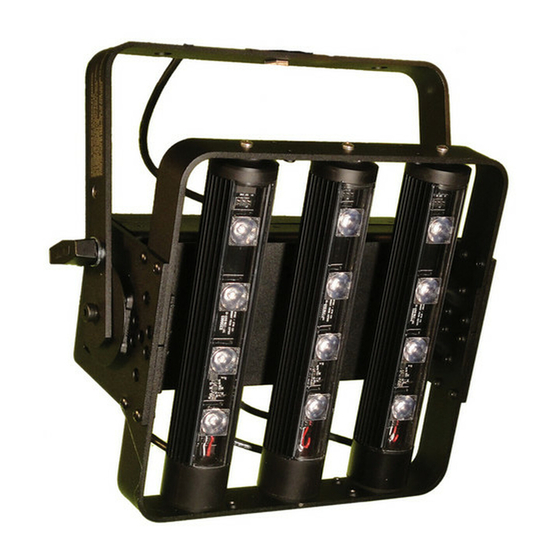

    Series Solid State Lighting Fixture DESCRIPTION he SS-UV30 LED lighting fixture is a portable indoor unit with an IEC power input and Edison power output receptacle with male and female DMX-512 data flush panel mount receptacles. The overall construction of the fixture includes corrosion protected aluminum sheet metal housing and allows for a yoke and mounting brackets.
